🔧 Product Description

Aftermarket Volvo Penta Two-Line Hydraulic Trim-Hose Kit - Part Number: 857624

Matched replacement pair of hydraulic lines for early Volvo Penta 290, SP-A and DP-A power-trim systems. The two lines renew the paired pressure/return connections used by the trim-cylinder circuit.

⚙️ Key Features

• Two-line matched hydraulic hose set

• Correct companion hoses for the applicable early Aquamatic trim system

• Replaces the 853708/853709 and 854752 hose-set family

• Suitable for complete paired renewal rather than replacing one aged hose

• Marine hydraulic fittings and pressure-rated hose construction

📋 Kit / Assembly Contents

• 1 × Hydraulic trim hose - earlier individual reference 853708

• 1 × Companion hydraulic trim hose - earlier individual reference 853709

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 857624 → Later hose-kit reference

• 854752 → Earlier complete hose-set reference

• 853708 and 853709 → Earlier individual hose references

• 852847 → Related earlier hose-kit reference

OEM / Related Numbers:

• 857624

• 854752

• 853708

• 853709

• 852847

• RM857624

• REC857624

Aftermarket / Verified Equivalents:

• Recmar: RM857624 / REC857624

• Aftermarket two-line 857624 hose kits

🚤 Compatibility

Commonly used on:

• Volvo Penta early 290/SP-A/DP-A dual-cylinder trim circuits

Typically suits:

• Engine / drive models:

• 290, 290A and 290DP

• SP-A, SP-A1 and SP-A2

• DP-A, DP-A1 and DP-A2

• Associated MD30A, MD31A, MD40A and TMD41A sterndrive packages using these drives

• HP Range: Drive application; engine output depends on the propulsion package

• Engine / Drive Type: Two-line high-pressure sterndrive trim-hose set

• Year Range: Approximately mid-1980s-mid-1990s

• Serial / Identification Range: Confirm hose-end orientation and that the drive diagram lists 857624, 854752, 853708 or 853709.

🔌 Function

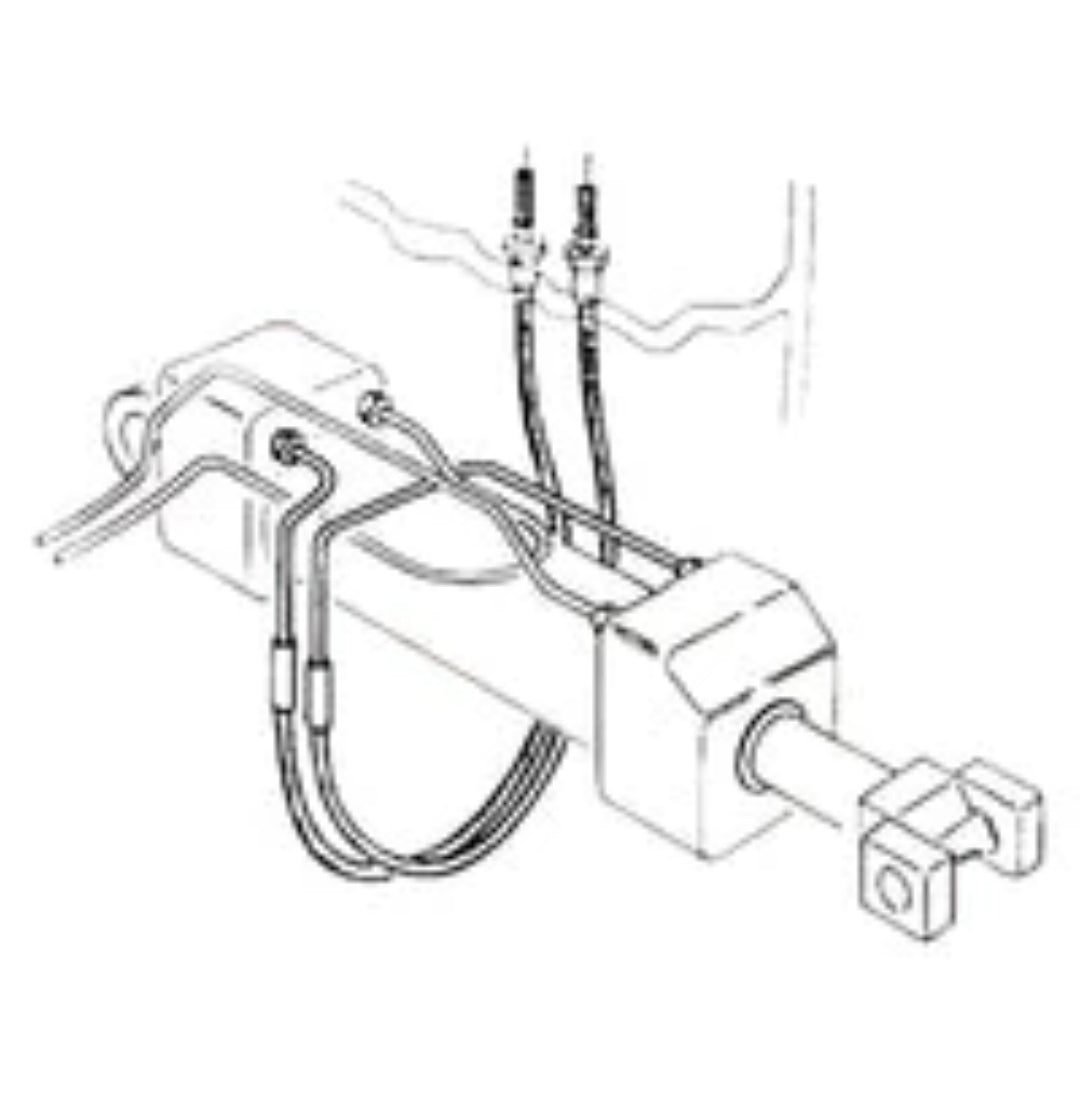

Routes hydraulic fluid between the pump/manifold and trim cylinders, providing the paired pressure paths needed to extend and retract the rams.

Common signs of failure or replacement requirement:

• Fluid leakage at crimps or fittings

• Cracked or abraded hose outer covering

• Uneven cylinder movement from pressure loss

• Air entering the circuit and causing jerky operation

• Drive drifts down or cannot reach full tilt

📦 Condition

• Brand-new aftermarket replacement part

• Supplied as a new replacement component

• Supplied in suitable retail or equivalent packaging
