• 858914T1 Mercury Harness | Genuine Used Part
1 1

858914T1 Mercury Harness | Genuine Used Part

858914T1 Mercury Harness | Genuine Used Part

$32.00 AUD
$32.00 AUD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

✓ Authorised Volvo Penta Dealer · Genuine used marine parts · Ships Australia-wide

🔧 Product Description

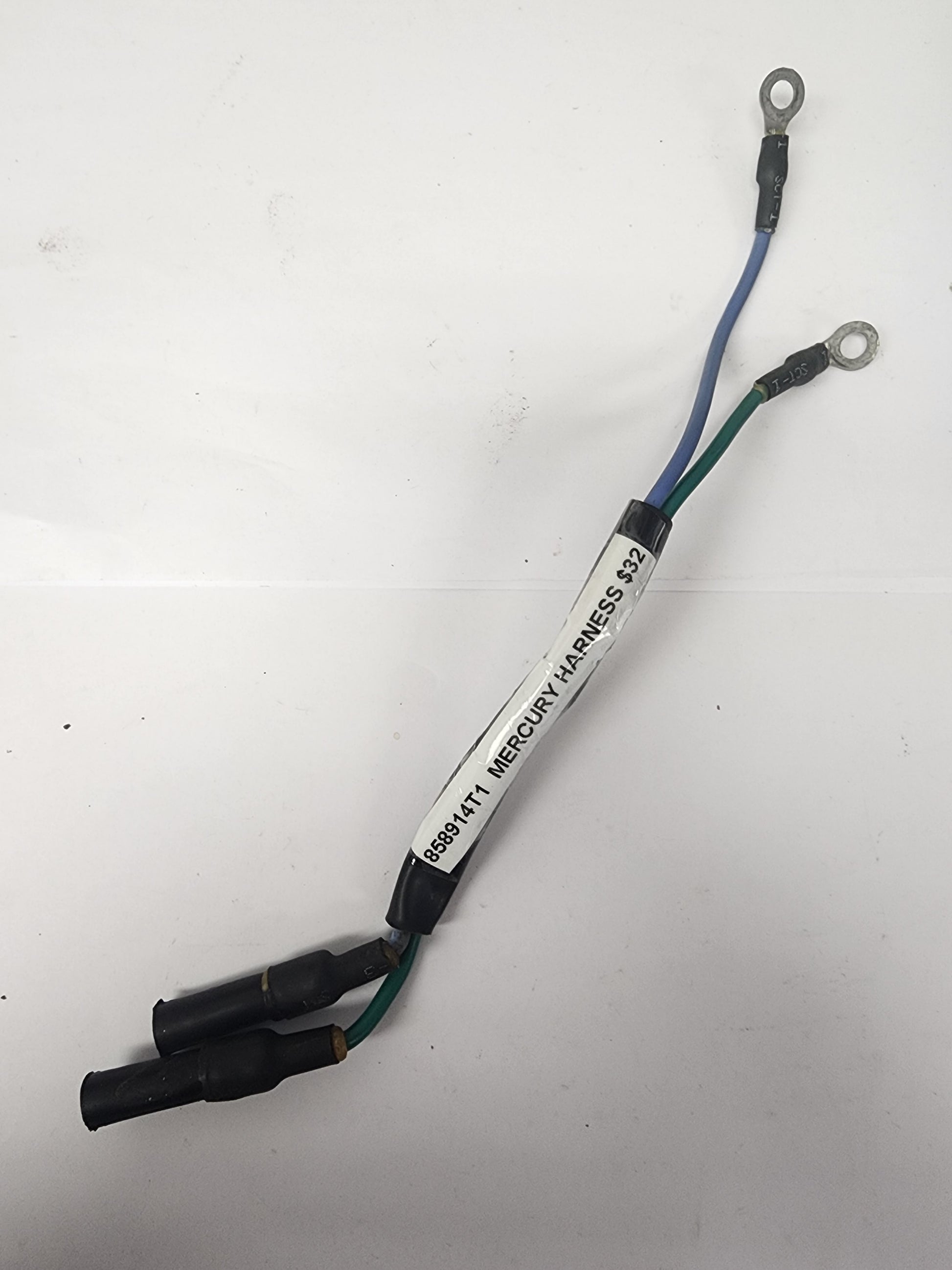

Genuine Mercury Harness Assembly - Part Number: 84-858914T1

A genuine Mercury harness assembly used on selected Mercury four-stroke and EFI four-stroke outboards. This harness is part of the engine electrical loom and must be matched by the exact serial-numbered Mercury parts diagram and connector layout.

⚙️ Key Features

  • Genuine Mercury harness assembly
  • Correct OEM part number 84-858914T1
  • Used on selected 75HP to 115HP Mercury four-stroke outboards
  • Supports carbureted four-stroke and EFI four-stroke applications
  • Must be matched by serial range and plug configuration

🚤 Compatibility

Commonly used on

  • Mercury 75HP / 90HP four-stroke outboards
  • Mercury 75 EFI / 80 EFI / 90 EFI / 100 EFI / 115 EFI four-stroke outboards

Typically suits

  • Mercury 75HP 4-Stroke - serial 0G960500 to 0T800999
  • Mercury 75HP 4-Stroke - serial 0T801000 to 1B226999
  • Mercury 75HP 4-Stroke Bodensee - serial 0G960500 to 0T800999
  • Mercury 75HP 4-Stroke Bodensee - serial 0T801000 to 1B226999
  • Mercury 75 EFI 4-Stroke - serial 1B172291 to 1B366822
  • Mercury 80 EFI 4-Stroke - serial 1B227000 to 1B366822
  • Mercury 90HP 4-Stroke - serial 0G960500 to 0T800999
  • Mercury 90HP 4-Stroke - serial 0T801000 to 1B226999
  • Mercury 90 EFI 4-Stroke - serial 1B172291 to 1B366822
  • Mercury 100 EFI 4-Stroke - serial 1B227000 to 1B366822
  • Mercury 115 EFI 4-Stroke - serial 0T178500 to 0T800999
  • Mercury 115 EFI 4-Stroke - serial 0T801000 to 1B226999
  • Mercury 115 EFI 4-Stroke - serial 1B227000 to 1B366822
  • HP Range: 75HP / 80HP / 90HP / 100HP / 115HP
  • Engine Type: Mercury four-stroke and EFI four-stroke outboard
  • Year Range: Serial-number controlled
  • Serial Note: Confirm serial number and harness connector layout before installation.

🔌 Function

The harness assembly carries power, ground and signal wiring between engine electrical components. It supports reliable communication between sensors, relays, ignition/EFI components and the engine control wiring.

⚠️ Common Signs of Failure

  • Intermittent engine electrical faults
  • No-start or random cut-out condition
  • Sensor or EFI fault codes caused by broken wiring
  • Corroded connector terminals
  • Broken plug locks or damaged insulation
  • Electrical fault changes when the harness is moved
  • Poor charging, relay or warning-circuit operation

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 84-858914T1 current Mercury harness reference

OEM / Related Numbers

  • 858914T1
  • 84-858914T1
  • 858914-T1
  • Harness assembly
  • UPC: 745061443785

Aftermarket / Verified Equivalents

  • No aftermarket equivalent

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
