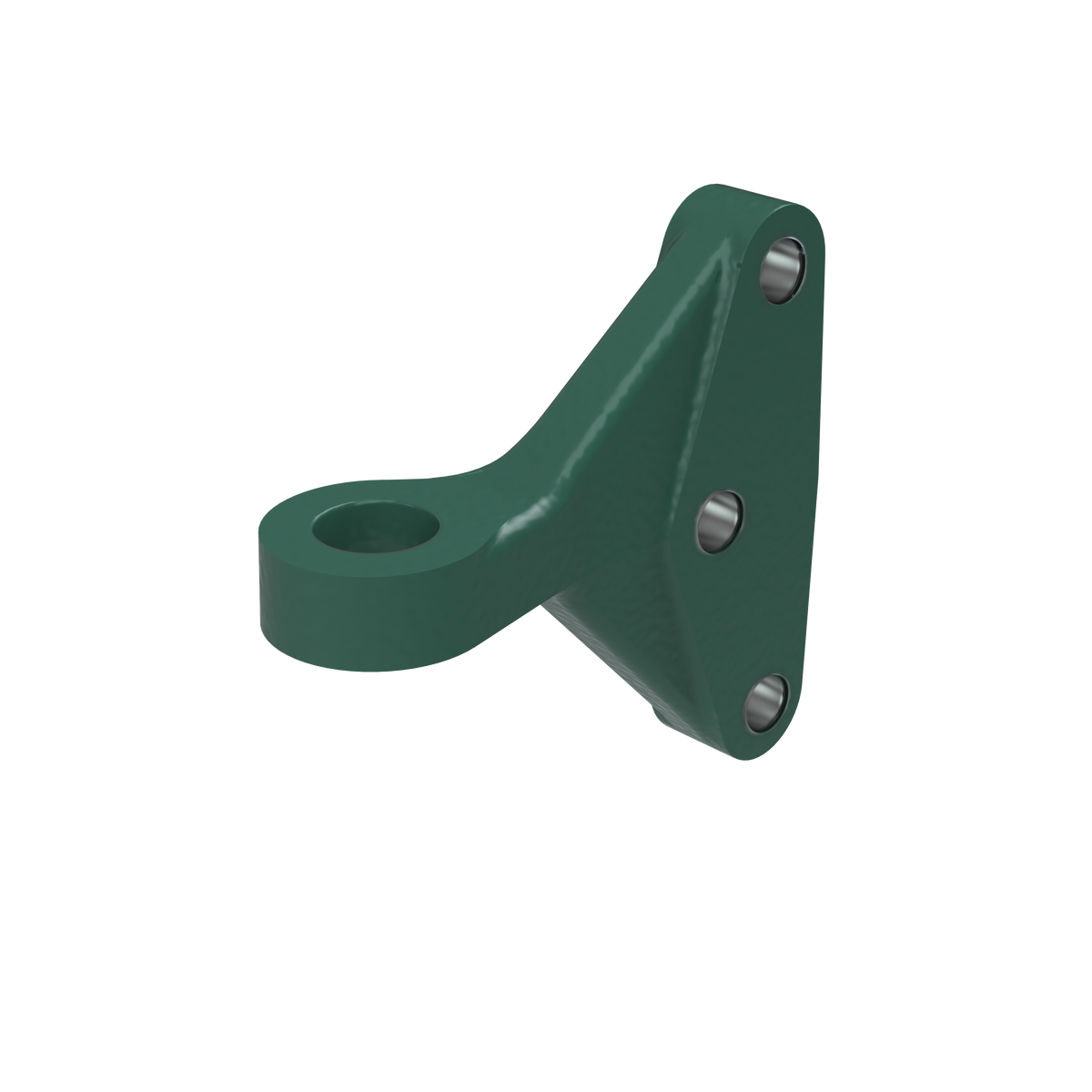

860344 Engine Bracket | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta engine bracket marked S.B, from the Engine group, weighing 0.56 kg and listed for 28 applications across MS and MD series units. It supersedes part number 858591. This is one half of a handed pair - the marking is what identifies the side.

🚤 Compatibility

• Engine Family: MS, MD

Full model list at the end of this description.

⚙️ Key Features

• Marked S.B - one side of a handed pair
• 0.56 kg
• Supersedes 858591
• 28 applications across MS and MD series
• Quantity varies by assembly, most commonly one
• Also supersedes Volvo part numbers 840338 and 840838

🔌 Function

Carries the engine's weight into the bearer on its side of the block and holds the alignment set at installation.

⚠️ Common Signs of Failure

• Bracket cracked, most often at a radius or where the arm meets the mounting face
• Bolt holes elongated or wallowed where the fastener has been working
• Engine sitting low or out of line on one side, or the shaft alignment drifting
• Fresh bright rust or fretting powder around the mounting faces
• Vibration or a thump through the hull that changes when the boat is loaded

🛠️ Service Notes

• Engine bracket 860343 is the other half of the pair and is marked P - the two are within 9 grams of each other, so go by the marking rather than by weight or eye
• Check the alignment after fitting; renewing one side alone will move the engine relative to the shaft
• Inspect the opposite bracket at the same time - both have seen the same loading

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 860344 → Supersedes 858591 → Supersedes 840421

OEM / Related Numbers

• 858591 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta 2003, 2003R, 2003TB, 2001B, 2001D, 2003D, 2003T, 2003TR, 2002B, 2002D, 2003B, 2001, 2002, 2001R
• Volvo Penta MD2010, MD2010B, MD2010-C, MD2010-D
• Volvo Penta MD2020, MD2020B, MD2020-C, MD2020-D
• Volvo Penta MD2030, MD2030B, MD2030-C, MD2030-D
• Volvo Penta MS2B, MS2V
