861057 Fuel Hose | Genuine Volvo Penta Part

🔧 Product Description

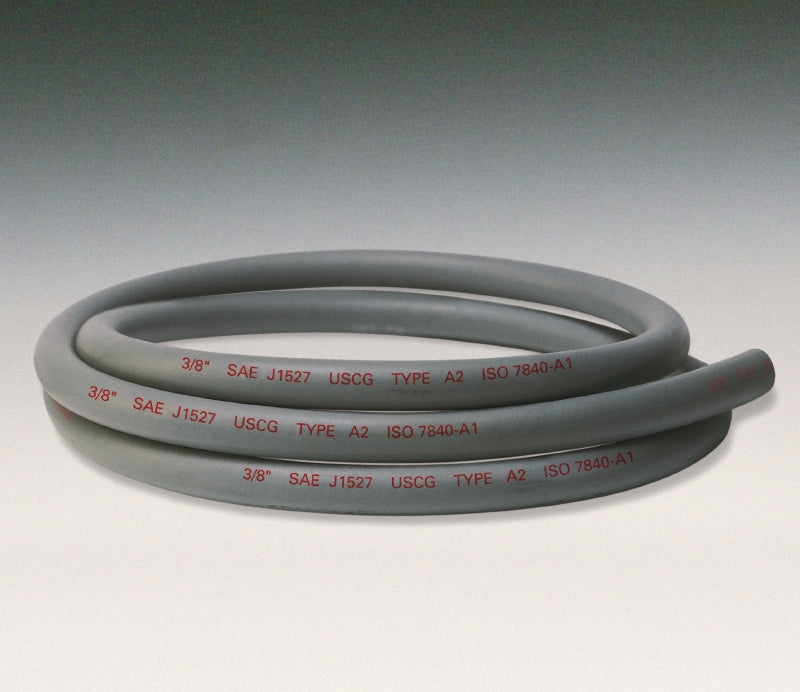

Genuine Volvo Penta fuel hose with a 3/8 inch, 9.5 mm, internal diameter, forming the return line to the fuel cooler. From the Fuel System group, it weighs 0.136 kg and is listed for 320 applications across the D, TAMD, AD, TMD, MS and HS series engines. Volvo Penta catalogues it as fire resistant in accordance with ISO 7840-A1 and J1527 USCG type 2, sold by the metre, and lists it in the fuel line fittings group with stainless steel hose clips 961664 - also in this run - as the recommended clips. It fulfils the requirements of Recreational Craft Directive 2013/53/EU.

🚤 Compatibility

• Engine Family: D, TAMD, AD, TMD, MS, HS, KAMD, MD, KAD
• HP Range: 13-480 HP

Full model list at the end of this description.

⚙️ Key Features

• 3/8 inch, 9.5 mm, internal diameter
• Fire resistant to ISO 7840-A1 and J1527 USCG type 2
• Fulfils the requirements of Recreational Craft Directive 2013/53/EU
• Recommended stainless steel hose clips 961664
• 0.136 kg
• 320 applications across six engine series
• L=440mm / L=450mm (Volvo assembly listing)
• Internal diameter 3/8 inch (9.5 mm)
• Internal diameter: 3/8 inch (9.5 mm)
• Supply: per metre

🔌 Function

Carries returned fuel from the injection equipment to the fuel cooler.

⚠️ Common Signs of Failure

• Diesel weeping at the hose ends, or a smell of fuel
• Rubber hard, cracked or crazed near the clamps
• Hose soft, swollen or spongy when squeezed
• Fuel staining or a wet patch below the run
• Air drawn into the return circuit

🛠️ Service Notes

• The 450 mm length and 3/8 inch bore are what identify this hose, so check both against the run you are replacing
• Order clips 961664 with it - those are the clips Volvo Penta specifies for this hose
• Renew the clips with the hose and look for the chafe point that caused the failure
• Recommended stainless steel hose clips are 961664

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-370A-C, D6-350A-A, D6-350A-B, D6-330A-D, D6-330D-E, D6-370D-E, D6-370D-B, D6-330D-B, D6-330A-F, D6-370A-F, D6-370D-A, D6-330D-C, D6-330A-C, D6-370D-C, D6-330D-D, D6-370D-D, D6-330D-F, D6-370A-D, D6-330A-E, D6-370A-E, D6-370D-F, D6-330I-D, D6-310I-B, D6-280I-B, D6-280I-C, D6-280I-D, D6-280I-E, D6-310I-D, D6-435I-D, D6-310I-E, D6-280I-A, D6-310I-A, D6-300A-F, D6-300D-F, D6-300I-F, D6-310D-A, D6-310D-B, D6-310D-D, D6-310D-C, D6-310D-E, D6-370I-A, D6-370I-B, D6-330I-B, D6-330I-C, D6-370I-C, D6-370I-D, D6-310A-B, D6-280A-C, D6-310A-C, D6-310A-A, D6-280A-D, D6-310A-D, D6-280A-E, D6-310A-E, D6-310I-C, D6-280A-A, D6-280A-B, D6-340I-G, D6-380I-G, D6-440I-G, D6-480I-G, D6-300A-G, D6-340A-G, D6-380A-G, D6-440I-WJ-G, D6-480I-WJ-G, D6-340D-G, D6-380D-G, D6-440D-G, D6-480D-G, D6-400A-G, D6-440A-G, D6-300I-G, D6-330I-F, D6-370I-F, D6-400A-E, D6-435D-A, D6-435D-D, D6-435D-E, D6-435D-F, D6-435I-A, D6-435I-C, D6-435I-E, D6-400A-F, D6-435D-C, D6-435I-F, D6-330I-E, D6-370I-E, D6-330A-B, D6-370A-B
• Volvo Penta D3-110I-B, D3-110I-C, D3-130I-C, D3-220I-G, D3-130A-A, D3-160A-A, D3-130A-B, D3-160A-B, D3-130A-C, D3-160A-C, D3-140A-D, D3-170A-D, D3-200A-D, D3-220A-D, D3-140I-D, D3-140A-E, D3-170A-E, D3-200A-E, D3-220A-E, D3-140I-E, D3-140A-F, D3-170A-F, D3-200A-F, D3-220A-F, D3-140I-F, D3-140A-G, D3-170A-G, D3-200A-G, D3-220A-G, D3-140I-G, D3-190A-B, D3-190A-C, D3-190I-A, D3-110I-A, D3-130I-A, D3-160I-A, D3-110I-D, D3-150I-D, D3-170I-D, D3-200I-D, D3-220I-D, D3-110I-E, D3-150I-E, D3-170I-E, D3-200I-E, D3-220I-E, D3-110I-F, D3-150I-F, D3-170I-F, D3-200I-F, D3-220I-F, D3-110I-G, D3-150I-G, D3-170I-G, D3-200I-G, D3-110I-H, D3-160I-C, D3-190I-B, D3-190I-C, D3-140A-H, D3-170A-H, D3-200A-H, D3-220A-H, D3-130I-B, D3-160I-B, D3-150I-H, D3-170I-H, D3-200I-H, D3-220I-H, D3-140I-H
• Volvo Penta D4-260A-B, D4-260A-A, D4-260A-C, D4-260A-D, D4-260A-E, D4-260A-F, D4-260D-B, D4-260D-C, D4-260D-D, D4-260D-E, D4-260D-F, D4-260I-A, D4-260I-B, D4-260I-C, D4-260I-D, D4-260I-E, D4-260I-F, D4-300A-A, D4-300A-C, D4-300A-D, D4-300A-E, D4-300A-F, D4-300D-A, D4-300D-C, D4-300D-D, D4-300D-E, D4-300D-F, D4-300I-A, D4-180I-C, D4-225I-C, D4-180I-D, D4-225I-D, D4-180I-E, D4-225I-E, D4-180I-F, D4-225I-F, D4-210A-A, D4-210A-B, D4-225A-B, D4-225A-C, D4-225A-D, D4-300I-C, D4-300I-D, D4-300I-E, D4-300I-F, D4-225A-E, D4-225A-F, D4-210I-A, D4-210I-B, D4-180I-B, D4-225I-B, D4-175I-G, D4-230I-G, D4-270I-G, D4-320I-G, D4-300I-G, D4-150A-G, D4-230A-G, D4-270A-G, D4-320A-G, D4-300A-G, D4-145I-G
• Volvo Penta D2-40, D2-40B, D2-40F, D2-55, D2-55B, D2-55C, D2-55D, D2-55E, D2-55F, D2-50F, D2-75, D2-75B, D2-75C, D2-75F, D2-60F
• Volvo Penta D1-30, D1-30B, D1-30F, D1-13, D1-13B, D1-13F, D1-20, D1-20B, D1-20F
• Volvo Penta TAMD31L, TAMD31L-A, TAMD31M, TAMD31M-A, TAMD31P, TAMD31P-A, TAMD31S, TAMD31D, TAMD31P-B
• Volvo Penta TAMD41D, TAMD41H-A, TAMD41H-B, TAMD41P-A, TAMD41P, TAMD41P-B
• Volvo Penta AD31D, AD31D-A, AD31L-A, AD31P-A, AD31XD
• Volvo Penta MD2010, MD2010B, MD2010-C, MD2010-D
• Volvo Penta MD2020, MD2020B, MD2020-C, MD2020-D
• Volvo Penta MD2030, MD2030B, MD2030-C, MD2030-D
• Volvo Penta MD2040, MD2040B, MD2040-C, MD2040-D
• Volvo Penta MD22, MD22A, MD22L, MD22P
• Volvo Penta AD41D, AD41L-A, AD41P-A
• Volvo Penta KAD44P, KAD44P-B, KAD44P-C
• Volvo Penta KAMD43P, KAMD43P-A, KAMD43P-B
• Volvo Penta KAMD44P-B, KAMD44P-C, KAMD44P-A
• Volvo Penta TMD22A, TMD22B, TMD22P-C
• Volvo Penta D41D, D41L-A
• Volvo Penta KAD42B, KAD42P-A
• Volvo Penta KAMD42B, KAMD42P-A
• Volvo Penta TAMD42WJ-A, TAMD42B
• Volvo Penta TMD31D, TMD31L-A
• Volvo Penta TMD41D, TMD41L-A
• Volvo Penta HS1A
• Volvo Penta KAD300-A
• Volvo Penta KAD32P
• Volvo Penta KAD43P-A
• Volvo Penta KAMD300-A
• Volvo Penta MS2B-A
• Volvo Penta TAMD22P-B
