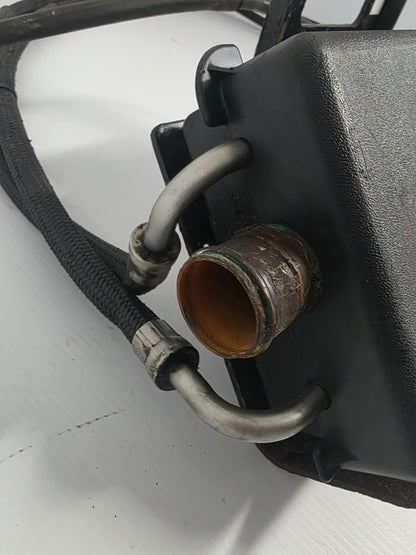

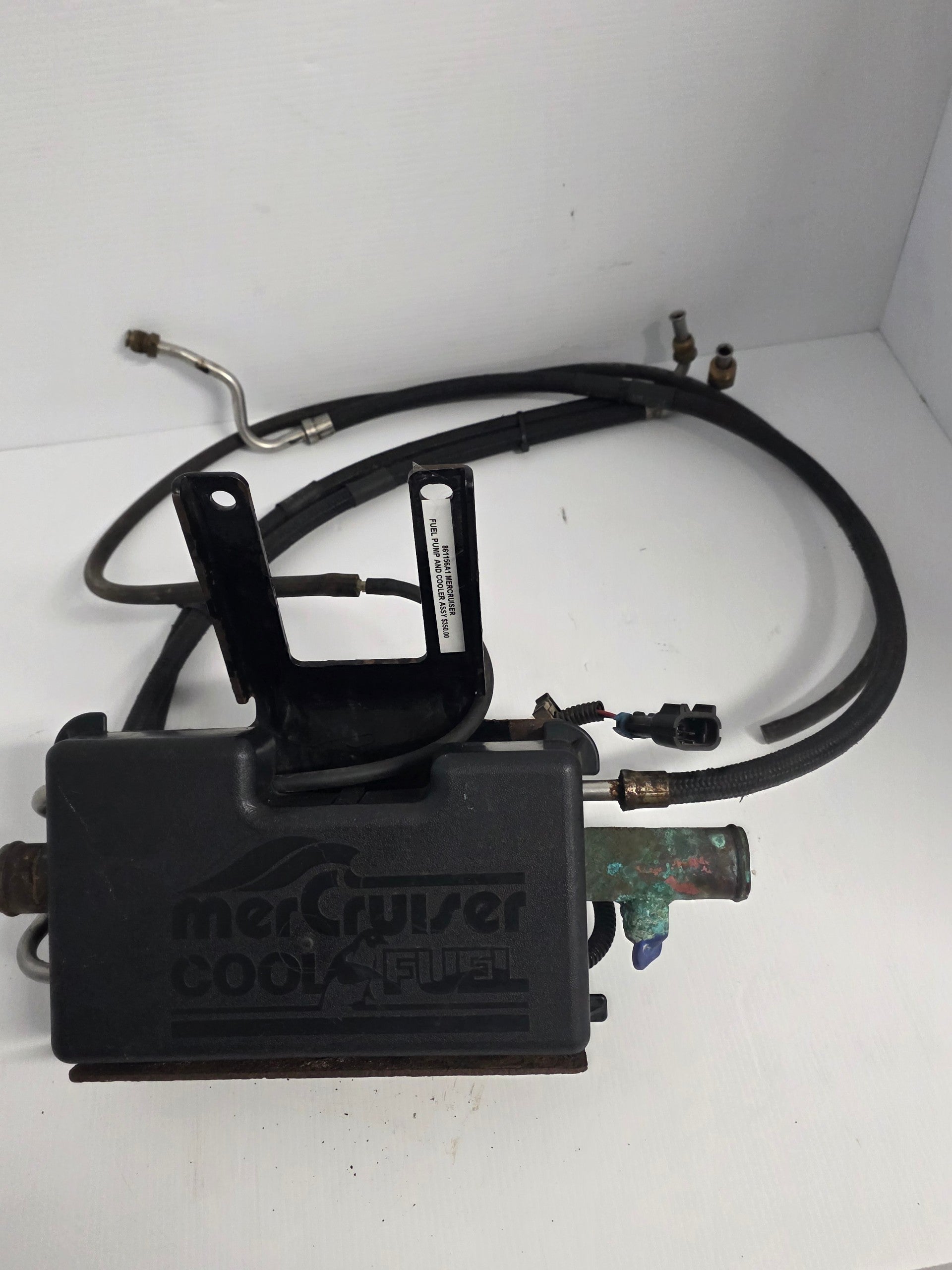

861156A1 Mercruiser Fuel Pump And Cooler Assy | Genuine Used Part
861156A1 Mercruiser Fuel Pump And Cooler Assy | Genuine Used Part
Out of stock
Couldn't load pickup availability
🔧 Product Description

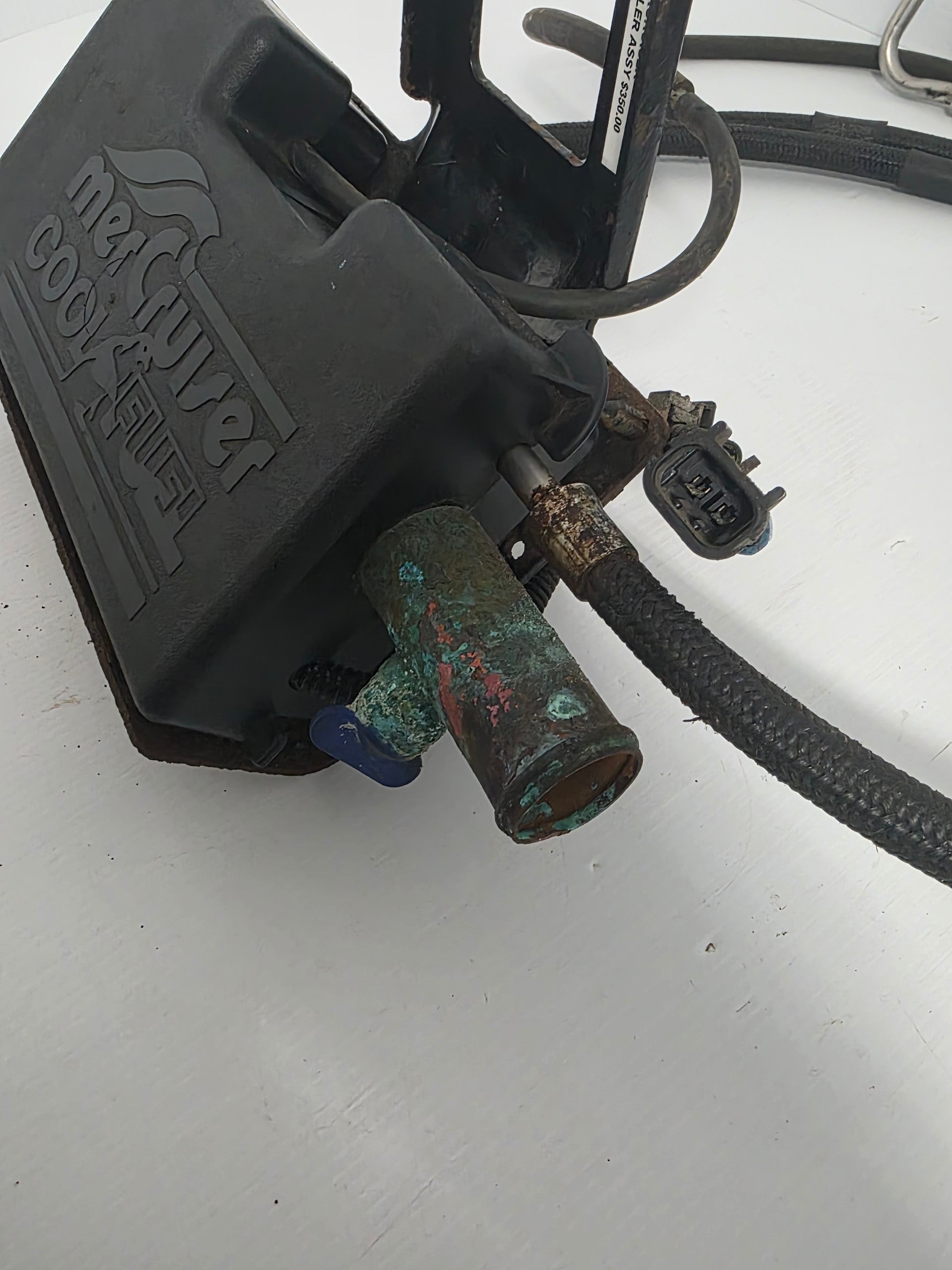

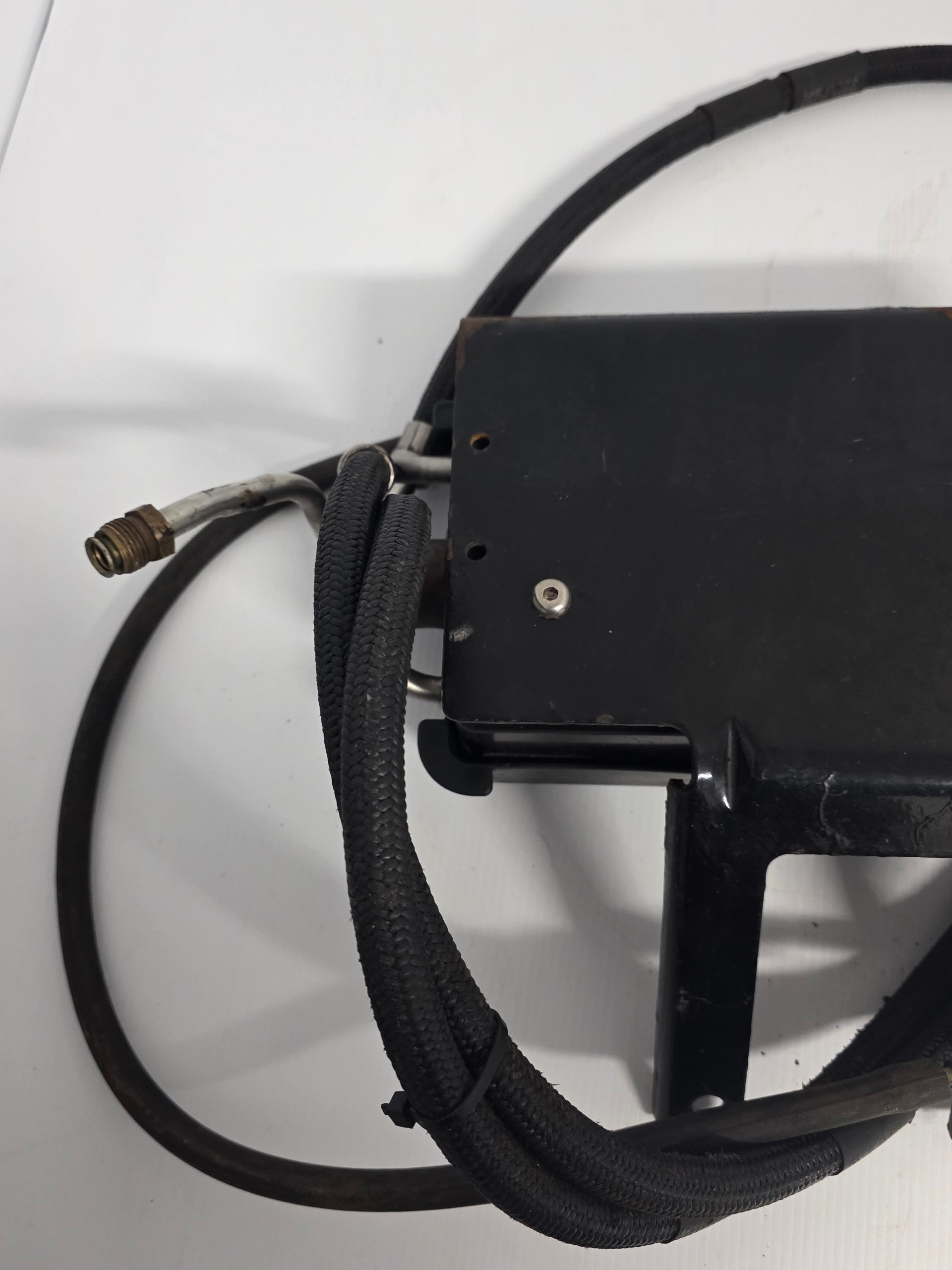

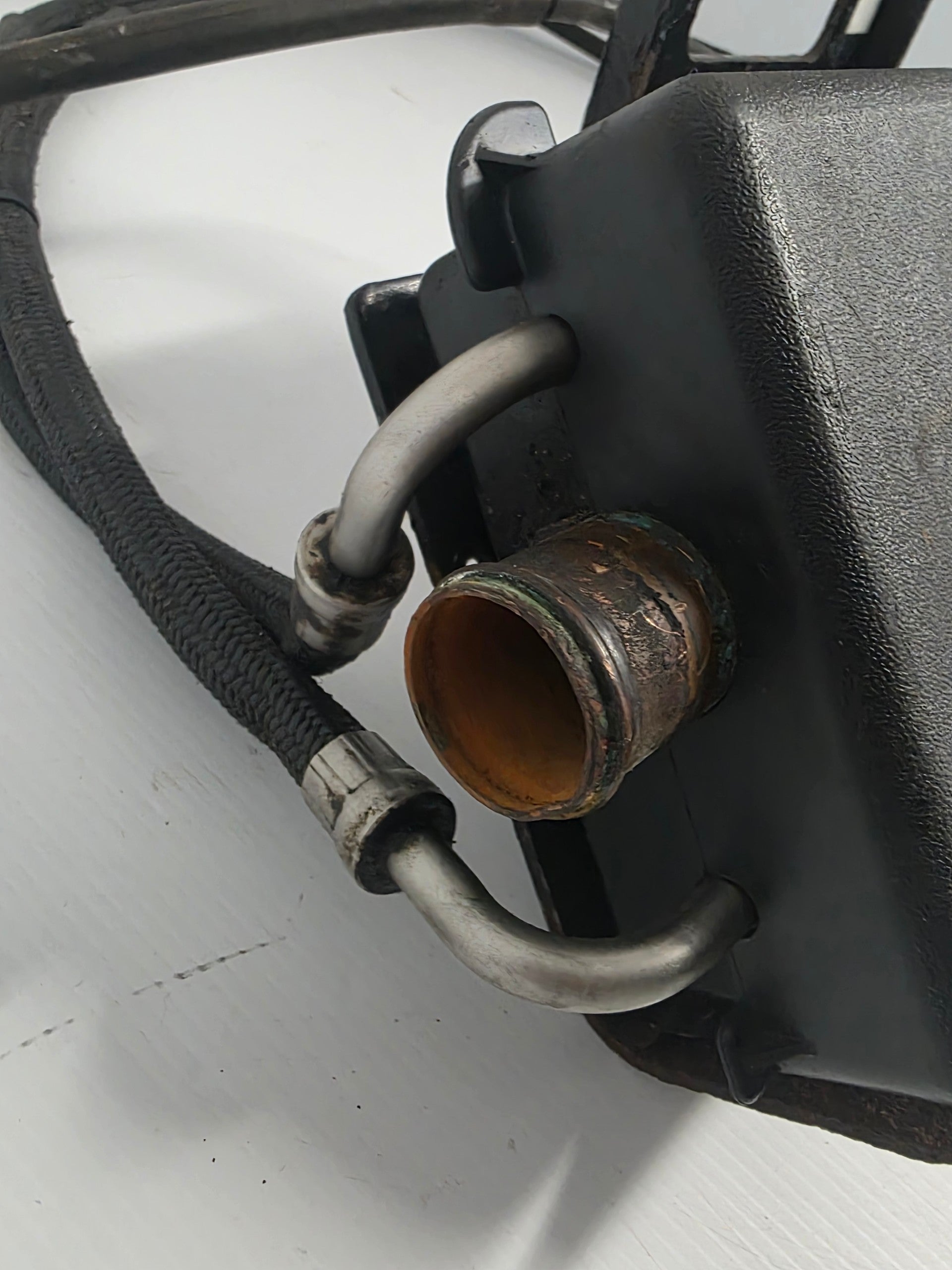

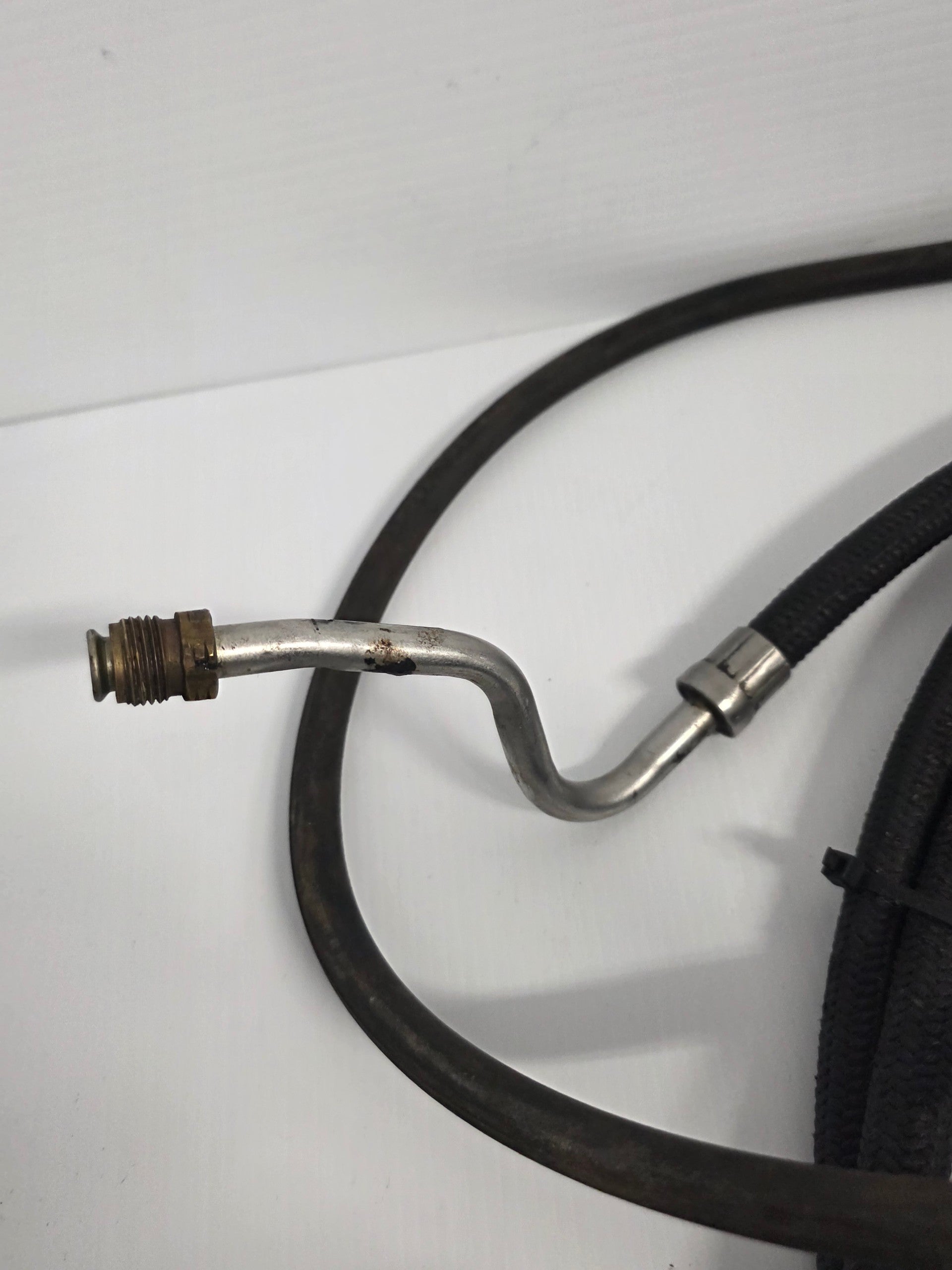

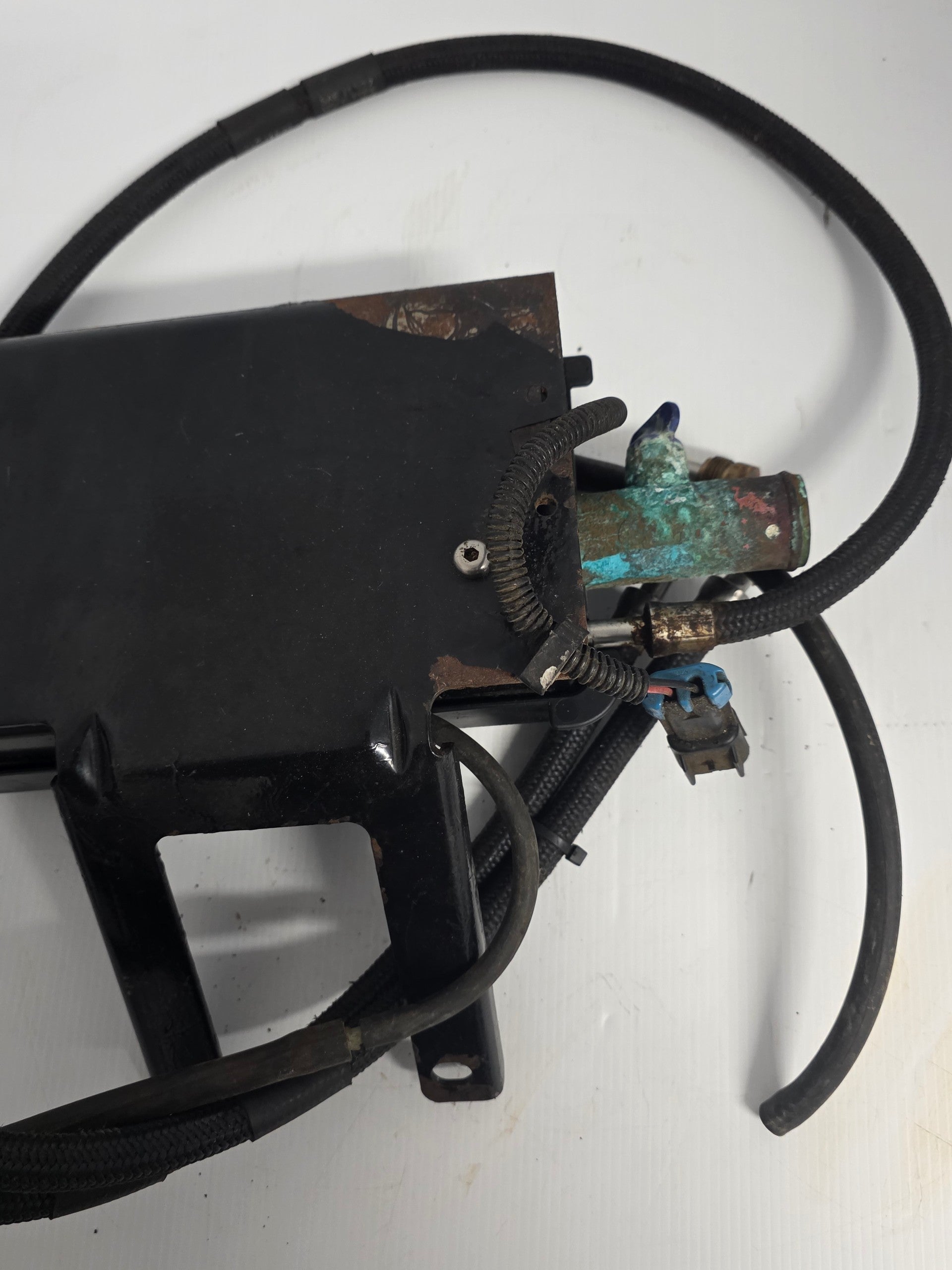

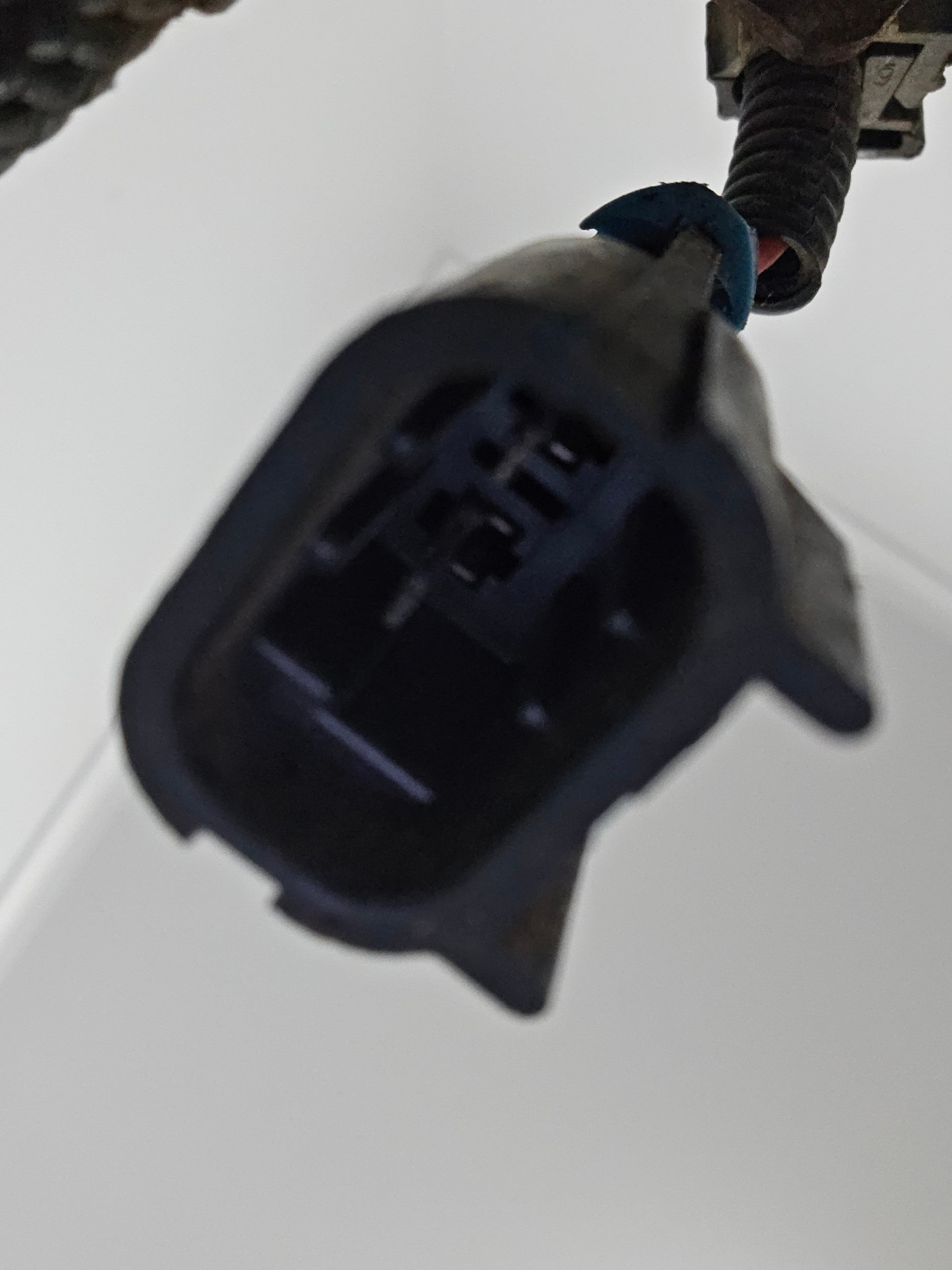

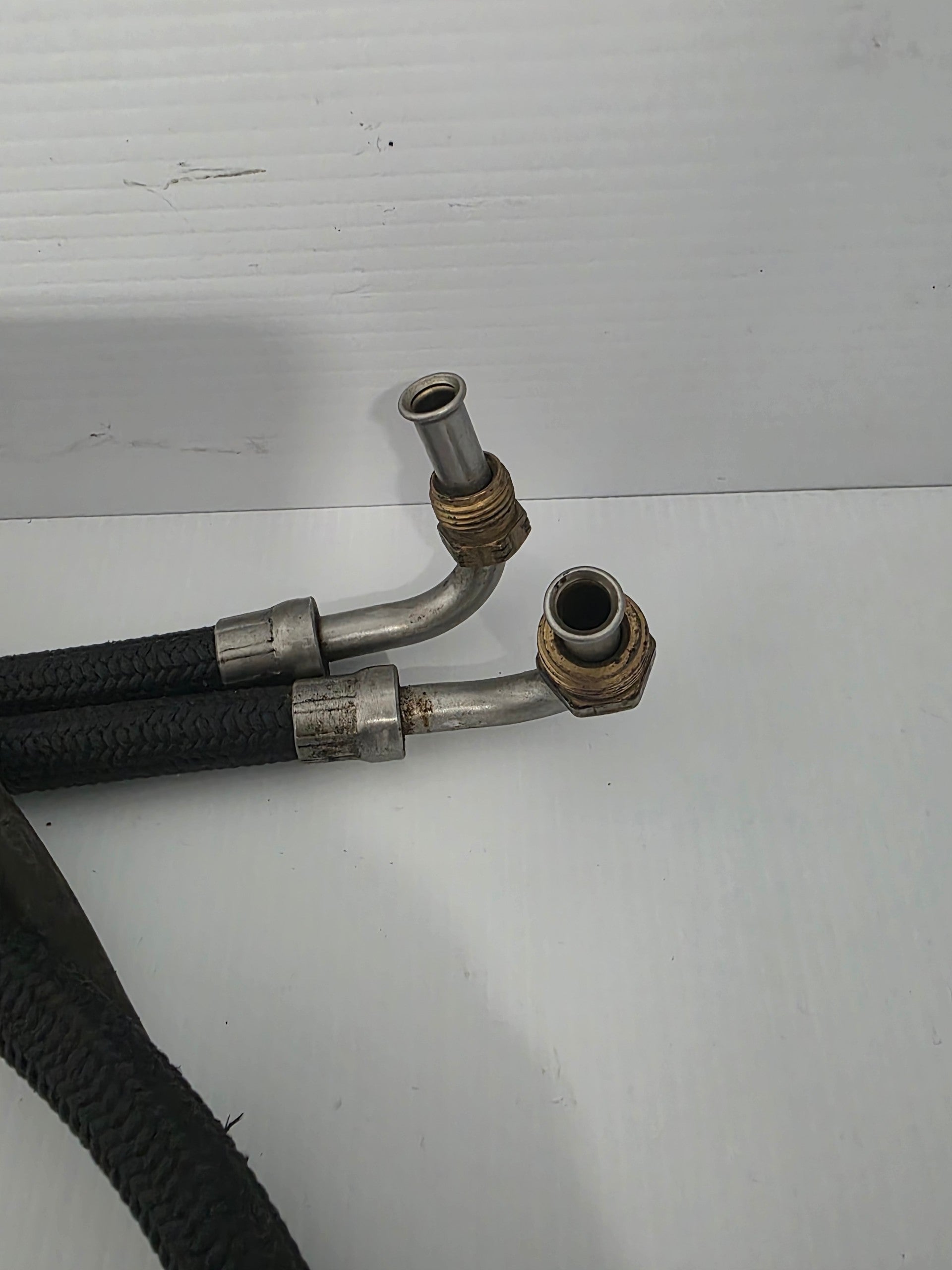

Genuine Quicksilver Gen II Cool Fuel High-Pressure Pump - Part Number: 861156A1
A genuine Mercury MerCruiser high-pressure electric fuel pump used within Gen II Cool Fuel modules on selected EFI, TBI and MPI petrol engines. Although often listed as a pump and cooler assembly, 861156A1 identifies the high-pressure pump itself; the surrounding cooler, reservoir and bracket components form the complete Cool Fuel module.
The pump supplies pressurised fuel from the Cool Fuel reservoir to the engine's injector rail. It replaces earlier pump 807949A1 and is serviced through several MerCruiser pump-kit configurations selected by engine serial number and drain arrangement.
⚙️ Key Features
- Genuine Mercury MerCruiser / Quicksilver high-pressure fuel pump
- Correct pump number 861156A1
- Used in Gen II Cool Fuel EFI, TBI and MPI modules
- Supersedes earlier MerCruiser pump 807949A1
- Extensive Sierra, Mallory, WSM, ProTorque, Airtex and FPF replacement coverage
🚤 Compatibility
Commonly used on
- MerCruiser Gen II Cool Fuel EFI, TBI and MPI petrol engines
- MerCruiser sterndrive, inboard and ski-engine high-pressure fuel systems
Typically suits
- Engine models:
- MerCruiser 350 MAG EFI Ski - 1996, serial 0F820707 to 0K040005
- MerCruiser 350 MAG EFI Ski - 1997, serial 0K040006 to 0K999999
- MerCruiser 350 MAG MPI Ski - 1998 onward, serial 0L002600 to 0M310009
- MerCruiser Scorpion 377 - serial 0K000656 to 0L600314
- MerCruiser 262 MAG TBI - serial 0F803800 to 0K999999
- MerCruiser 350 MAG MPI MIE - serial 0L002008 to 0L302199
- MerCruiser 454 MAG MPI Horizon - serial 0L002200 to 0L086049
- MerCruiser 7.4L TBI MIE LH - serial 0F874815 to 0K999999
- MerCruiser 8.2L MIE MPI - serial 0L002450 to 0L086012
- MerCruiser 350 MAG MPI Alpha / Bravo - serial 0L010019 to 0L339999
- MerCruiser 350 MAG Alpha EFI - serial 0K001509 and above
- MerCruiser 350 MAG Bravo MPI - serial 0K001501 and above
- MerCruiser 454 MAG Bravo MPI - serial 0F802350 to 0K999999
- MerCruiser 5.0L EFI - serial 0L012052 to 0L339999
- MerCruiser 5.7L EFI 2BBL TBI - serial 0K001506 to 0K999999
- MerCruiser 5.7L EFI Repower Plus
- MerCruiser 4.3 MPI later-production engines using service kit 861156A03
- MerCruiser 5.0 MPI later-production engines using service kit 861156A03
- MerCruiser 350 MAG MPI later-production engines using service kit 861156A03
- MerCruiser MX 6.2 MPI later-production engines using service kit 861156A03
- MerCruiser 496 MAG MPI / 496 MAG HO MPI using service kit 861156A02
- MerCruiser MIE 8.1S Horizon / 8.1S HO using service kit 861156A02
- Engine Range: 4.3L V6 to 8.2L V8
- Engine Type: MerCruiser EFI, TBI and MPI petrol sterndrive / inboard
- Year Range: Approximately 1996 - 2004, with serial-controlled service-kit use beyond this period
🔌 Function
The electric pump draws cooled fuel from the Gen II Cool Fuel reservoir and delivers it at high pressure to the fuel rail so the injectors can meter fuel accurately under all engine loads.
⚠️ Common Signs of Failure
- Engine cranks but does not start because fuel pressure is absent
- Loss of power, surging or stalling under acceleration
- Pump becomes noisy, overheats or operates intermittently
- Fuel pressure falls after the engine warms
- Lean-running faults, backfiring or injector-pressure diagnostic codes occur
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 861156A1 → Supersedes 807949A1
- 807949A1 earlier OEM high-pressure pump reference
- 861156A02 related service kit with drain
- 861156A03 related later service kit without drain
- 861156A04 related early service kit with drain
OEM / Related Numbers
- 861156A1
- 861156A01
- 807949A1
- 861156A02
- 861156A03
- 861156A04
- 8M0116357 related later service reference
- 8M0125852 related later service reference
Aftermarket / Verified Equivalents
- Sierra: 18-35433
- Mallory: 9-35433 / 935433
- WSM: 600-126
- ProTorque: PH500-M014
- Airtex: E11004
- FPF: FP-188
- Marine Spare Parts: AM861156A1
- AMS / aftermarket: S-18-35433
📦 Condition
- Genuine used part
- Removed from running engine where applicable
- In good working condition unless otherwise stated
