861255 Aftermarket Volvo Penta Injector Sleeve Kit | Sawley’s Select Marine Parts

🔧 Product Description

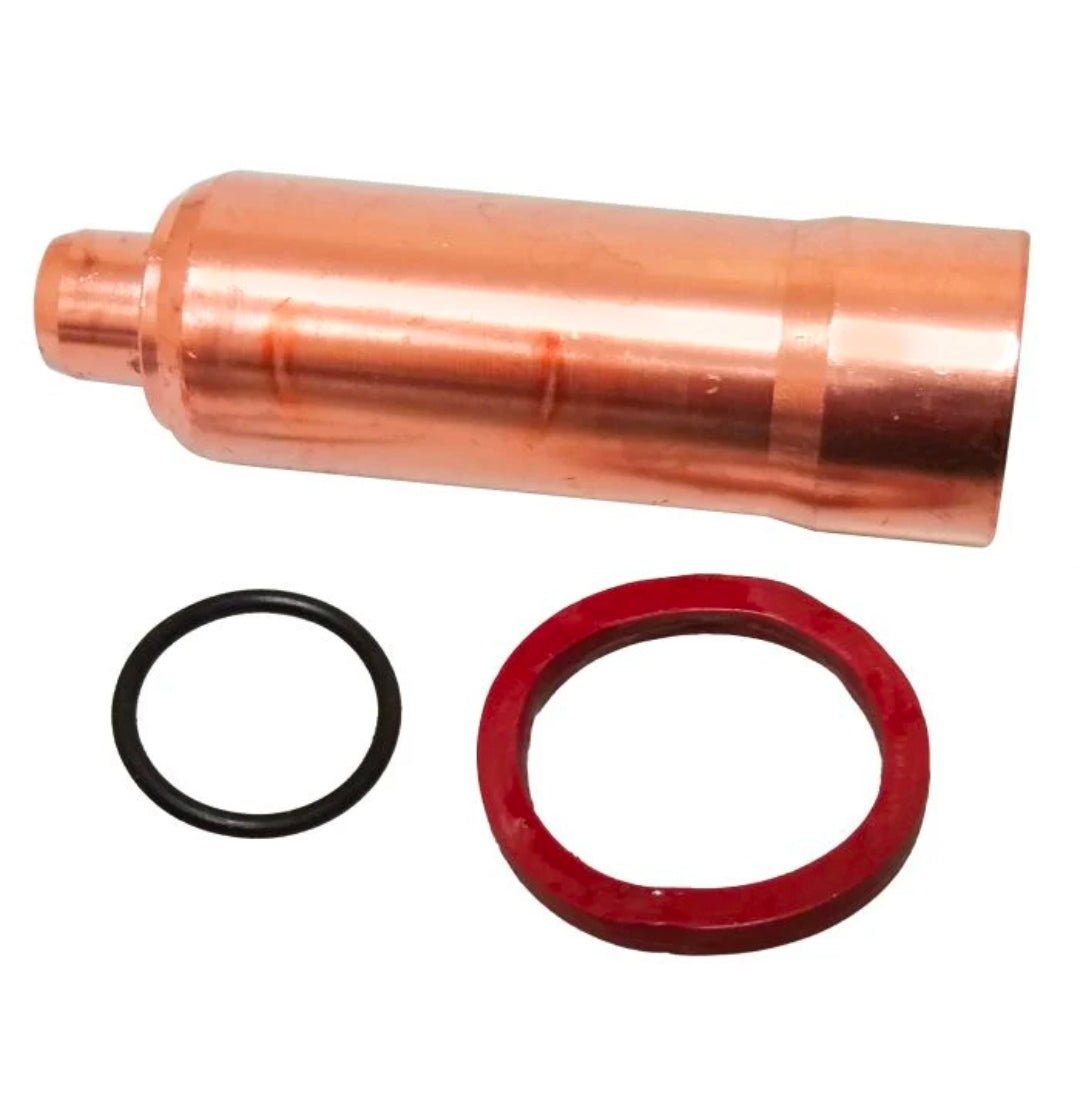

Sawley's Select Marine Parts Aftermarket Volvo Penta Injector Sleeve Kit - Part Number: 861255

A new aftermarket replacement injector sleeve kit for selected early Volvo Penta 31, 41, 42 and 43 series marine diesel engines. This kit replaces Volvo Penta 861255 and related early sleeve kit references used in serial-number-sensitive injector sleeve applications.

⚙️ Key Features

• Sawley's Select Marine Parts aftermarket injector sleeve kit

• Replaces Volvo Penta OEM part number 861255

• Used on selected early Volvo Penta 31 / 41 / 42 / 43 series engines

• Includes sleeve sealing components for injector sleeve service

• Application is affected by engine serial number and sleeve length

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 861255 Volvo Penta early injector sleeve kit reference

• 838609 related Volvo Penta early injector sleeve reference

• 838619 related Volvo Penta injector sleeve reference

• 838896 related Volvo Penta injector sleeve reference

• 838821 related Volvo Penta injector sleeve reference

OEM / Related Numbers:

• 861255

• 838609

• 838619

• 838896

• 838821

• Injector sleeve kit

• Nozzle sleeve kit

• Injector cup kit

• Sleeve kit with gasket

• Early 31 / 41 / 42 / 43 sleeve kit

Aftermarket / Verified Equivalents:

• Recmar: REC861255

• Orbitrade: 11609

• Orbitrade: ORB11609

• Aftermarket replacement for Volvo Penta 861255 / 838609

🚤 Compatibility

Commonly used on:

• Volvo Penta early 31 / 41 / 42 / 43 series injector sleeve systems

Typically suits:

• Engine models:

• Volvo Penta AD31 early serial applications

• Volvo Penta AD31A

• Volvo Penta AD31B

• Volvo Penta AD31D

• Volvo Penta TAMD31 early serial applications

• Volvo Penta TAMD31A

• Volvo Penta TAMD31B

• Volvo Penta TAMD31D

• Volvo Penta TMD31 early serial applications

• Volvo Penta AD41 early serial applications

• Volvo Penta AD41A

• Volvo Penta AD41B

• Volvo Penta AD41D

• Volvo Penta TAMD41 early serial applications

• Volvo Penta TAMD41A

• Volvo Penta TAMD41B

• Volvo Penta TAMD41D

• Volvo Penta TMD41 early serial applications

• Volvo Penta KAD42 early serial applications

• Volvo Penta TAMD42 early serial applications

• Volvo Penta KAD43 early serial applications

• HP Range: approximately 130HP - 230HP depending on engine variant

• Engine Type: Volvo Penta 31 / 41 / 42 / 43 series marine diesel injector sleeve system

• Year Range: early-engine applications, serial-number controlled

• Serial Note: Application is engine-serial sensitive. Four-cylinder engine serial format commonly uses 2203-xxxxxx and six-cylinder engine serial format commonly uses 2204-xxxxxx. Match by exact engine serial, sleeve length, cylinder head type and original sleeve number.

🔌 Function

The injector sleeve kit seals the injector bore in the cylinder head and provides the sealing components needed during injector sleeve replacement.

Common signs replacement is needed:

• Injector sleeve leaking

• Combustion blow-by around injector

• Coolant or fuel leakage at injector bore

• Poor injector seating after service

• Corrosion or pitting on sleeve sealing surface

• Sleeve damaged during injector removal

• Replacement required during cylinder head or injector overhaul

📦 Condition

• Aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
