861260 Aftermarket Volvo Penta Turbocharger 41, 42, 43, 300 Series (1993+) 3802070, 838697, 861260 | Sawley's Select Marine Parts

🔧 Product Description

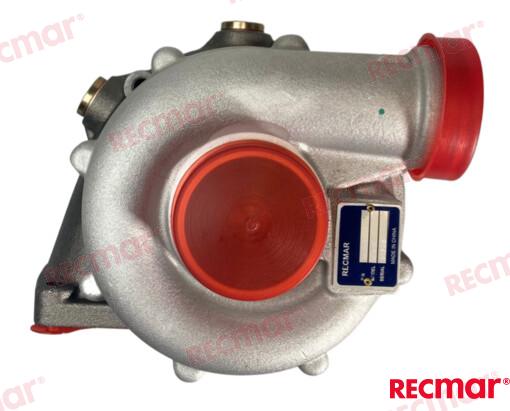

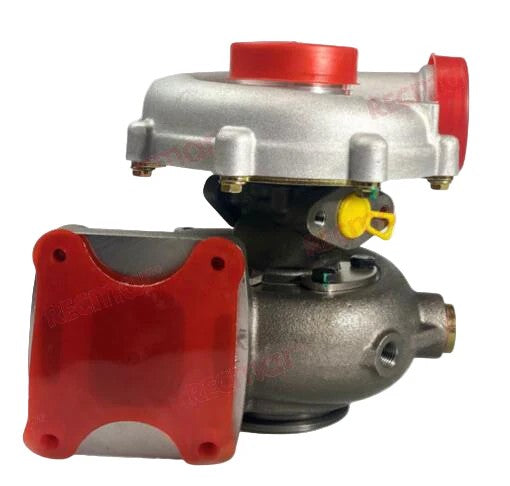

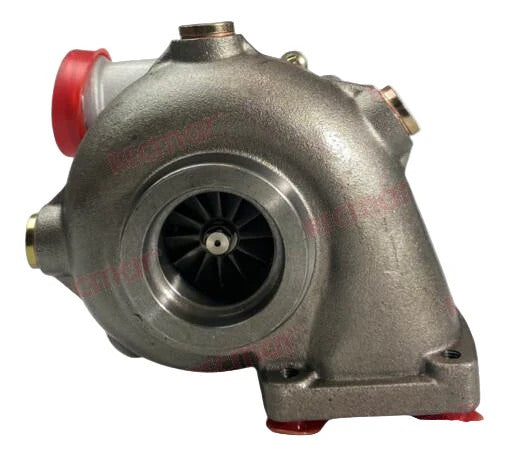

Sawley's Select Marine Parts Aftermarket Volvo Penta 41, 42, 43, 44 and 300-Series K26 Turbocharger - Replacement for Part Numbers: 861260, 838697 and 3802070

A new aftermarket K26 marine turbocharger for selected Volvo Penta 41-series, KAD / KAMD42, KAD / KAMD43, KAD / KAMD44 and KAD / KAMD300 diesel engines.

This later 6497-series turbocharger is commonly used on engines produced from approximately March 1993 onward. Earlier 42-series engines may use a different turbocharger, including Volvo Penta 3802063 or 860352, so the original turbo data plate must be checked.

⚙️ Key Features

• New aftermarket Volvo Penta K26 turbocharger

• Replaces Volvo Penta 861260, 838697 and 3802070

• BorgWarner K26-3264 marine turbocharger configuration

• Suitable for selected 41, 42, 43, 44 and 300-series engines

• Intended for later installations using the 6497-series turbo

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• Volvo Penta 838697 - Earlier original turbocharger reference

• Volvo Penta 861260 - Later original / service turbocharger reference

• Volvo Penta 3802070 - Exchange / remanufactured reference

• Volvo Penta 3802112 - Related exchange reference for selected applications

OEM / Related Numbers:

• 861260

• 838697

• 3802070

• 3802112

• 860916

• 860918

• BorgWarner: 53269886497

• BorgWarner: 53269706497

• BorgWarner: 53269716497

• BorgWarner: 5326-988-6497

• BorgWarner: 5326-970-6497

• BorgWarner CHRA: 53267100064

• Turbo Model: K26-3264MA8.71GAAXB

• Related mounting gasket kit: 22134

• Related comprehensive installation gasket kit: 3582595

Aftermarket / Verified Equivalents:

• Recmar: REC861260

• SLP: TC-1260

• Aftermarket BorgWarner-style 53269886497 replacement

• Aftermarket K26-6497 turbocharger replacing 861260 / 838697 / 3802070

🚤 Compatibility

Commonly used on:

• Volvo Penta 41-series marine diesel engines

• Supercharged and turbocharged KAD / KAMD engines

• Inboard, Aquamatic and sterndrive installations

• Later 42-series engines from approximately March 1993 onward

Typically suits:

• 41-series:

• AD41A

• AD41B

• AD41BJ

• AD41D

• AD41L-A

• AD41P-A

• AD41P-B

• AQAD41A

• D41A

• D41B

• D41D

• D41L-A

• TMD41A

• TMD41B

• TMD41D

• TMD41L-A

• TAMD41A

• TAMD41B

• TAMD41D

• TAMD41H-A

• TAMD41H-B

• TAMD41L-A

• TAMD41M-A

• TAMD41P

• TAMD41P-A

• 42-series:

• KAD42A

• KAD42B

• KAD42P-A

• KAMD42A

• KAMD42B

• KAMD42P-A

• TAMD42B

• TAMD42WJ-A

• 43-series:

• KAD43P-A

• KAD43P-B

• KAMD43P

• KAMD43P-A

• KAMD43P-B

• Selected 44-series:

• KAD44P

• KAD44P-B

• KAD44P-C

• KAMD44P-A

• KAMD44P-B

• KAMD44P-C

• 300-series:

• KAD300-A

• KAMD300-A

• Engine Type: Volvo Penta inline-six turbocharged and turbo-supercharged marine diesel

• Production Period: Principally March 1993 onward for 42-series changeover applications

Important fitment note:

• Some pre-March-1993 KAD42 and KAMD42 engines use Volvo Penta turbocharger 3802063 / 860352 rather than 861260 / 3802070. Confirm the original BorgWarner or Volvo Penta identification tag before ordering.

🔌 Function

The turbocharger supplies compressed air to the engine intake and works with the mechanically driven supercharger on applicable KAD and KAMD engines to provide strong low-speed response and higher-speed boost.

Common signs of turbocharger failure:

• Reduced acceleration after the supercharger disengages

• Engine cannot reach rated rpm

• Black smoke under load

• Blue smoke or excessive oil consumption

• Turbo whistle, siren or scraping noise

• Oil inside the compressor housing

• Wastegate or boost-control problems where fitted

• Excessive turbine or compressor shaft movement

• Corrosion damage in the turbine housing

Installation considerations:

• Confirm the engine production date and original turbo data plate

• Check whether the engine is pre- or post-1993 turbo configuration

• Replace engine oil and filter

• Inspect the oil-feed and oil-return pipes

• Clean the charge-air cooler and intake system

• Check the supercharger, bypass flap and associated controls where fitted

• Inspect the exhaust elbow for corrosion or restriction

• Prime the turbo bearing housing with clean engine oil

• Replace mounting gaskets and oil-line seals

• Confirm boost pressure under full loaded operation

📦 Condition

• Sawley's Select Marine Parts aftermarket replacement

• Brand new

• Supplied in protective packaging

• Installation gasket kit not included unless specifically listed
