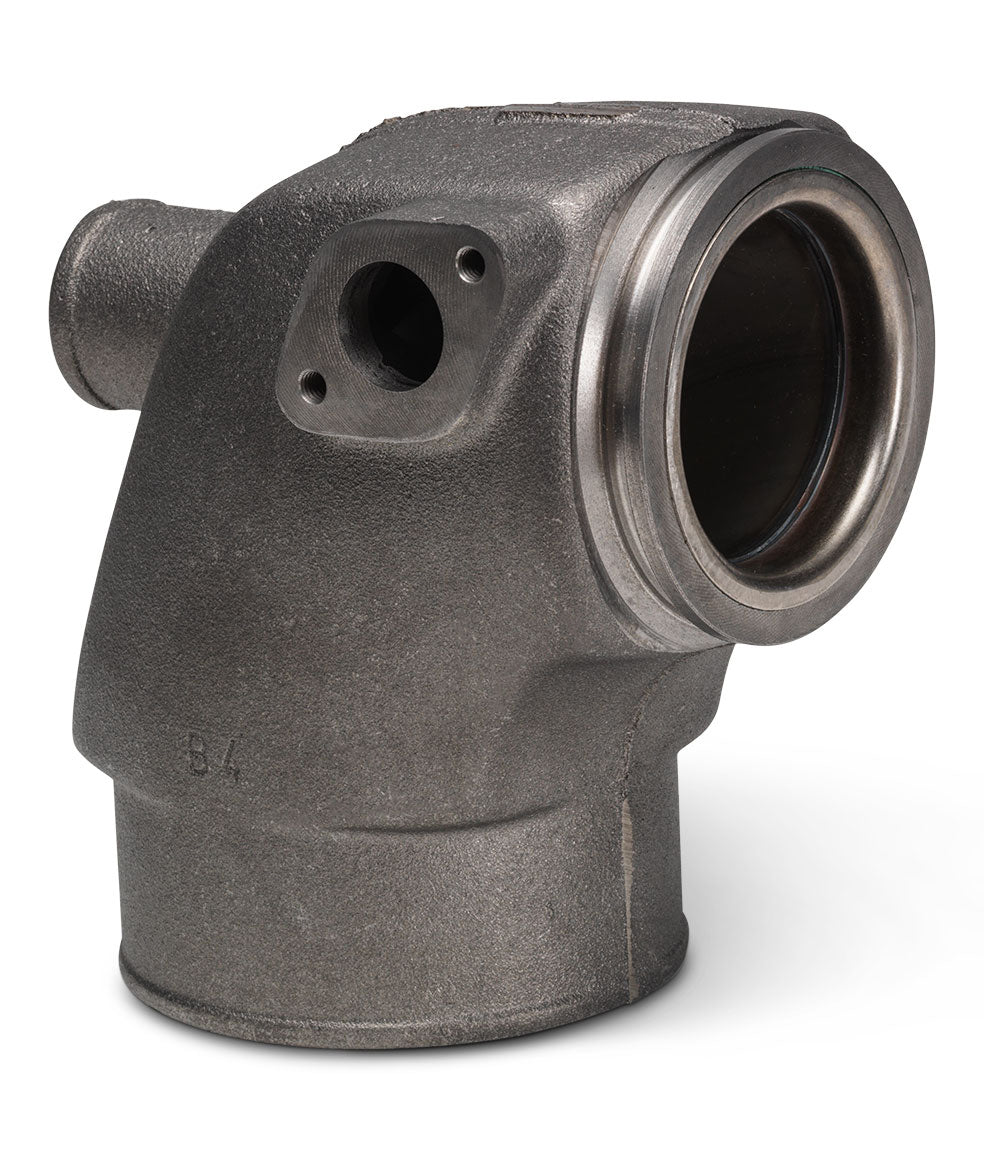

861289 Exhaust Pipe Elbow | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta exhaust pipe elbow with a 38 mm diameter, from the Inlet and Exhaust System group. It weighs 3.168 kg and is listed for 29 applications across the TAMD, AD, D, KAD, KAMD and MD series engines. It supersedes part number 860656.

🚤 Compatibility

• Engine Family: TAMD, AD, D, KAD, KAMD, MD

Full model list at the end of this description.

⚙️ Key Features

• 38 mm diameter
• Supersedes 860656
• 3.168 kg
• 29 applications across six engine series
• 38mm (Volvo assembly listing)

🔌 Function

Turns the exhaust away from the engine on the first bend out of the manifold and carries it to the rest of the system.

⚠️ Common Signs of Failure

• Soot marks, staining or a black trail at the joints
• Exhaust noise louder or changed in tone
• Elbow corroded through, heavily scaled or perforated
• Water weeping from the elbow or its joints
• Exhaust fumes noticeable in the engine space

🛠️ Service Notes

• Hose 860828 is the 32 mm heat exchanger to exhaust riser hose listed for 860656, the number this elbow supersedes
• Renew all gaskets and fixings at both flanges, as corroded studs usually shear on removal
• An exhaust leak in an enclosed engine space is a carbon monoxide risk, so check every joint carefully after fitting

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 861289 → Supersedes 860656

Aftermarket / Verified Equivalents

• HDI Marine: VG1
• Recmar: MAR289
• HGE: HGE1289

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D5A-B TA, D5A-T, D5A-TA
• Volvo Penta KAD44P, KAD44P-B, KAD44P-C
• Volvo Penta KAMD43P, KAMD43P-A, KAMD43P-B
• Volvo Penta KAMD44P-B, KAMD44P-C, KAMD44P-A
• Volvo Penta AD31L-A, AD31P-A
• Volvo Penta AD41L-A, AD41P-A
• Volvo Penta KAD42B, KAD42P-A
• Volvo Penta KAD43P-B, KAD43P-A
• Volvo Penta KAMD42B, KAMD42P-A
• Volvo Penta MD2010, MD2010B
• Volvo Penta TAMD42WJ-A, TAMD42B
• Volvo Penta KAD300-A
• Volvo Penta KAD32P
• Volvo Penta KAMD300-A
