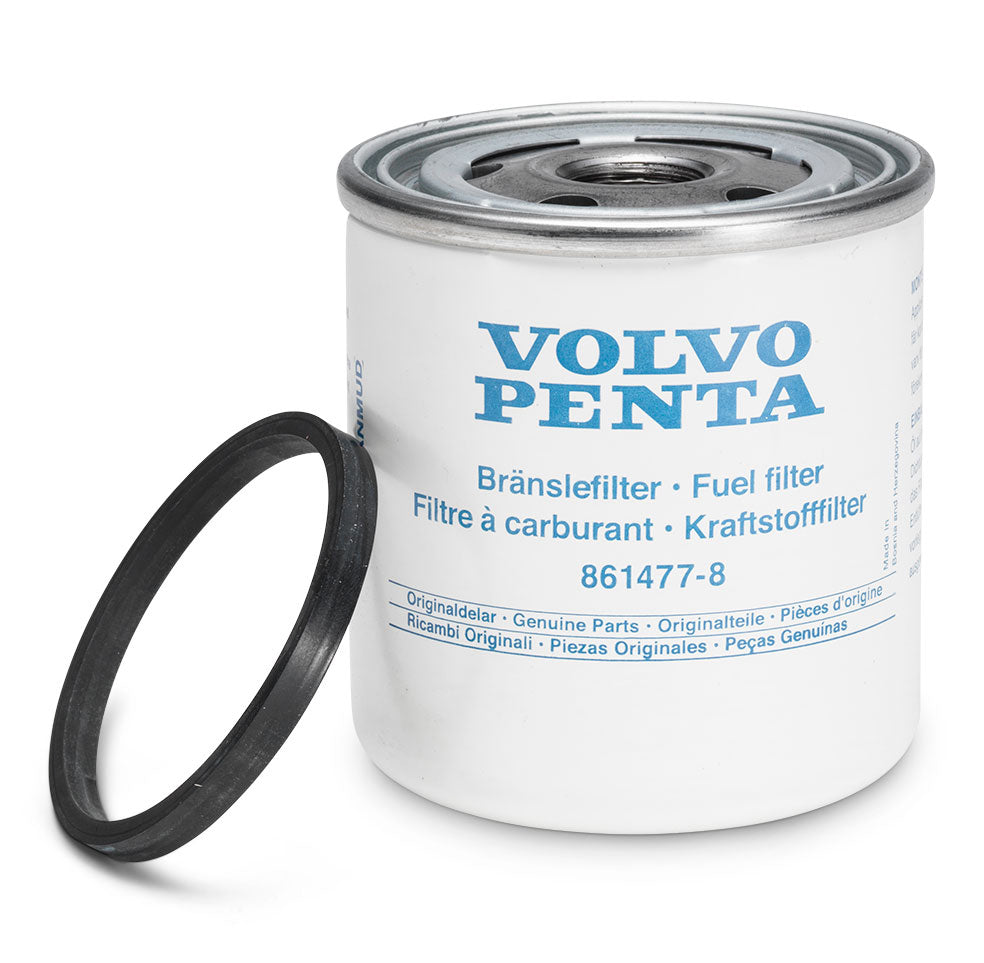

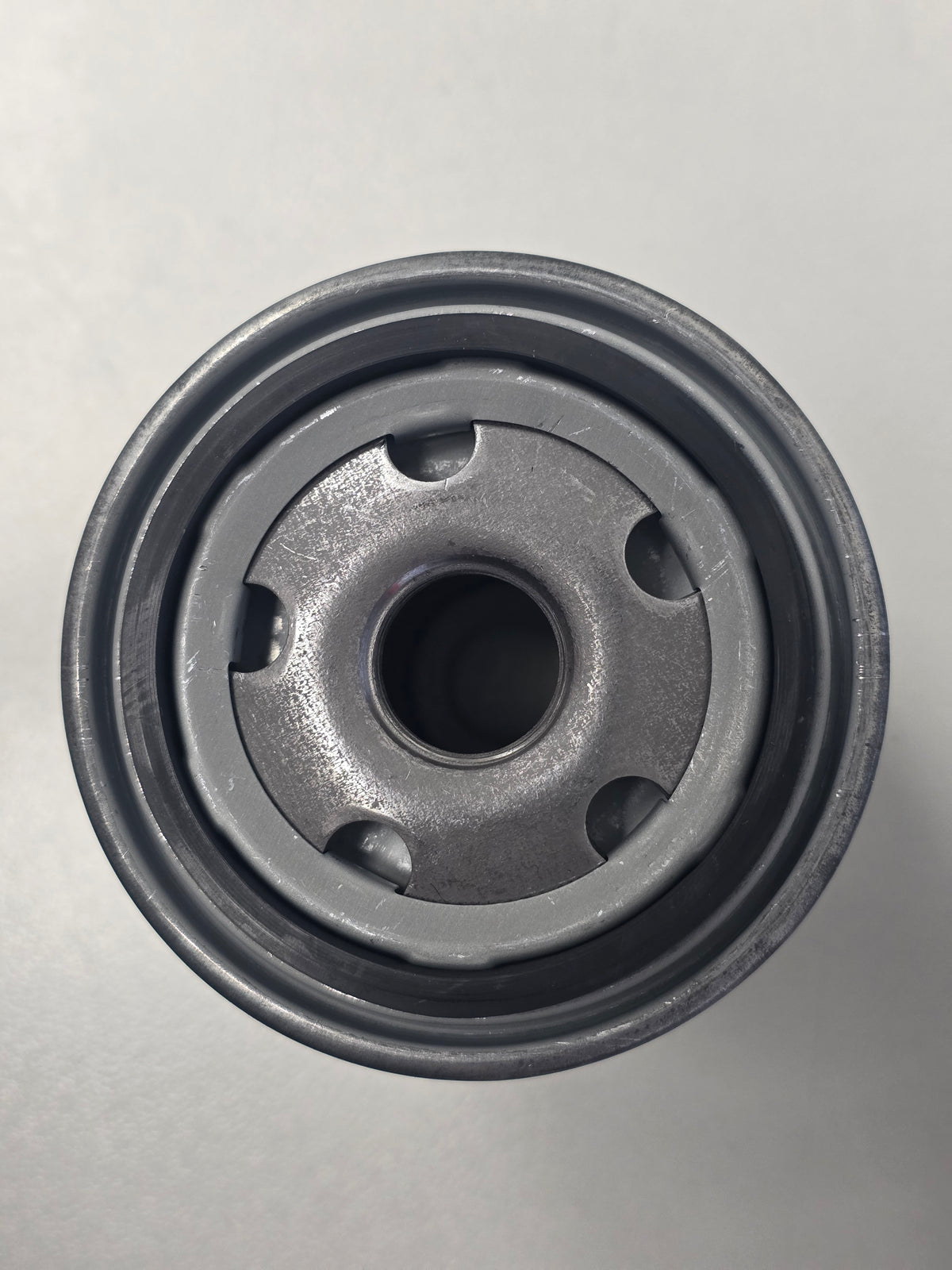

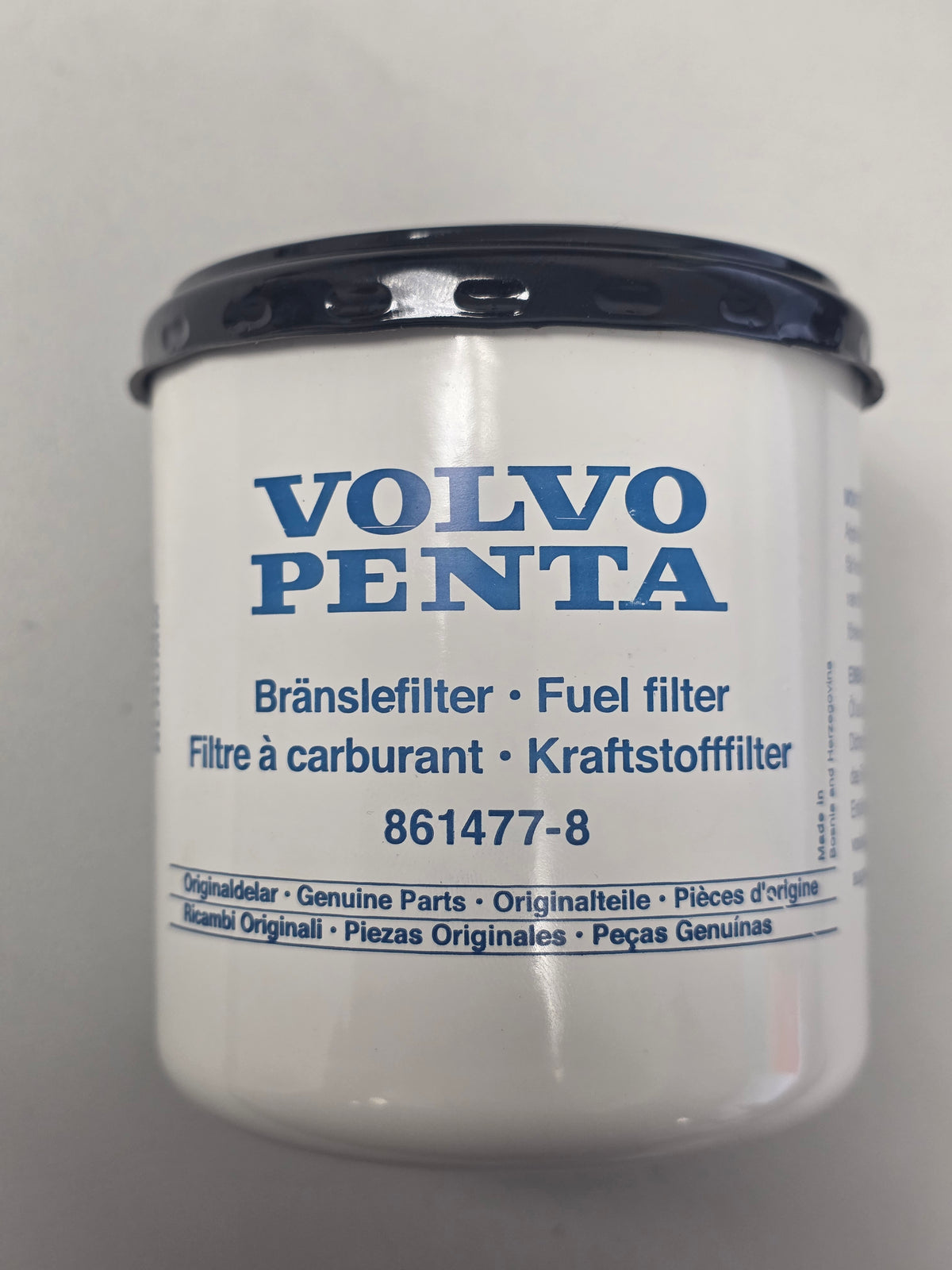

861477 Fuel Filter | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta fuel filter weighing 0.345 kg and listed for 40 applications across the D and MD series. It is the one fuel filter that runs right through the compact range: the D1-13 and D1-20, the D1-30 and D2-40, and the D2-50, D2-55, D2-60 and D2-75 all take this number, as do the MD2010 to MD2040. It consolidates three earlier part numbers, 21190113, 3580096 and 3841080, which were catalogued at the time as a filter and as a fuel filter insert.

🚤 Compatibility

• Engine Family: D, MD
• HP Range: 13-75 HP

Full model list at the end of this description.

⚙️ Key Features

• Fuel filter for the D1 and D2 ranges
• 0.345 kg
• Covers D1-13, D1-20, D1-30, D2-40, D2-50, D2-55, D2-60 and D2-75
• 40 applications across D and MD series engines
• Consolidates 21190113, 3580096 and 3841080
• Genuine Volvo Penta Part, designed and manufactured to ensure original fit, safety and performance
• Role: Fuel filter
• Fits: MD2010, MD2020, MD2030, MD2040; D1-13, D1-20; D1-30, D2-40; D2-50, D2-55, D2-60, D2-75

🔌 Function

Strains water and dirt out of the diesel before it reaches the injection pump and injectors.

⚠️ Common Signs of Failure

• Power falling away under load, or the engine dying as the throttle is opened
• Hard starting and a hunting idle as air is drawn through a blocked element
• Water or dark sediment visible when the filter is drained
• Element blackened or slimy on removal
• Diesel weeping at the filter seal or head

🛠️ Service Notes

• Check which of the older numbers your parts list quotes, as all three are now covered by this one filter
• Renew the seals supplied with the filter and bleed the system before starting
• If the element is full of water, drain and check the tank, since a new filter will fill again
• Always refer to the operator's manual for the recommended maintenance and service intervals for your engine and drive
• Listed against more than one engine or drive family - check the qualifier that applies to your own engine or drive

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 861477 → Supersedes 21190113

OEM / Related Numbers

• 3580096 earlier number superseded by this part
• 3841080 earlier number superseded by this part
• 21190113 earlier number superseded by this part

Other-Brand OEM Numbers

• Baldwin: BF954
• Bosch: 1 457 434 300
• Donaldson: P550057
• Fleetguard: FF5114
• Knecht: KC5
• Lucas-CAV: LFDS215
• MANN-FILTER: WK 811/86
• WIX: 33386

Aftermarket / Verified Equivalents

• Orbitrade: 17477-1
• Orbitrade: 17477
• Clean Filter: DN283
• CoopersFiaam: FT4946
• Fram: P3627
• Fram: P4178A
• Hastings: FF887
• Hifi-Filter: FT6238
• Luber-Finer: FP588F
• UFI: 24.370.00

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D2-40, D2-40B, D2-40F, D2-55, D2-55B, D2-55C, D2-55D, D2-55E, D2-55F, D2-50F, D2-75, D2-75B, D2-75C, D2-75F, D2-60F
• Volvo Penta D1-30, D1-30B, D1-30F, D1-13, D1-13B, D1-13F, D1-20, D1-20B, D1-20F
• Volvo Penta MD2010, MD2010B, MD2010-C, MD2010-D
• Volvo Penta MD2020, MD2020B, MD2020-C, MD2020-D
• Volvo Penta MD2030, MD2030B, MD2030-C, MD2030-D
• Volvo Penta MD2040, MD2040B, MD2040-C, MD2040-D
