861496 Coolant Pipe | Genuine Volvo Penta Part

🔧 Product Description

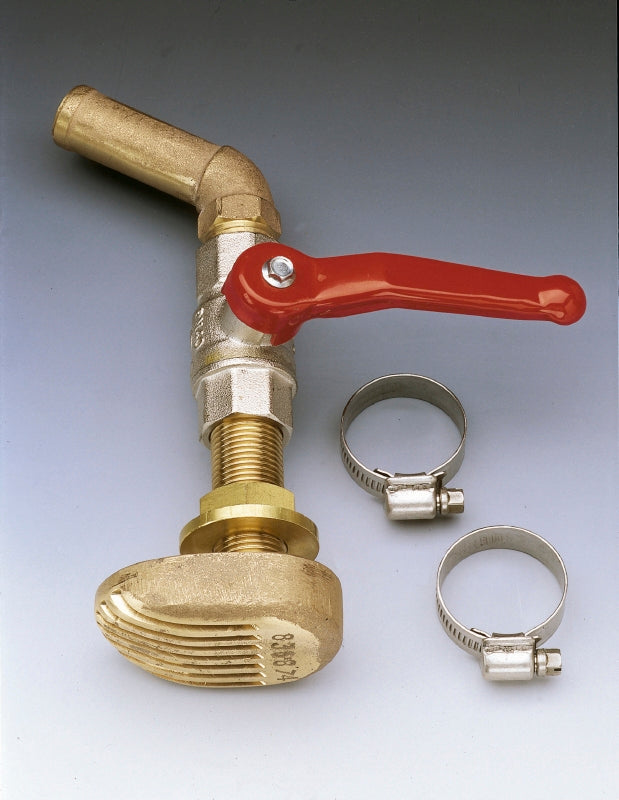

Genuine Volvo Penta cooling water intake for 19 mm internal diameter hose, weighing 1.966 kg and listed for 25 applications across D and MD series engines. The intake is a through-hull fitting with a strainer, installed through the bottom of the hull, and it is supplied complete with the through-hull fitting and strainer, fittings for the pipe connection, a shut-off valve and hose clips. Two intakes are listed at 19 mm internal hose diameter, this one and 861495, so the part number rather than the hose size is what identifies it.

🚤 Compatibility

• Engine Family: D, MD
• HP Range: 40-75 HP

Full model list at the end of this description.

⚙️ Key Features

• For 19 mm internal diameter hose
• Through-hull fitting with strainer
• Includes fittings for pipe connection, shut-off valve and hose clips
• 1.966 kg
• 25 applications across D and MD engines
• 19mm (Volvo assembly listing)
• Supplied with the shut-off valve and pipe connection fittings
• Internal hose diameter: 19 mm
• Fits: Seawater cooling circuits with 19 mm hose

📋 Kit Contents

• Through-hull fitting with strainer
• Fittings for pipe connection
• Shut-off valve
• Hose clips

🔌 Function

Takes raw water in through the hull and passes it to the engine's seawater circuit.

⚠️ Common Signs of Failure

• Raw water flow falling away or the engine running hot
• Weeping or dripping at the hose connection
• Intake slots blocked by weed, silt or growth
• Corrosion, pitting or electrolytic wastage on the body
• Water in the bilge traced back to the intake fitting

🛠️ Service Notes

• On a motor boat the strainer faces forward so water is forced up into the system under way; on a sailing boat it faces aft so water is not forced in while sailing with the engine stopped
• Close the shut-off valve if a motor boat is being towed, and before disturbing the intake
• Two intakes share the 19 mm hose size, so order by part number
• On a motor boat point the strainer forward; on a sailing boat point it aft so water is not forced in under sail
• When a motor boat is being towed, the shut-off valve must be closed

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D2-40, D2-40B, D2-40F, D2-55, D2-55B, D2-55C, D2-55D, D2-55E, D2-55F, D2-50F, D2-75, D2-75B, D2-75C, D2-75F, D2-60F
• Volvo Penta MD2040, MD2040B, MD2040-C, MD2040-D
• Volvo Penta MD2010, MD2010B
• Volvo Penta MD2020, MD2020B
• Volvo Penta MD2030, MD2030B
