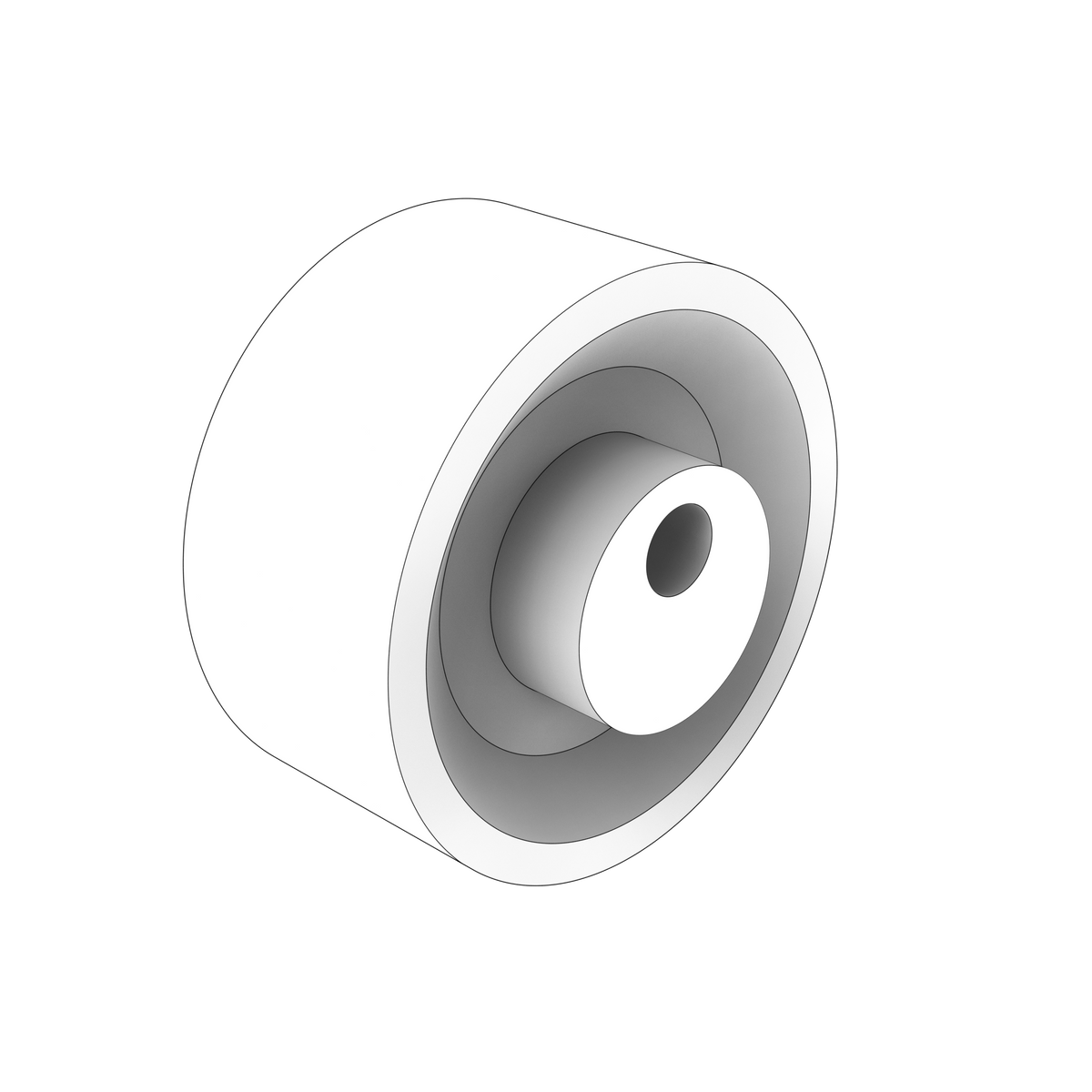

861563 Tension Pulley | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta tension pulley for the multi-V-belt, from the Alternator, Charging, Electric Motor and Electric Drives group, weighing 0.288 kg and listed for 32 applications across TAMD, TWD, TID, TD, KAD and KAMD series engines.

🚤 Compatibility

• Engine Family: TAMD, TWD, TID, TD, KAD, KAMD

Full model list at the end of this description.

⚙️ Key Features

• For the multi-V-belt
• 0.288 kg
• 32 applications across six engine series
• Alternator and charging belt run

🔌 Function

Bears against the multi-V-belt to hold its tension and keep it wrapped on the driven pulleys.

⚠️ Common Signs of Failure

• Rumble or growl from the belt run that rises with the revs
• Belt squealing or slipping under charging load
• Bearing rough, notchy or noisy when spun by hand
• Belt throwing dust or wearing on one flank
• Pulley face grooved or the flange chipped

🛠️ Service Notes

• Turn the pulley by hand with the belt off to judge the bearing before condemning the belt
• Renew the belt when the pulley is changed and reset the tension after a short run

🔄 Supersession & Cross Reference

Aftermarket / Verified Equivalents

• Orbitrade: 18563

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta KAD44P, KAD44P-B, KAD44P-C
• Volvo Penta KAMD43P, KAMD43P-A, KAMD43P-B
• Volvo Penta KAMD44P-B, KAMD44P-C, KAMD44P-A
• Volvo Penta KAD42B, KAD42P-A
• Volvo Penta KAD43P-B, KAD43P-A
• Volvo Penta KAMD42B, KAMD42P-A
• Volvo Penta TAMD42WJ-A, TAMD42B
• Volvo Penta TD610M, TD610V
• Volvo Penta TD630ME, TD630VE
• Volvo Penta TD730ME, TD730VE
• Volvo Penta TWD630ME, TWD630VE
• Volvo Penta KAD32P
• Volvo Penta TD640VE
• Volvo Penta TD71A
• Volvo Penta TID71A
• Volvo Penta TWD730ME
• Volvo Penta TWD731VE
• Volvo Penta TWD740VE
