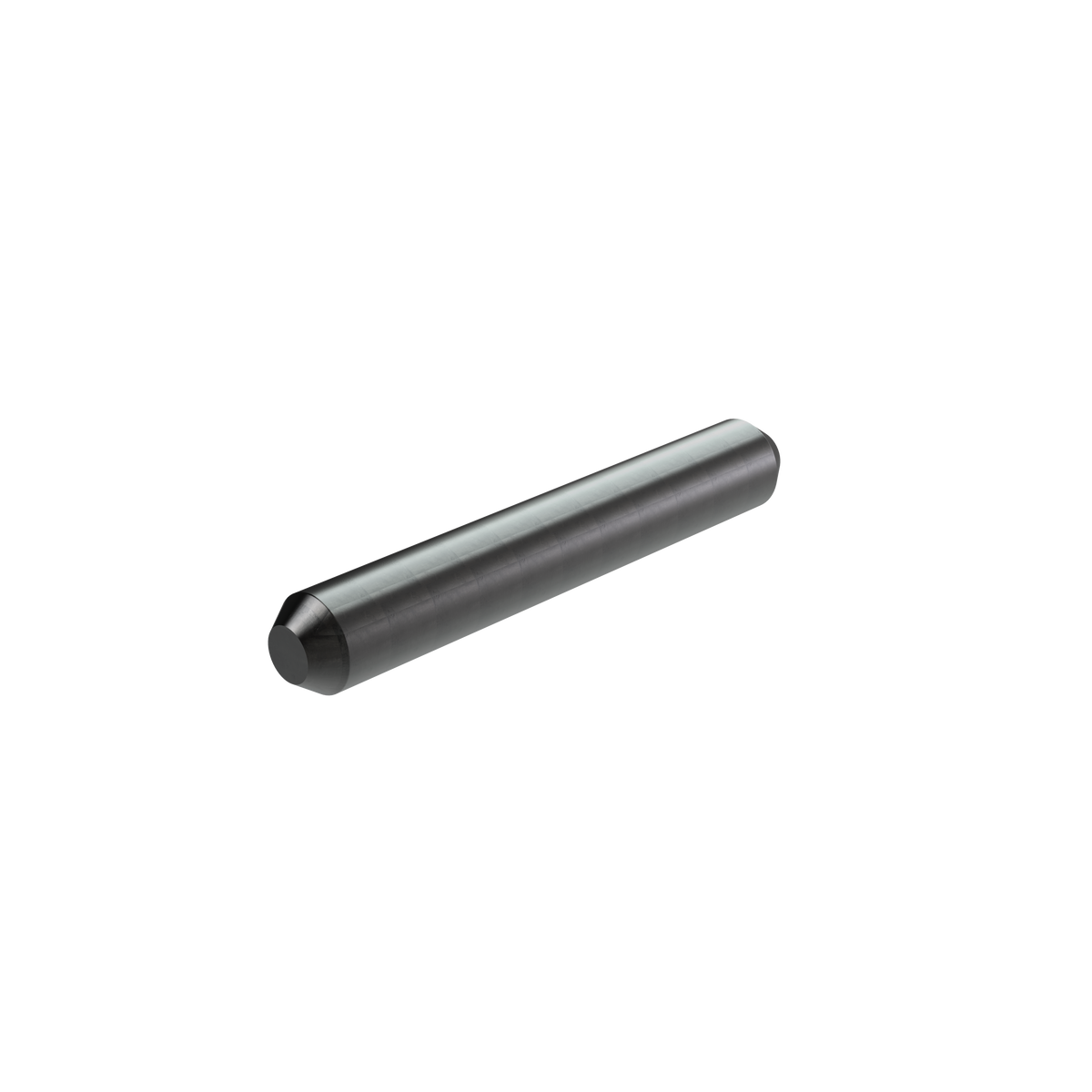

861714 Locating Pin | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta locating pin from the Engine group, weighing 0.014 kg and listed for 8 applications across the KAMD and KAD series.

🚤 Compatibility

Typically suits:

• Volvo Penta KAMD44P-B
• Volvo Penta KAMD44P-C
• Volvo Penta KAD300-A
• Volvo Penta KAD44P
• Volvo Penta KAD44P-B
• Volvo Penta KAD44P-C
• Volvo Penta KAMD300-A
• Volvo Penta KAMD44P-A

• Engine Family: KAMD, KAD

⚙️ Key Features

• For KAMD and KAD engines
• 0.014 kg
• 8 applications
• 12 used per assembly

🔌 Function

Sets the position of one component against another so the assembly goes back exactly where it came from.

⚠️ Common Signs of Failure

• Component sitting proud or refusing to seat squarely
• Pin bent, sheared or picked up as it is drawn
• Bore worn oversize so the pin is a loose fit
• Fretting or bright marks on the mating faces

🛠️ Service Notes

• Clean both bores and check them for burrs, corrosion and elongation before fitting; a pin in a worn bore locates nothing
• Fit the pin square and to the depth given in the workshop manual for your engine, driving it home with a soft-faced tool or pulling it in with a suitable puller rather than hammering steel on steel
• Renew any pin that is bent, scored, mushroomed or a loose fit — a damaged locating pin lets the mating parts shift and the joint leak
• Locate the mating component on its pins first and check it sits flat before any fastener is tightened; pulling parts together on the bolts will shear or displace the pins
• Where the pin is a hollow or sealing type, make sure the joint face around it is clean and apply whatever sealing compound the manual for your engine specifies

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
