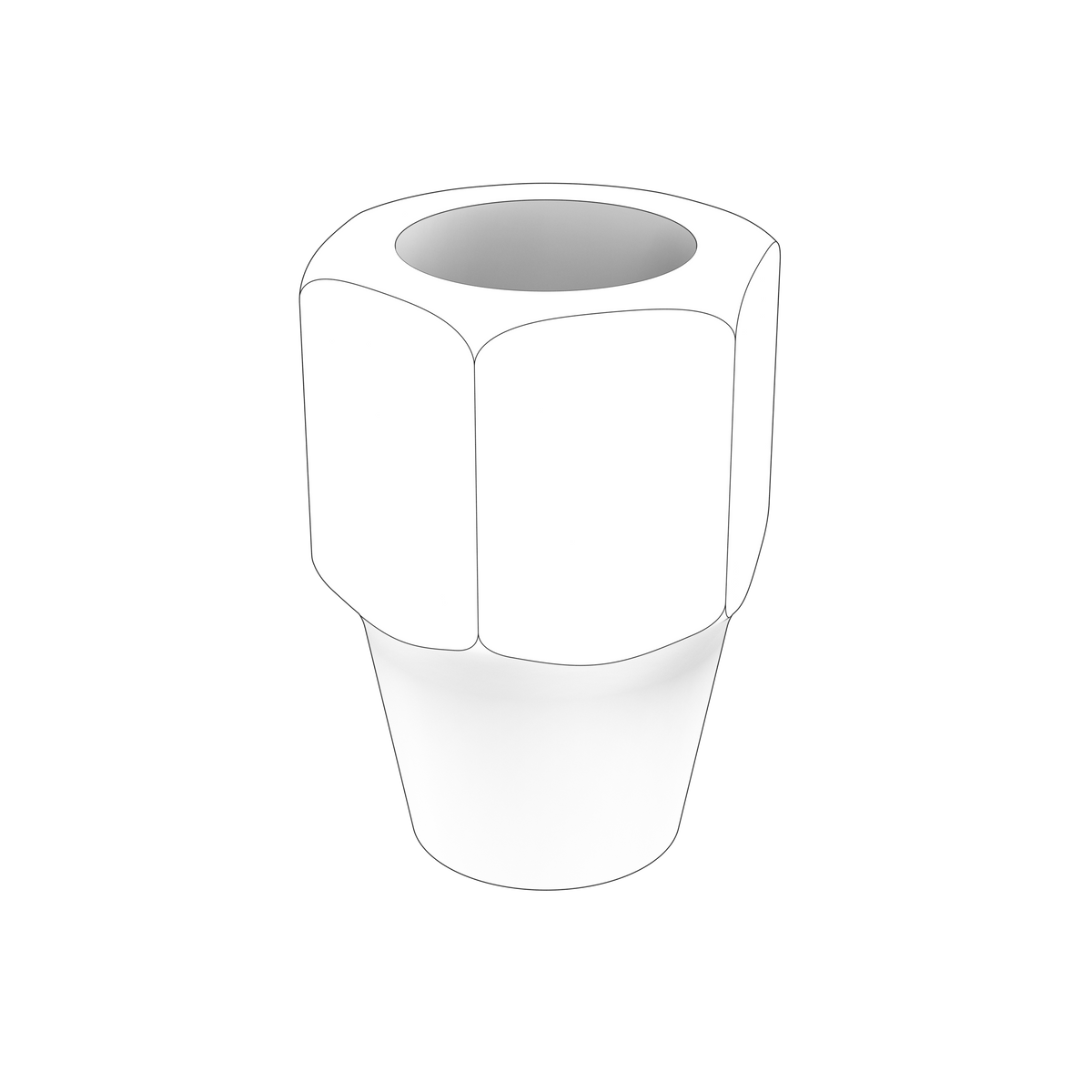

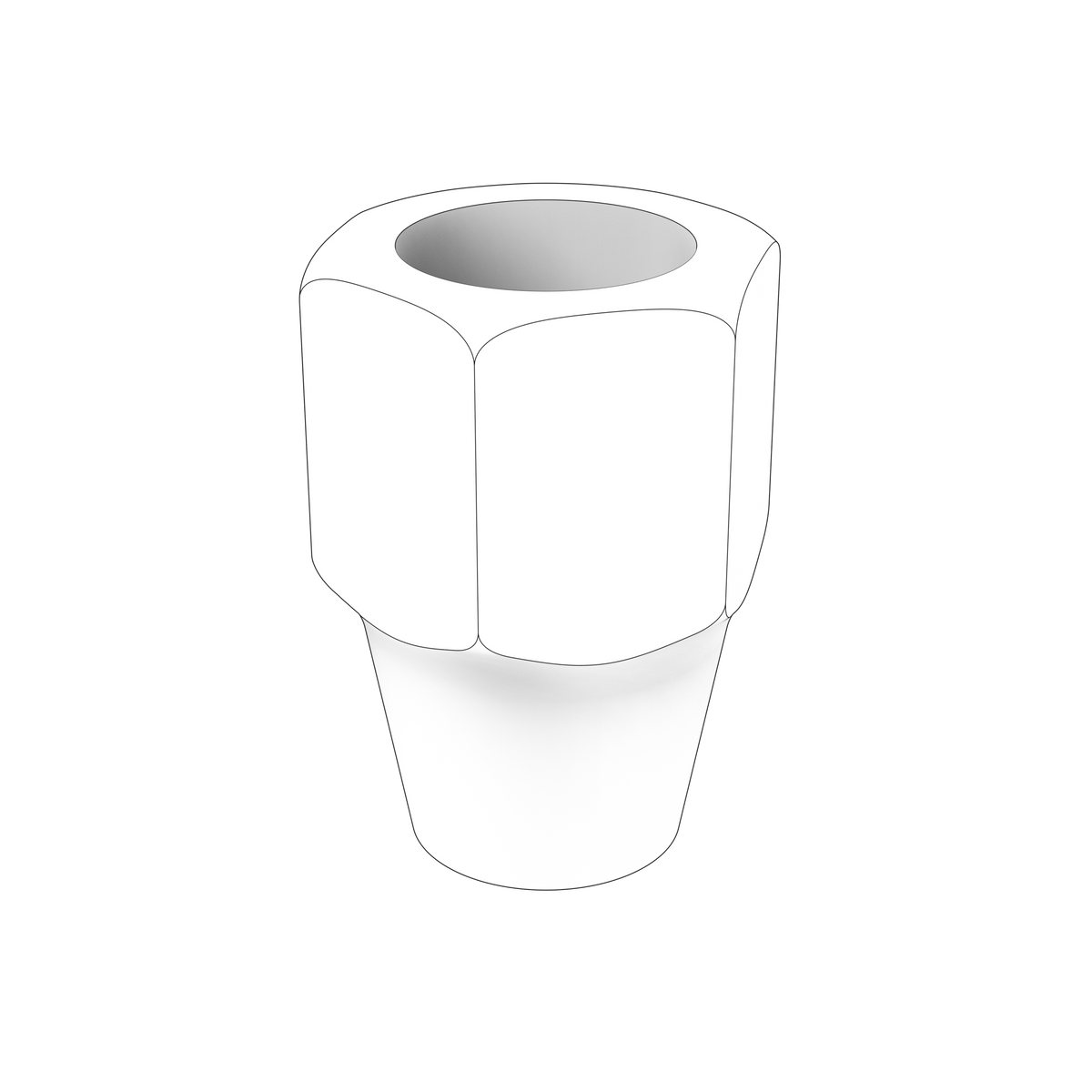

862109 Nipple | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta nipple from the Instruments group, for engines up to the /24314 serial breakpoint or for engines that have not been rebuilt. It weighs 0.011 kg and is listed for 102 applications across the TD, TAMD, D, TWD, TID and TAD series. It supersedes part number 864415, which was catalogued earlier as a pressure monitor, so an older parts list will show a switch where the current listing gives a plain nipple.

🚤 Compatibility

• Engine Family: TD, TAMD, D, TWD, TID, TAD
• Serial Range: SN-XXXXXXXXXX/24314 or not rebuilt engines.

Full model list at the end of this description.

⚙️ Key Features

• For engines up to the /24314 serial breakpoint, or engines that have not been rebuilt
• 0.011 kg
• Supersedes 864415, catalogued earlier as a pressure monitor
• 102 applications across six engine series

🔌 Function

Provides the threaded, sealed take-off point where the sender or gauge line picks up pressure from the system.

⚠️ Common Signs of Failure

• Weeping or a wet film where the nipple screws into its boss
• Thread damaged, stretched or cross-started
• Sealing face nicked or picked up so a new washer still leaks
• Bore partly blocked with sludge, giving a slow or damped gauge reading

🛠️ Service Notes

• Check the engine serial number and whether the engine has been rebuilt, since this part is listed against that breakpoint
• Clear the bore and the feed drilling before fitting, as a blocked take-off gives a false low reading
• Renew the sealing washer and hold the boss when tightening rather than loading the housing

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 862109 → Supersedes 864415 → Supersedes 864237 → Supersedes 863908

OEM / Related Numbers

• 864415 earlier number superseded by this part
• 864237 earlier number superseded by this part
• 863908 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D12C-A MP, D12D-A MG, D12D-A MH, D12D-A MP, D12D-B MH, D12D-B MP, D12D-C MH, D12D-C MP, D12D-D MP, D12D-E MP, D12D-F MP, D12D-G MH, D12D-G MP, D12D-H MP
• Volvo Penta TD61A, TD61ACE, TD61AG, TD61AGP, TD61AP, TD61APB, TD61AW
• Volvo Penta TD71A, TD71ACE, TD71AG, TD71AGP, TD71AP, TD71APB, TD71AW
• Volvo Penta TAMD162C-C, TAMD162A, TAMD162B, TAMD162C, TAMD162C-B
• Volvo Penta TID71A, TID71AG, TID71AGP, TID71AP, TID71APB
• Volvo Penta TWD610G, TWD610P, TWD610PB, TWD610V
• Volvo Penta TWD710G, TWD710P, TWD710PB, TWD710V
• Volvo Penta TAD730G, TAD730P, TAD730V
• Volvo Penta TAMD165A, TAMD165C, TAMD165P
• Volvo Penta TD610G, TD610M, TD610V
• Volvo Penta TWD1630P, TWD1630PP, TWD1630V
• Volvo Penta TAD1630P, TAD1630PB
• Volvo Penta TAMD163A-A, TAMD163P-A
• Volvo Penta TAMD63L-A, TAMD63P-A
• Volvo Penta TAMD71B, TAMD71A
• Volvo Penta TAMD73P-A, TAMD73WJ-A
• Volvo Penta TD630ME, TD630VE
• Volvo Penta TD730ME, TD730VE
• Volvo Penta TID61AG, TID61AGP
• Volvo Penta TWD630ME, TWD630VE
• Volvo Penta TAD1230V
• Volvo Penta TAMD61A
• Volvo Penta TAMD62A
• Volvo Penta TAMD72A
• Volvo Penta TAMD74A
• Volvo Penta TD121G-87
• Volvo Penta TD640VE
• Volvo Penta TD710G
• Volvo Penta TWD1030ME
• Volvo Penta TWD1031VE
• Volvo Penta TWD1210V
• Volvo Penta TWD1211V
• Volvo Penta TWD1230VE
• Volvo Penta TWD1231VE
• Volvo Penta TWD1240VE
• Volvo Penta TWD1643GE
• Volvo Penta TWD1644-45GE
• Volvo Penta TWD1652GE
• Volvo Penta TWD1653GE
• Volvo Penta TWD1663GE
• Volvo Penta TWD1672-1673GE
• Volvo Penta TWD1682-83GE
• Volvo Penta TWD1683GE-B
• Volvo Penta TWD1744GE
• Volvo Penta TWD730ME
• Volvo Penta TWD731VE
