86246T Aftermarket Mercruiser Mechanical Fuel Pump | Sawley's Select Marine Parts

🔧 Product Description

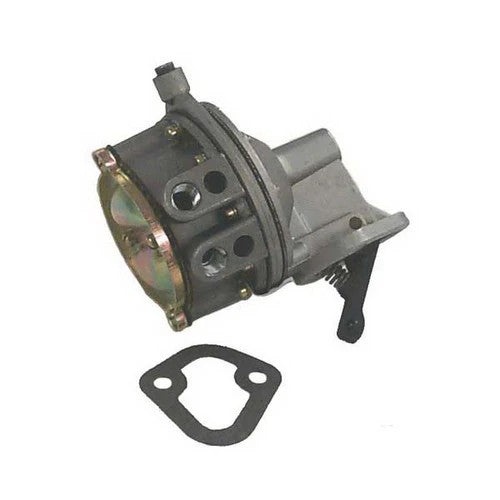

Aftermarket replacement Mechanical Fuel Pump - Replaces Part Number: 86246T

New aftermarket mechanical/pulse-operated fuel pump replacing 86246T. It is configured for MerCruiser petrol engines whose parts catalogue specifies 86246T. The exact engine model, serial range, fuel pressure and connection layout must match the original installation.

⚙️ Key Features

• Direct replacement for the 86246T service family

• Designed for MerCruiser fuel-system applications

• Pulse- or engine-driven low-pressure fuel delivery

• Marine fuel-resistant diaphragm and valve materials

• Confirm the engine serial, pump pressure and port orientation before installation

🧰 Kit / Assembly Contents

• 1 × Complete mechanical/pulse fuel-pump assembly - Part Number: 86246T

• 1 × Integrated diaphragm and check-valve assembly

• 1 × Pump-to-engine mounting gasket - supplied where included by the selected manufacturer

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 86246T (MerCruiser reference)

OEM / Related Numbers:

• 86246T

Aftermarket / Verified Equivalents:

• Recmar: REC86246T

🚤 Compatibility

Commonly used on:

• MerCruiser fuel-system applications

Typically suits:

• Engine models:

• MerCruiser petrol engines whose parts catalogue specifies 86246T

• HP / Output Range: Engine-model dependent

• Engine / System Type: MerCruiser fuel-system applications

• Year Range: Model- and serial-dependent

• Serial / Pump Identification: Match P/N 86246T to the model-specific parts diagram and verify pressure, electrical connector, inlet/outlet orientation and mounting before ordering.

🔌 Function

The engine-driven diaphragm pump uses crankcase pulses or a cam-operated lever to draw fuel from the tank and deliver a regulated low-pressure supply to the carburettor, vapour separator or downstream high-pressure pump.

Common signs of failure:

• Hard starting after the engine has been standing

• Fuel starvation, hesitation or loss of power under load

• Failure to fill the carburettor bowls or vapour separator

• Fuel leaking from the pump body or ruptured diaphragm

• Engine-oil dilution or fuel entering the pulse passage on a failed pump

📦 Condition

• New aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
