862548A1 Aftermarket Mercruiser Bracket with Electrical Parts 31.5cm | Sawley's Select Marine Parts

🔧 Product Description

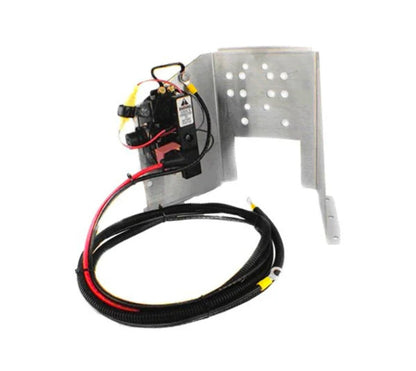

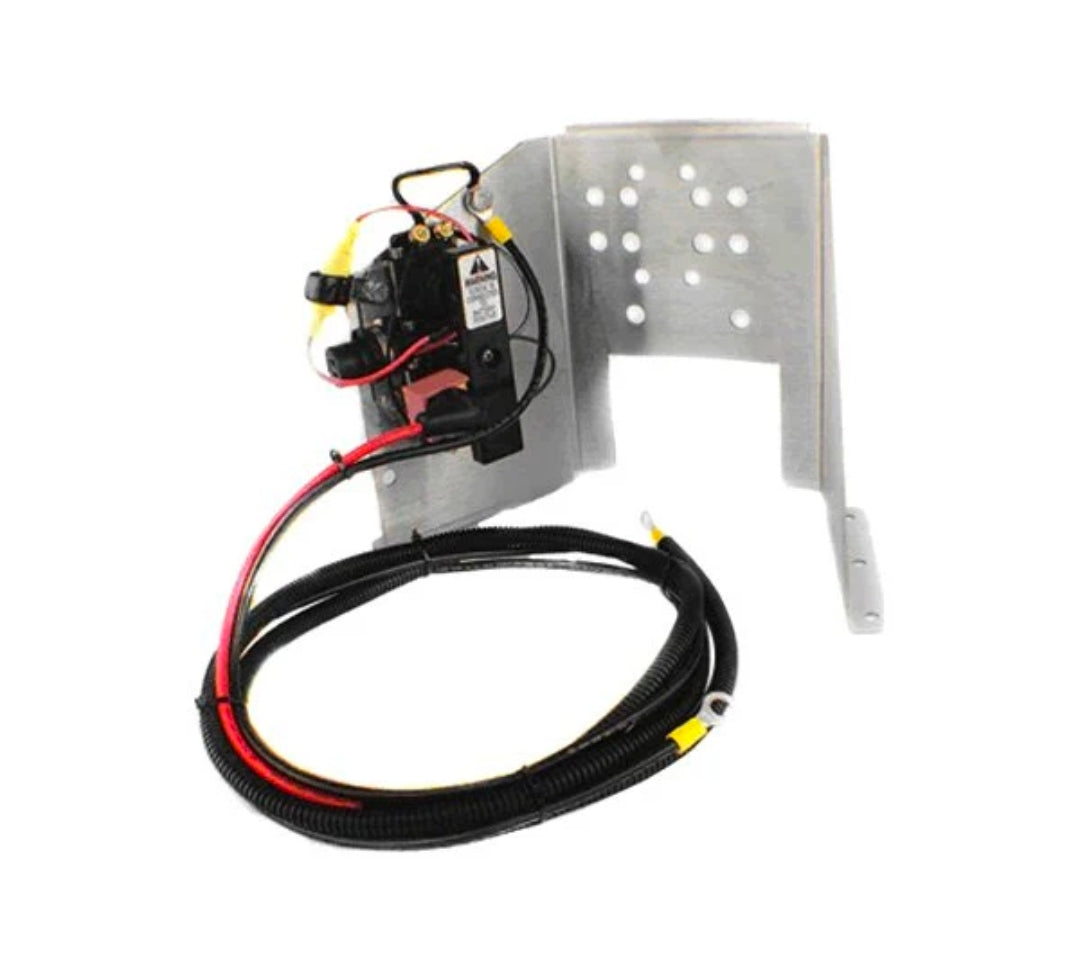

Aftermarket MerCruiser Stainless Trim-Pump Bracket with Electrical Package - Part Number: 862548A1

Floor-mounted stainless bracket assembly for remote MerCruiser hydraulic trim pumps. The complete version carries the solenoid array, fuse/junction hardware and battery/control wiring needed to mount and connect the pump in the engine compartment.

⚙️ Key Features

• Approximately 31.5 cm assembled height

• Stainless floor-mount bracket

• Mounting pattern for late-style MerCruiser remote trim pumps

• Supplied with electrical solenoid/fuse/wiring package

• Suitable for Alpha and Bravo remote-pump installations

📋 Kit / Assembly Contents

• 1 × Stainless floor-mount trim-pump bracket - 42419A1 / 862548A1 service family

• 2 × Reversible trim-pump solenoids - service family 89-96158T

• 1 × Main fuse/junction block assembly - supplied under REC862548A1

• 1 × Battery cable/loom assembly - supplied under REC862548A1

• 1 × Control wiring harness - supplied under REC862548A1

• Mounting bolts, washers and cable retainers - supplied under REC862548A1

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 862548A1 → Later complete bracket/electrical reference

• 42419A1 → Base bracket reference

• 58397A2, 58397A3, 88553A1 and 88893A4 → Related earlier bracket references

OEM / Related Numbers:

• 862548A1

• 42419A1

• PH200-T066-K

• PH200-T066

• Sierra 18-6749

• Sierra 18-6750

• API SSFMB520

• REC862548A1

Aftermarket / Verified Equivalents:

• Recmar: REC862548A1 / PH200-T066-K

• Sierra: 18-6749 metal / 18-6750 stainless bracket

• API Marine: SSFMB520

• Aftermarket: AM862548A1

🚤 Compatibility

Commonly used on:

• MerCruiser remote Oildyne trim-pump installations

Typically suits:

• Engine / drive models:

• Pre-Alpha/R/MR service conversions using the floor-mounted pump

• Alpha One and Alpha One Gen II

• Bravo One, Bravo Two and Bravo Three

• Late remote-pump installations using 862548A1/42419A1

• HP Range: Drive application; not engine-horsepower specific

• Engine / Drive Type: Remote hydraulic trim-pump mounting and electrical-control assembly

• Year Range: 1983 onward, pump and transom serial dependent

• Serial / Identification Range: Confirm floor-mount arrangement, pump footprint, cable length and solenoid layout. The motor/pump/reservoir is not included unless specifically packaged with the assembly.

🔌 Function

Secures the hydraulic trim pump and carries the high-current switching, fuse/junction and wiring components that supply the pump motor.

Common signs of failure or replacement requirement:

• Corroded or cracked mounting bracket

• Loose pump causing vibration or damaged hydraulic lines

• Burnt solenoid contacts or melted terminals

• Intermittent trim caused by corroded battery/control wiring

• Blown fuse link or overheated junction connection

📦 Condition

• Brand-new aftermarket replacement part

• Supplied as a new replacement component

• Supplied in suitable retail or equivalent packaging
