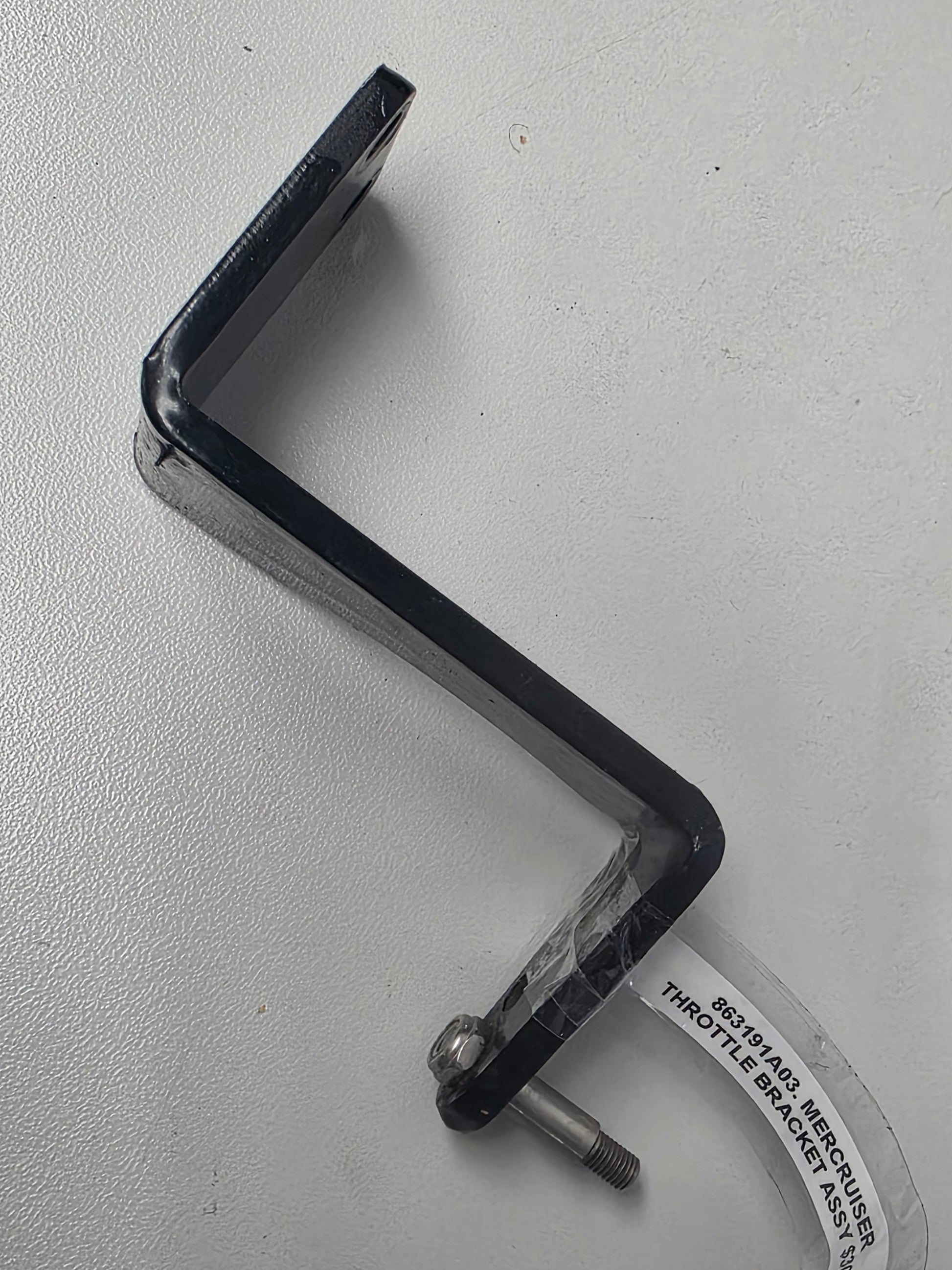

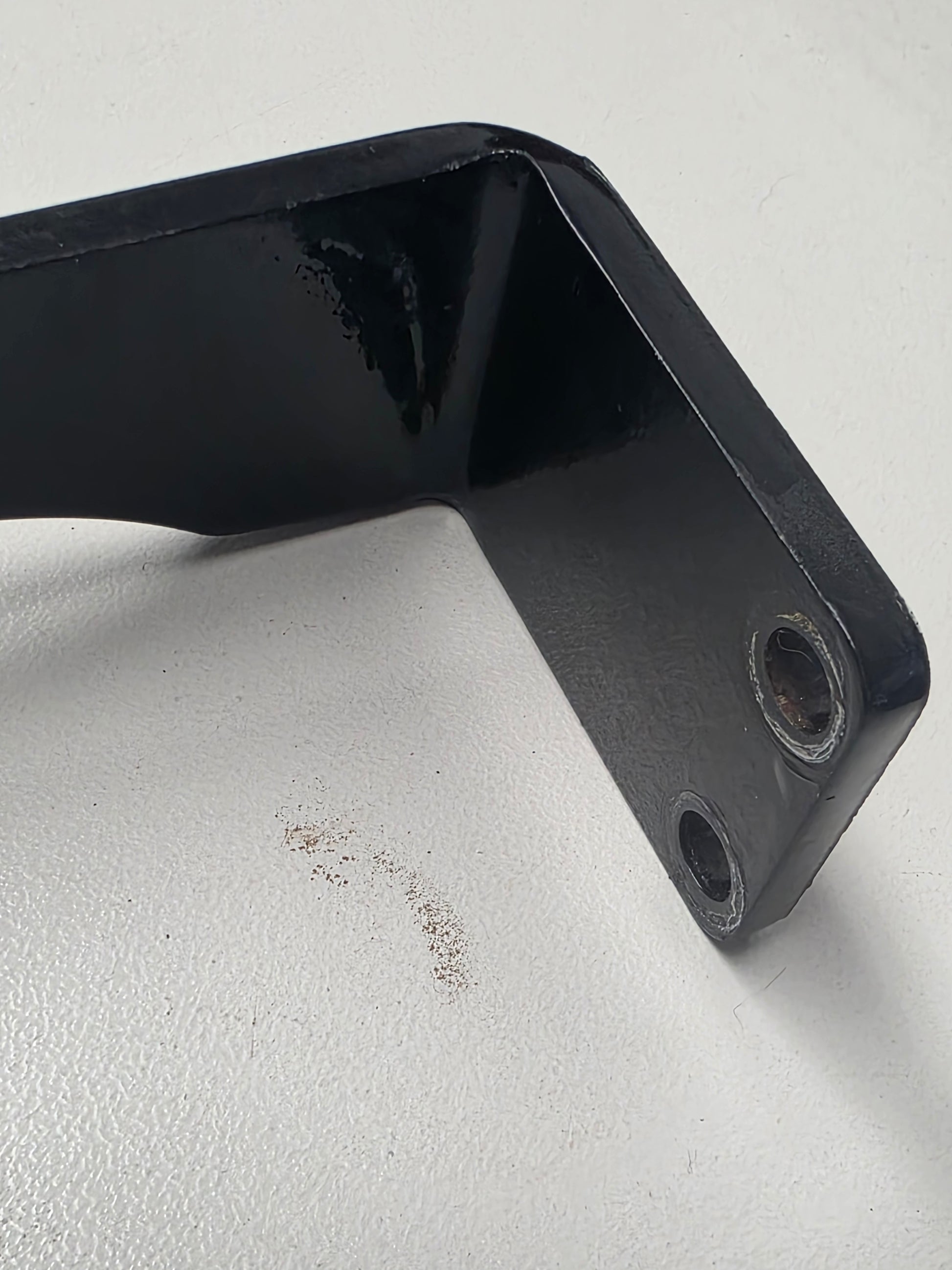

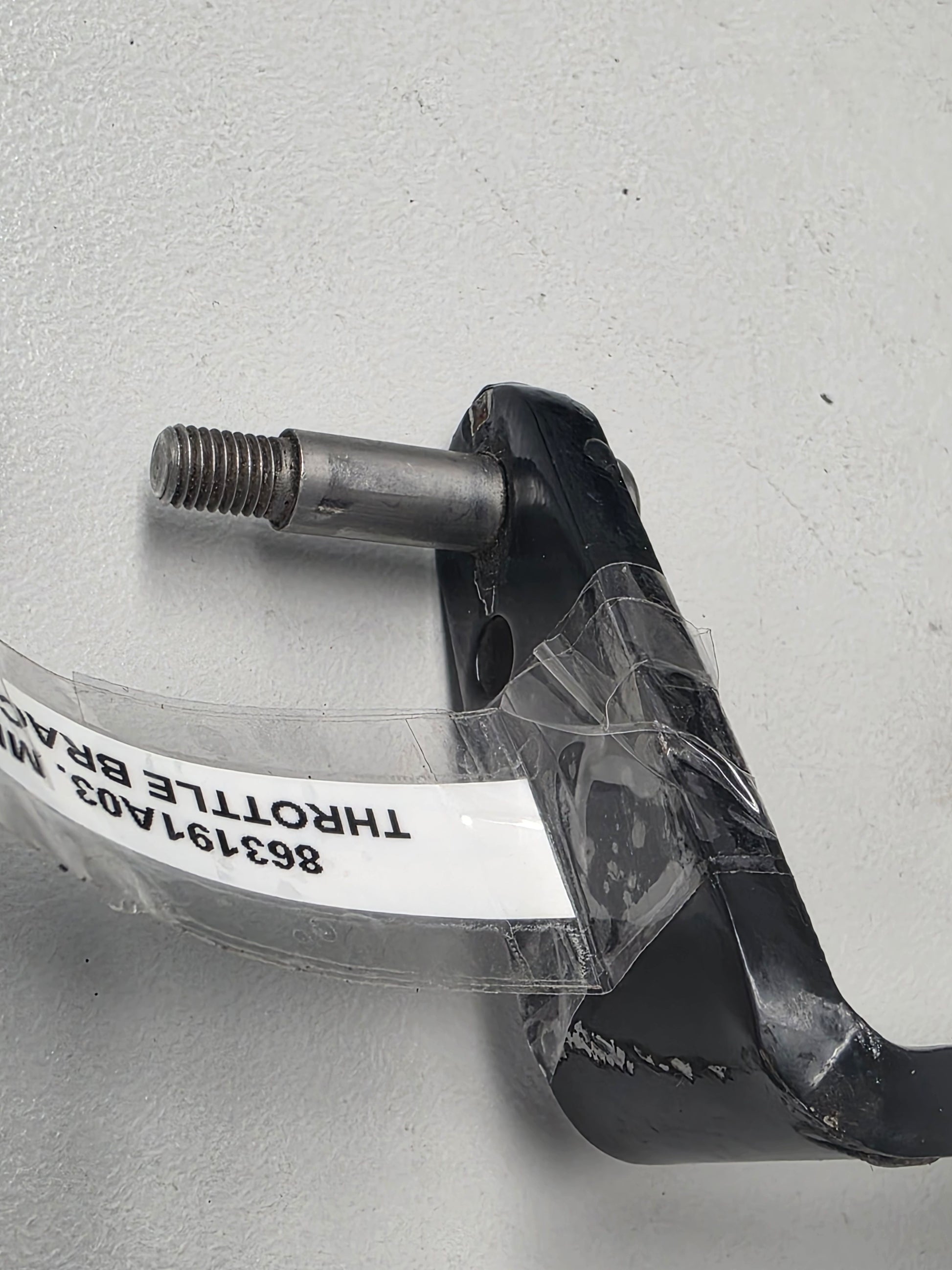

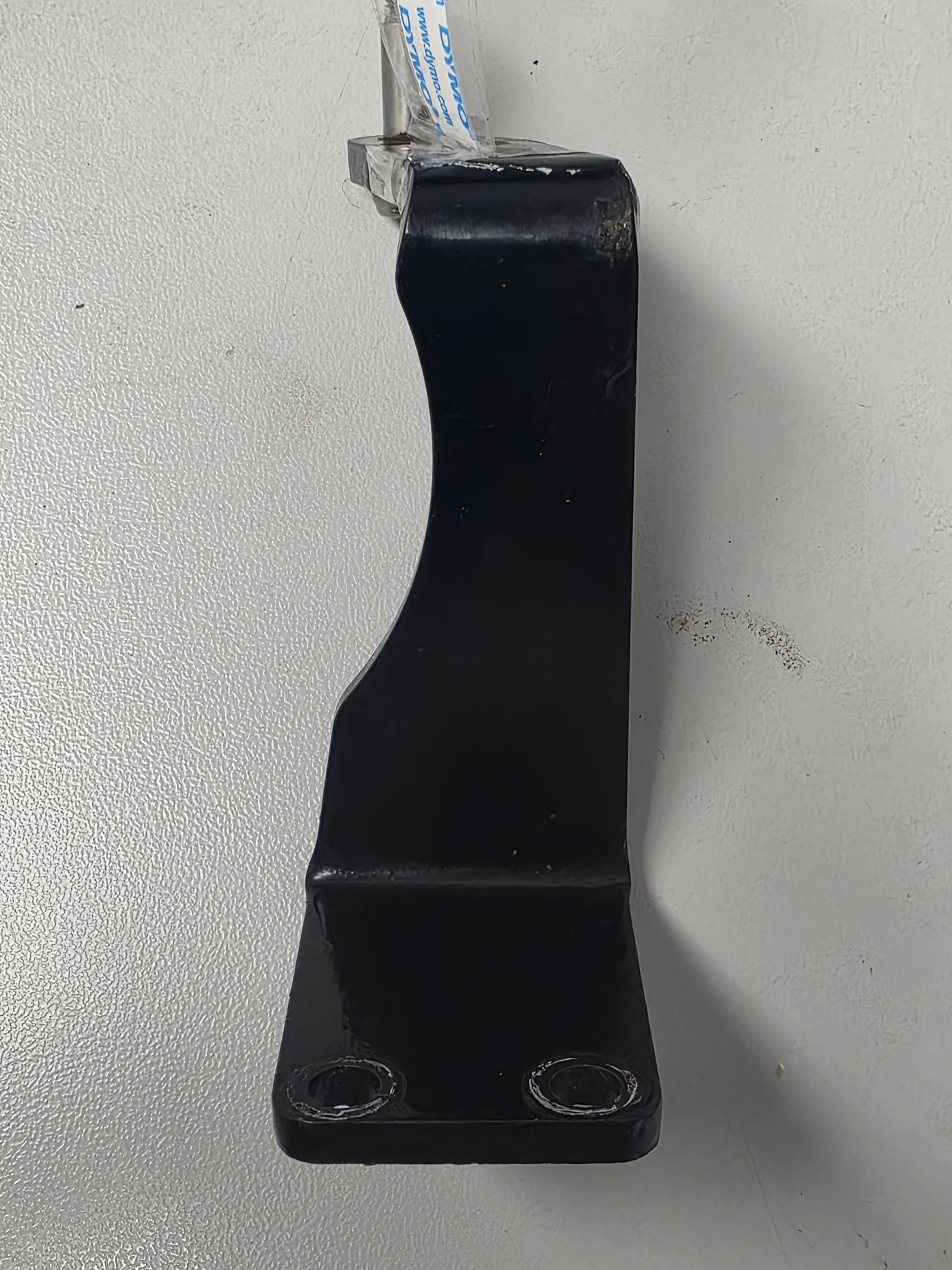

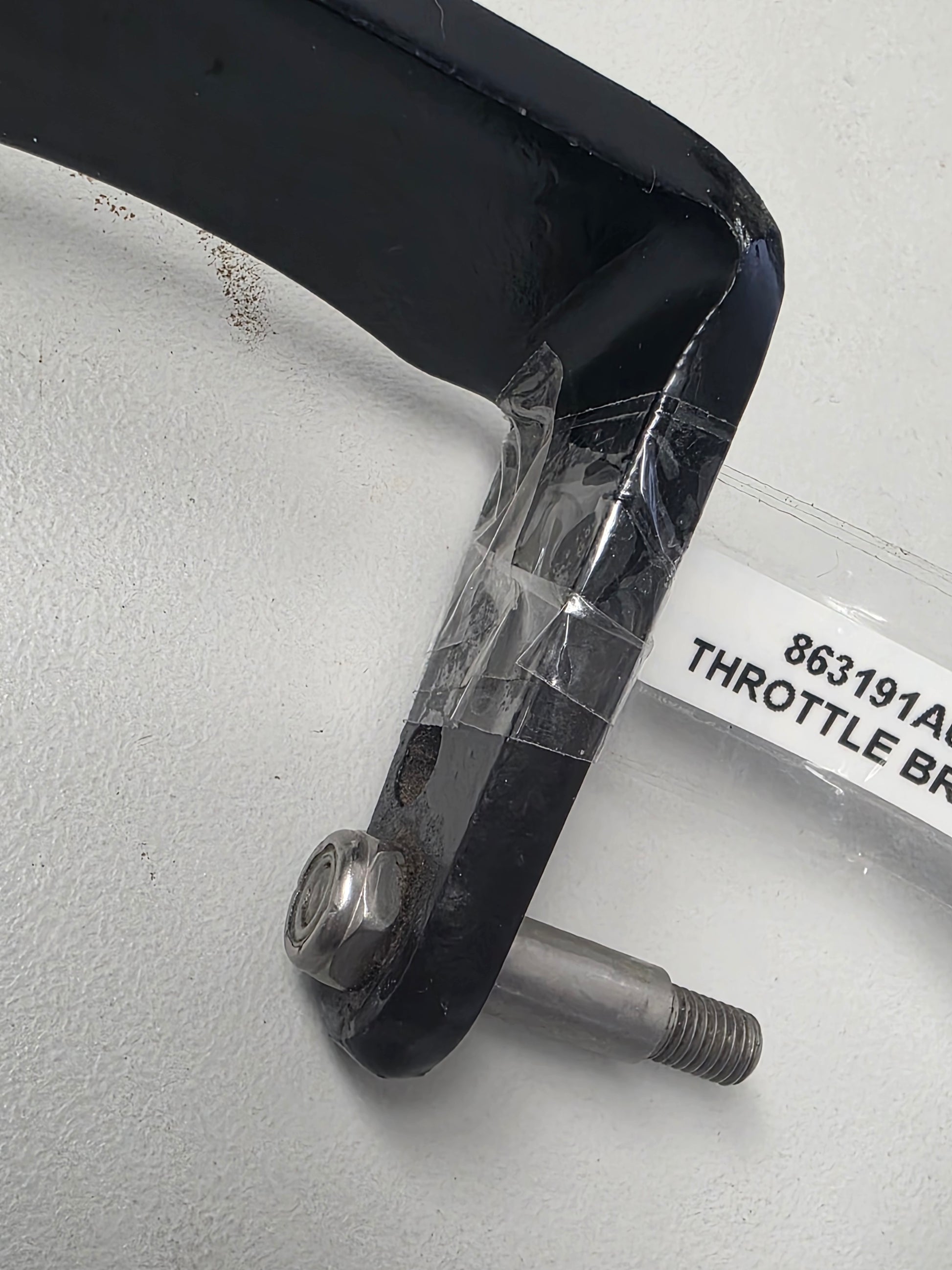

863191A03 Mercruiser Throttle Bracket Assy | Genuine Used Part

863191A03 Mercruiser Throttle Bracket Assy | Genuine Used Part

$30.00 AUD
$30.00 AUD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

🔧 Product Description

Genuine MerCruiser 1.7L Diesel Throttle Bracket Assembly - Part Number: 863191A03

A genuine used MerCruiser throttle-control bracket assembly for 1.7-litre DTI four-cylinder marine diesel engines.

The bracket supports the remote throttle cable and engine fuel-control linkage, converting helm-control movement into precise engine-speed adjustment.

⚙️ Key Features

  • Genuine used MerCruiser OEM throttle bracket
  • Correct assembly part number 863191A03
  • Designed for Cummins MerCruiser Diesel 1.7L engines
  • Supports remote throttle-cable and fuel-control linkage
  • Suitable for inboard and Alpha sterndrive installations

🚤 Compatibility

Commonly used on

  • Cummins MerCruiser Diesel 1.7L throttle and fuel-control systems
  • Isuzu-based MerCruiser diesel inboard and Alpha sterndrive packages

Typically suits

  • Engine models:
  • MerCruiser D1.7L DTI Alpha
  • Cummins MerCruiser Diesel MI 120 1.7L inboard
  • Cummins MerCruiser Diesel MS 120 1.7L sterndrive
  • CMD 1.7 MI 120 L/L4
  • CMD 1.7 MS 120 L/L4
  • 2004 Cummins MerCruiser Diesel MI 120
  • 2004 Cummins MerCruiser Diesel MS 120
  • 2005 Cummins MerCruiser Diesel MI 120
  • 2005 Cummins MerCruiser Diesel MS 120
  • Power Range: Approximately 120HP
  • Engine Type: Cummins MerCruiser Diesel / MerCruiser 1.7L inline four-cylinder diesel
  • Year Range: Approximately 2001-2005

🔌 Function

The bracket locates the throttle cable and linkage so helm-control movement accurately operates the diesel fuel-control lever and engine-speed system.

⚠️ Common Signs of Failure

  • Throttle cable will not remain aligned
  • Engine does not reach full governed speed
  • Idle speed changes when the cable moves
  • Bracket is bent, cracked or corroded
  • Linkage binds or has excessive free play
  • Cable mounting point is worn or broken

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 863191A03 current original throttle-bracket assembly reference

OEM / Related Numbers

  • 863191A03
  • 863191A3
  • 863191
  • 863191-003
  • 882571 related 1.7L alternator reference
  • 8M0084523 related current alternator reference

Aftermarket / Verified Equivalents

  • No aftermarket equivalent

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
