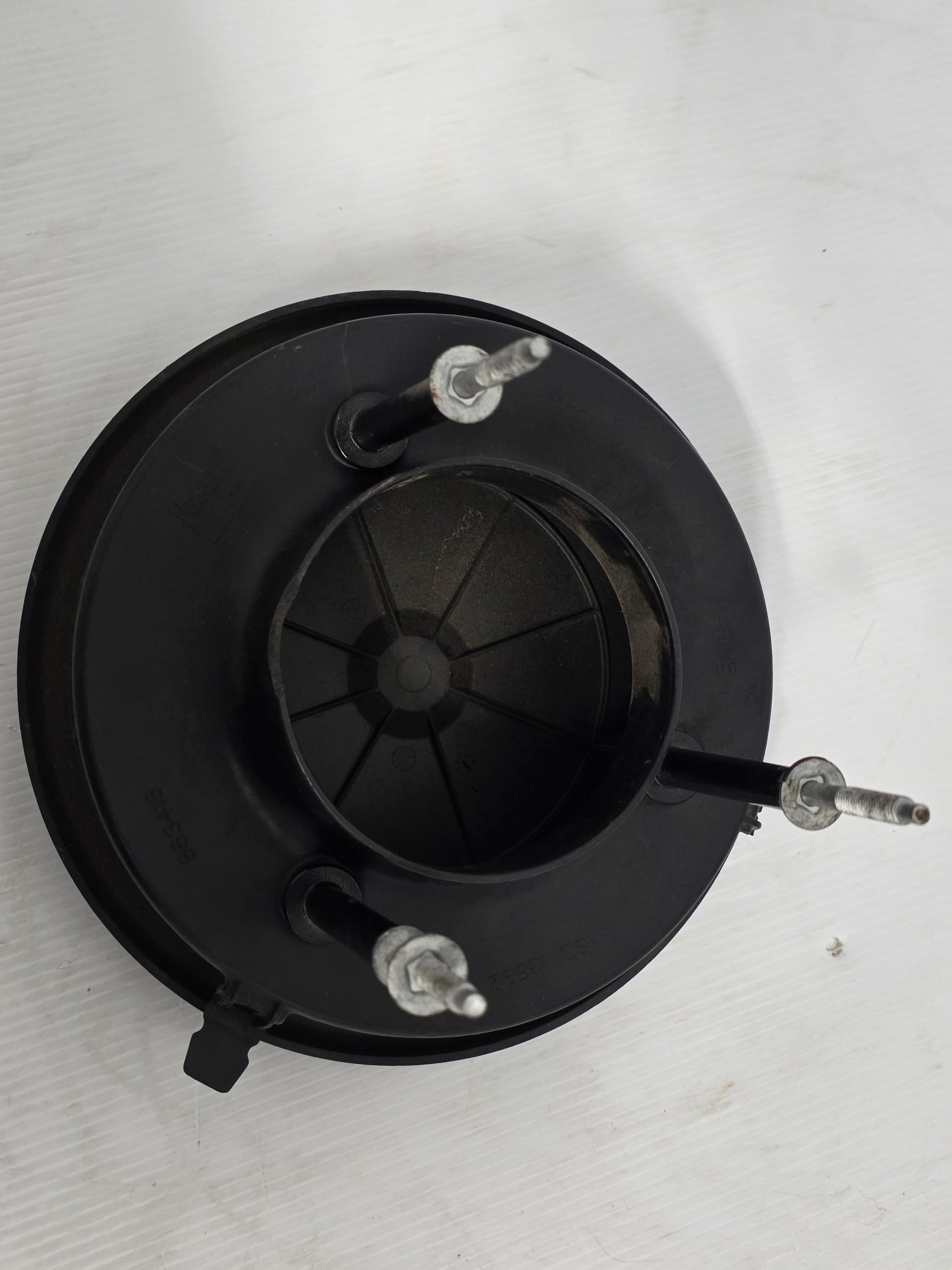

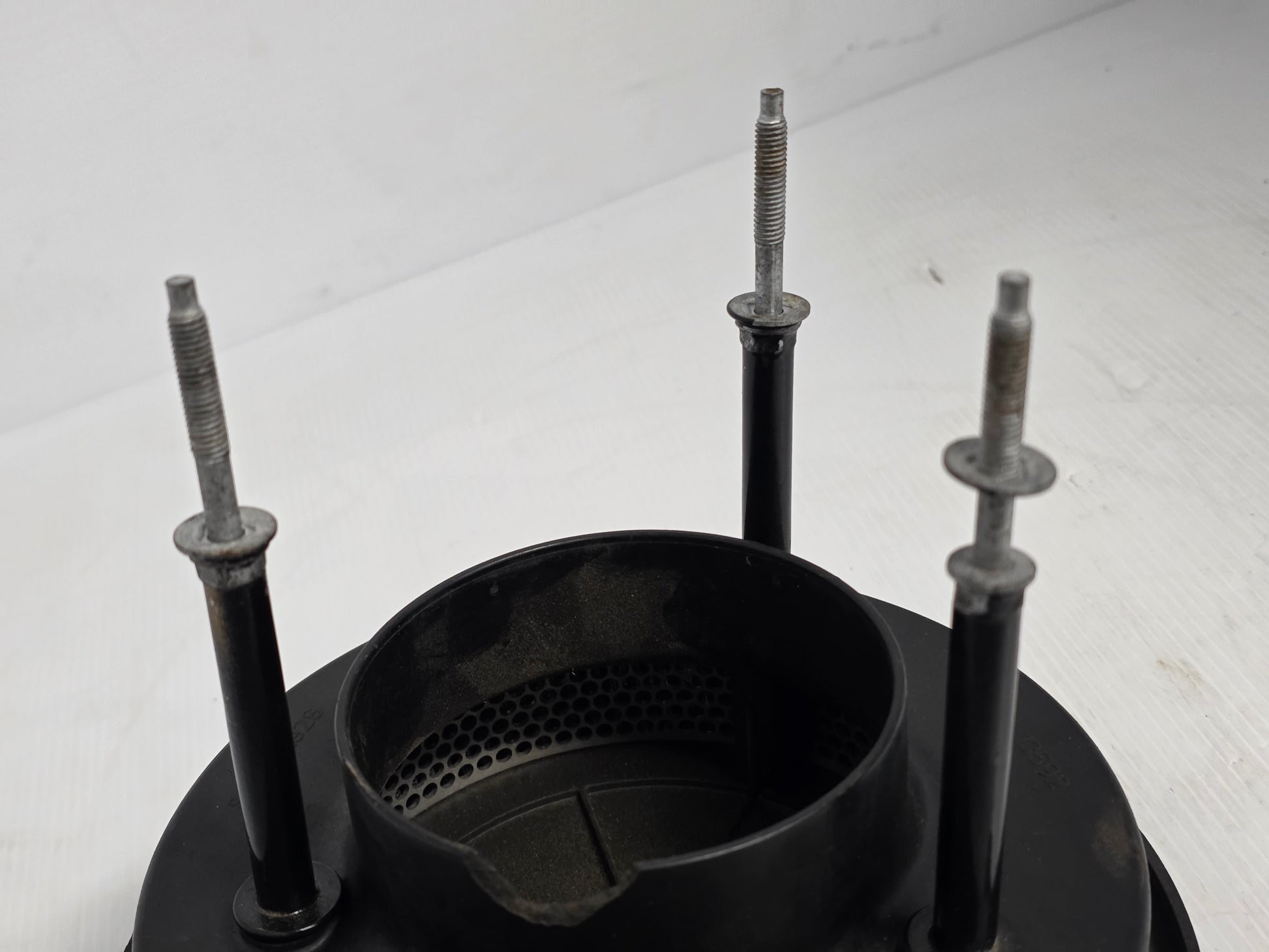

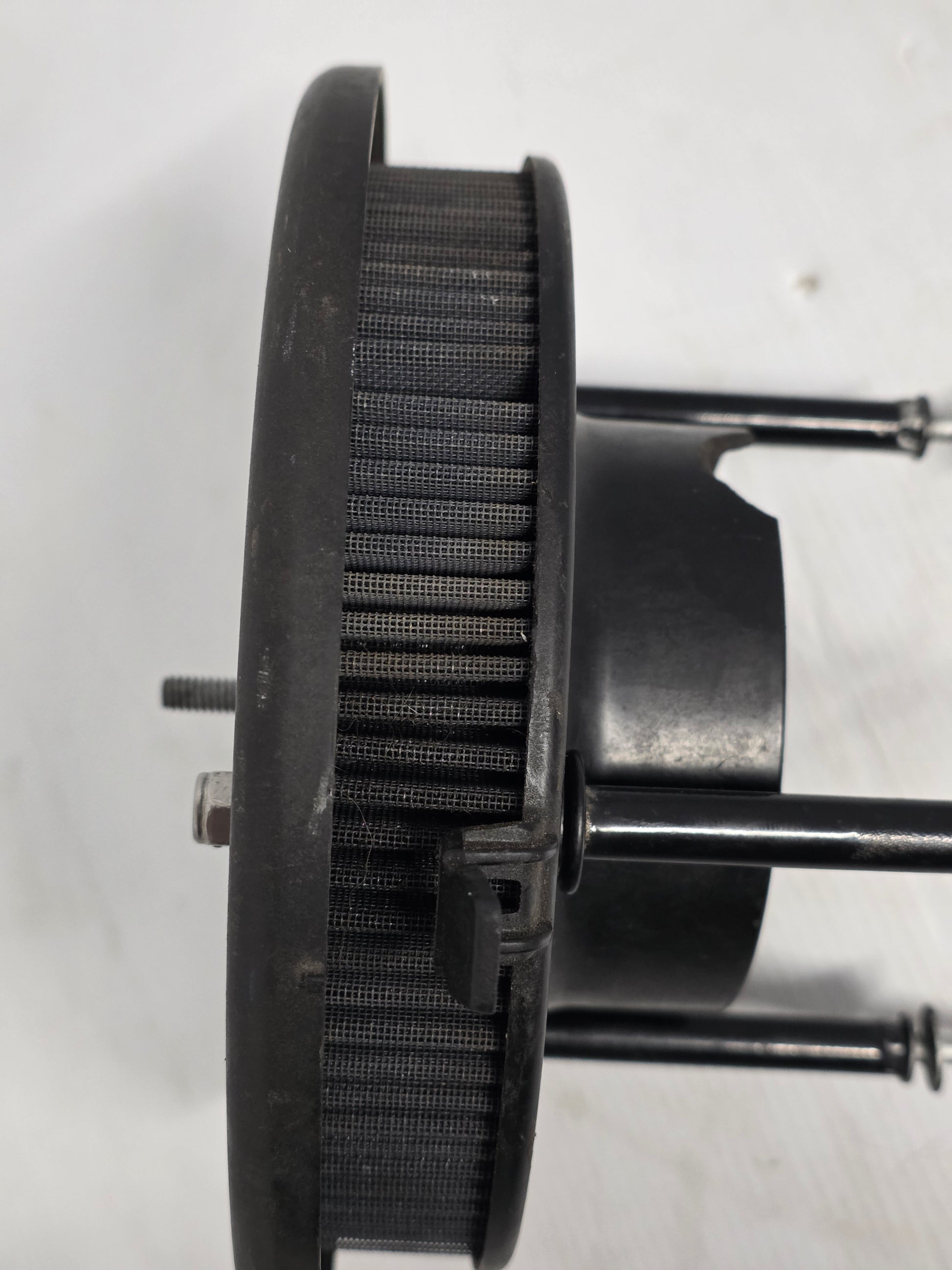

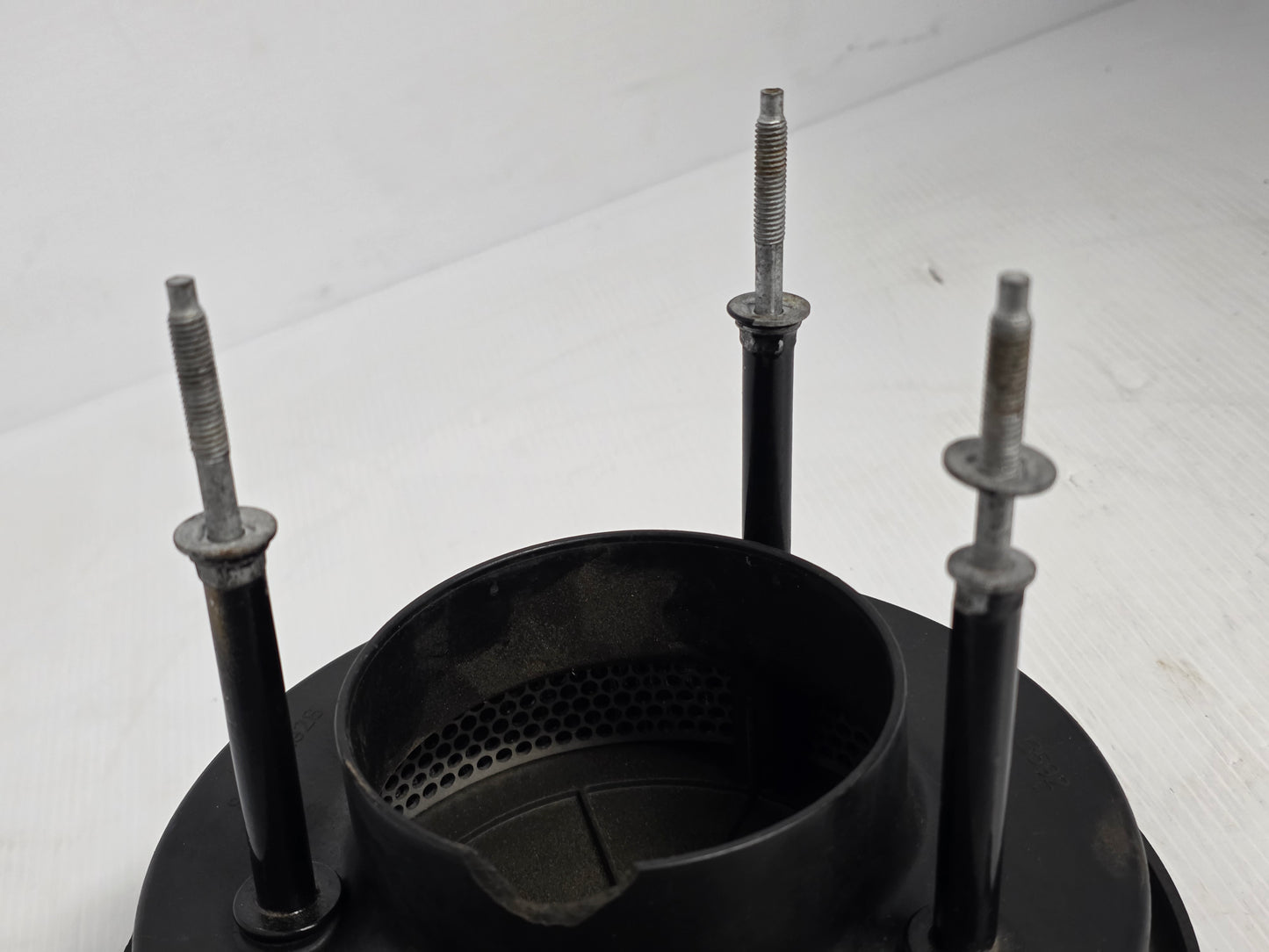

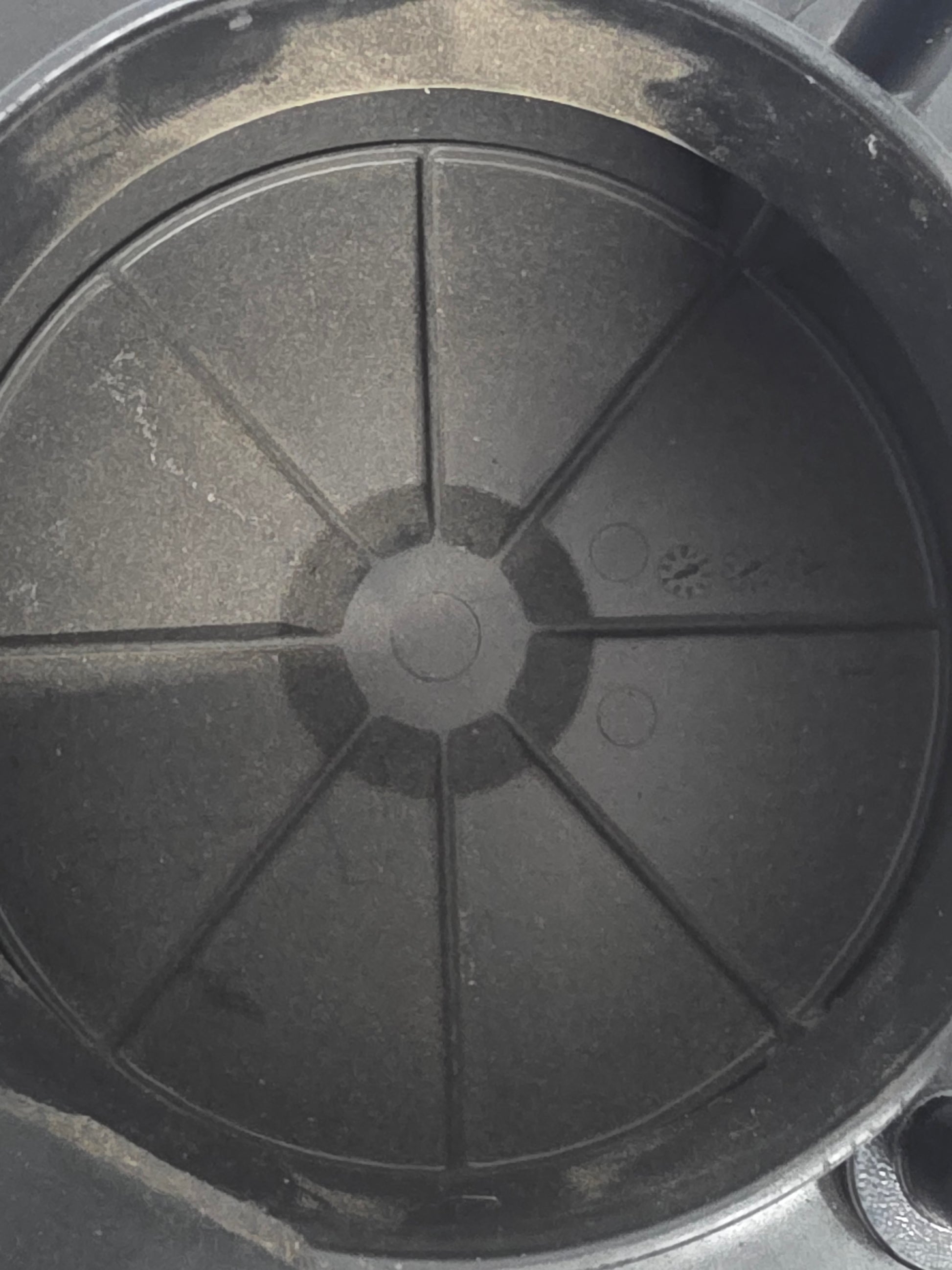

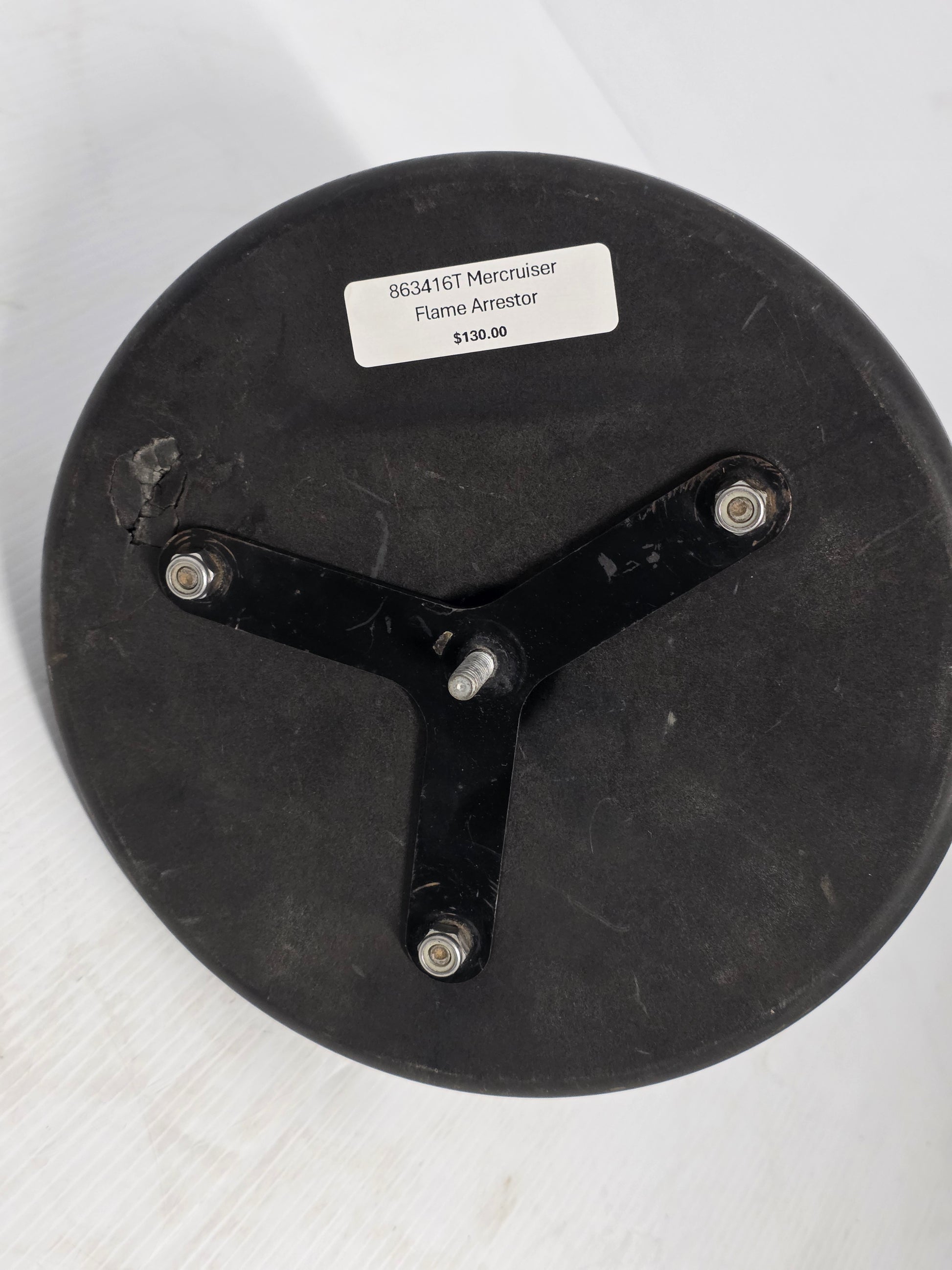

863416T Mercruiser Flame Arrestor | Genuine Used Part

🔧 Product Description

Genuine MerCruiser ECM 555 MPI Flame Arrestor - Part Number: 863416T

A genuine used MerCruiser flame arrestor for selected ECM 555 multi-port fuel-injection engines with mechanical throttle and shift controls.

This arrestor mounts over the throttle-body inlet on identified 4.3L V6, 5.0L V8, 5.7L / 350 MAG and 6.2L / 377 MPI engines. It uses a marine backfire-containment design while maintaining the airflow required by the EFI system.

⚙️ Key Features

• Genuine Mercury MerCruiser OEM flame arrestor
• Correct Mercury part number 863416T
• Supersedes earlier base reference 863416
• Used on ECM 555 MPI mechanical-throttle engines
• Direct cross-reference to Sierra and Mallory replacements

🚤 Compatibility

Commonly used on

• MerCruiser ECM 555 MPI mechanical-throttle engine systems
• GM V6 and small-block V8 petrol sterndrive and inboard engines

Typically suits

• Engine models:
• MerCruiser 4.3L MPI V6 - 2002-2008, serial 0M300000 and above
• MerCruiser 5.0L MPI Alpha / Bravo - serial 0M300000 through 1A299999 where specified
• MerCruiser 350 MAG MPI - 2002-2008, serial 0M300000 and above
• MerCruiser 350 MAG MPI Horizon - 2002-2007, serial 0M300000 to 1A299999
• MerCruiser 350 MAG MPI Horizon MIE - 2002-2007, serial 0M300000 to 1A089999
• MerCruiser 350 MAG MPI MIE - 2002-2007, serial 0M300000 to 1A089999
• MerCruiser 350 MAG MPI Ski - 2002-2007, serial 0M300000 to 1A089999
• MerCruiser 5.7L MPI Horizon MIE, MIE and Ski - 2008, serial 1A090000 and above
• MerCruiser 377 MAG - 2008, serial 1A300000 and above
• MerCruiser 377 MPI MIE - 2008, serial 1A090000 and above
• MerCruiser MX 6.2L MPI and Horizon - 2002-2007, serial 0M300000 to 1A299999
• MerCruiser MX 6.2L MPI Horizon MIE - 2002-2008, serial 0M300000 and above
• MerCruiser MX 6.2L MPI MIE - 2002-2007, serial 0M300000 to 1A089999
• MerCruiser MX 6.2L MPI Ski - 2002-2008, serial 0M317000 and above
• HP Range: Engine-family controlled
• Engine Type: MerCruiser GM 4.3L V6 and 5.0L / 5.7L / 6.2L MPI V8
• Year Range: Approximately 2002 - 2008

🔌 Function

The flame arrestor permits the throttle body to draw combustion air while helping contain flame caused by an intake backfire. It also protects the throttle opening from larger debris.

⚠️ Common Signs of Failure

• Mesh is blocked by oil, dust or corrosion

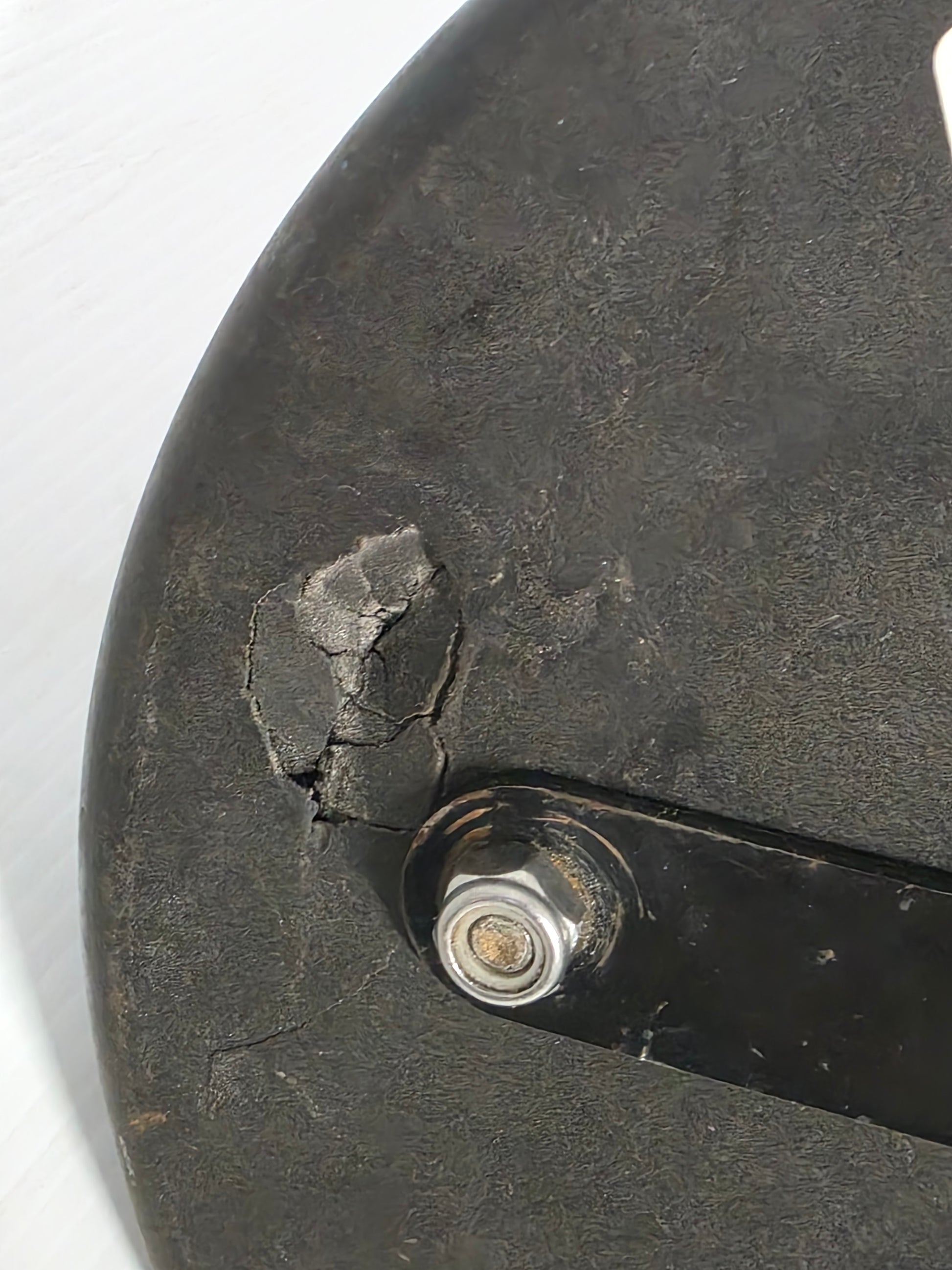

• Arrestor is cracked or loose at the mounting flange
• Engine airflow is restricted at higher RPM
• Mesh is damaged by backfire or impact
• Marine flame protection is compromised

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 863416T → Supersedes 863416
• 863416 earlier OEM flame-arrestor reference

OEM / Related Numbers

• 863416T
• 863416
• MerCruiser ECM 555 MPI flame arrestor
• Mechanical throttle and shift application
• 4.3L, 5.0L, 5.7L and 6.2L engine-family reference

Aftermarket / Verified Equivalents

• Sierra: 18-31103
• Mallory: 9-31103
• Marine Spare Parts: MAL9-31103

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
