863424 863424T Mercury Bracket | Genuine Used Part

863424 863424T Mercury Bracket | Genuine Used Part

$35.00 AUD
$35.00 AUD
Sale Sold out
Shipping calculated at checkout.

Out of stock

🔧 Product Description

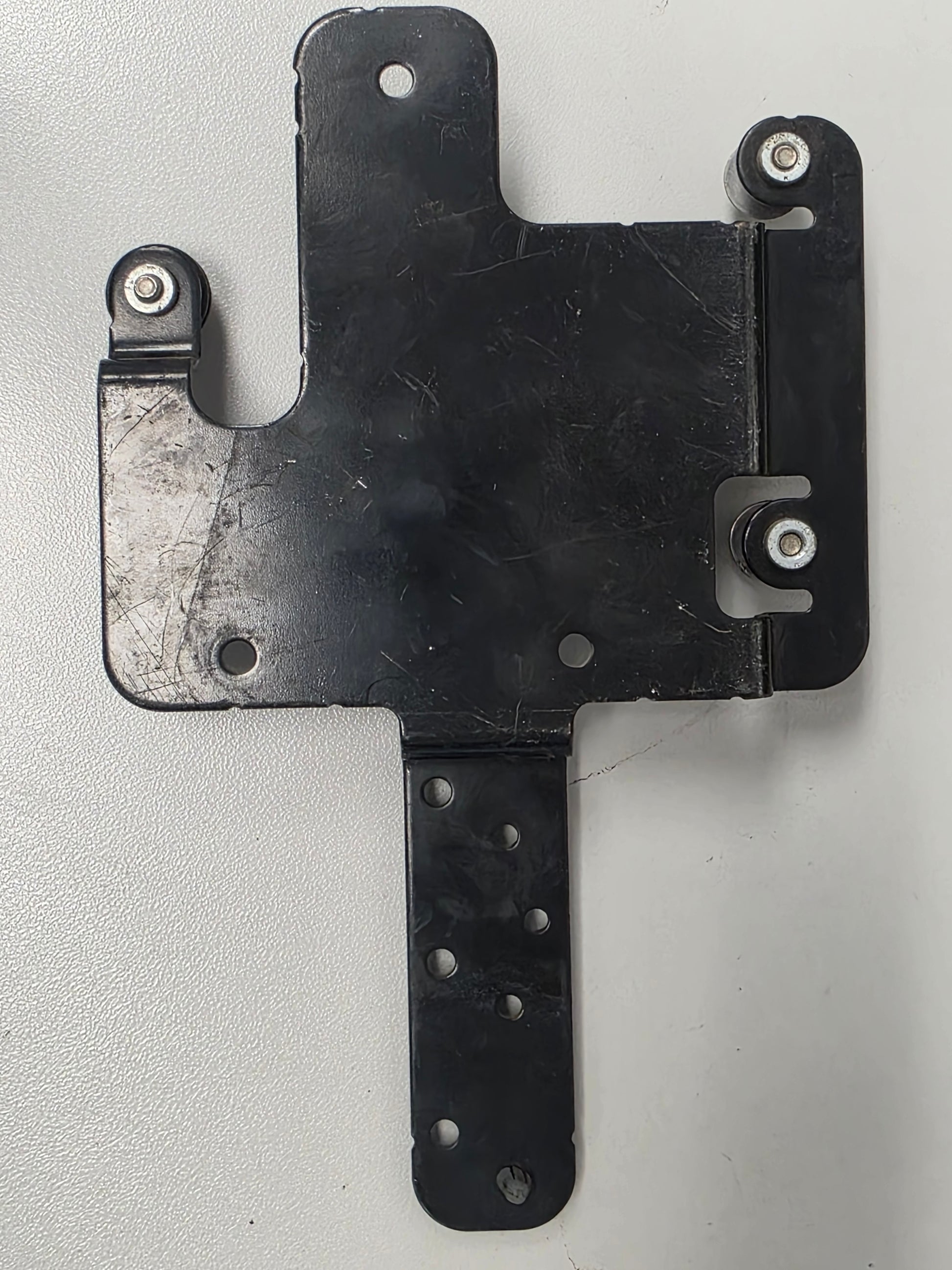

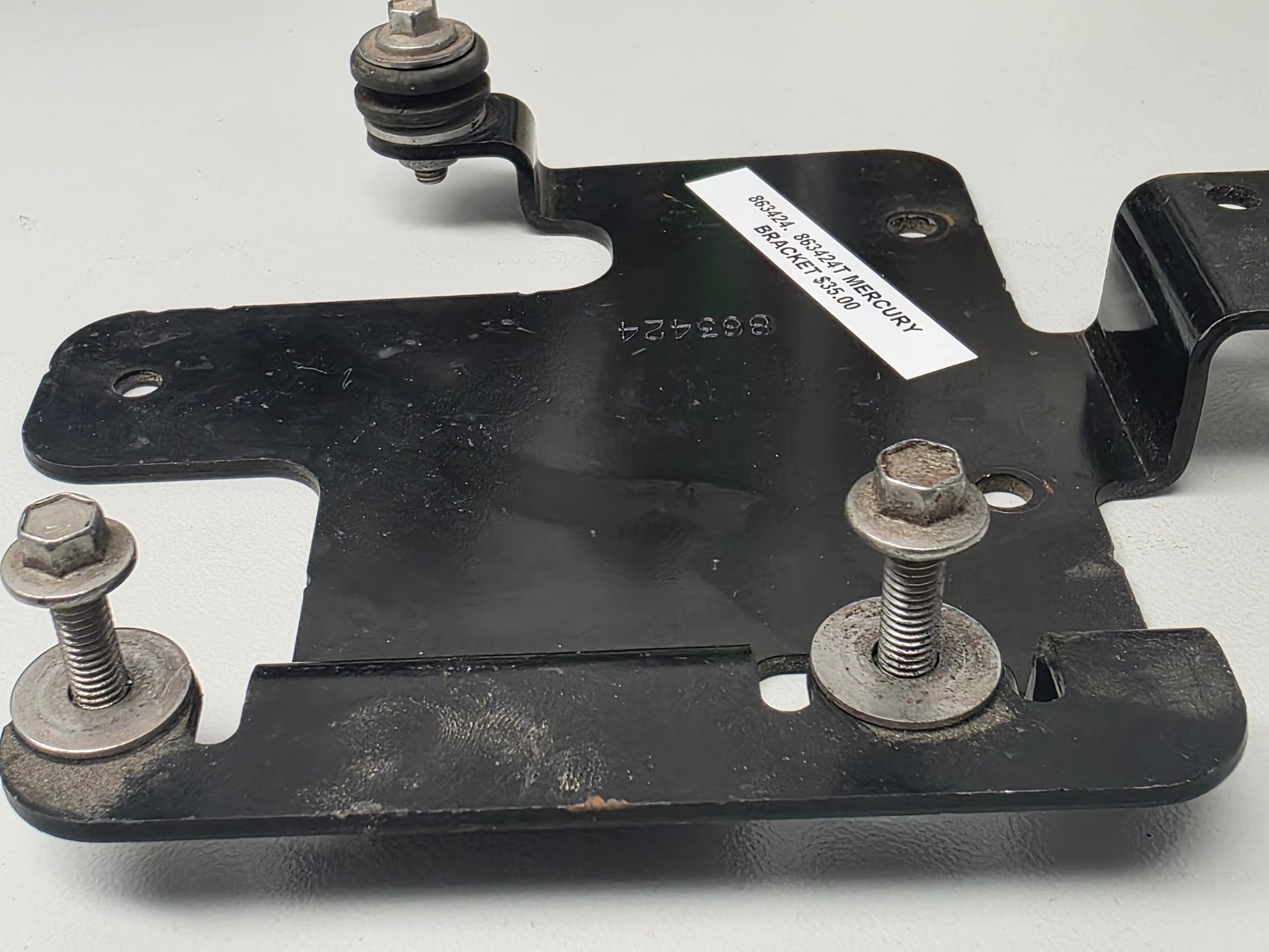

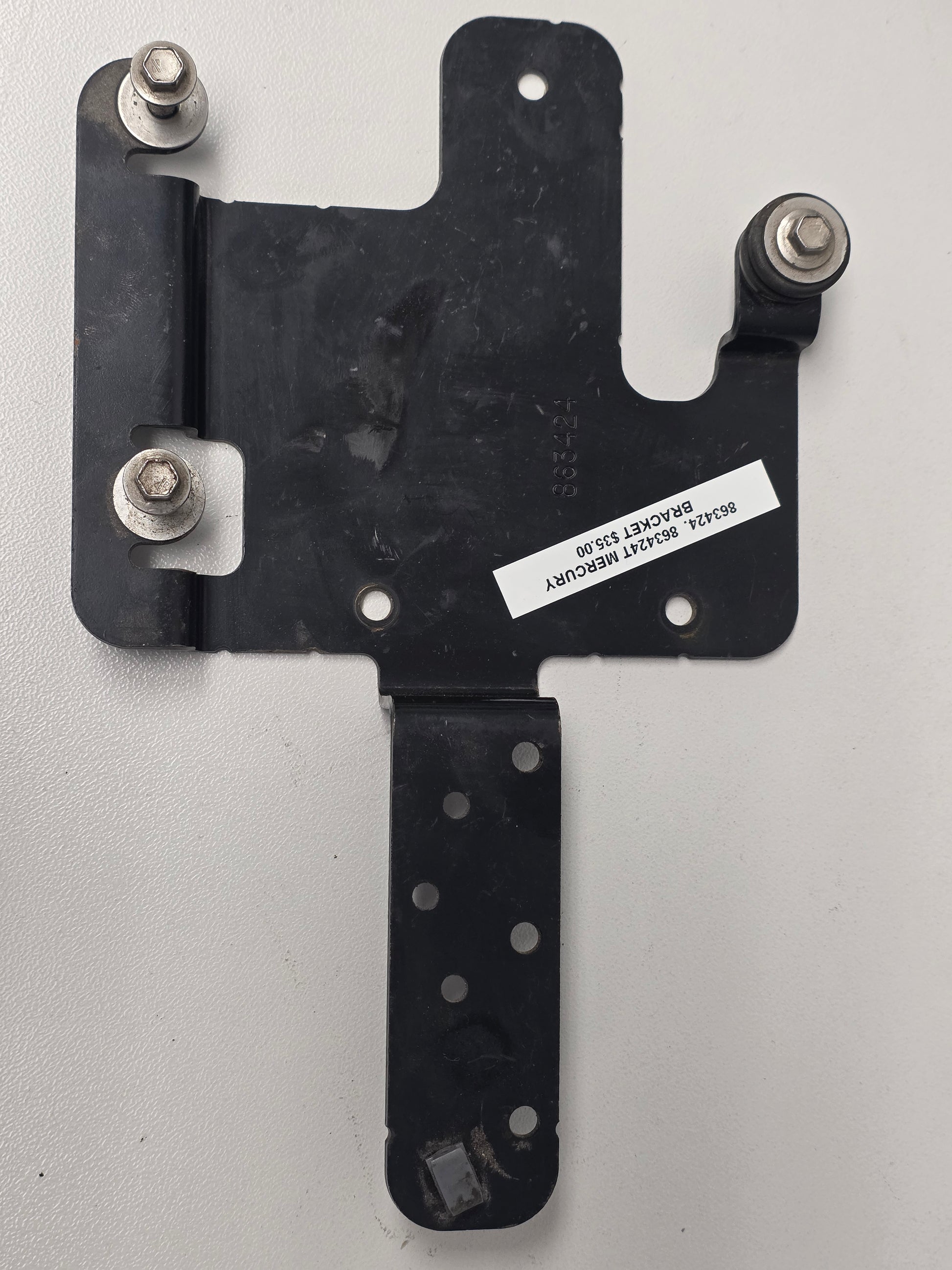

Genuine MerCruiser Ignition and Electrical Mounting Bracket - Part Number: 863424T

A genuine used MerCruiser electrical-component mounting bracket for selected MPI, MAG and performance petrol marine engines.

The bracket supports the applicable ignition, Max Volt or engine-management component and keeps the wiring assembly securely positioned against vibration and engine movement.

⚙️ Key Features

  • Genuine used MerCruiser OEM electrical bracket
  • Current part number 863424T
  • Supersedes earlier bracket 863424
  • Used on selected MPI, MAG, Horizon and performance engines
  • Factory mounting points for correct component and wiring alignment

🚤 Compatibility

Commonly used on

  • MerCruiser Max Volt ignition and MPI electrical systems
  • GM-based V6 and V8 engine-management component assemblies

Typically suits

  • Engine models:
  • MerCruiser 4.3L MPI Alpha and Bravo
  • MerCruiser 5.0L MPI Alpha and Bravo
  • MerCruiser 5.7L MPI Ski / TowSports
  • MerCruiser 350 MAG MPI Alpha and Bravo
  • MerCruiser 350 MAG MPI Horizon
  • MerCruiser 357 Horizon
  • MerCruiser 377 MAG MPI
  • MerCruiser 383 MAG Stroker
  • MerCruiser 385 Performance Tuned
  • MerCruiser MX 6.2L MPI
  • MerCruiser 6.2L MPI Horizon
  • MerCruiser MIE 350 MAG and 6.2L MPI applications using bracket 863424T
  • Engine Type: MerCruiser GM V6 and V8 MPI petrol sterndrive / inboard
  • Year Range: Approximately late 1990s through the 2010s
  • System Type: Ignition and engine-management component mounting

🔌 Function

The bracket holds the ignition or engine-management component in its designed location and protects its connectors and wiring from vibration and contact with hot or moving parts.

⚠️ Common Signs of Failure

  • Electrical component is loose
  • Bracket is cracked or bent
  • Wiring loom rubs against the engine
  • Mounting fasteners repeatedly loosen
  • Connector damage develops from vibration

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 863424T → Supersedes 863424
  • 863424 earlier OEM bracket reference

OEM / Related Numbers

  • 863424T
  • 863424
  • 863424-1
  • 863424T1
  • 863714T01 related ECM bracket
  • 863715 related ECM mounting plate

Aftermarket / Verified Equivalents

  • No aftermarket equivalent

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
