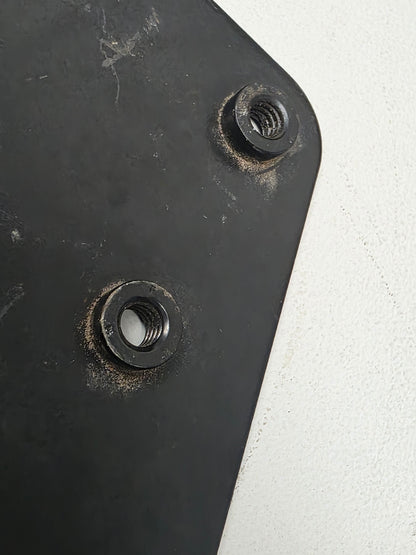

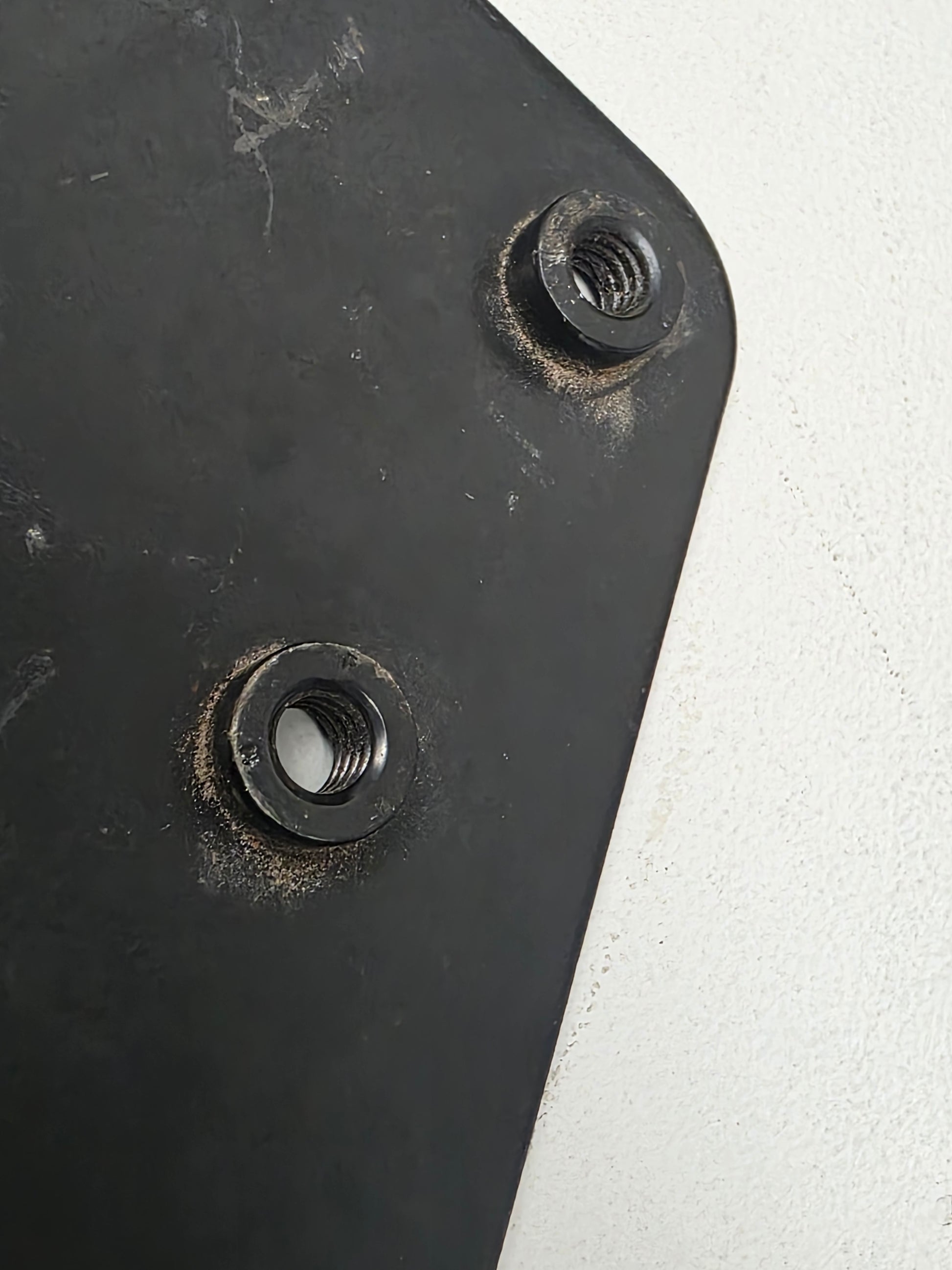

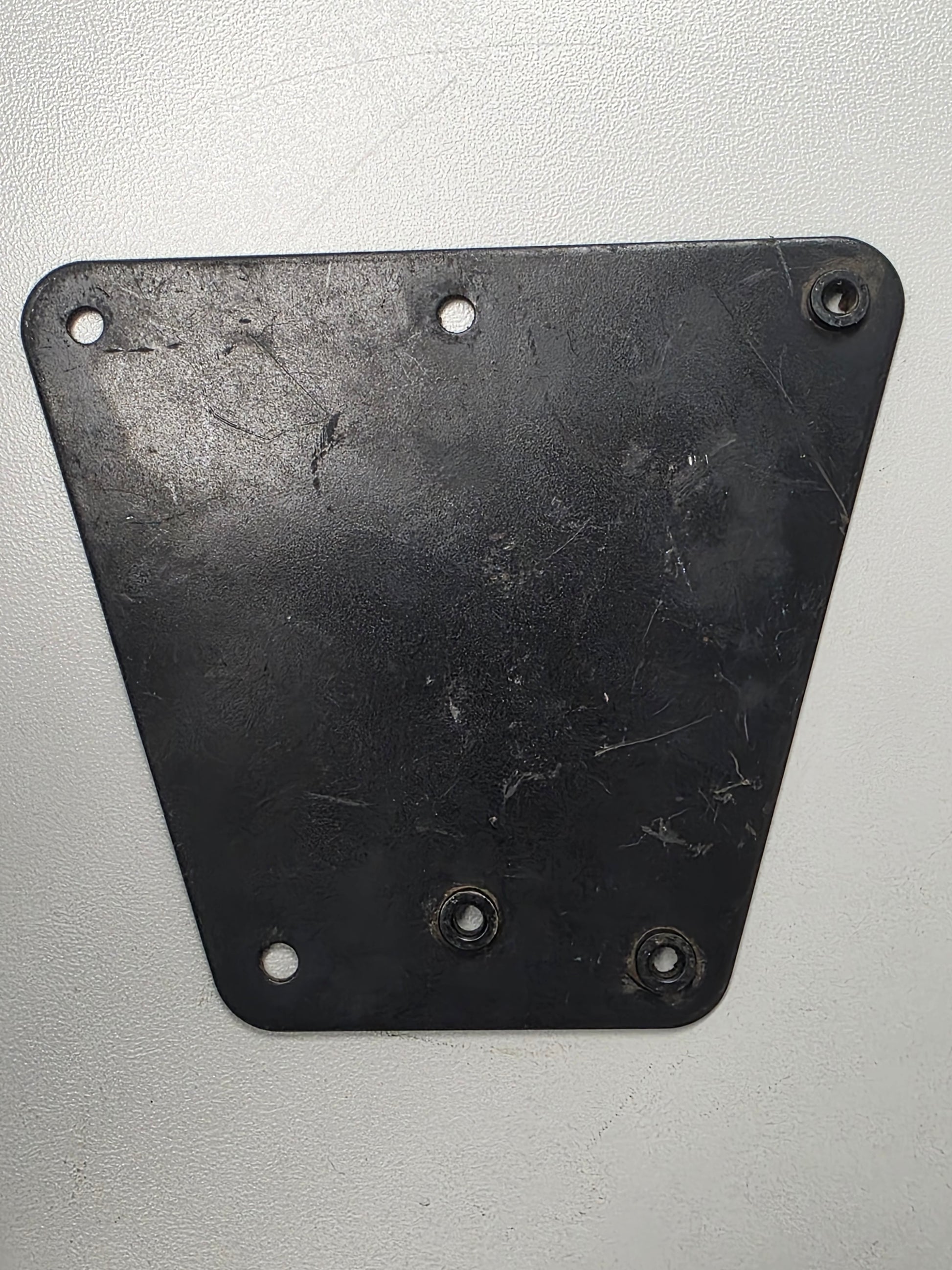

863714-001 836714 Mercury Bracket | Genuine Used Part

863714-001 836714 Mercury Bracket | Genuine Used Part

$25.00 AUD
$25.00 AUD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

🔧 Product Description

Genuine MerCruiser Electronic Control Module Mounting Bracket - Part Number: 863714T01

A genuine used MerCruiser cast mounting bracket for the engine electronic control module on selected MPI petrol engines.

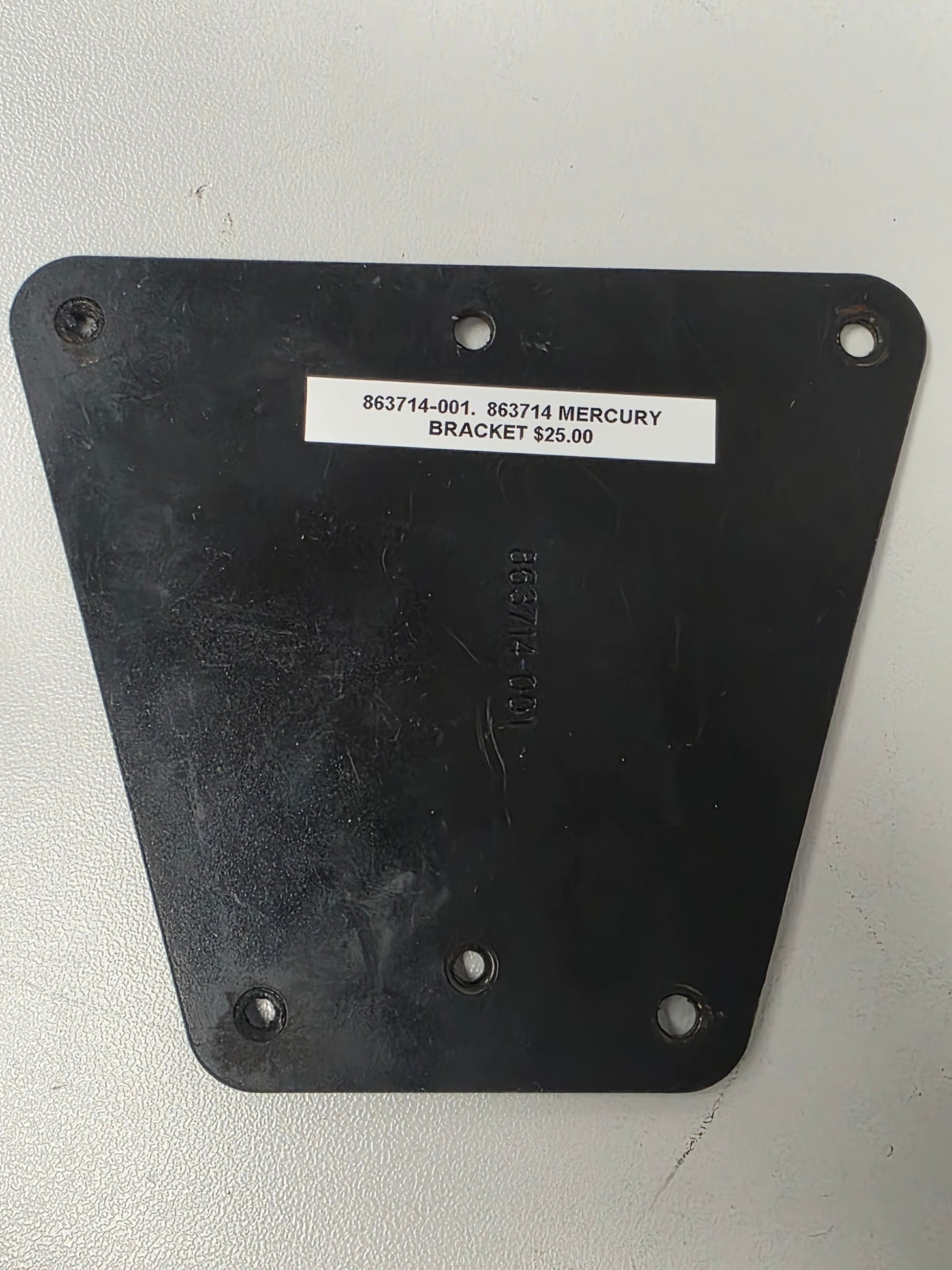

The casting may be marked 863714-001 or 836714, while the corresponding service reference is commonly listed as 863714T01. The bracket supports the ECM and isolates its wiring connectors from excessive vibration and movement.

⚙️ Key Features

  • Genuine used MerCruiser OEM ECM bracket
  • Casting reference 863714-001
  • Related casting reference 836714
  • Service part reference 863714T01
  • Used on selected GM-based MPI engine-management systems

🚤 Compatibility

Commonly used on

  • MerCruiser MPI electronic control module installations
  • GM V6 and small-block V8 engine-management systems

Typically suits

  • Engine models:
  • MerCruiser 4.3L MPI
  • MerCruiser 5.0L MPI
  • MerCruiser 5.7L MPI
  • MerCruiser 350 MAG MPI
  • MerCruiser 350 MAG MPI Horizon
  • MerCruiser 6.2L MPI
  • MerCruiser 377 MAG MPI
  • Sterndrive and inboard ECM assemblies using bracket 863714T01 and plate 863715
  • Engine Type: MerCruiser GM V6 and small-block V8 MPI petrol sterndrive / inboard
  • Year Range: Approximately late 1990s through the 2000s
  • System Type: Electronic control module mounting

🔌 Function

The bracket supports the ECM and keeps its wiring connectors correctly positioned, reducing vibration stress and protecting the module from contact with surrounding engine components.

⚠️ Common Signs of Failure

  • ECM is loose or vibrates excessively
  • Bracket is cracked or distorted
  • Wiring connectors are placed under tension
  • Mounting holes are damaged
  • Harness insulation rubs against nearby components

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 863714T01 service bracket reference
  • 863714-001 corresponding casting reference
  • 836714 supplied related casting reference

OEM / Related Numbers

  • 863714T01
  • 863714-001
  • 863714
  • 836714
  • 863715 related ECM mounting plate
  • 863424T related electrical bracket

Aftermarket / Verified Equivalents

  • No aftermarket equivalent

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
