863832T01 Aftermarket Mercruiser Transmission Cooler | Sawley's Select Marine Parts

🔧 Product Description

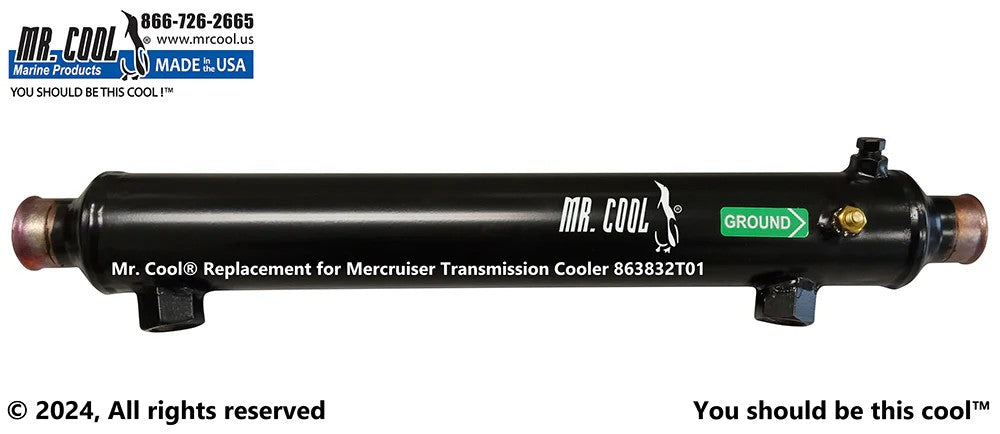

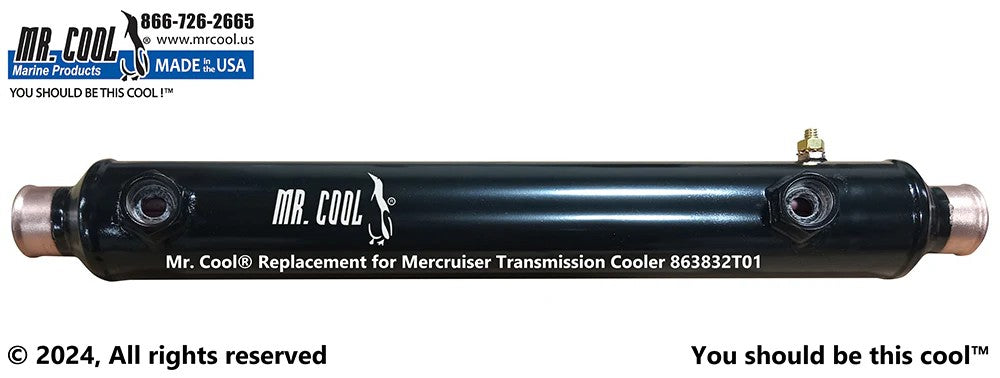

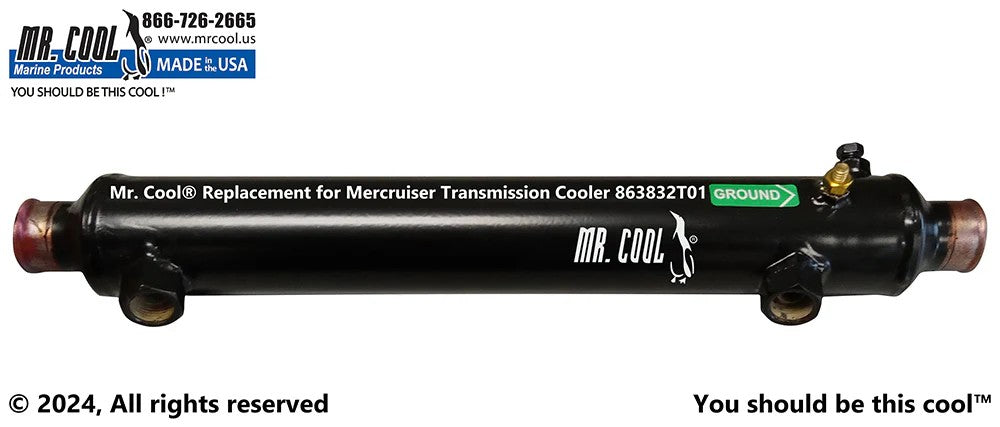

Aftermarket Mercruiser Transmission Cooler - Replacement Part Number: 863832T01

Transmission cooler with sensor/drain port for MerCruiser MIE and Tow Sports packages.

⚙️ Key Features

• Marine-grade shell-and-tube oil cooler

• Designed as a direct replacement for the listed reference numbers

• Helps maintain stable operating temperature under sustained marine load

• Marine connection sizes and mounting points must match the original assembly

• Suitable for professional marine cooling-system service and replacement

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 863832T01 → Cross-references to 8M2000178

OEM / Related Numbers:

• 863832T01

• 8M2000178

• 863832T sister cooler

Aftermarket / Verified Equivalents:

• Mr Cool: MRC863832T01

• Seakamp: 863832T01 replacement

🚤 Compatibility

Commonly used on:

• Marine-grade shell-and-tube oil cooler systems

Typically suits:

• Engine models:

• 350 MAG MPI MIE/Tow Sports

• MX 6.2 MPI MIE/Tow Sports

• Applications from serial 0M300000 onward

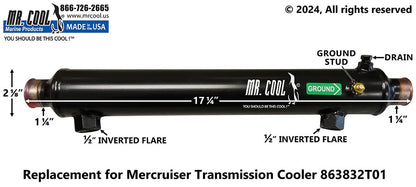

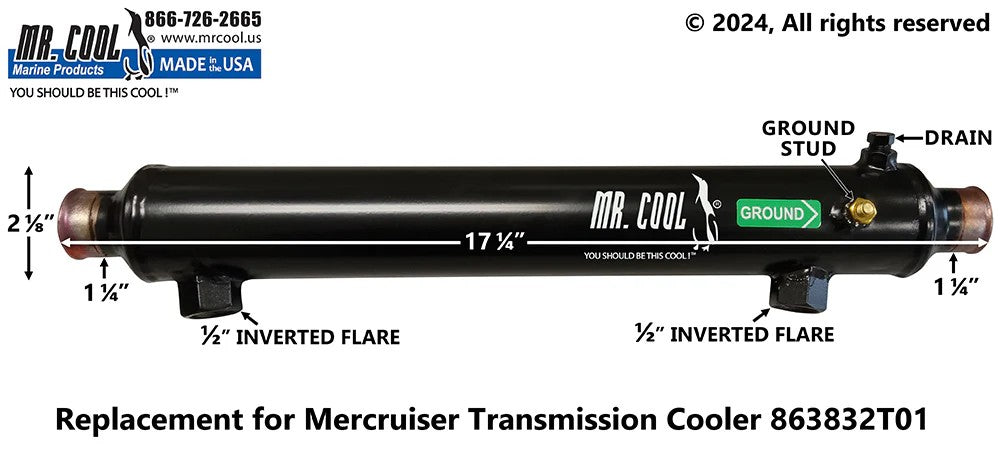

• Body Diameter: 2 in

• Overall Length: approximately 17 in

• Water Connections: 1-1/4 in

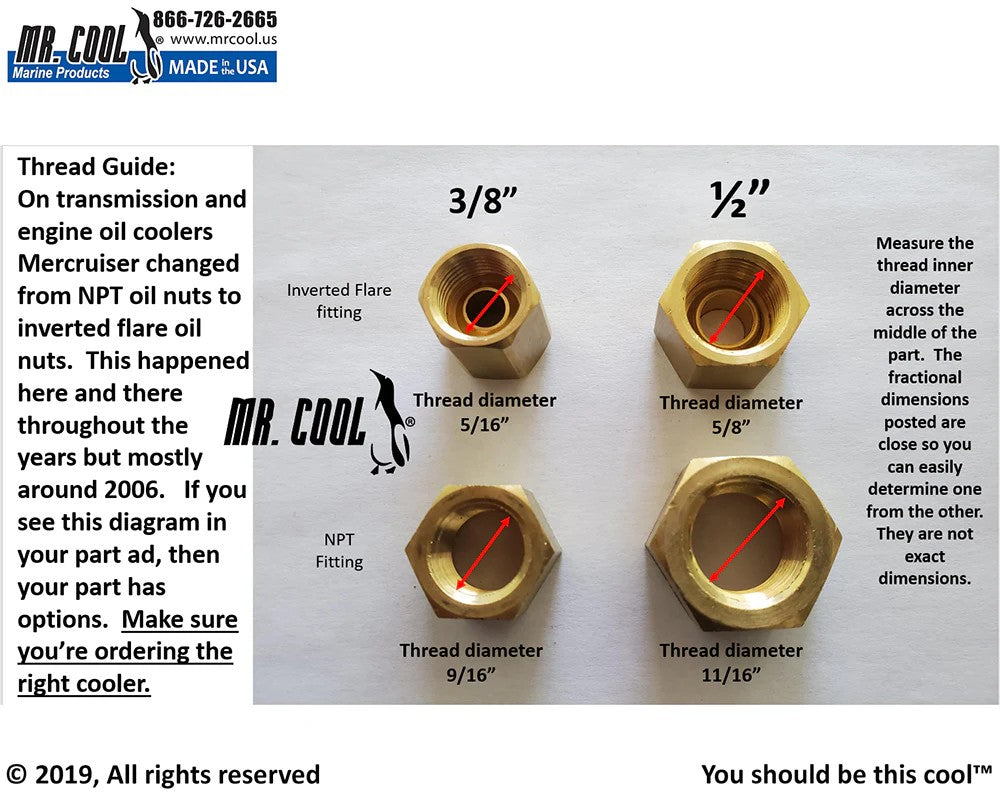

• Oil Connections: 1/2 in inverted flare

• Sensor/Drain Port: 1/8 in NPT

🔌 Function

The cooler transfers heat from oil into the raw-water circuit without allowing the fluids to mix.

Common signs of failure:

• Oil or steering-fluid temperature rises above normal

• Loss of pressure or reduced transmission/steering performance as oil heats

• Oil sheen at the exhaust outlet or cross-contamination

• External leakage from fittings, seams or tube ends

• Restricted seawater flow, corrosion or internal tube failure

📦 Condition

• Brand new aftermarket replacement part

• New and unused

• Supplied in manufacturer or equivalent protective packaging
