🔧 Product Description

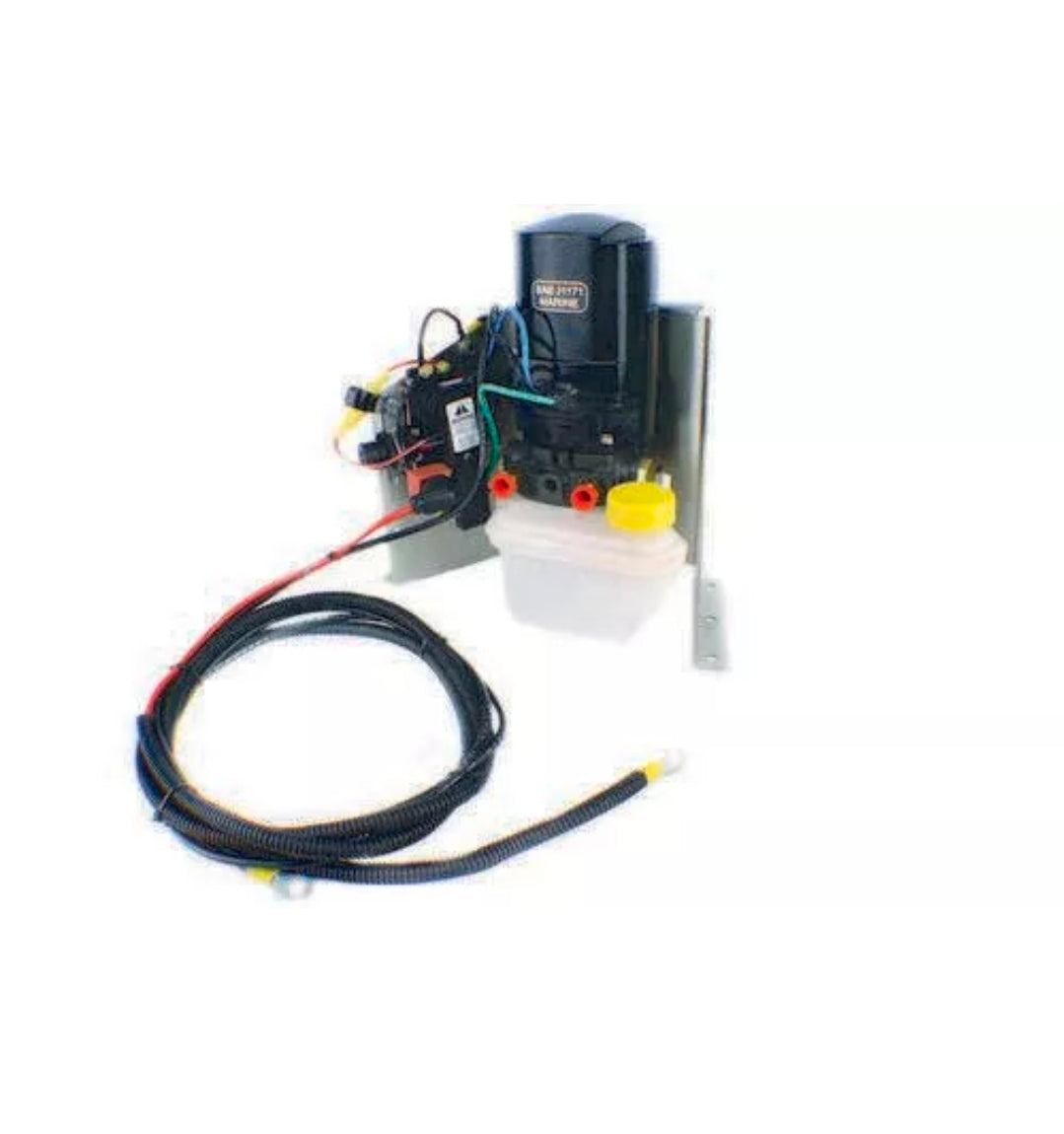

Aftermarket MerCruiser Complete Oildyne Trim-Pump Assembly with Bracket - Part Number: 865380A25

Complete remote MerCruiser hydraulic trim-pump package for 1983-and-later Alpha, Bravo and related installations. It combines the Oildyne motor/pump/reservoir with the mounting bracket, solenoids and electrical harness as one ready-to-install assembly.

⚙️ Key Features

• Complete 12 V trim-pump package

• Oildyne low-pressure/high-flow hydraulic unit

• Steel/stainless mounting bracket and dual-solenoid control

• Later quick-connect hydraulic arrangement

• Direct service family for Alpha and Bravo drives from 1983 onward

📋 Kit / Assembly Contents

• 1 × Oildyne pump/motor/reservoir assembly - 865380A13

• 1 × Floor-mount bracket assembly - 862548A1 / 42419A1 family

• 2 × Trim-pump solenoids - 89-96158T service family

• 1 × Main fuse/junction and wiring package - supplied within 865380A25

• 1 × Hydraulic quick-connect/manifold connection package - supplied within 865380A25

• Mounting hardware and cable retainers - supplied within 865380A25

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 865380A25 → Supersedes 865380A15 → 865380A05 → 865380A02

• 865380A25 → Supersedes 14336A28 → A22 → A17 → A15 → A9 → A6

• 14336A-series → Supersedes 88183A12 → 88183A11 → 88183A6

• 88183A-series → Related earlier 96477A3

OEM / Related Numbers:

• 865380A25

• 865380A15

• 865380A05

• 865380A02

• 14336A28

• 14336A22

• 14336A17

• 14336A15

• 14336A9

• 14336A6

• 88183A12

• 88183A11

• 88183A6

• 96477A3

• Sierra 18-6747

• REC865380A25

Aftermarket / Verified Equivalents:

• Recmar: REC865380A25

• Sierra: 18-6747 complete tilt/trim assembly

• Sterndrive Engineering: compatible Oildyne remote-pump assembly

• API/ARCO component-equivalent motor and solenoid packages

🚤 Compatibility

Commonly used on:

• MerCruiser remote hydraulic power-trim systems

Typically suits:

• Engine / drive models:

• R/MR and Alpha One service installations

• Alpha One Gen II

• Bravo One, Bravo Two and Bravo Three

• Blackhawk, Sportmaster and Integrated Transom applications using the remote Oildyne unit

• HP Range: Drive application; not engine-horsepower specific

• Engine / Drive Type: Complete remote 12 V electro-hydraulic trim-pump package

• Year Range: 1983 onward

• Serial / Identification Range: Confirm bracket mounting, hydraulic quick-connect style, wiring plug and transom serial number.

🔌 Function

Supplies switched electrical power and hydraulic pressure to raise, lower and hold the sterndrive through the trim and trailer ranges.

Common signs of failure or replacement requirement:

• No movement in either direction

• Movement in only one direction because of a failed solenoid

• Low hydraulic pressure or drive drift

• Fluid leakage from reservoir, pump or hose fittings

• Overheated wiring, fuse or motor

📦 Condition

• Brand-new aftermarket replacement part

• Supplied as a new replacement component

• Supplied in suitable retail or equivalent packaging
