86617A7 86617A20 Mercury Stator | Genuine Used Part

🔧 Product Description

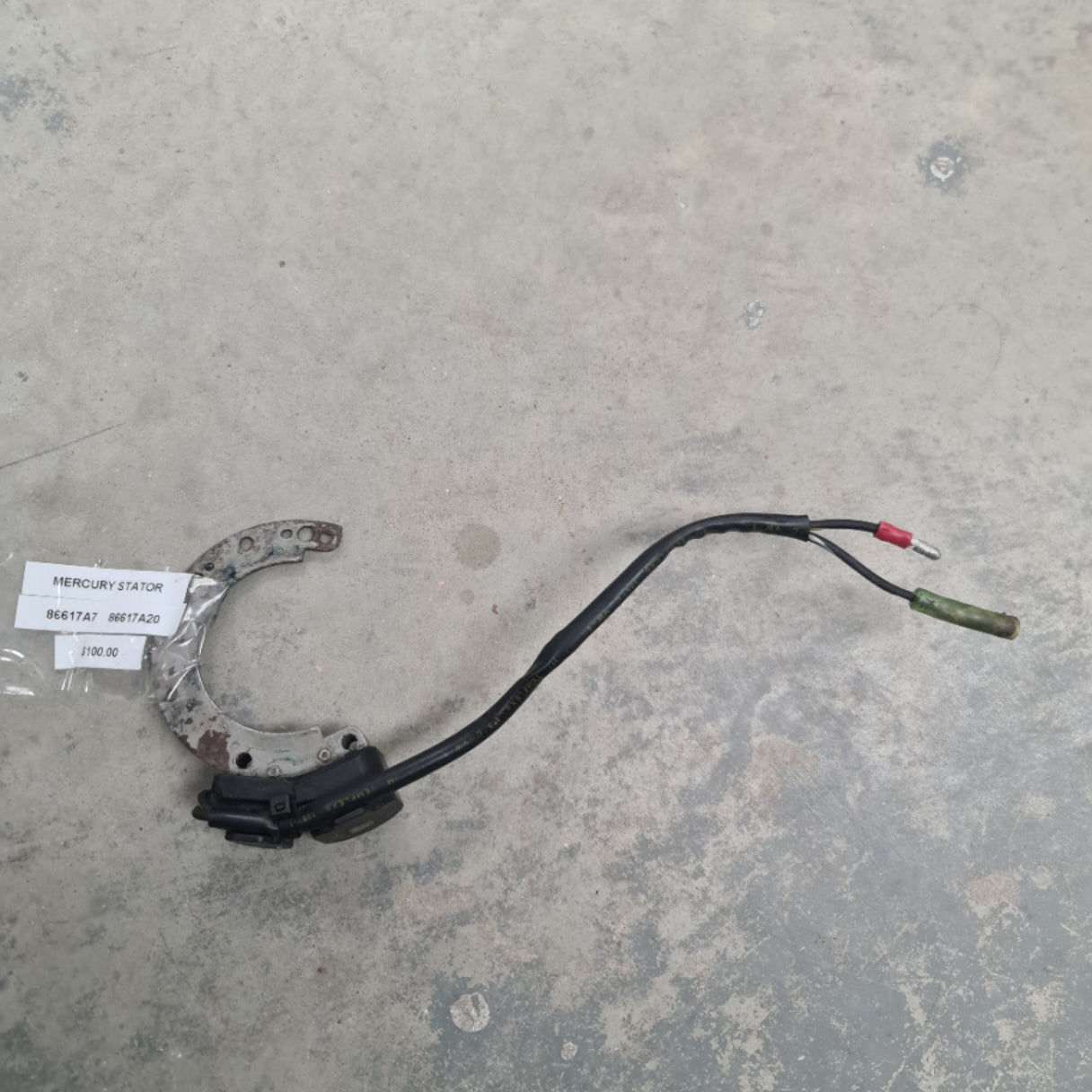

Genuine Mercury / Mariner Ignition Stator Assembly - Part Numbers: 86617A7 / 86617A20

A genuine Mercury / Mariner ignition stator assembly used on smaller 6HP to 25HP two-stroke outboards. This stator assembly mounts beneath the flywheel and supplies ignition-system electrical output on compatible Mercury and Mariner engines.

⚙️ Key Features

• Genuine Mercury / Mariner ignition stator assembly

• Correct OEM references 86617A7 and 86617A20

• Later 86617A20 service assembly in the 86617 stator family

• Used on 6HP to 25HP Mercury / Mariner two-stroke outboards

• Cross-references with Sierra and Mallory replacement stator references

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 86617A20 later Mercury ignition stator assembly reference

• 86617A13 related earlier Mercury stator reference

• 86617A11 related earlier Mercury stator reference

• 86617A9 related earlier Mercury stator reference

• 86617A7 earlier Mercury stator reference

• 86617A5 related earlier Mercury stator reference

• 86617A3 related earlier Mercury stator reference

• 86617A2 related earlier Mercury stator reference

OEM / Related Numbers:

• 86617A20

• 86617A 20

• 86617A13

• 86617A11

• 86617A9

• 86617A7

• 86617A5

• 86617A3

• 86617A2

Aftermarket / Verified Equivalents:

• Sierra: 18-5864

• Mallory: 9-25505

• Aftermarket reference: 5864

• Aftermarket reference: 86617A20

🚤 Compatibility

Commonly used on:

• Mercury / Mariner small two-stroke ignition systems

• 6HP to 25HP outboards using the 86617 stator assembly family

Typically suits:

• Engine models:

• Mercury 6HP two-stroke applications where 86617A20 is specified

• Mercury 8HP two-stroke applications where 86617A20 is specified

• Mercury 9.9HP two-stroke applications where 86617A20 is specified

• Mercury 10HP two-stroke applications where 86617A20 is specified

• Mercury 15HP two-stroke applications where 86617A20 is specified

• Mercury 20HP two-stroke applications where 86617A20 is specified

• Mercury 25HP two-stroke applications where 86617A20 is specified

• Mariner 6HP / 8HP / 9.9HP / 10HP / 15HP / 20HP / 25HP two-stroke applications using the 86617 stator family

• HP Range: commonly 6HP - 25HP

• Engine Type: Mercury / Mariner two-stroke outboard

• Year Range: approximately 1990s-2000s depending on model and serial range

• System Type: Ignition stator assembly

🔌 Function

The ignition stator generates electrical output under the flywheel for the outboard ignition system. It provides the energy required for spark generation during cranking and running.

Common signs of failure:

• Weak or missing spark

• Hard starting

• Engine cuts out once warm

• Misfire under throttle

• Intermittent spark caused by heat or vibration

• Damaged or brittle stator leads

• Burnt stator winding or cracked insulation

• Stator resistance or output below specification

📦 Condition

• Genuine used part

• Removed from running engine where applicable

• In good working condition unless otherwise stated
