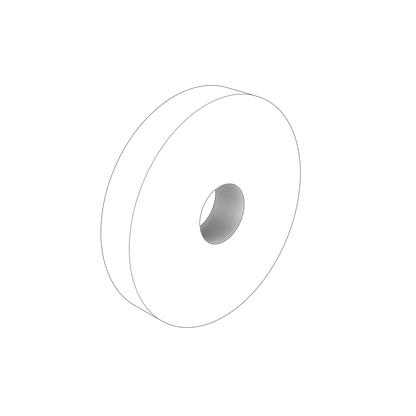

870276 Adjusting Washer | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta adjusting washer from the Fuel System group, 1.94 mm thick, weighing 0.002 kg and listed for 45 applications across the AQD, TMD, TWD, TID, TD and MD engine series. It is the thickest of the fifteen thicknesses listed here, which run from 1.04 mm to 1.94 mm.

🚤 Compatibility

• Engine Family: AQD, TMD, TWD, TID, TD, MD, TAMD, THAMD, D, TAD

Full model list at the end of this description.

⚙️ Key Features

• 1.94 mm thick
• Thickest of the fifteen thicknesses listed here
• 45 applications across six engine series
• Fuel System group
• TH=1.95mm (Volvo assembly listing)

🔌 Function

Sets a clearance or preload in the fuel system assembly by filling a measured gap.

⚠️ Common Signs of Failure

• Setting out of specification in service
• Timing or delivery found wrong on test
• Washer bruised or brinelled on removal
• Fretting or pick-up marks on either face
• Play in an assembly that should be tight

🛠️ Service Notes

• Order by the stamped or measured thickness — the published weights across this range do not track thickness and will not separate the sizes
• This is the thickest size listed here; the next one down is 1.90 mm (870275)

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta AQD70B, AQD70BL, AQD70CL, AQD70C
• Volvo Penta TAD1630G, TAD1630GE, TAD1630P, TAD1630PB
• Volvo Penta TAMD162A, TAMD162B, TAMD162C, TAMD162C-B
• Volvo Penta TID162AG, TID162AGP, TID162AP, TID162APB
• Volvo Penta TWD1630G, TWD1630P, TWD1630PP, TWD1630V
• Volvo Penta D70B, D70B K, D70B PP
• Volvo Penta MD70B, MD70BK, MD70C
• Volvo Penta TAMD165A, TAMD165C, TAMD165P
• Volvo Penta TAD1631GE, TAD1631G
• Volvo Penta TAMD60A, TAMD60B
• Volvo Penta TAMD70B, TAMD70C
• Volvo Penta TD60A, TD60B
• Volvo Penta THAMD70C, THAMD70B
• Volvo Penta TMD70C, TMD70B
• Volvo Penta TAMD163P-A
• Volvo Penta TD164KAE
• Volvo Penta TD70B
• Volvo Penta TWD1620G
