872549 Spinner | Genuine Volvo Penta Part

🔧 Product Description

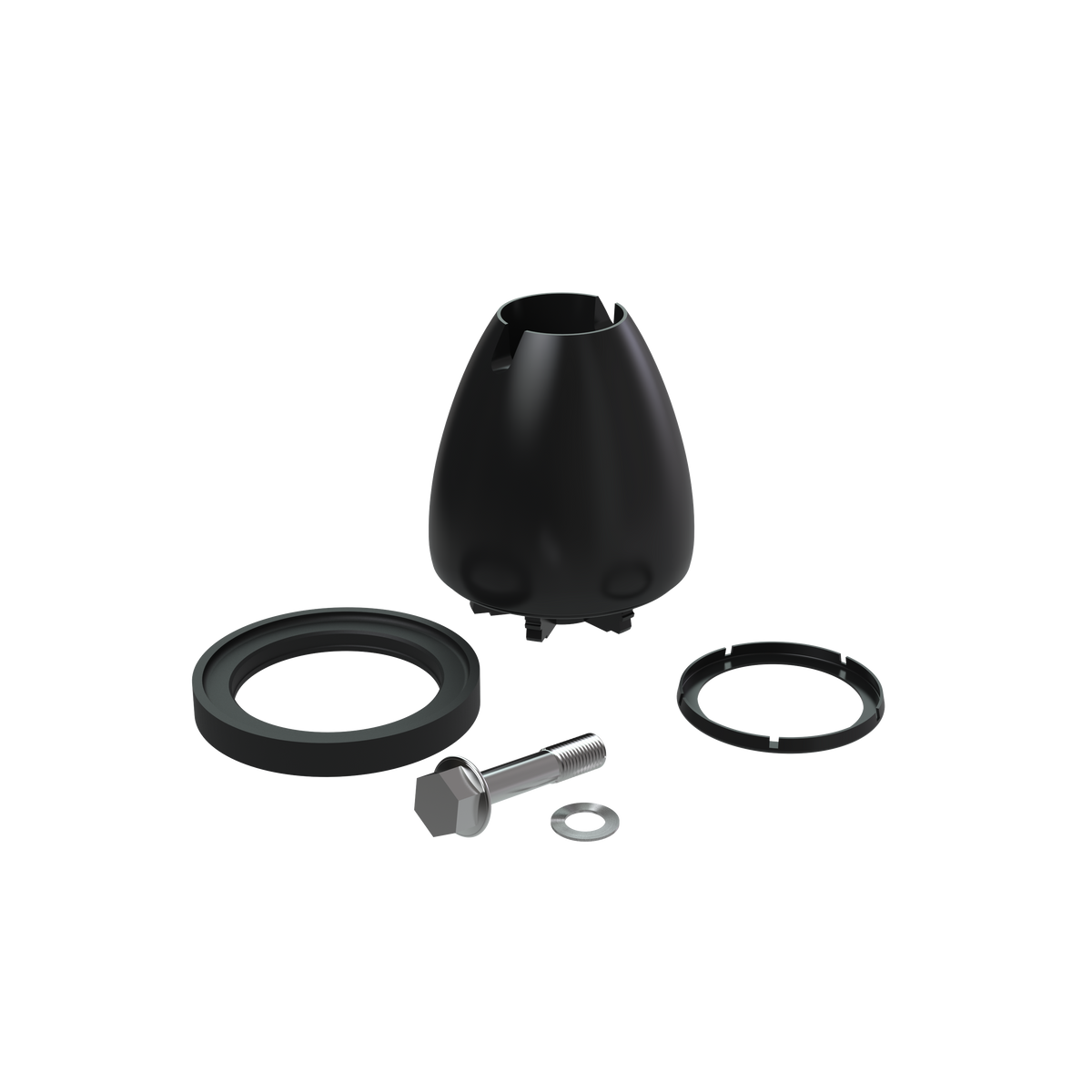

Genuine Volvo Penta propeller cone kit M20, including washer M12 943194, lock screw M12 872546, spacer ring 853676 and plastic washer 854294. The folder lists it as installation hardware, Duoprop types A, B, C and J, 280, 290 and DP drives.

🚤 Compatibility

• Engine Family: AD, D, TMD, DP, SP, MS, HS, TAMD, MD, KAD, KAMD

Full model list at the end of this description.

⚙️ Key Features

• Replaces 852181
• 0.987 kg
• Listed for 72 applications across six series
• Distinct from spinner 872614
• Propeller cone kit M20, including washer M12 943194, lock screw M12 872546, spacer ring 853676 and plastic washer 854294.
• Installation hardware, Duoprop types A, B, C and J, 280, 290 and DP drives.

🔌 Function

Caps the propeller hub and smooths the flow off the back of the drive, covering and protecting the shaft nut behind it.

⚠️ Common Signs of Failure

• Spinner loose, spinning free or missing altogether
• Line or weed caught between the spinner and the hub
• Edges corroded, pitted or eroded
• Cracks around the fixing
• Shaft nut behind it found slack

🛠️ Service Notes

• Propeller shaft 872533 also replaces 852181, so a job written up against that old number may need more than one of the current parts
• Check the shaft nut and its locking arrangement whenever the spinner is off

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 872549 → Supersedes 852181

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta 740B, 501B, 570A, 572A, 430A, 430B, 431A, 431B, 432A, 434A, 570, 500B, 430
• Volvo Penta TAMD31L, TAMD31L-A, TAMD31M, TAMD31M-A, TAMD31P, TAMD31P-A, TAMD31S, TAMD31B, TAMD31D, TAMD31P-B
• Volvo Penta DP-C, DP-C1, DP-D, DP-D1, DP-E, DP-G, DP-A, DP-A2
• Volvo Penta TAMD41B, TAMD41D, TAMD41H-A, TAMD41H-B, TAMD41P-A, TAMD41P, TAMD41P-B
• Volvo Penta AD31B, AD31D, AD31D-A, AD31L-A, AD31P-A, AD31XD
• Volvo Penta AD41B, AD41D, AD41L-A, AD41P-A, AD41BJ
• Volvo Penta D41B, D41D, D41L-A
• Volvo Penta KAD42A, KAD42B, KAD42P-A
• Volvo Penta KAMD42A, KAMD42B, KAMD42P-A
• Volvo Penta SP-C, SP-A2, SP-C1
• Volvo Penta TMD31B, TMD31D, TMD31L-A
• Volvo Penta TMD41B, TMD41D, TMD41L-A
• Volvo Penta HS1A
• Volvo Penta MD31A
• Volvo Penta MS4B
• Volvo Penta MS5B
• Volvo Penta TAMD42B
