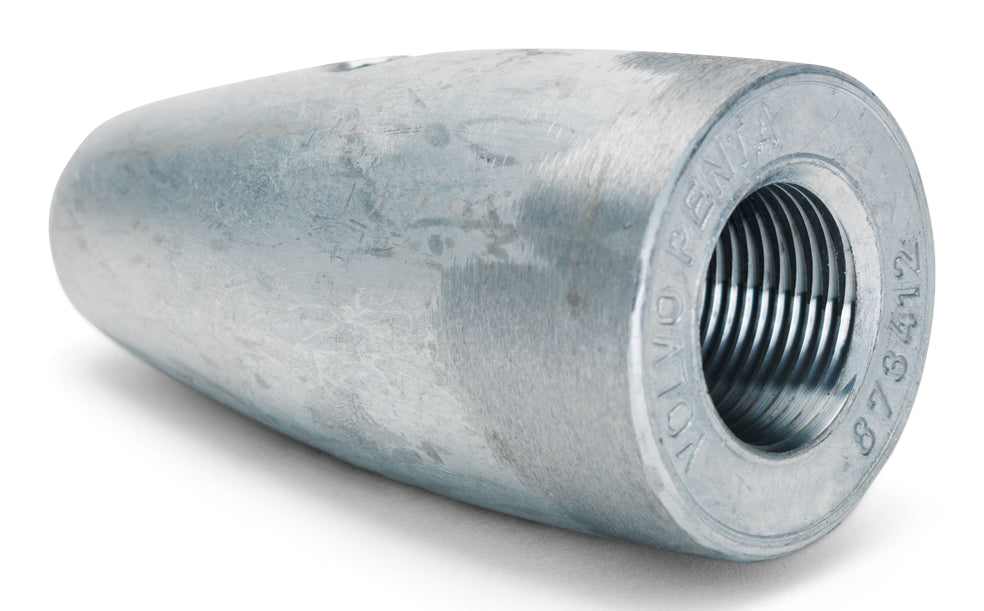

873412 Zinc Anode | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta sacrificial zinc nut anode that screws onto the propeller shaft nut, listed for 30 mm shafts with an M20 thread. From the Marine Propulsion group, it weighs 0.290 kg and is listed for 82 applications across the AD, D, TMD, MS, HS and TAMD ranges. It sits between 873411 for 25 mm shafts on M16 and 873413 for 35 mm and 40 mm shafts on M24, with 873415 covering 45 mm on M30. A 30 mm shaft with a 3/4 inch Whitworth nut takes 833913 instead, so the thread decides as much as the shaft size.

🚤 Compatibility

• Engine Family: AD, D, TMD, MS, HS, TAMD, MD, KAD, KAMD
• HP Range: 13-75 HP

Full model list at the end of this description.

⚙️ Key Features

• For 30 mm propeller shafts
• M20 thread
• Screws onto the propeller shaft nut
• 0.290 kg
• Listed for 82 applications
• The Whitworth anode for the same 30 mm shaft is 833913
• 30mm (Volvo assembly listing)
• Sacrificial zinc
• Material: zinc
• Propeller shaft diameter: 30 mm
• Thread: M20
• Fits: Volvo Penta propeller shafts, 30 mm shaft, M20 thread

🔌 Function

Sacrifices itself to galvanic corrosion so that the shaft, propeller and drive gear around it are left alone.

⚠️ Common Signs of Failure

• More than half the anode consumed
• White chalky bloom and a surface that crumbles when touched
• Anode intact but coated and passivated, so no longer protecting
• New corrosion or pitting showing on the shaft and propeller
• Anode able to turn on the shaft or move under hand pressure

🛠️ Service Notes

• Volvo Penta now recommends aluminium anodes for salt and brackish water rather than zinc, and is gradually phasing most zinc anodes out, so check the current listing before reordering zinc
• Check the nut thread as well as the shaft diameter, as 833913 covers the same 30 mm shaft on a Whitworth nut
• Renew when about half consumed and clean the seat to bright metal so the anode makes proper electrical contact
• Match the thread as well as the shaft diameter - the range mixes imperial and metric threads

🔄 Supersession & Cross Reference

Aftermarket / Verified Equivalents

• Orbitrade: 20412
• Tecnoseal: WE728
• Recmar: REC873412

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta 130SR-C, 130S, 130S-C, 130S-B, 130SR, 130SR-A, 130SR-B, 150S, 150S-B, 150SR, 150SR-B, 130S-D, 130SR-D, 150S-D, 150SR-D, 150S-C, 150SR-C
• Volvo Penta D2-40, D2-40B, D2-40F, D2-55, D2-55B, D2-55C, D2-55D, D2-55E, D2-55F, D2-50F, D2-75, D2-75B, D2-75C, D2-75F, D2-60F
• Volvo Penta D1-30, D1-30B, D1-30F, D1-13, D1-13B, D1-13F, D1-20, D1-20B, D1-20F
• Volvo Penta MD2010, MD2010B, MD2010-C, MD2010-D
• Volvo Penta MD2020, MD2020B, MD2020-C, MD2020-D
• Volvo Penta MD2030, MD2030B, MD2030-C, MD2030-D
• Volvo Penta MD2040, MD2040B, MD2040-C, MD2040-D
• Volvo Penta MD22, MD22A, MD22L, MD22P
• Volvo Penta AD31D, AD31D-A, AD31XD
• Volvo Penta TMD22A, TMD22B, TMD22P-C
• Volvo Penta KAD42B, KAD42P-A
• Volvo Penta KAMD42B, KAMD42P-A
• Volvo Penta TAMD31M, TAMD31D
• Volvo Penta AD41D
• Volvo Penta D41D
• Volvo Penta HS1A
• Volvo Penta MS2B-A
• Volvo Penta TAMD22P-B
• Volvo Penta TAMD41D
• Volvo Penta TAMD42B
• Volvo Penta TMD31D
• Volvo Penta TMD41D
