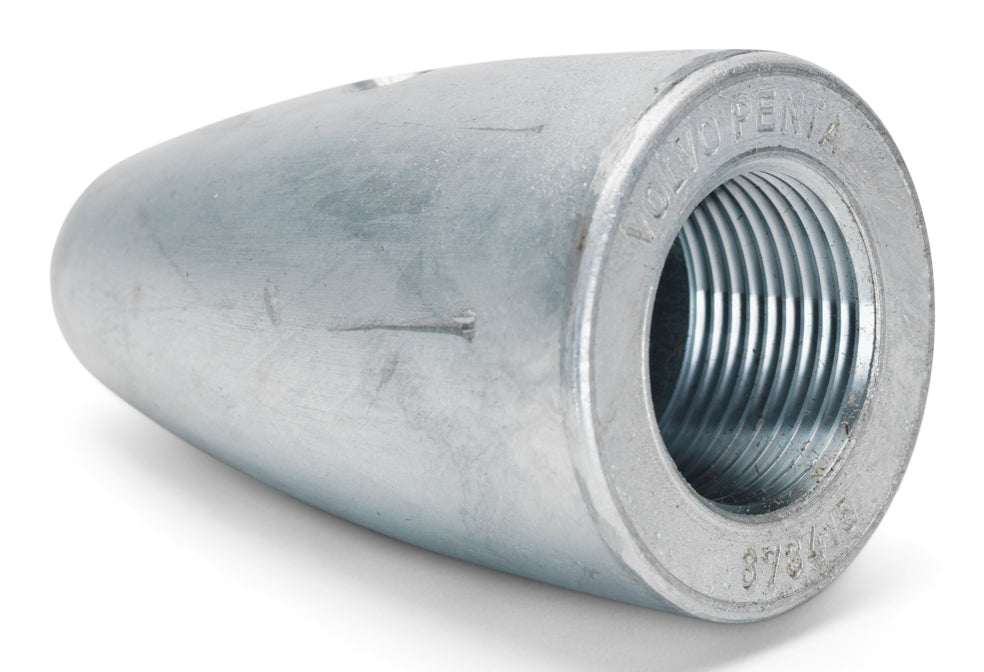

873415 Zinc Anode | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta sacrificial zinc nut anode that screws onto the propeller shaft nut, listed for 45 mm shafts with an M30 thread. From the Marine Propulsion group, it weighs 0.513 kg and is listed for 82 applications across the AD, D, TMD, MS, HS and TAMD ranges. It is the largest shaft size in the metric family of four - 873411 for 25 mm on M16, 873412 for 30 mm on M20 and 873413 for 35 mm and 40 mm on M24 - and the Whitworth anode covering 40 mm and 45 mm shafts on a 1 inch thread is 828140.

🚤 Compatibility

• Engine Family: AD, D, TMD, MS, HS, TAMD, MD, KAD, KAMD
• HP Range: 13-75 HP

Full model list at the end of this description.

⚙️ Key Features

• For 45 mm propeller shafts
• M30 thread
• Screws onto the propeller shaft nut
• 0.513 kg
• Listed for 82 applications
• Largest shaft size of the four metric anodes
• 45mm (Volvo assembly listing)
• Sacrificial zinc
• Material: zinc
• Propeller shaft diameter: 45 mm
• Thread: M30
• Fits: Volvo Penta propeller shafts, 45 mm shaft, M30 thread

🔌 Function

Takes the galvanic corrosion on itself so that the propeller shaft and gear it protects are not attacked.

⚠️ Common Signs of Failure

• Over half the anode gone
• White powdery deposit and a flaking surface
• Anode unwasted but dull and passivated
• Fresh corrosion breaking out on the shaft or propeller
• Anode able to rotate on the shaft

🛠️ Service Notes

• Volvo Penta now recommends aluminium anodes for salt and brackish water rather than zinc, and is gradually phasing most zinc anodes out, so check the current listing before reordering zinc
• Confirm the shaft is 45 mm with an M30 thread - 828140 is the Whitworth-threaded anode for 40 mm and 45 mm shafts
• Replace when about half consumed, clean the seat to bright metal and leave the anode unpainted
• Match the thread as well as the shaft diameter - the range mixes imperial and metric threads

🔄 Supersession & Cross Reference

Aftermarket / Verified Equivalents

• Orbitrade: 20415
• Tecnoseal: WE725
• Recmar: REC873415

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta 130SR-C, 130S, 130S-C, 130S-B, 130SR, 130SR-A, 130SR-B, 150S, 150S-B, 150SR, 150SR-B, 130S-D, 130SR-D, 150S-D, 150SR-D, 150S-C, 150SR-C
• Volvo Penta D2-40, D2-40B, D2-40F, D2-55, D2-55B, D2-55C, D2-55D, D2-55E, D2-55F, D2-50F, D2-75, D2-75B, D2-75C, D2-75F, D2-60F
• Volvo Penta D1-30, D1-30B, D1-30F, D1-13, D1-13B, D1-13F, D1-20, D1-20B, D1-20F
• Volvo Penta MD2010, MD2010B, MD2010-C, MD2010-D
• Volvo Penta MD2020, MD2020B, MD2020-C, MD2020-D
• Volvo Penta MD2030, MD2030B, MD2030-C, MD2030-D
• Volvo Penta MD2040, MD2040B, MD2040-C, MD2040-D
• Volvo Penta MD22, MD22A, MD22L, MD22P
• Volvo Penta AD31D, AD31D-A, AD31XD
• Volvo Penta TMD22A, TMD22B, TMD22P-C
• Volvo Penta KAD42B, KAD42P-A
• Volvo Penta KAMD42B, KAMD42P-A
• Volvo Penta TAMD31M, TAMD31D
• Volvo Penta AD41D
• Volvo Penta D41D
• Volvo Penta HS1A
• Volvo Penta MS2B-A
• Volvo Penta TAMD22P-B
• Volvo Penta TAMD41D
• Volvo Penta TAMD42B
• Volvo Penta TMD31D
• Volvo Penta TMD41D
