873517 Ring | Genuine Volvo Penta Part

🔧 Product Description

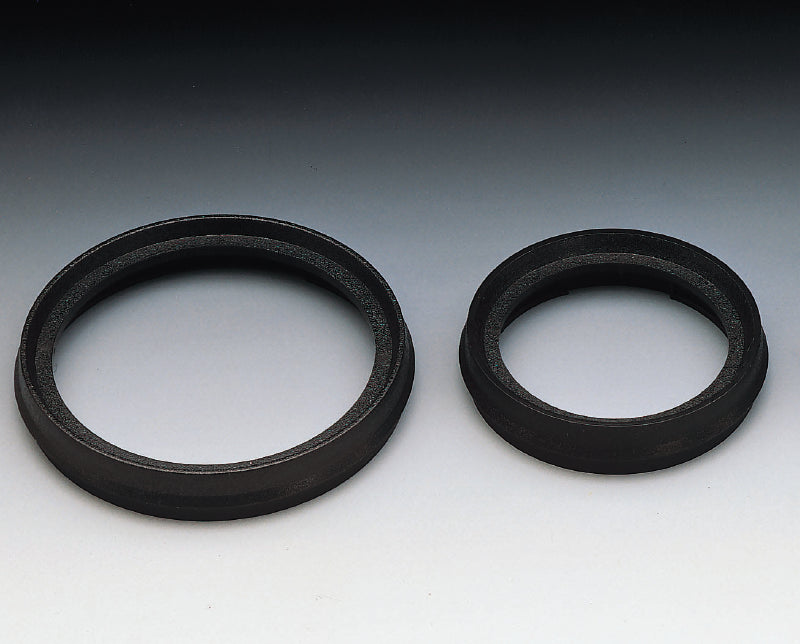

Genuine Volvo Penta front ring for 72 mm instruments, marked Alt., fitting a 90 mm panel hole. It is the larger of the two front rings listed for these instruments, the smaller being 858643 for a 52 mm instrument in a 60 mm hole. From the Instruments group, it weighs 0.027 kg and is listed for 145 applications across the TAMD, AD, D, TWD, TMD and TD ranges. It consolidates fourteen earlier front ring numbers into one: 828600, 854909, 854910, 854911, 854912, 854913, 854914, 854917, 872038, 872039, 872040, 872041, 872358 and 872994.

🚤 Compatibility

• Engine Family: TAMD, AD, D, TWD, TMD, TD, MS, HS, TAD, KAMD, MD, KAD
• HP Range: 13-75 HP

Full model list at the end of this description.

⚙️ Key Features

• For 72 mm instruments in a 90 mm panel hole
• The larger of the two front rings listed for these instruments
• Marked Alt.
• 0.027 kg
• Listed for 145 applications
• Replaces fourteen earlier front ring numbers
• 72mm (Volvo assembly listing)
• Instrument diameter 72 mm
• Hole diameter 90 mm
• Instrument diameter: 72 mm
• Hole diameter: 90 mm
• Fits: Volvo Penta non-EVC instruments
• Also supersedes Volvo part numbers 828599, 838811, 864020, 864021, 864022, 864023, 864024, 864025, 864028 and 864031

🔌 Function

Finishes and retains the instrument in the panel, closing the gap between the 72 mm gauge body and the 90 mm hole it sits in.

⚠️ Common Signs of Failure

• Ring cracked, chipped or split at the rim
• Finish gone dull, chalky or stained by weather
• Ring loose so the instrument can move in the panel
• Water tracking past the ring into the back of the panel
• Retaining lugs or clips broken off

🛠️ Service Notes

• Check the instrument body is 72 mm and the panel hole 90 mm before ordering - those two figures are what this ring is defined by, and 858643 is the 52 mm and 60 mm ring
• If your panel has an 80 mm hole and a 72 mm instrument, intermediate ring 873721 is the part that adapts it
• Two sizes are listed: 858643 fits a 52 mm instrument in a 60 mm hole

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 873517 → Supersedes 828600

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta TAMD31L, TAMD31L-A, TAMD31M, TAMD31M-A, TAMD31P, TAMD31P-A, TAMD31S, TAMD31D
• Volvo Penta D2-40, D2-55, D2-55B, D2-55C, D2-75, D2-75F, D2-60F
• Volvo Penta TAMD122A, TAMD122A/C, TAMD122AF, TAMD122D, TAMD122P-A, TAMD122P-B, TAMD122P-C
• Volvo Penta TAMD74P-A, TAMD74P-B, TAMD74A, TAMD74C-A, TAMD74C-B, TAMD74L-A, TAMD74L-B
• Volvo Penta AD31D, AD31D-A, AD31L-A, AD31P-A, AD31XD
• Volvo Penta D7A-B TA, D7A-T, D7A-TA, D7C-B TA, D7C-TA
• Volvo Penta TAMD162C-C, TAMD162A, TAMD162B, TAMD162C, TAMD162C-B
• Volvo Penta TAMD41D, TAMD41H-A, TAMD41H-B, TAMD41P-A, TAMD41P
• Volvo Penta MD2010, MD2010B, MD2010-C, MD2010-D
• Volvo Penta MD2020, MD2020B, MD2020-C, MD2020-D
• Volvo Penta MD2030, MD2030B, MD2030-C, MD2030-D
• Volvo Penta MD2040, MD2040B, MD2040-C, MD2040-D
• Volvo Penta MD22, MD22A, MD22L, MD22P
• Volvo Penta AD41D, AD41L-A, AD41P-A
• Volvo Penta D1-30, D1-13, D1-20
• Volvo Penta D12C-A MP, D12D-A MH, D12D-A MP
• Volvo Penta D5A-B TA, D5A-T, D5A-TA
• Volvo Penta KAD44P, KAD44P-B, KAD44P-C
• Volvo Penta KAMD43P, KAMD43P-A, KAMD43P-B
• Volvo Penta KAMD44P-B, KAMD44P-C, KAMD44P-A
• Volvo Penta TAMD72A, TAMD72P-A, TAMD72WJ-A
• Volvo Penta TMD22A, TMD22B, TMD22P-C
• Volvo Penta D41D, D41L-A
• Volvo Penta KAD42B, KAD42P-A
• Volvo Penta KAMD42B, KAMD42P-A
• Volvo Penta TAD1030G, TAD1030GE
• Volvo Penta TAD1031G, TAD1031GE
• Volvo Penta TAMD102A, TAMD102D
• Volvo Penta TAMD163A-A, TAMD163P-A
• Volvo Penta TAMD165A, TAMD165C
• Volvo Penta TAMD42WJ-A, TAMD42B
• Volvo Penta TAMD63L-A, TAMD63P-A
• Volvo Penta TAMD71B, TAMD71A
• Volvo Penta TAMD73P-A, TAMD73WJ-A
• Volvo Penta TMD31D, TMD31L-A
• Volvo Penta TMD41D, TMD41L-A
• Volvo Penta HS1A
• Volvo Penta KAD300-A
• Volvo Penta KAD32P
• Volvo Penta KAD43P-A
• Volvo Penta KAMD300-A
• Volvo Penta MS2B-A
• Volvo Penta TAD1032GE
• Volvo Penta TAD1240GE
• Volvo Penta TAD1241GE
• Volvo Penta TAD1242GE
• Volvo Penta TAMD103A
• Volvo Penta TAMD121D
• Volvo Penta TAMD22P-B
• Volvo Penta TAMD61A
• Volvo Penta TAMD62A
• Volvo Penta TAMD75P-A
• Volvo Penta TD1010G
• Volvo Penta TMD102A
• Volvo Penta TMD121C
• Volvo Penta TMD122A
• Volvo Penta TWD1010G
