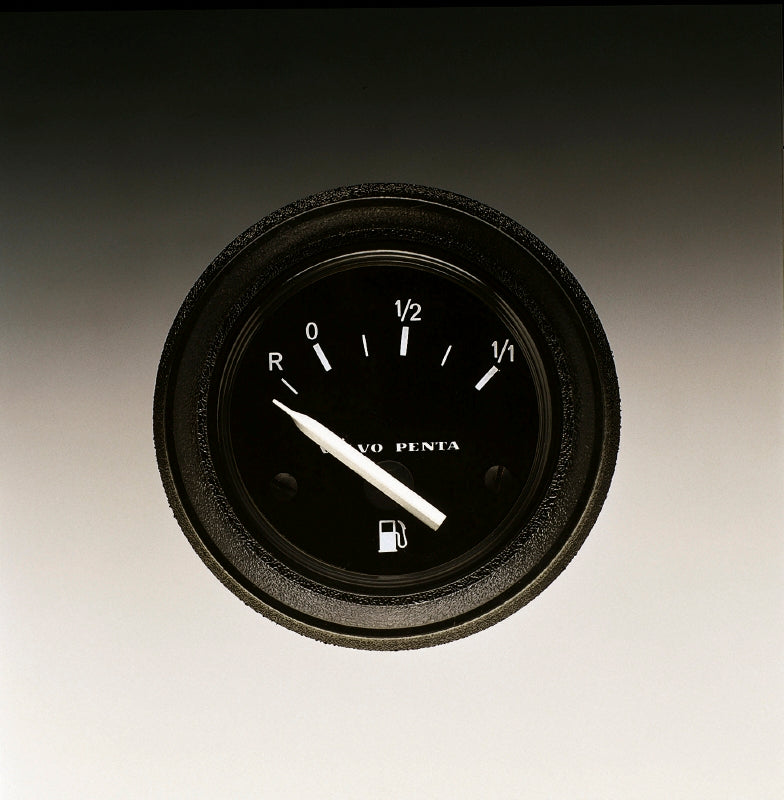

873808 Fuel Gauge | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta 12 V fuel gauge kit from the Instruments group, weighing 1.134 kg and listed for 181 applications across the TAMD, D, AD, TMD, MS and HS ranges. It is supplied as a complete installation: instrument 863940, tank sensor 873772, cables and a front ring, the sensor being the float type that sits in the tank and follows the fuel level. It supersedes 1140461, which earlier records list as a tank gauge kit. The 12 V rating is the identifying detail, so check the system voltage before ordering.

🚤 Compatibility

• Engine Family: TAMD, D, AD, TMD, MS, HS, KAMD, MD, KAD
• HP Range: 13-435 HP

Full model list at the end of this description.

⚙️ Key Features

• 12 V fuel gauge kit
• Supplied complete with instrument 863940, tank sensor 873772, cables and front ring
• Float type tank sensor that follows the fuel level
• 1.134 kg
• Listed for 181 applications
• Covers TAMD, D, AD, TMD, MS and HS engines
• Supersedes 1140461, catalogued earlier as a tank gauge kit
• Complete kit - instrument, sensor, cables and front ring
• Float-type tank sensor
• Fits: Volvo Penta non-EVC instrument installations

📋 Kit Contents

• Instrument 863940
• Sensor 873772
• Cables
• Front ring

🔌 Function

Displays the fuel level at the helm from the signal sent by the float sensor in the tank.

⚠️ Common Signs of Failure

• Needle stuck at full or empty whatever the tank holds
• Reading swinging about as the boat moves
• Gauge dead with the ignition on
• Illumination failed behind the dial
• Corroded or loose terminals on the back of the gauge

🛠️ Service Notes

• Confirm the system is 12 V before ordering
• If only the tank end has failed, sensor 873772 is available on its own rather than as the whole kit
• Check the panel aperture size against the gauge before fitting
• Supplied complete, so the sender and front ring do not need ordering separately

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 873808 → Supersedes 1140461 → Supersedes 858879 → Supersedes 828714

OEM / Related Numbers

• 1140461 earlier number superseded by this part
• 858879 earlier number superseded by this part
• 828714 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-370A-C, D6-350A-A, D6-350A-B, D6-330A-D, D6-330D-E, D6-370D-E, D6-370D-B, D6-330D-B, D6-330A-F, D6-370A-F, D6-370D-A, D6-330D-C, D6-330A-C, D6-370D-C, D6-330D-D, D6-370D-D, D6-330D-F, D6-370A-D, D6-330A-E, D6-370A-E, D6-370D-F, D6-330I-D, D6-310I-B, D6-280I-B, D6-280I-E, D6-280I-D, D6-310I-D, D6-435I-D, D6-310I-E, D6-280I-A, D6-310I-A, D6-300A-F, D6-300D-F, D6-300I-F, D6-310D-A, D6-310D-B, D6-310D-D, D6-310D-C, D6-310D-E, D6-370I-A, D6-370I-B, D6-330I-B, D6-330I-C, D6-370I-C, D6-310A-B, D6-280A-C, D6-310A-C, D6-310A-A, D6-280A-D, D6-310A-D, D6-280A-E, D6-310A-E, D6-280I-C, D6-310I-C, D6-280A-A, D6-280A-B, D6-330I-F, D6-370I-F, D6-400A-E, D6-435D-A, D6-435D-D, D6-435D-E, D6-435D-F, D6-435I-A, D6-435I-C, D6-435I-E, D6-400A-F, D6-435D-C, D6-435I-F, D6-370I-D, D6-330I-E, D6-370I-E, D6-330A-B, D6-370A-B
• Volvo Penta D4-260A-F, D4-260D-F, D4-260I-F, D4-300A-F, D4-300D-F, D4-180I-F, D4-225I-F, D4-300I-F, D4-225A-F
• Volvo Penta TAMD31L, TAMD31L-A, TAMD31M, TAMD31M-A, TAMD31P, TAMD31P-A, TAMD31S, TAMD31D, TAMD31P-B
• Volvo Penta D2-40, D2-55, D2-55B, D2-55C, D2-75, D2-75F, D2-60F
• Volvo Penta TAMD74P-A, TAMD74P-B, TAMD74A, TAMD74C-A, TAMD74C-B, TAMD74L-A, TAMD74L-B
• Volvo Penta TAMD41D, TAMD41H-A, TAMD41H-B, TAMD41P-A, TAMD41P, TAMD41P-B
• Volvo Penta AD31D, AD31D-A, AD31L-A, AD31P-A, AD31XD
• Volvo Penta MD2010, MD2010B, MD2010-C, MD2010-D
• Volvo Penta MD2020, MD2020B, MD2020-C, MD2020-D
• Volvo Penta MD2030, MD2030B, MD2030-C, MD2030-D
• Volvo Penta MD2040, MD2040B, MD2040-C, MD2040-D
• Volvo Penta AD41D, AD41L-A, AD41P-A
• Volvo Penta D1-30, D1-13, D1-20
• Volvo Penta KAD44P, KAD44P-B, KAD44P-C
• Volvo Penta KAMD43P, KAMD43P-A, KAMD43P-B
• Volvo Penta KAMD44P-B, KAMD44P-C, KAMD44P-A
• Volvo Penta D41D, D41L-A
• Volvo Penta KAD42B, KAD42P-A
• Volvo Penta KAMD42B, KAMD42P-A
• Volvo Penta MD22, MD22A
• Volvo Penta TAMD42WJ-A, TAMD42B
• Volvo Penta TAMD63L-A, TAMD63P-A
• Volvo Penta TAMD71B, TAMD71A
• Volvo Penta TAMD72P-A, TAMD72WJ-A
• Volvo Penta TAMD73P-A, TAMD73WJ-A
• Volvo Penta TMD31D, TMD31L-A
• Volvo Penta TMD41D, TMD41L-A
• Volvo Penta HS1A
• Volvo Penta KAD300-A
• Volvo Penta KAD32P
• Volvo Penta KAD43P-A
• Volvo Penta KAMD300-A
• Volvo Penta MS2B-A
• Volvo Penta TAMD165A
• Volvo Penta TAMD61A
• Volvo Penta TAMD62A
• Volvo Penta TAMD75P-A
• Volvo Penta TMD22A
