874732 Mounting Kit | Genuine Volvo Penta Part

🔧 Product Description

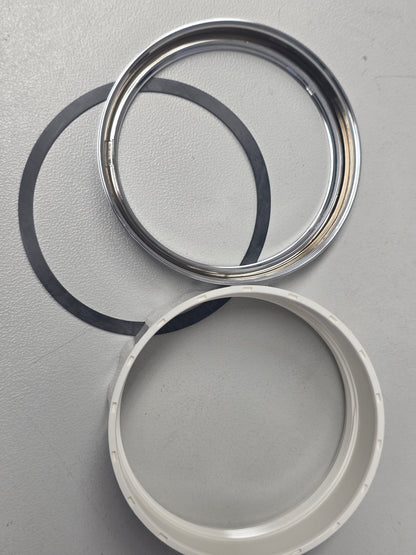

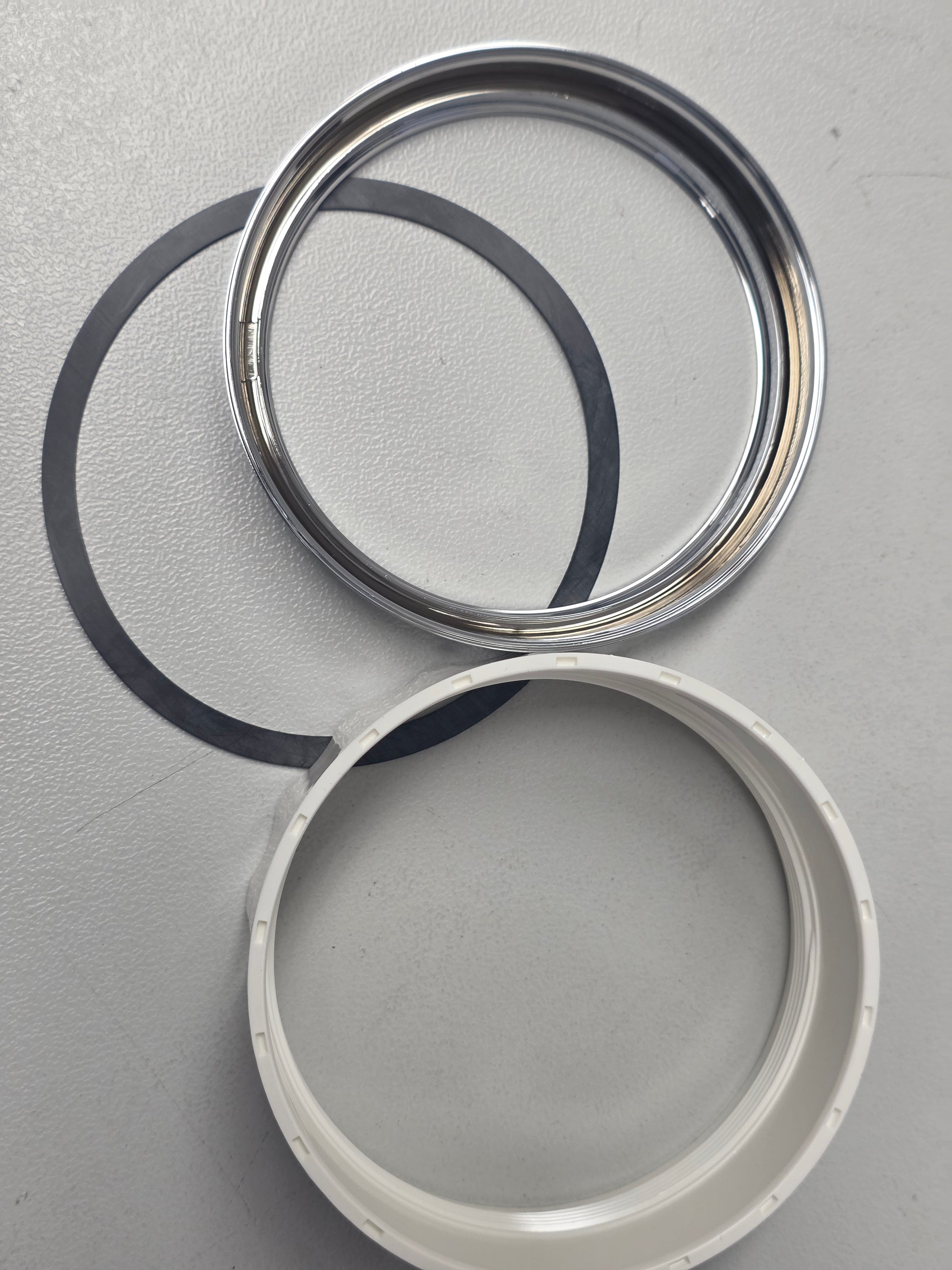

Genuine Volvo Penta front ring mounting kit for 85 mm instruments with a chrome ring, suiting panel thicknesses from 0 to 12 mm, weighing 0.032 kg and listed for 448 applications across D, V and VMM series installations. The 52 mm chrome kit is 874733; the black equivalents are 874708 at 85 mm and 874709 at 52 mm.

🚤 Compatibility

• Engine Family: D, V, VMM
• HP Range: 13-480 HP

Full model list at the end of this description.

⚙️ Key Features

• 85 mm instruments
• Chrome ring
• For panel thicknesses from 0 to 12 mm
• 0.032 kg
• 448 applications across D, V and VMM series installations
• 85mm (Volvo assembly listing)
• For 85 mm instruments
• Panel thickness 0-12 mm
• Instrument diameter: 85 mm
• Panel thickness: 0-12 mm
• Finish: Chrome
• Fits: Volvo Penta 85 mm instruments

🔌 Function

Mounts an 85 mm instrument into the panel and finishes its face with a chrome front ring.

⚠️ Common Signs of Failure

• Instrument loose or able to turn in the panel
• Chrome finish pitted, lifting or corroded
• Clamp threads seized or stripped
• Ring cracked at a fixing point
• Water tracking behind a ring that no longer seats flush

🛠️ Service Notes

• Order by instrument diameter and ring colour — 85 mm or 52 mm, chrome or black — rather than by the published weights, which sit within 2 grams of each other across the chrome pair
• Check the panel thickness: 0 to 12 mm here, and 881614 is the chrome 85 mm kit for 12 to 25 mm
• The 85 mm instruments are the tachometers and speedometers, which are supplied without a ring
• Panel thickness and instrument diameter both have to match - the two ranges cover 0-12 mm (0-15 mm at 110 mm) and 12-25 mm
• Front ring and mounting items are not included with the instruments

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta 8.1GiC-JF, 8.1GiCE-JF, 8.1GiCE-J, 8.1GiCE-M, 8.1GiCE-P, 8.1GiCE-Q, 8.1GiE-KF, 8.1GiE-K, 8.1GiE-M, 8.1GiE-P, 8.1Gi-JF, 8.1GXiE-K, 8.1GXiE-KF, 8.1GXiE-M, 8.1GXiE-P, 8.1GXi-JF, 8.1IPSCE-MF, 8.1IPSCE-P, 8.1IPSCE-Q, 8.1OSi-J, 8.1OSi-JF, 5.7GXiE-320-R, 5.7GXiCE-320-R, 5.7GXiC-JF, 5.7GXiCE-JF, 5.7GXiCE-J, 5.7GXiCE-M, 5.7GXiCE-P, 5.7GXi-J, 5.7GXi-JF, 5.7GXiE-KF, 5.7GXiE-K, 5.7GXiE-M, 5.7GXiE-P, 5.7OSi-300-J, 5.7OSi-300-JF, 5.7OSXi-J, 5.7OSXi-JF, 5.7Gi-300-J, 5.7Gi-300-JF, 5.7GiCE-300-M, 5.7GiE-300-N, 5.7GiE-300-P, 5.7GiE-300-R, 5.7GiCE-300-J, 5.7GiCE-300-JF, 5.7GiC-300-JF, 5.7GXiE-N, 5.7GiE-300-K, 5.7GiE-300-KF, 5.7GiE-300-M, 5.7GiCE-300-P, 5.7GiCE-300-R, 4.3OSi-J, 4.3OSi-JF, 5.0GiCE-225-S, 5.0GiC-J, 5.0GXiCE-JF, 5.0GXiCE-J, 5.0GXiC-JF, 5.0GXiCE-M, 5.0GXiCE-P, 5.0GXi-J, 5.0GXi-JF, 5.0GXiE-K, 5.0GL-J, 5.0GL-JF, 5.0GXiE-270-R, 5.0GXiCE-270-R, 5.0GXiE-KF, 5.0GXiE-M, 5.0GXiE-N, 5.0GXiE-P, 4.3GL-J, 4.3GL-JF, 4.3GXiE-225-R, 4.3GXiE-M, 4.3GXiE-P, 4.3GXiE-Q, 4.3GXi-J, 4.3GXi-JF, 4.3GXiE-225-S
• Volvo Penta V8-350-C-R, V8-350-CE-R, V8-380-C-R, V8-380-CE-R, V8-430-C-R, V8-300-C-M, V8-300-CE-M, V8-350-C-M, V8-350-CE-M, V8-300-C-N, V8-300-CE-N, V8-350-C-N, V8-350-CE-N, V8-380-C-M, V8-380-CE-M, V8-270-CE-B, V8-300-E-A, V8-300-E-B, V8-300-CE-A, V8-320-CE-B, V8-300-CE-B, V8-320-E-A, V8-320-E-B, V8-320-CE-A, V8-380-CE-A, V8-380-CE-B, V8-380-CE-D, V8-430-CE-D, V8-350-CE-D, V8-380-CE-J, V8-380-C-J, V8-430-CE-J, V8-430-C-J, V8-350-CE-H, V8-350-C-J, V8-350-CE-J, V8-300-C-R, V8-300-CE-R, V8-430-CE-R, V8-430-C-M, V8-430-CE-M, V8-300-C-K, V8-300-CE-K, V8-350-C-K, V8-350-CE-K, V8-380-C-K, V8-380-CE-K, V8-430-C-K, V8-430-CE-K, V8-300-C-P, V8-300-CE-P, V8-350-C-P, V8-350-CE-P, V8-380-C-P, V8-380-CE-P, V8-430-C-P, V8-300-CE-G, V8-300-CE-H, V8-300-C-J, V8-300-CE-J, V8-350-CE-G, V8-225-CE-A, V8-225-CE-B, V8-270-E-A, V8-270-E-B, V8-270-CE-A, V8-380-C-N, V8-380-CE-N, V8-430-C-N, V8-430-CE-N, V8-430-CE-P, V8-300-C-S, V8-300-CE-S, V8-350-C-S, V8-350-CE-S, V8-400-CE-R
• Volvo Penta D6-370A-C, D6-330A-D, D6-330D-E, D6-370D-E, D6-330A-F, D6-370A-F, D6-330D-C, D6-330A-C, D6-370D-C, D6-330D-D, D6-370D-D, D6-330D-F, D6-370A-D, D6-330A-E, D6-370A-E, D6-370D-F, D6-330I-D, D6-280I-D, D6-310I-D, D6-435I-D, D6-280I-E, D6-310I-E, D6-300A-F, D6-300D-F, D6-300I-F, D6-310D-D, D6-310D-C, D6-310D-E, D6-330I-C, D6-370I-C, D6-280A-C, D6-310A-C, D6-280A-D, D6-310A-D, D6-280A-E, D6-310A-E, D6-280I-C, D6-310I-C, D6-340I-G, D6-380I-G, D6-440I-G, D6-480I-G, D6-300A-G, D6-340A-G, D6-380A-G, D6-440I-WJ-G, D6-480I-WJ-G, D6-300D-G, D6-340D-G, D6-380D-G, D6-440D-G, D6-480D-G, D6-400A-G, D6-440A-G, D6-300I-G, D6-330I-F, D6-370I-F, D6-400A-E, D6-435D-D, D6-435D-E, D6-435D-F, D6-435I-C, D6-435I-E, D6-400A-F, D6-435D-C, D6-435I-F, D6-370I-D, D6-330I-E, D6-370I-E, D6-480A-G
• Volvo Penta D4-260A-C, D4-260A-D, D4-260A-E, D4-260A-F, D4-260D-C, D4-260D-D, D4-260D-E, D4-260D-F, D4-260I-C, D4-260I-D, D4-260I-E, D4-260I-F, D4-300A-C, D4-300A-D, D4-300A-E, D4-300A-F, D4-300D-C, D4-300D-D, D4-300D-E, D4-300D-F, D4-180I-C, D4-225I-C, D4-180I-D, D4-225I-D, D4-180I-E, D4-225I-E, D4-180I-F, D4-225I-F, D4-225A-C, D4-225A-D, D4-300I-C, D4-300I-D, D4-300I-E, D4-300I-F, D4-225A-E, D4-225A-F, D4-175I-G, D4-230I-G, D4-270I-G, D4-320I-G, D4-300I-G, D4-150A-G, D4-230A-G, D4-270A-G, D4-320A-G, D4-300A-G, D4-145I-G, D4-175 VG
• Volvo Penta V6-200-N, V6-200-C-N, V6-200-CE-N, V6-240-M, V6-240-C-M, V6-240-CE-M, V6-280-M, V6-280-C-M, V6-280-CE-M, V6-280-J, V6-280-CE-J, V6-280-CE-G, V6-280-C-J, V6-240-N, V6-240-C-N, V6-240-CE-N, V6-280-N, V6-280-C-N, V6-240-CE-K, V6-280-CE-K, V6-200-P, V6-200-C-P, V6-200-CE-P, V6-250-P, V6-250-C-P, V6-250-CE-P, V6-280-P, V6-280-C-P, V6-280-CE-P, V6-200-J, V6-200-C-J, V6-225-E-A, V6-280-CE-N, V6-200-M, V6-200-C-M, V6-250-O, V6-250-C-O, V6-250-CE-O, V6-240-CE-G, V6-240-J, V6-240-CE-J, V6-240-C-J, V6-200-R, V6-200-C-R, V6-250-R, V6-250-C-R, V6-280-R, V6-280-C-R
• Volvo Penta D13C3-B MH, D13C1-B MH, D13C4-B MH, D13C2-B MP, D13C1-A MP, D13C2-A MP, D13C3-A MP, D13C4-A MP, D13B-A MP, D13B-C MH, D13B-H MP, D13B-G MP, D13B-L MP, D13B-E MH, D13B-E MH (FE), D13B-K MP, D13B-N MH, D13B-N MH (FE), D13B-B MP, D13B-D MP, D13B-J MP, D13B-M MP, D13B-C MP, D13C4-B MP, D13C5-B MP, D13C6-A MP, D13C1-A MH, D13C2-A MH, D13C5-A MP, D13C7-B MP, D13C8-B MP
• Volvo Penta D3-110I-C, D3-130I-C, D3-220I-G, D3-130A-C, D3-160A-C, D3-140A-G, D3-170A-G, D3-200A-G, D3-220A-G, D3-140I-G, D3-190A-C, D3-110I-G, D3-150I-G, D3-170I-G, D3-200I-G, D3-110I-H, D3-160I-C, D3-190I-C, D3-140A-H, D3-170A-H, D3-200A-H, D3-220A-H, D3-150I-H, D3-170I-H, D3-200I-H, D3-220I-H, D3-140I-H
• Volvo Penta D11C1-A MP, D11C3-A MP, D11C2-A MP, D11C4-A MP, D11B3-A MP, D11B4-A MP, D11A-A, D11A-B, D11A-C, D11A-D, D11A-E, D11B2-A MP, D11A-C MP, D11A-D MP, D11A-E MP, D11B1-A MP
• Volvo Penta D2-40B, D2-40F, D2-55D, D2-55E, D2-55F, D2-50F, D2-75B, D2-75C, D2-75F, D2-60F
• Volvo Penta D12D-C MH, D12D-C MP, D12D-D MP, D12D-E MH, D12D-E MP, D12D-F MP, D12D-G MH, D12D-G MP, D12D-H MP
• Volvo Penta D16C-A MH, D16C-B MH, D16C-C MH, D16C-D MH, D16C1-E MH, D16C1-F MH, D16C2-E MH, D16C2-F MH
• Volvo Penta D8A2-A MP, D8A5-A MH, D8A6-A MH, D8A5-A MG, D8A6-A MG, D8A4-A MP, D8A1-A MP, D8A3-A MP
• Volvo Penta D9A2G, D9A2J, D9A2L MH, D9A2F, D9A2H, D9A2K, D9A2M MP, D9A2E
• Volvo Penta D1-30B, D1-30F, D1-13B, D1-13F, D1-20B, D1-20F
• Volvo Penta VMM-A
