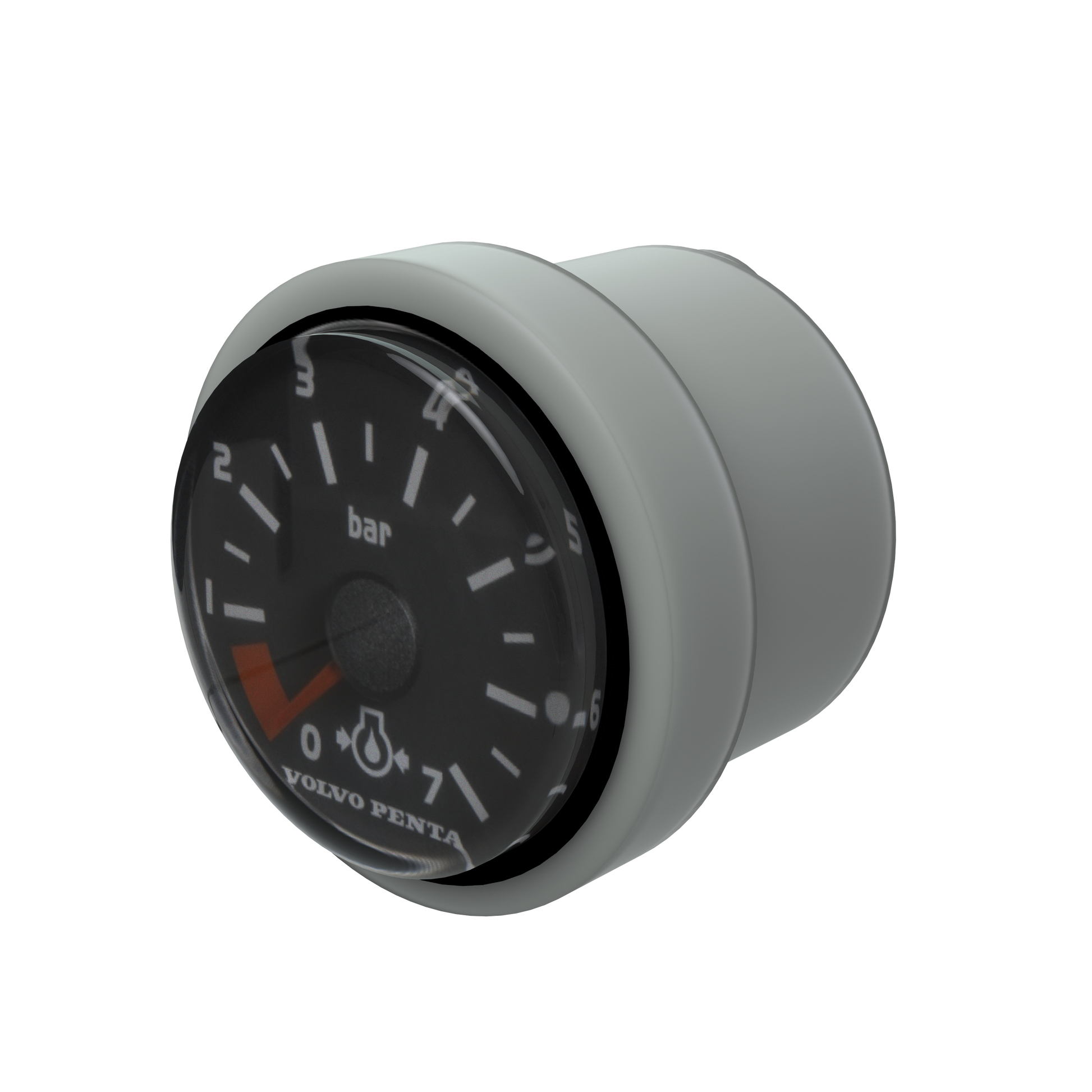

874908 Oil Pressure Gauge | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta engine oil pressure instrument, 52 mm, with a black face and a 0-7 bar scale, weighing 0.111 kg and listed for 294 applications across D, V and VMM series engines. It is not listed for D1 or D2 engines, or for D3 A-C up to model year 2009. It consolidates three earlier numbers — 849849, 873197 and 873198. Those same three are also replaced by 874919, the black 0-100 psi version, so the old number does not settle the choice: order by face colour and by whether the panel reads bar or psi. The white-faced versions are 874923 in bar and 874932 in psi.

🚤 Compatibility

• Engine Family: D, V, VMM
• HP Range: 110-480 HP

Full model list at the end of this description.

⚙️ Key Features

• Black face, 0-7 bar scale
• 52 mm instrument
• Not listed for D1/D2 or D3 A-C up to model year 2009
• 0.111 kg
• Listed for 294 applications across D, V and VMM series engines
• Supersedes 849849, 873197 and 873198
• 52mm (Volvo assembly listing)
• Gauge diameter: Ø 52 mm
• Gauge family: Level and pressure gauges
• Gauge range: EVC gauge range
• 52 mm instrument diameter
• Not for D1/D2 or D3 A-C engines up to model year 2009
• Anti-fogging membrane and full backlighting
• Plug-and-play serial connection - adding instruments is easy
• Diameter: 52 mm
• Face colour: Black
• Scale: 0-7 bar
• Fits: not for D1/D2 or D3 A-C (up to model year 2009)
• Also supersedes Volvo part numbers 837757, 863934, 863935 and 873287

🔌 Function

Displays engine oil pressure at the helm from the engine's oil pressure sender.

⚠️ Common Signs of Failure

• Needle reading zero with the engine running and pressure proven
• Reading that does not fall as the oil warms through
• Needle pegged hard at the top of the scale
• Backlighting out behind a working needle
• Condensation or staining behind the glass

🛠️ Service Notes

• Confirm real oil pressure with a mechanical test gauge before replacing the instrument — this is a warning circuit and a wrong diagnosis here is worth getting right
• Order by units and colour: 874919 is black psi, 874923 white bar and 874932 white psi, and all four supersede the same earlier numbers
• It is not listed for D1/D2 or for D3 A-C up to model year 2009, so check the engine before ordering
• Front ring and mounting items are not supplied with the instrument and are ordered separately: 52 mm black 874709 or chrome 874733, 85 mm black 874708 or chrome 874732, 110 mm black 3847888 or chrome 3885216 for panels up to 12 mm (15 mm at 110 mm); 881611/881613 in 52 mm and 881612/881614 in 85 mm for panels 12-25 mm; X-rings 874843 in 52 mm and 874844 in 85 mm for flush mounting
• Four versions are listed and face colour and units are all that separate them: 874923 is white, 0-7 bar; 874919 is black, 0-100 PSI; 874932 is white, 0-100 PSI

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 874908 → Supersedes 849849

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta 8.1GiCE-JF, 8.1GiCE-J, 8.1GiCE-M, 8.1GiCE-P, 8.1GiCE-Q, 8.1GiE-JF, 8.1GiE-J, 8.1GiE-KF, 8.1GiE-K, 8.1GiE-M, 8.1GiE-MF, 8.1GiE-P, 8.1Gi-H, 8.1Gi-HF, 8.1Gi-J, 8.1Gi-JF, 8.1GXiE-JF, 8.1GXiE-J, 8.1GXiE-K, 8.1GXiE-KF, 8.1GXiE-M, 8.1GXiE-P, 8.1GXi-G, 8.1GXi-GF, 8.1GXi-J, 8.1GXi-JF, 8.1IPSCE-JF, 8.1IPSCE-MF, 8.1IPSCE-P, 8.1IPSCE-Q, 8.1IPSE-JF, 8.1OSi-D, 8.1OSi-DF, 8.1OSi-J, 8.1OSi-JF, 8.1OSiE-JF, 8.1OSiE-J, 5.7GXiE-320-R, 5.7GXiCE-320-R, 5.7GXiCE-JF, 5.7GXiCE-J, 5.7GXiCE-M, 5.7GXiCE-P, 5.7GXi-J, 5.7GXi-JF, 5.7GXiE-JF, 5.7GXiE-J, 5.7GXiE-KF, 5.7GXiE-K, 5.7GXiE-M, 5.7GXiE-MF, 5.7GXiE-P, 5.7GXi-H, 5.7GXi-HF, 5.7OSi-300-J, 5.7OSi-300-JF, 5.7OSiE-300-JF, 5.7OSiE-300-J, 5.7OSi-G, 5.7OSi-GF, 5.7OSXi-J, 5.7OSXi-JF, 5.7OSXiE-JF, 5.7OSXiE-J, 5.7OSXi-G, 5.7OSXi-GF, 5.0OSi-J, 5.0OSi-JF, 5.0OSiE-J, 5.0OSiE-JF, 5.0OSi-G, 5.0OSi-GF, 5.7Gi-300-J, 5.7Gi-300-JF, 5.7GiE-300-JF, 5.7GiE-300-J, 5.7GiCE-300-M, 5.7GiE-300-N, 5.7Gi-300-N, 5.7GiCE-300-MF, 5.7GiE-300-P, 5.7GiE-300-R, 5.7GiCE-300-J, 5.7GiCE-300-JF, 5.7GXiE-N, 5.7GXi-N, 5.7GiE-300-K, 5.7GiE-300-KF, 5.7GiE-300-M, 5.7Gi-G, 5.7Gi-GF, 5.7GiCE-300-P, 5.7GiCE-300-R, 4.3OSi-GF, 4.3OSi-J, 4.3OSi-JF, 5.0GiCE-225-S, 5.0GXiCE-JF, 5.0GXiCE-J, 5.0GXiCE-M, 5.0GXiCE-MF, 5.0GXiCE-P, 5.0GXi-J, 5.0GXi-JF, 5.0GXiE-JF, 5.0GXiE-J, 5.0GXiE-K, 5.0GXiE-270-R, 5.0GXiCE-270-R, 5.0GXiE-KF, 5.0GXiE-M, 5.0GXiE-MF, 5.0GXiE-N, 5.0GXi-N, 5.0GXiE-P, 5.0GXi-G, 5.0GXi-GF, 4.3GXiE-225-R, 4.3GXiE-M, 4.3GXiE-P, 4.3GXiE-Q, 4.3GXi-G, 4.3GXi-GF, 4.3GXi-J, 4.3GXi-JF, 4.3OSi-G
• Volvo Penta V8-350-CE-R, V8-380-CE-R, V8-300-CE-M, V8-350-CE-M, V8-300-CE-N, V8-350-CE-N, V8-380-CE-M, V8-270-CE-B, V8-300-E-A, V8-300-E-B, V8-300-CE-A, V8-320-CE-B, V8-300-CE-B, V8-320-E-A, V8-320-E-B, V8-320-CE-A, V8-380-CE-A, V8-380-CE-B, V8-380-CE-D, V8-430-CE-D, V8-350-CE-D, V8-380-CE-J, V8-430-CE-J, V8-350-CE-H, V8-350-CE-J, V8-300-CE-R, V8-430-CE-R, V8-430-CE-M, V8-300-CE-K, V8-350-CE-K, V8-380-CE-K, V8-430-CE-K, V8-300-CE-P, V8-350-CE-P, V8-380-CE-P, V8-300-CE-G, V8-300-CE-H, V8-300-CE-J, V8-350-CE-G, V8-225-CE-A, V8-225-CE-B, V8-270-E-A, V8-270-E-B, V8-270-CE-A, V8-380-CE-N, V8-430-CE-N, V8-430-CE-P, V8-300-CE-S, V8-350-CE-S, V8-400-CE-R
• Volvo Penta D6-330A-F, D6-370A-F, D6-330D-F, D6-370D-F, D6-300A-F, D6-300D-F, D6-300I-F, D6-340I-G, D6-380I-G, D6-440I-G, D6-480I-G, D6-300A-G, D6-340A-G, D6-380A-G, D6-440I-WJ-G, D6-480I-WJ-G, D6-300D-G, D6-340D-G, D6-380D-G, D6-440D-G, D6-480D-G, D6-400A-G, D6-440A-G, D6-300I-G, D6-330I-F, D6-370I-F, D6-435D-F, D6-400A-F, D6-435I-F, D6-480A-G
• Volvo Penta D4-260A-F, D4-260D-F, D4-260I-F, D4-300A-F, D4-300D-F, D4-180I-F, D4-225I-F, D4-300I-F, D4-225A-F, D4-175I-G, D4-230I-G, D4-270I-G, D4-320I-G, D4-300I-G, D4-150A-G, D4-230A-G, D4-270A-G, D4-320A-G, D4-300A-G, D4-145I-G, D4-175 VG
• Volvo Penta V6-200-CE-N, V6-240-CE-M, V6-280-CE-M, V6-280-CE-J, V6-280-CE-G, V6-240-CE-N, V6-240-CE-K, V6-280-CE-K, V6-200-CE-P, V6-250-CE-P, V6-280-CE-P, V6-225-E-A, V6-280-CE-N, V6-250-CE-O, V6-240-CE-G, V6-240-CE-J, V6-250-CE-R, V6-280-CE-R
• Volvo Penta D13C2-B MP, D13C1-A MP, D13C2-A MP, D13C3-A MP, D13C4-A MP, D13B-E MH, D13B-E MH (FE), D13B-N MH, D13B-N MH (FE), D13C4-B MP, D13C5-B MP, D13C6-A MP, D13C1-A MH, D13C2-A MH, D13C5-A MP, D13C7-B MP, D13C8-B MP
• Volvo Penta D3-110I-H, D3-140A-H, D3-170A-H, D3-200A-H, D3-220A-H, D3-150I-H, D3-170I-H, D3-200I-H, D3-220I-H, D3-140I-H
• Volvo Penta D8A2-A MP, D8A5-A MH, D8A6-A MH, D8A5-A MG, D8A6-A MG, D8A4-A MP, D8A1-A MP, D8A3-A MP
• Volvo Penta D11C3-A MP, D11C2-A MP, D11C4-A MP, D11B3-A MP, D11B4-A MP, D11B2-A MP, D11B1-A MP
• Volvo Penta D16C1-E MH, D16C1-F MH, D16C2-E MH, D16C2-F MH
• Volvo Penta D9A2L MH, D9A2M MP
• Volvo Penta VMM-A
