874926 Fuel Gauge | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta fuel tank level instrument, 52 mm, with a white face, weighing 0.098 kg and listed for 310 applications across D, V and VMM series engines. It needs tank sensor 874840 to read, and the front ring is ordered separately. The black-faced version is 874914 — colour is the only thing that separates the pair.

🚤 Compatibility

• Engine Family: D, V, VMM
• HP Range: 13-480 HP

Full model list at the end of this description.

⚙️ Key Features

• White face
• 52 mm instrument
• Sensor 874840 required
• EVC instrument with anti-fogging membrane and full backlighting
• 0.098 kg
• Listed for 310 applications across D, V and VMM series engines
• Black-faced equivalent is 874914
• 52mm (Volvo assembly listing)
• Gauge diameter: Ø 52 mm
• Gauge family: Level and pressure gauges
• Gauge range: EVC gauge range
• 52 mm instrument diameter
• Sensor 874840 is required

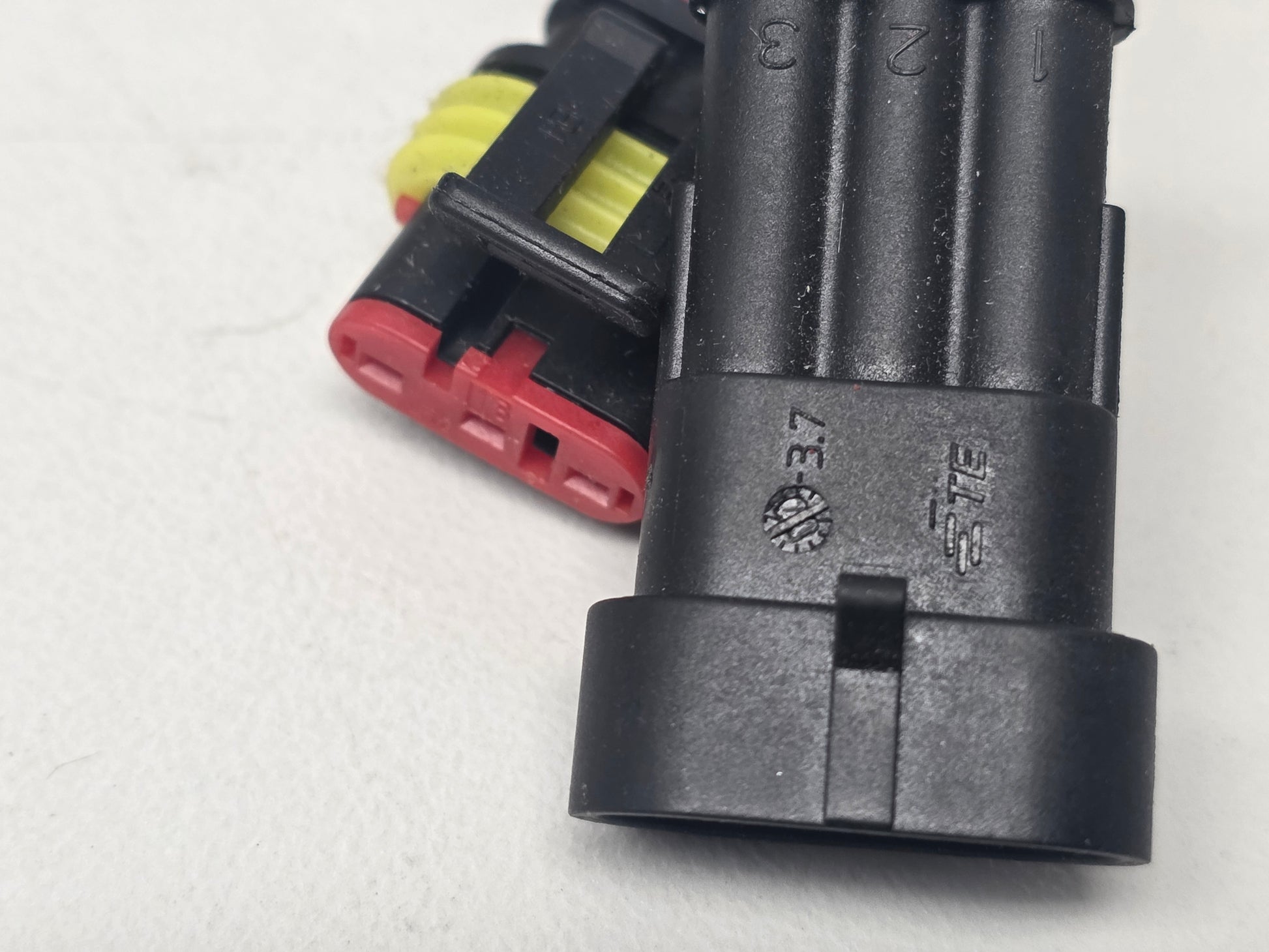

• Plug-and-play serial connection - adding instruments is easy
• Diameter: 52 mm
• Face colour: White
• Sensor required: 874840

🔌 Function

Displays the fuel tank contents at the helm from the tank level sender.

⚠️ Common Signs of Failure

• Needle stuck on empty or on full whatever the tank holds
• Reading swinging heavily as the boat moves
• Gauge that never reaches either end of its travel
• Illumination failed behind a working needle
• Reading that does not match a dipped tank

🛠️ Service Notes

• Sensor 874840 is required with this instrument and is not included
• Check the tank sender float and its earth before condemning the instrument
• Order by face colour to match the panel: black is 874914, and the front ring is ordered separately

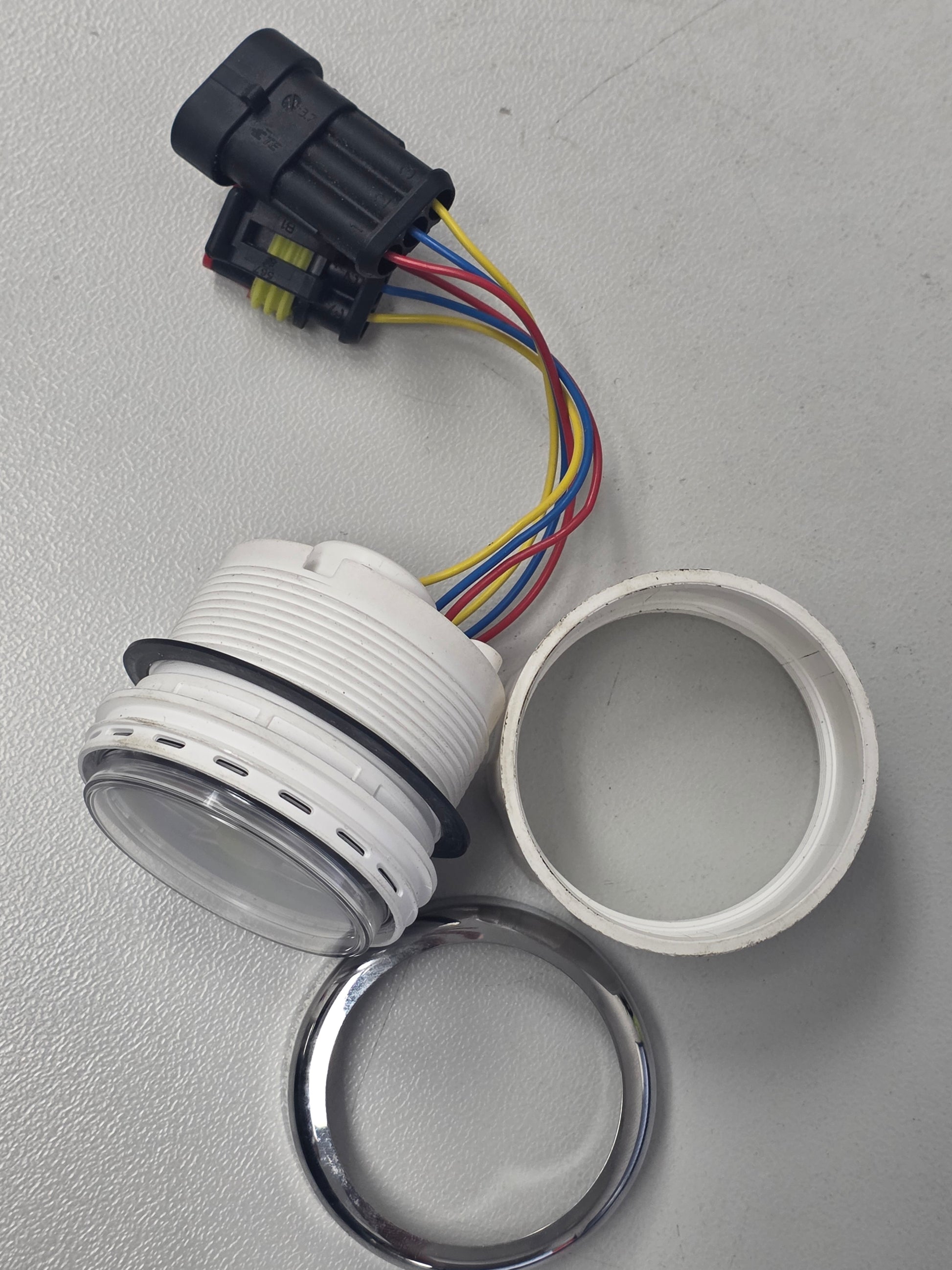

• Front ring and mounting items are not supplied with the instrument and are ordered separately: 52 mm black 874709 or chrome 874733, 85 mm black 874708 or chrome 874732, 110 mm black 3847888 or chrome 3885216 for panels up to 12 mm (15 mm at 110 mm); 881611/881613 in 52 mm and 881612/881614 in 85 mm for panels 12-25 mm; X-rings 874843 in 52 mm and 874844 in 85 mm for flush mounting
• The gauge will not read without tank sensor 874840, which is a separate order
• The other face colour is 874914

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta 8.1GiCE-JF, 8.1GiCE-J, 8.1GiCE-M, 8.1GiCE-P, 8.1GiCE-Q, 8.1GiE-JF, 8.1GiE-J, 8.1GiE-KF, 8.1GiE-K, 8.1GiE-M, 8.1GiE-MF, 8.1GiE-P, 8.1Gi-H, 8.1Gi-HF, 8.1Gi-J, 8.1Gi-JF, 8.1GXiE-JF, 8.1GXiE-J, 8.1GXiE-K, 8.1GXiE-KF, 8.1GXiE-M, 8.1GXiE-P, 8.1GXi-G, 8.1GXi-GF, 8.1GXi-J, 8.1GXi-JF, 8.1IPSCE-JF, 8.1IPSCE-MF, 8.1IPSCE-P, 8.1IPSCE-Q, 8.1IPSE-JF, 8.1OSi-D, 8.1OSi-DF, 8.1OSi-J, 8.1OSi-JF, 8.1OSiE-JF, 8.1OSiE-J, 5.7GXiE-320-R, 5.7GXiCE-320-R, 5.7GXiCE-JF, 5.7GXiCE-J, 5.7GXiCE-M, 5.7GXiCE-P, 5.7GXi-J, 5.7GXi-JF, 5.7GXiE-JF, 5.7GXiE-J, 5.7GXiE-KF, 5.7GXiE-K, 5.7GXiE-M, 5.7GXiE-MF, 5.7GXiE-P, 5.7GXi-H, 5.7GXi-HF, 5.7OSi-300-J, 5.7OSi-300-JF, 5.7OSiE-300-JF, 5.7OSiE-300-J, 5.7OSi-G, 5.7OSi-GF, 5.7OSXi-J, 5.7OSXi-JF, 5.7OSXiE-JF, 5.7OSXiE-J, 5.7OSXi-G, 5.7OSXi-GF, 5.0OSi-J, 5.0OSi-JF, 5.0OSiE-J, 5.0OSiE-JF, 5.0OSi-G, 5.0OSi-GF, 5.7Gi-300-J, 5.7Gi-300-JF, 5.7GiE-300-JF, 5.7GiE-300-J, 5.7GiCE-300-M, 5.7GiE-300-N, 5.7Gi-300-N, 5.7GiCE-300-MF, 5.7GiE-300-P, 5.7GiE-300-R, 5.7GiCE-300-J, 5.7GiCE-300-JF, 5.7GXiE-N, 5.7GXi-N, 5.7GiE-300-K, 5.7GiE-300-KF, 5.7GiE-300-M, 5.7Gi-G, 5.7Gi-GF, 5.7GiCE-300-P, 5.7GiCE-300-R, 4.3OSi-GF, 4.3OSi-J, 4.3OSi-JF, 5.0GiCE-225-S, 5.0GXiCE-JF, 5.0GXiCE-J, 5.0GXiCE-M, 5.0GXiCE-MF, 5.0GXiCE-P, 5.0GXi-J, 5.0GXi-JF, 5.0GXiE-JF, 5.0GXiE-J, 5.0GXiE-K, 5.0GXiE-270-R, 5.0GXiCE-270-R, 5.0GXiE-KF, 5.0GXiE-M, 5.0GXiE-MF, 5.0GXiE-N, 5.0GXi-N, 5.0GXiE-P, 5.0GXi-G, 5.0GXi-GF, 4.3GXiE-225-R, 4.3GXiE-M, 4.3GXiE-P, 4.3GXiE-Q, 4.3GXi-G, 4.3GXi-GF, 4.3GXi-J, 4.3GXi-JF, 4.3OSi-G
• Volvo Penta V8-350-CE-R, V8-380-CE-R, V8-300-CE-M, V8-350-CE-M, V8-300-CE-N, V8-350-CE-N, V8-380-CE-M, V8-270-CE-B, V8-300-E-A, V8-300-E-B, V8-300-CE-A, V8-320-CE-B, V8-300-CE-B, V8-320-E-A, V8-320-E-B, V8-320-CE-A, V8-380-CE-A, V8-380-CE-B, V8-380-CE-D, V8-430-CE-D, V8-350-CE-D, V8-380-CE-J, V8-430-CE-J, V8-350-CE-H, V8-350-CE-J, V8-300-CE-R, V8-430-CE-R, V8-430-CE-M, V8-300-CE-K, V8-350-CE-K, V8-380-CE-K, V8-430-CE-K, V8-300-CE-P, V8-350-CE-P, V8-380-CE-P, V8-300-CE-G, V8-300-CE-H, V8-300-CE-J, V8-350-CE-G, V8-225-CE-A, V8-225-CE-B, V8-270-E-A, V8-270-E-B, V8-270-CE-A, V8-380-CE-N, V8-430-CE-N, V8-430-CE-P, V8-300-CE-S, V8-350-CE-S, V8-400-CE-R
• Volvo Penta D6-330A-F, D6-370A-F, D6-330D-F, D6-370D-F, D6-300A-F, D6-300D-F, D6-300I-F, D6-340I-G, D6-380I-G, D6-440I-G, D6-480I-G, D6-300A-G, D6-340A-G, D6-380A-G, D6-440I-WJ-G, D6-480I-WJ-G, D6-300D-G, D6-340D-G, D6-380D-G, D6-440D-G, D6-480D-G, D6-400A-G, D6-440A-G, D6-300I-G, D6-330I-F, D6-370I-F, D6-435D-F, D6-400A-F, D6-435I-F, D6-480A-G
• Volvo Penta D4-260A-F, D4-260D-F, D4-260I-F, D4-300A-F, D4-300D-F, D4-180I-F, D4-225I-F, D4-300I-F, D4-225A-F, D4-175I-G, D4-230I-G, D4-270I-G, D4-320I-G, D4-300I-G, D4-150A-G, D4-230A-G, D4-270A-G, D4-320A-G, D4-300A-G, D4-145I-G, D4-175 VG
• Volvo Penta V6-200-CE-N, V6-240-CE-M, V6-280-CE-M, V6-280-CE-J, V6-280-CE-G, V6-240-CE-N, V6-240-CE-K, V6-280-CE-K, V6-200-CE-P, V6-250-CE-P, V6-280-CE-P, V6-225-E-A, V6-280-CE-N, V6-250-CE-O, V6-240-CE-G, V6-240-CE-J, V6-250-CE-R, V6-280-CE-R
• Volvo Penta D13C2-B MP, D13C1-A MP, D13C2-A MP, D13C3-A MP, D13C4-A MP, D13B-E MH, D13B-E MH (FE), D13B-N MH, D13B-N MH (FE), D13C4-B MP, D13C5-B MP, D13C6-A MP, D13C1-A MH, D13C2-A MH, D13C5-A MP, D13C7-B MP, D13C8-B MP
• Volvo Penta D2-40B, D2-40F, D2-55D, D2-55E, D2-55F, D2-50F, D2-75B, D2-75C, D2-75F, D2-60F
• Volvo Penta D3-110I-H, D3-140A-H, D3-170A-H, D3-200A-H, D3-220A-H, D3-150I-H, D3-170I-H, D3-200I-H, D3-220I-H, D3-140I-H
• Volvo Penta D8A2-A MP, D8A5-A MH, D8A6-A MH, D8A5-A MG, D8A6-A MG, D8A4-A MP, D8A1-A MP, D8A3-A MP
• Volvo Penta D11C3-A MP, D11C2-A MP, D11C4-A MP, D11B3-A MP, D11B4-A MP, D11B2-A MP, D11B1-A MP
• Volvo Penta D1-30B, D1-30F, D1-13B, D1-13F, D1-20B, D1-20F
• Volvo Penta D16C1-E MH, D16C1-F MH, D16C2-E MH, D16C2-F MH
• Volvo Penta D9A2L MH, D9A2M MP
• Volvo Penta VMM-A
