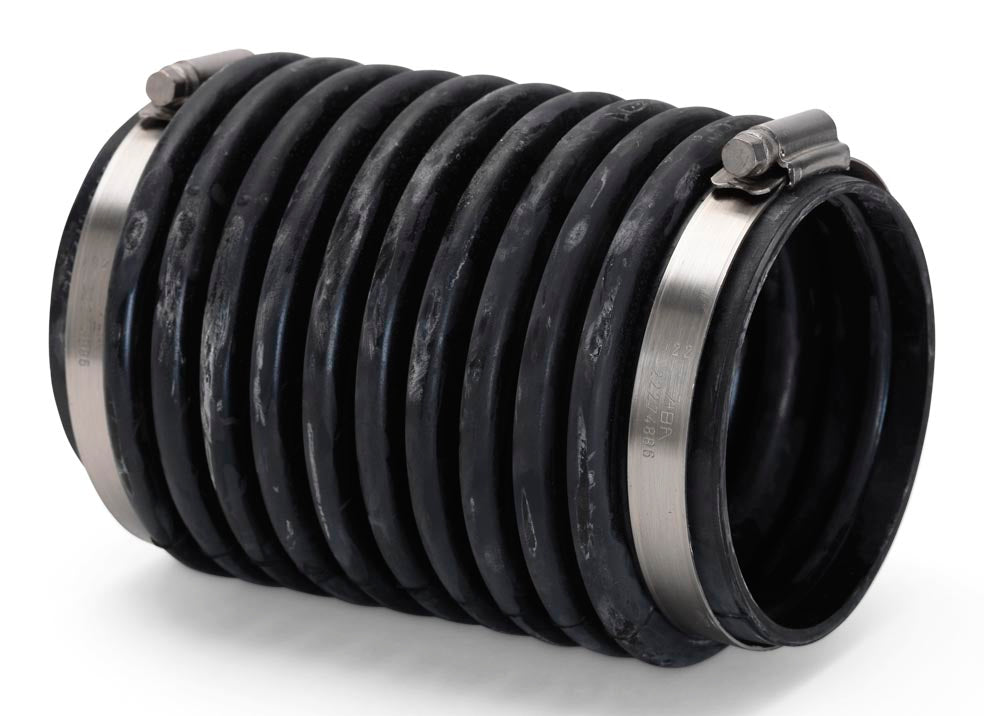

876631 Bellows Kit | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta exhaust bellows kit weighing 0.635 kg and listed for 45 applications across the TSK, TMD, AD, DP, SP and DPX series. The accessories catalogue prints it as the exhaust bellows kit for the 270, the 280DP, the 290 and SP A-E and the 290DP and DP A-E drives, and for the DPX-S, DPX-S1 and DPX-R; the 280 takes exhaust bellows 876633 and the DPX-A takes 3860384. It supersedes part number 875848, which was catalogued earlier as an exhaust bellows.

🚤 Compatibility

• Engine Family: TSK, TMD, AD, DP, SP, DPX, S, TAMD, KAD, KAMD

Full model list at the end of this description.

⚙️ Key Features

• Exhaust bellows kit for the 270, 280DP, 290, SP A-E, 290DP and DP A-E drives and the DPX-S, S1 and R
• The 280 drive takes 876633 and the DPX-A takes 3860384
• 0.635 kg
• Supersedes 875848
• 45 applications across six series
• Genuine Volvo Penta Part, designed and manufactured to ensure original fit, safety and performance
• Role: Exhaust bellows kit
• Fits: 270 drive; 280DP drive; 290, SP A-E drives; 290DP, DP A-E drives; DPX drives (DPX-S/S1/R)
• Also supersedes Volvo part number 897631

🔌 Function

Carries exhaust gas across the flexible joint between the transom and the drive, letting the drive move while keeping gas and water out of the boat.

⚠️ Common Signs of Failure

• Cracks in the rubber, especially in the folds, visible when the drive is turned lock to lock
• Water in the bilge that rises when the boat is under way
• Exhaust smell or fumes at the transom
• Rubber gone hard, chalky or perished with age
• Clamps found rusted, loose or bedded into the rubber

🛠️ Service Notes

• Check the drive variant before ordering - the 280 and the DPX-A take different exhaust bellows
• A failed transom bellows lets water into the boat, so renew on condition or at the interval in your manual rather than waiting for a leak
• Renew hose kit 876632 or 875822 and the drive joint bellows 876294 at the same haul-out, and check the drive alignment afterwards
• Always refer to the operator's manual for the recommended maintenance and service intervals for your engine and drive
• Listed against more than one engine or drive family - check the qualifier that applies to your own engine or drive

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 876631 → Supersedes 875848 → Supersedes 852871

OEM / Related Numbers

• 875848 earlier number superseded by this part
• 875830 earlier number superseded by this part
• 875831 earlier number superseded by this part
• 852871 earlier number superseded by this part

Aftermarket / Verified Equivalents

• HJumbo: HJB-8572

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta 740B, 5.8FiPNCMCE, 5.8FiPNCBCE, 5.8FLPMDA, 5.8FLPHUR, 5.8FLPNCM, 5.8FLPNCB, 5.8FSiPHURCE, 501B, 570A, 572A, 5.8FiPHURCE, 432A, 434A, 5.0FiPNCBCE, 5.0FLPHUR, 5.0FLPMDA, 5.0FLPNCB, 5.0FiPHURCE, 5.0FiPMDA, 500B
• Volvo Penta AD31D, AD31D-A, AD31XD
• Volvo Penta DP-C1, DP-D1, DP-E
• Volvo Penta DPX-R, DPX-S, DPX-S1
• Volvo Penta TSK DP-E, TSK DP-S, TSK DPX-C
• Volvo Penta Shield, Shield for DPX
• Volvo Penta SP-E, SP-C1
• Volvo Penta TAMD31M, TAMD31D
• Volvo Penta KAD32P
• Volvo Penta KAD42B
• Volvo Penta KAMD42B
• Volvo Penta TAMD41P
• Volvo Penta TAMD42B
• Volvo Penta TMD31D
