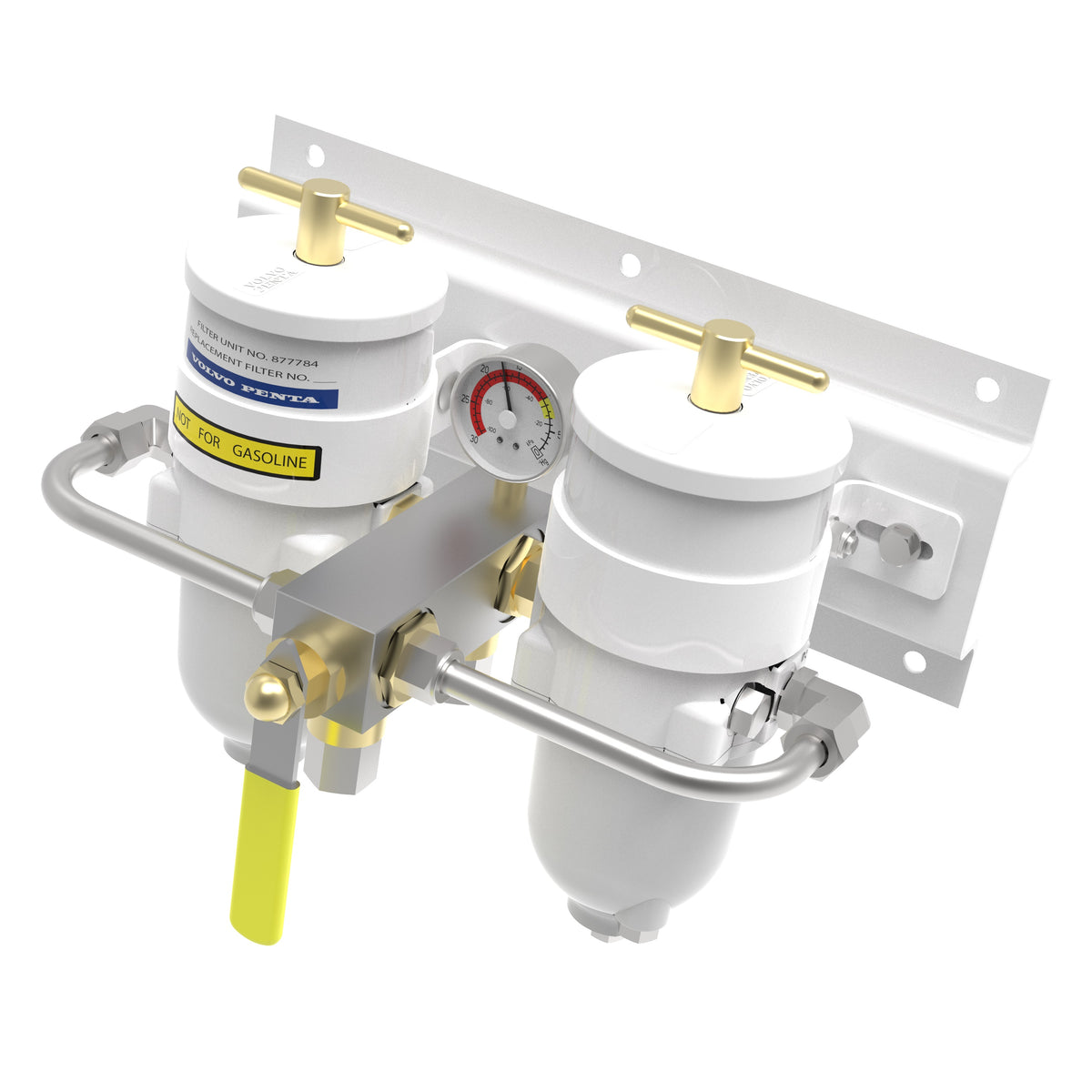

877764 Fuel Filter | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta double fuel filter and water separator for diesel engines, from the Fuel System group, weighing 8.466 kg and listed for 137 applications across the D series. Maximum flow is 454 litres per hour, the degree of separation is 10 micron and the initial pressure drop at maximum flow with a 10 micron element is 4.83 kPa. The fuel port connection is 3/4 inch 16 UNF. Volvo Penta names 861014, the 10 micron element in this run, as the recommended element, and lists the unit as one of the separators the EVC water in fuel sensor kit 21641493 fits. It complies with the applicable parts of Recreational Craft Directive 2013/53/EU harmonised standard EN ISO 10088 and with Classification Society requirements for fuel systems for propulsion engines.

🚤 Compatibility

• Engine Family: D
• HP Range: 110-480 HP

Full model list at the end of this description.

⚙️ Key Features

• Double filter and water separator for diesel engines
• Maximum flow 454 litres per hour
• Degree of separation 10 micron
• Initial pressure drop at maximum flow with a 10 micron element, 4.83 kPa
• Fuel port connection 3/4 inch 16 UNF
• Recommended element 861014
• Takes the EVC water in fuel sensor kit 21641493
• Complies with the applicable parts of RCD 2013/53/EU harmonised standard EN ISO 10088 and with Classification Society requirements
• 8.466 kg
• Listed for 137 applications across D series engines
• Double filter arrangement
• 3/4 inch 16 UNF fuel port connection
• Complies with applicable parts of RCD 2013/53/EU harmonised standard EN ISO 10088, and with Classification Society requirements for fuel systems for propulsion engines.
• Degree of separation: 10 micron
• Fuel port connection: 3/4"-16 UNF
• Max flow: 454 l/hour
• Weight: 7.7 kg
• Fits: Diesel engines

🔌 Function

Filters the fuel and drops out any water it is carrying before it reaches the injection equipment, with two filter units in the one assembly.

⚠️ Common Signs of Failure

• Power loss and surging under load as the elements block
• Hard starting or the engine stalling at higher revs
• Water visible in the separator bowl
• Fuel weeping from the filter head or bowl seals
• Air drawn into the fuel line at a leaking joint

🛠️ Service Notes

• The recommended element is the 10 micron 861014 in this run, and the 30 micron 3581760 and 2 micron 1147147 fit the same housing
• Check the fuel port thread is 3/4 inch 16 UNF against your pipework before ordering fittings
• Fuel leaks are a fire risk - check every joint for weeping with the system primed before the engine goes back into service
• Recommended replaceable filter element is 861014

🔄 Supersession & Cross Reference

Aftermarket / Verified Equivalents

• Parker Racor: 75/500MAM

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-370A-C, D6-330A-D, D6-330D-E, D6-370D-E, D6-330A-F, D6-370A-F, D6-330D-C, D6-330A-C, D6-370D-C, D6-330D-D, D6-370D-D, D6-330D-F, D6-370A-D, D6-330A-E, D6-370A-E, D6-370D-F, D6-330I-D, D6-280I-D, D6-310I-D, D6-435I-D, D6-280I-E, D6-310I-E, D6-300A-F, D6-300D-F, D6-300I-F, D6-310D-D, D6-310D-C, D6-310D-E, D6-330I-C, D6-370I-C, D6-280A-C, D6-310A-C, D6-280A-D, D6-310A-D, D6-280A-E, D6-310A-E, D6-280I-C, D6-310I-C, D6-340I-G, D6-380I-G, D6-440I-G, D6-480I-G, D6-300A-G, D6-340A-G, D6-380A-G, D6-440I-WJ-G, D6-480I-WJ-G, D6-300D-G, D6-340D-G, D6-380D-G, D6-440D-G, D6-480D-G, D6-400A-G, D6-440A-G, D6-300I-G, D6-330I-F, D6-370I-F, D6-400A-E, D6-435D-D, D6-435D-E, D6-435D-F, D6-435I-C, D6-435I-E, D6-400A-F, D6-435D-C, D6-435I-F, D6-370I-D, D6-330I-E, D6-370I-E
• Volvo Penta D4-260A-C, D4-260A-D, D4-260A-E, D4-260A-F, D4-260D-C, D4-260D-D, D4-260D-E, D4-260D-F, D4-260I-C, D4-260I-D, D4-260I-E, D4-260I-F, D4-300A-C, D4-300A-D, D4-300A-E, D4-300A-F, D4-300D-C, D4-300D-D, D4-300D-E, D4-300D-F, D4-180I-C, D4-225I-C, D4-180I-D, D4-225I-D, D4-180I-E, D4-225I-E, D4-180I-F, D4-225I-F, D4-225A-C, D4-225A-D, D4-300I-C, D4-300I-D, D4-300I-E, D4-300I-F, D4-225A-E, D4-225A-F, D4-175I-G, D4-230I-G, D4-270I-G, D4-320I-G, D4-300I-G, D4-150A-G, D4-230A-G, D4-270A-G, D4-320A-G, D4-300A-G, D4-145I-G, D4-175 VG
• Volvo Penta D3-220I-G, D3-140A-G, D3-170A-G, D3-200A-G, D3-220A-G, D3-140I-G, D3-110I-G, D3-150I-G, D3-170I-G, D3-200I-G, D3-110I-H, D3-140A-H, D3-170A-H, D3-200A-H, D3-220A-H, D3-150I-H, D3-170I-H, D3-200I-H, D3-220I-H, D3-140I-H
