🔧 Product Description

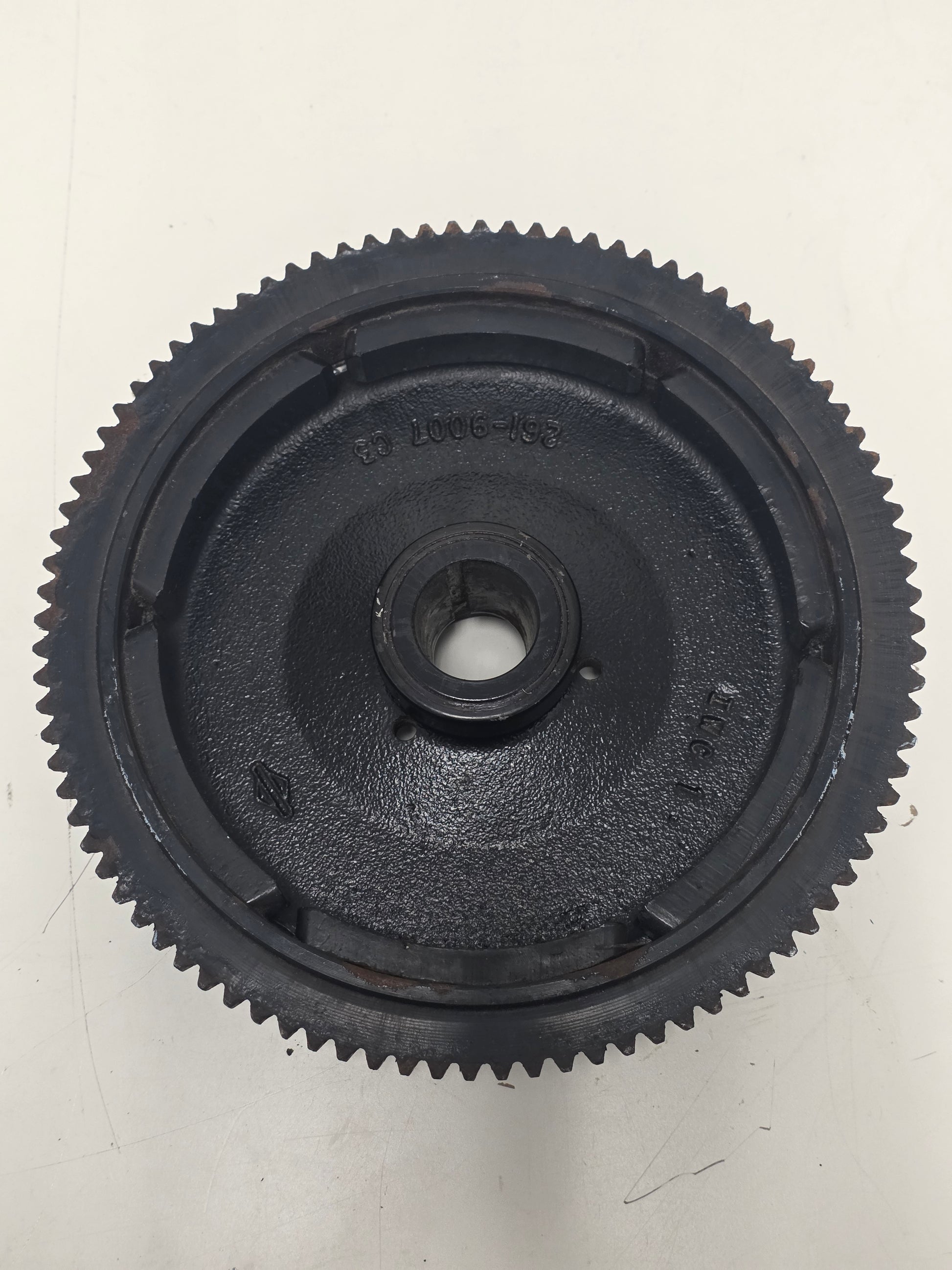

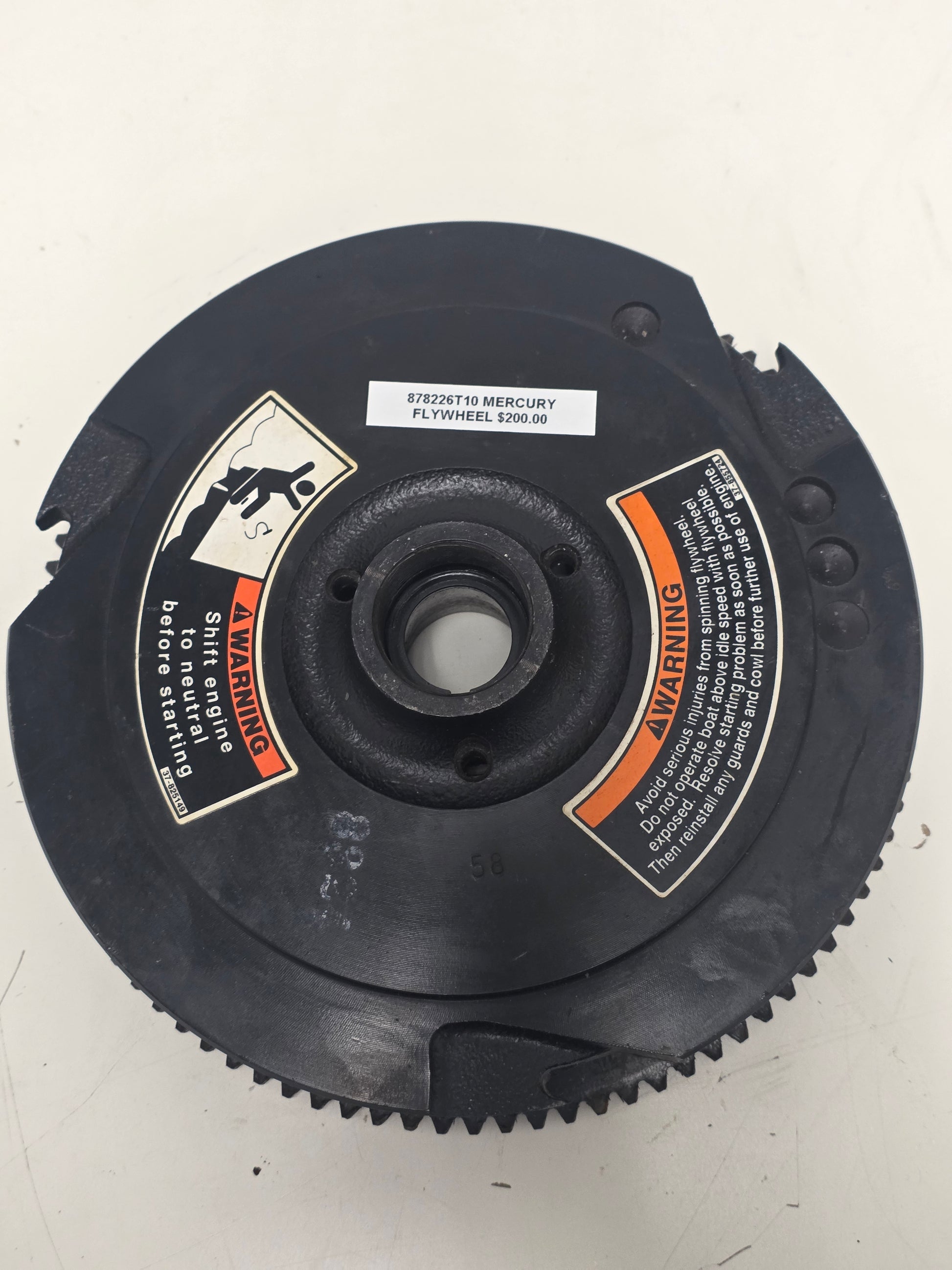

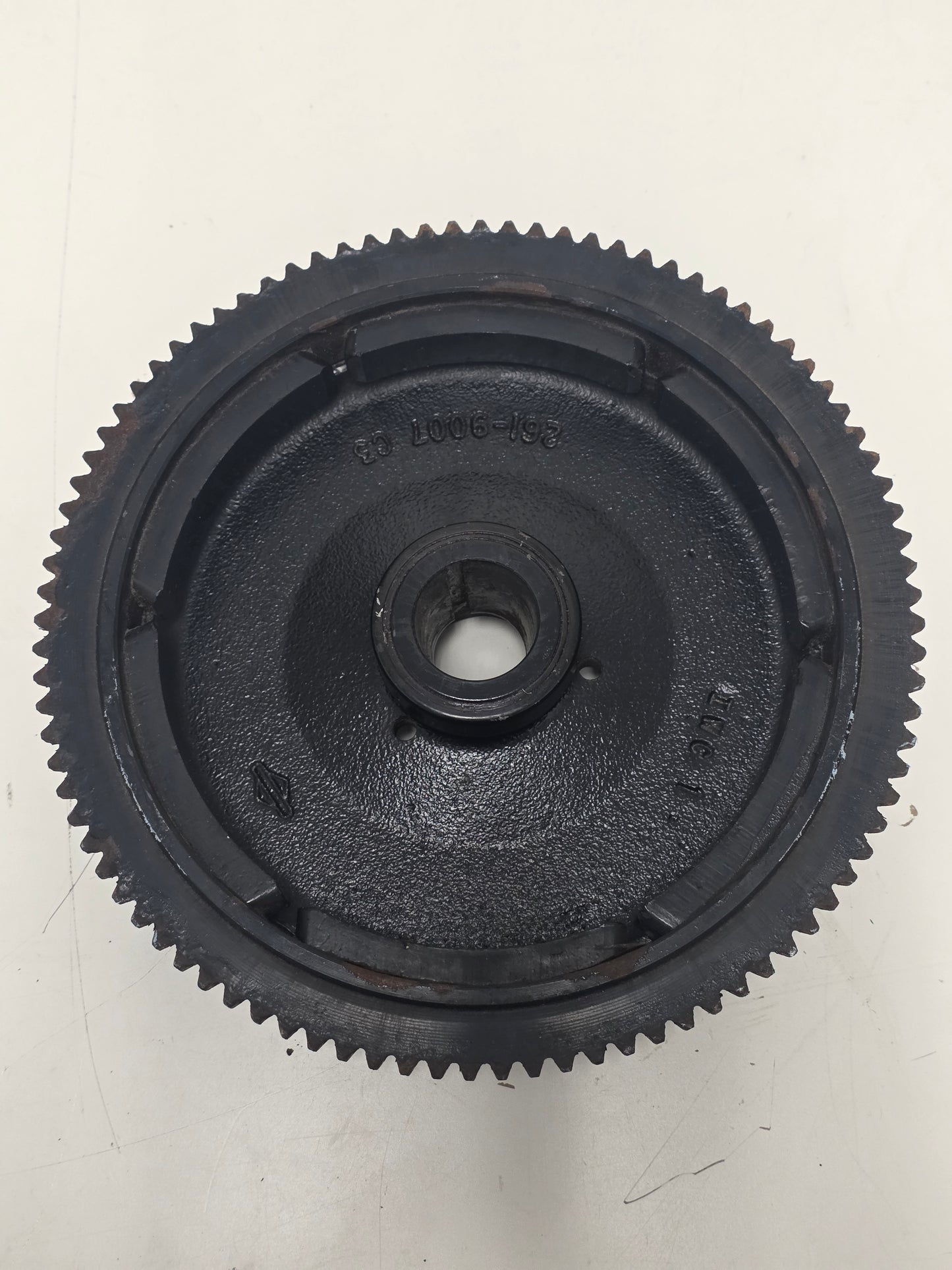

Genuine Mercury / Mariner 92-Tooth Magnetic Flywheel - Part Number: 878226T10

A genuine used magnetic flywheel for selected Mercury and Mariner 65 Jet, 75HP and 90HP three-cylinder two-stroke outboards with electric start and oil injection.

The flywheel features a 92-tooth starter ring and carries permanent magnets that generate ignition and charging current through the stator. Mercury 878226T10 replaces earlier flywheels 859234T12 and 9008A58.

⚙️ Key Features

• Genuine Mercury / Mariner magnetic flywheel

• Correct Mercury reference 878226T10

• 92-tooth starter ring gear

• Designed for electric-start, oil-injected engines

• Suits selected 65 Jet, 75HP and 90HP three-cylinder outboards

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 261-878226T10 → Supersedes 261-859234T12

• 261-859234T12 → Supersedes 261-9008A58

• 261-9008A58 earlier Mercury flywheel assembly

OEM / Related Numbers:

• 878226T10

• 261-878226T10

• 859234T12

• 261-859234T12

• 9008A58

• 261-9008A58

• Casting: 261-9007-C3

• Stator assembly according to engine serial range

• Trigger assembly according to engine serial range

Aftermarket / Verified Equivalents:

• No aftermarket equivalent

🚤 Compatibility

Commonly used on:

• Mercury and Mariner 65 Jet outboards

• Mercury and Mariner 75HP three-cylinder outboards

• Mercury and Mariner 90HP three-cylinder outboards

• Electric-start engines with factory oil injection

Typically suits:

• Engine models:

• Mercury 65 Jet three-cylinder two-stroke

• Mariner 65 Jet three-cylinder two-stroke

• Mercury 75HP three-cylinder two-stroke

• Mariner 75HP three-cylinder two-stroke

• Mercury 90HP three-cylinder two-stroke

• Mariner 90HP three-cylinder two-stroke

• USA and Belgium production engines whose flywheel diagram specifies 878226T10

• Electric-start and oil-injected configurations only

• HP Range: 65 Jet / 75HP - 90HP

• Engine Type: Three-cylinder carburetted, oil-injected two-stroke outboard

• Year Range: Approximately 1994 - 2006

🔌 Function

The flywheel provides starter engagement, rotating inertia and magnetic energy for the stator and ignition-trigger assemblies.

Common signs of failure:

• Starter teeth are worn or missing

• Magnets are cracked, loose or detached

• Battery charging output is low

• Ignition spark becomes intermittent

• Flywheel contacts the stator

• Crankshaft key or taper is damaged

• Excessive vibration or runout

• Rust or corrosion forms around the magnetic ring

📦 Condition

• Genuine used part

• Removed from running engine where applicable

• In good working condition unless otherwise stated
