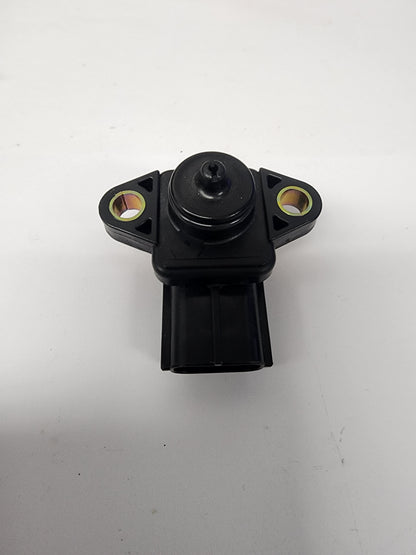

880885T Mercury Pressure Sensor | Genuine Used Part

🔧 Product Description

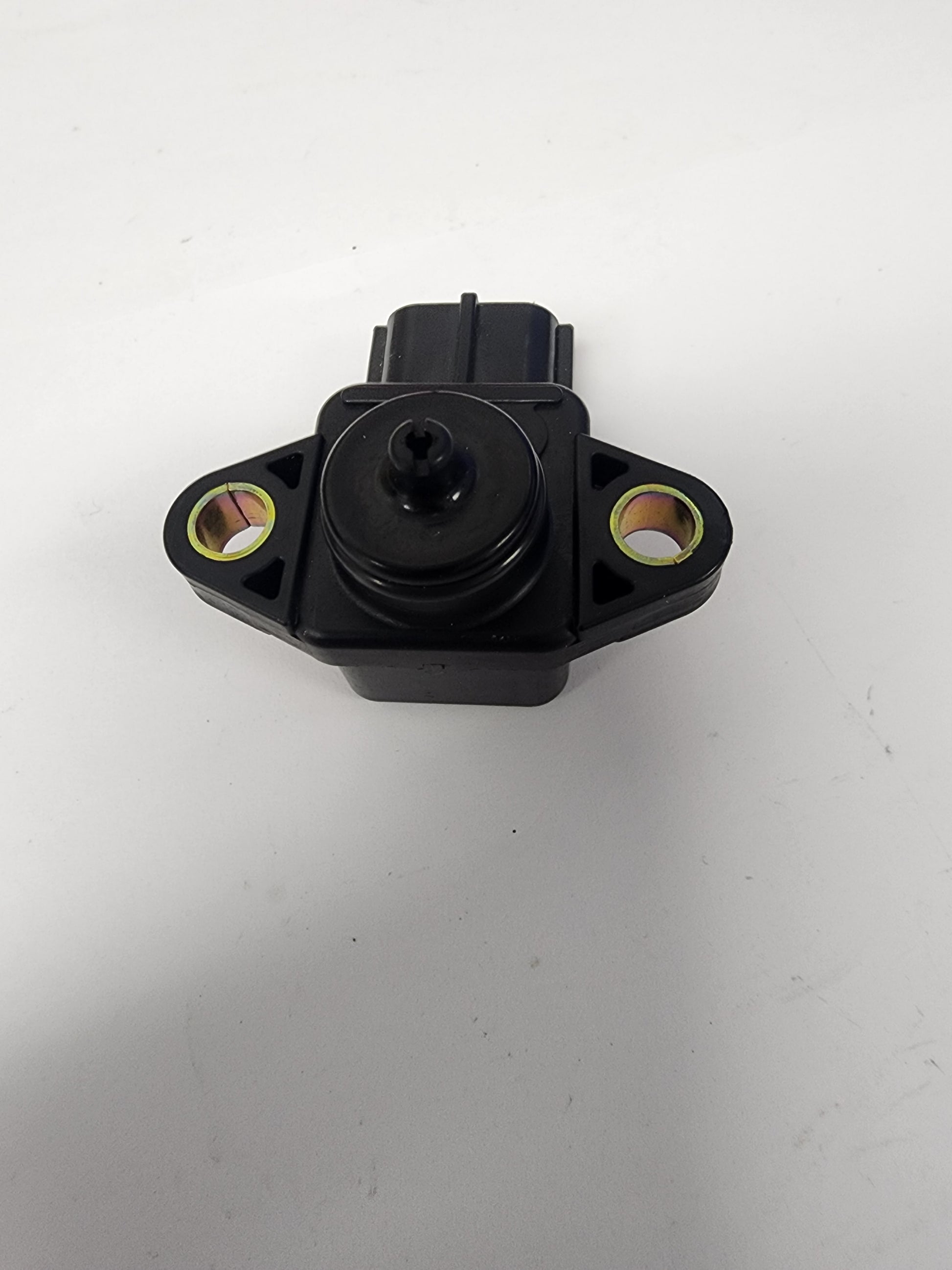

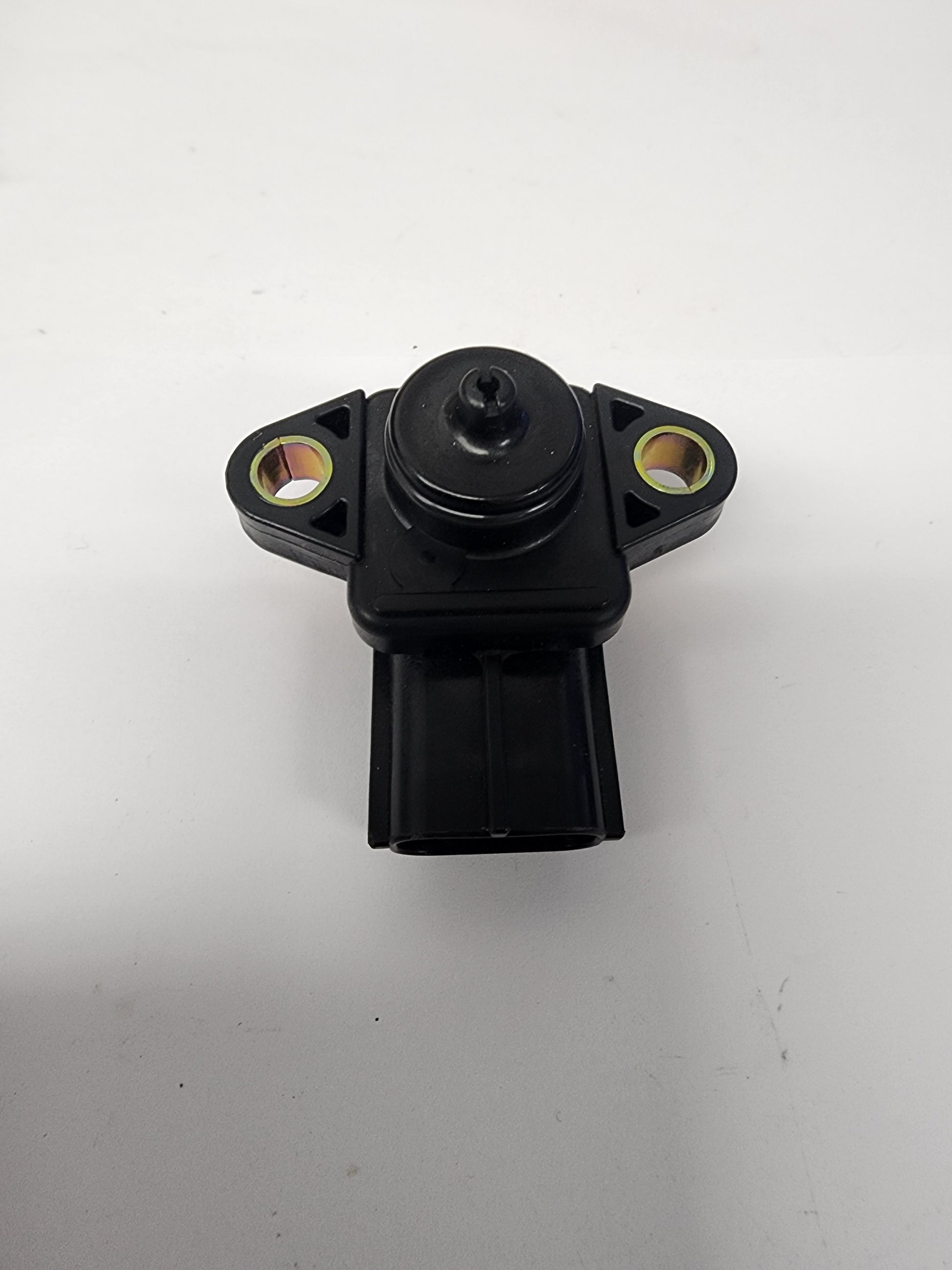

Genuine Mercury Manifold Absolute Pressure Sensor - Part Number: 880885T

A genuine Mercury MAP sensor for selected Yamaha-manufactured Mercury 115HP and 225HP EFI four-stroke outboards.

The sensor measures absolute pressure within the intake manifold and sends the resulting electrical signal to the engine control module. The ECM uses this information to calculate engine load and adjust fuel delivery and ignition timing.

⚙️ Key Features

• Genuine Mercury electronic pressure sensor
• Correct part number 880885T
• Intake-manifold absolute pressure measurement
• Used on Yamaha-platform Mercury four-stroke engines
• Direct Yamaha, WSM and Recmar cross-reference options

🚤 Compatibility

Commonly used on

• Yamaha-manufactured Mercury EFI four-stroke outboards
• Intake-manifold and electronic fuel-injection systems

Typically suits

• Engine models:
• Mercury 115HP EFI four-stroke
• Mercury 225HP EFI four-stroke
• Mercury 115 EFI serial 0T178500-0T801000
• Mercury 115 EFI serial 1B226999-1B366822
• Mercury 225 EFI serial 0T653945 and above
• Matching Yamaha F115, LF115, F200, LF200, F225 and LF225 applications using 68V-82380-00-00
• HP Range: 115HP - 225HP
• Engine Type: Mercury inline-four or V6 EFI four-stroke outboard
• Year Range: Approximately 2000-2011, dependent on engine model and serial number

🔌 Function

The MAP sensor converts intake-manifold pressure into an electrical voltage. The ECM compares the signal with engine speed, throttle position and temperature inputs to determine the correct fuel-injection duration and ignition timing.

⚠️ Common Signs of Failure

• Hard starting or extended cranking
• Rough, unstable or excessively high idle
• Hesitation or reduced acceleration
• Engine runs excessively rich or lean
• Engine warning, stored fault code or reduced-power mode

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 880885T original Mercury MAP sensor reference
• Mercury OEM sensor is discontinued in some catalogues

OEM / Related Numbers

• 880885T

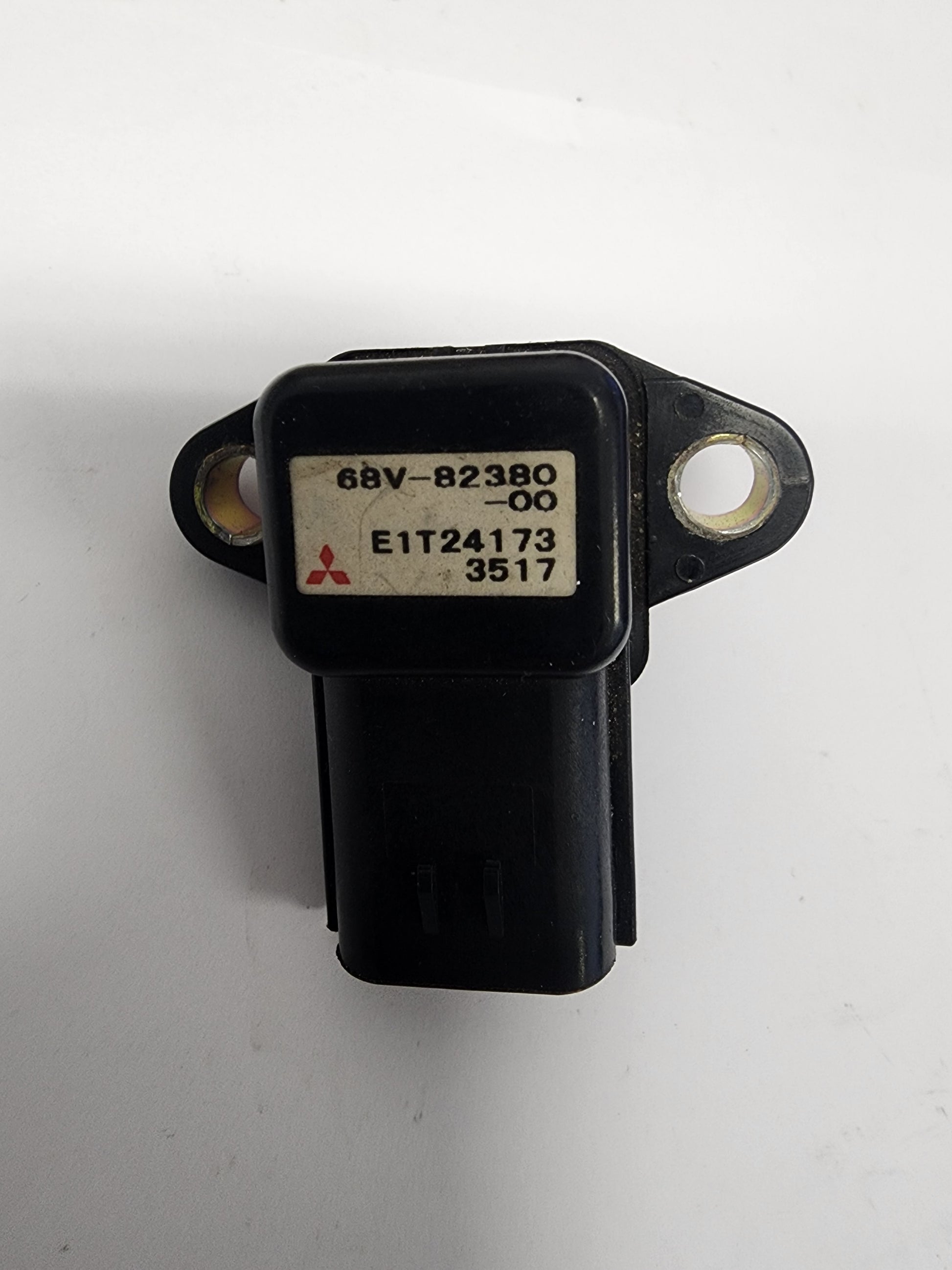

• Yamaha 68V-82380-00-00
• Yamaha 68V-82380-00
• 68V823800000

Aftermarket / Verified Equivalents

• WSM: 778-223
• Recmar: REC68V-82380-00
• FridayParts: K22010016WIN
• Aftermarket 68V-82380-00 / 880885T MAP sensor

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
