881310T08 Mercury Cylinder Head & Components | Genuine Used Part

881310T08 Mercury Cylinder Head & Components | Genuine Used Part

🔥 50% off all Used Parts - Limited Time 🔥

$750.00 AUD
$1,500.00 AUD $750.00 AUD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

✓ Authorised Volvo Penta Dealer · Genuine used marine parts · Ships Australia-wide

🔧 Product Description

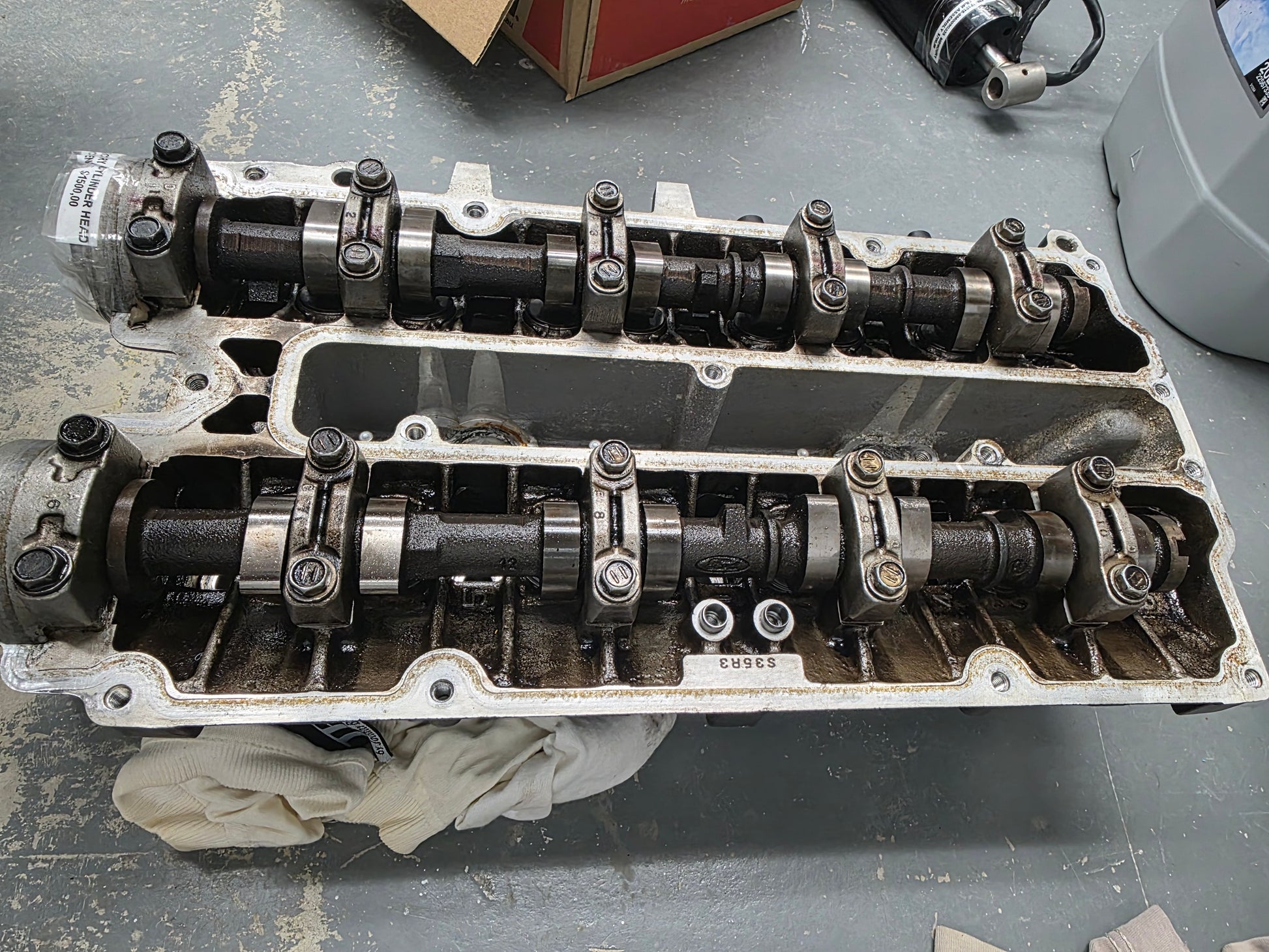

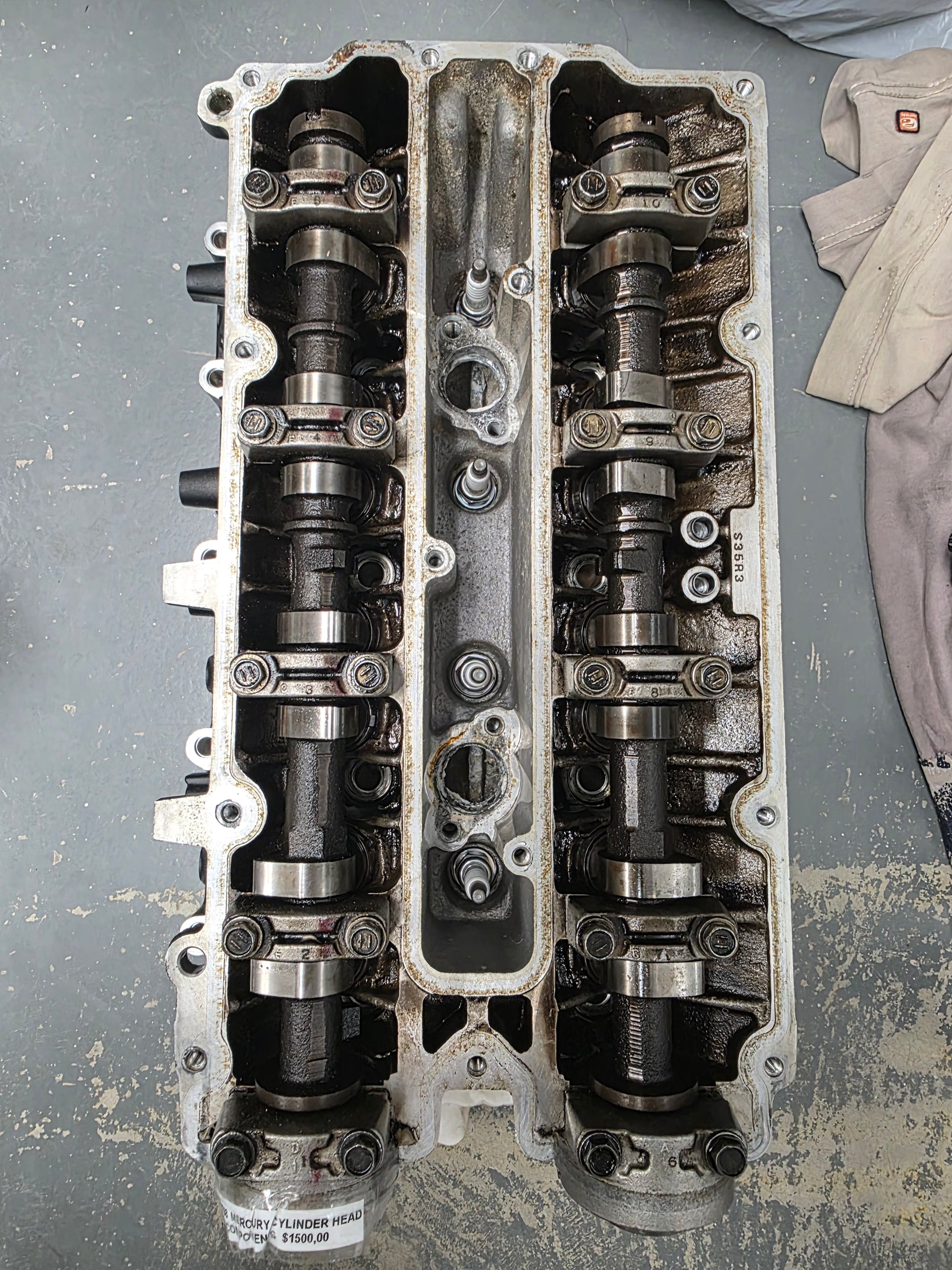

Genuine Mercury 115HP EFI Four-Stroke Cylinder Head Assembly - Part Number: 881310T08

A genuine used Mercury Marine cylinder-head assembly for selected 115HP EFI four-stroke outboard motors using the Yamaha-derived inline four-cylinder powerhead.

The head contains the combustion chambers, intake and exhaust ports, valve guides, camshaft supports, spark-plug locations and internal lubrication and cooling passages.

⚙️ Key Features

  • Genuine used Mercury 115HP EFI cylinder head
  • Current reference 881310T08
  • Supersedes earlier cylinder head 881310T2
  • Yamaha-derived inline four-cylinder four-stroke design
  • Supplied with the fitted components shown or stated in the product listing

🚤 Compatibility

Commonly used on

  • Mercury and Mariner 115HP EFI four-stroke powerheads
  • Yamaha-derived 1.7-litre inline four-cylinder engines

Typically suits

  • Engine models:
  • Mercury 115 EFI four-stroke - serial 0T178500 through 0T800999
  • Mercury 115 EFI four-stroke - serial 0T801000 through 1B226999
  • Mercury 115 EFI four-stroke - serial 1B227000 through 1B366822
  • Mariner 115 EFI four-stroke equivalent models
  • 2001 Mercury / Mariner 115 EFI ELPT four-stroke
  • HP Range: 115HP
  • Engine Type: Mercury / Mariner inline four-cylinder EFI four-stroke outboard
  • Year Range: Approximately 2001-2006

🔌 Function

The cylinder head controls airflow into and exhaust flow out of the cylinders while sealing the combustion chambers and supporting the camshafts and valve train.

⚠️ Common Signs of Failure

  • Low compression on one or more cylinders
  • Burned or leaking valves
  • Head is warped after overheating
  • Camshaft journals are scored
  • Cooling water enters a combustion chamber
  • Oil and coolant passages leak
  • Spark-plug threads are damaged
  • Valve guides or seats require repair
  • Cylinder-head gasket repeatedly fails

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 881310T08 → Supersedes 881310T2
  • 881310T2 earlier OEM cylinder-head reference

OEM / Related Numbers

  • 881310T08
  • 881310T8
  • 881310T2
  • 17-804110 valve-guide / locating component
  • 23-8M0070515 cylinder-head dowel pin
  • 27-804123001 cylinder-head cover gasket
  • 881312 related cylinder-head cover
  • 804115 related valve component
  • 804117 related valve spring
  • 804118 related valve retainer
  • 804119 related valve cotter

Aftermarket / Verified Equivalents

  • Aftermarket top-end gasket sets for Yamaha-derived Mercury 115HP four-stroke engines
  • No aftermarket equivalent for the complete cylinder-head casting

📦 Condition

  • Genuine used part
  • Supplied with components shown or specifically stated
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
