881350T Mercury Relay | Genuine Used Part
881350T Mercury Relay | Genuine Used Part
Low stock: 1 left
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Genuine used marine parts · Ships Australia-wide
🔧 Product Description

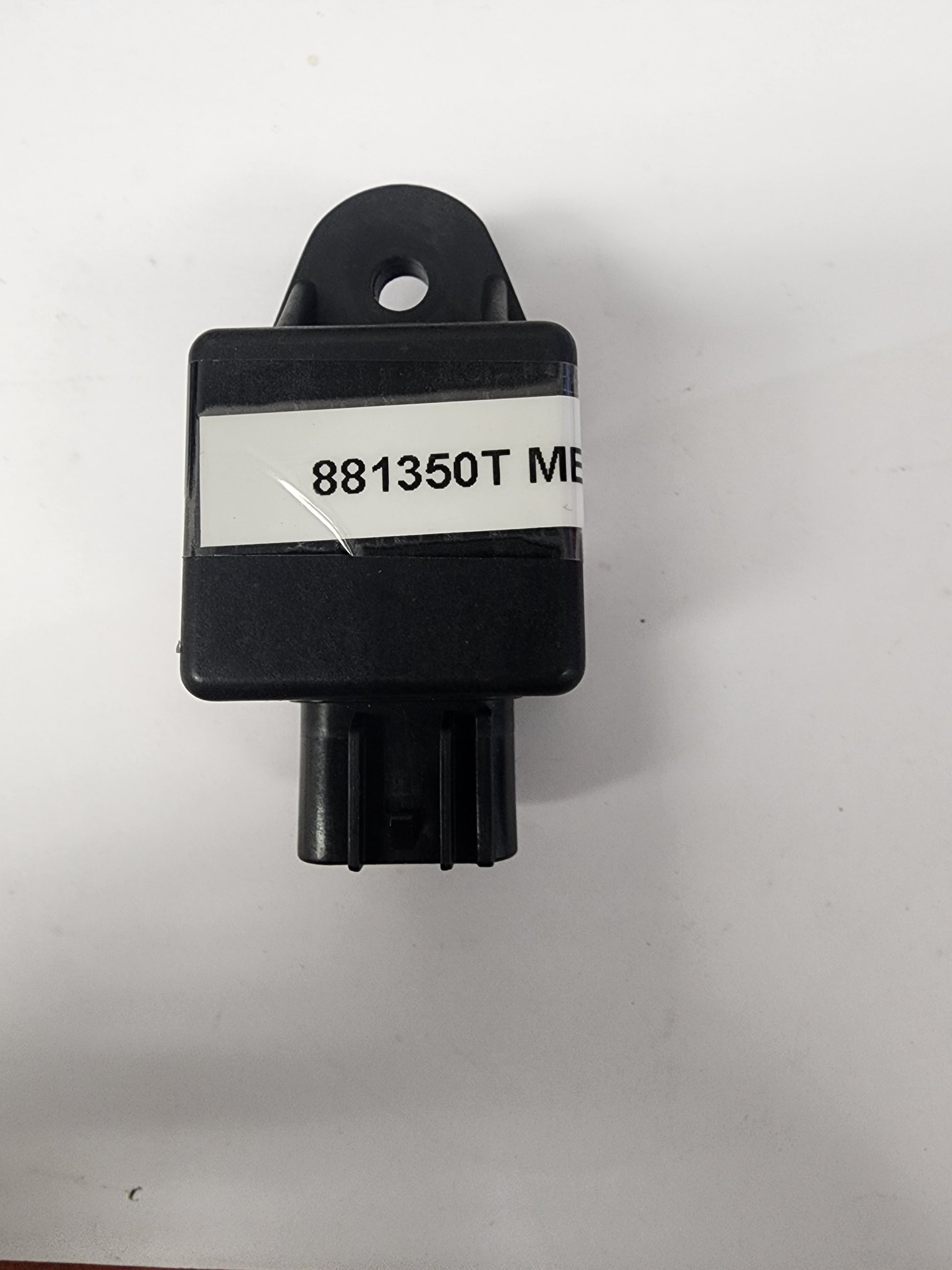

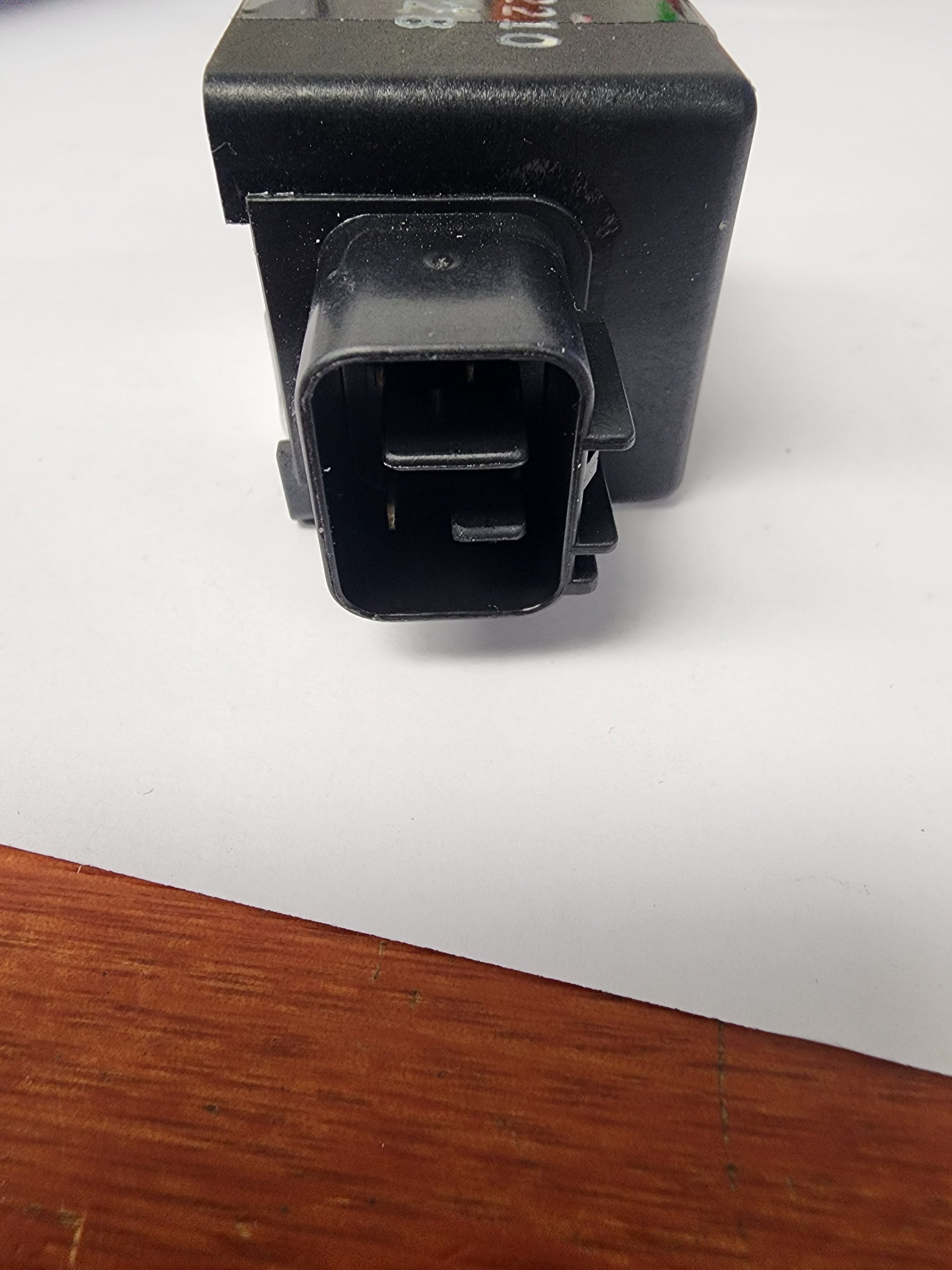

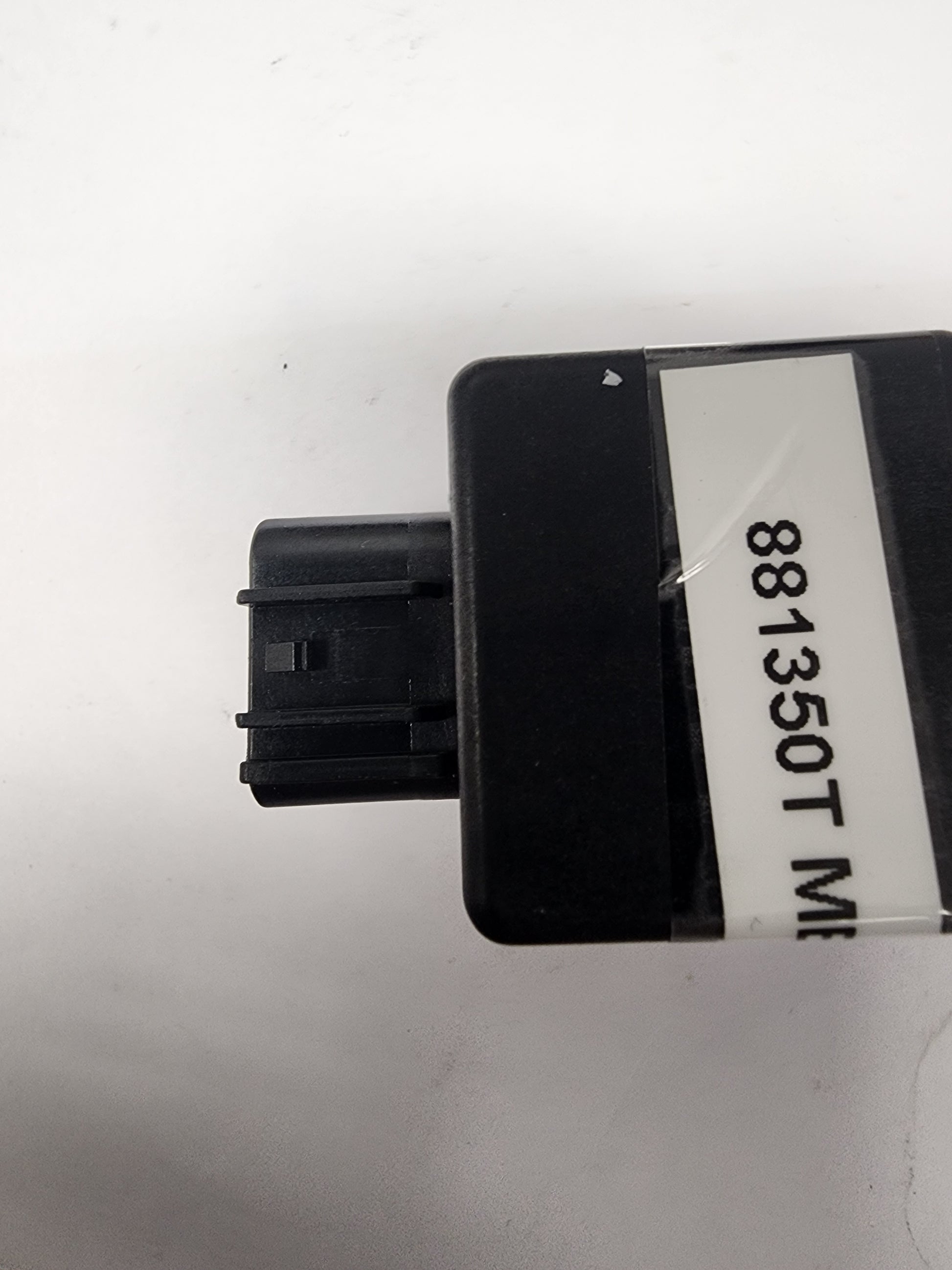

Genuine Mercury / Yamaha Relay Assembly - Part Number: 881350T
A genuine Mercury relay assembly used in selected Yamaha-built Mercury and Mariner four-stroke outboard electrical systems. This relay cross-references with Yamaha 68V-81950-00-00 and is used in Mercury 115 EFI and 225 EFI applications.
⚙️ Key Features
- Genuine Mercury relay assembly
- Correct Mercury part number 881350T
- Cross-references with Yamaha 68V-81950-00-00
- Used on Mercury 115 EFI and 225 EFI four-stroke applications
- Must be matched by engine serial number and electrical-diagram location
🚤 Compatibility
Commonly used on
- Mercury / Mariner Yamaha-built four-stroke electrical systems
- Yamaha EFI four-stroke and HPDI relay circuits using 68V-81950-00-00
Typically suits
- Engine models:
- Mercury 115 EFI FourStroke - serial 0T178500 to 0T800999
- Mercury 115 EFI FourStroke - serial 0T801000 to 1B226999
- Mercury 115 EFI FourStroke - serial 1B227000 to 1B366822
- Mariner 115 EFI FourStroke - serial 0T178500 to 0T800999
- Mariner 115 EFI FourStroke - serial 0T801000 to 1B226999
- Mariner 115 EFI FourStroke - serial 1B227000 to 1B366822
- Mercury 225 EFI FourStroke - serial 0T653945 and up
- Yamaha F115
- Yamaha LF115
- Yamaha Z150 HPDI
- Yamaha Z200 HPDI
- Yamaha Z225 HPDI
- Yamaha Z250 HPDI
- Yamaha F225
- Yamaha F425
- HP Range: Mercury 115HP and 225HP confirmed; Yamaha shared relay use commonly 115HP - 425HP where specified
- Engine Type: Mercury / Mariner / Yamaha EFI four-stroke and HPDI electrical systems
- Year Range: Approximately 2000 - 2019 depending on engine family
- Serial Range: Mercury 115 EFI serial 0T178500 to 1B366822; Mercury 225 EFI serial 0T653945 and up
🔌 Function
The relay switches electrical power to the assigned engine circuit when commanded by the control system. Depending on application, it may serve main power, EFI, trim, vapor-separator or engine electrical relay functions.
⚠️ Common Signs of Failure
- Circuit does not activate despite switch or ECU command
- Intermittent relay clicking
- Engine electrical function works only intermittently
- Burnt or corroded relay terminals
- Relay output missing with correct input voltage
- Fuel / EFI / trim circuit fault where this relay is assigned
- Function returns when a known-good relay is fitted
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 881350T current Mercury relay assembly reference
- 68V-81950-00-00 Yamaha related relay assembly reference
- 881350T01 related Mercury relay reference
- 60E-81950-00-00 related Yamaha relay reference
OEM / Related Numbers
- 881350T
- 881350-T
- 881350T01
- 68V-81950-00-00
- 68V819500000
- 68V-81950-00
- 68V8195000
- 60E-81950-00-00
- 60E819500000
- Relay assembly
- Main relay assembly
- Yamaha / Mercury relay assembly
- GTIN: 745061050426
Aftermarket / Verified Equivalents
- Recmar: REC68V-81950-00
- WSM: 343-530
- Marine Spare Parts: AM68V-81950-00
📦 Condition
- Genuine used part
- Removed from running engine where applicable
- In good working condition unless otherwise stated
