881538T02 Mercury Fuel Filter | Genuine Used Part

🔧 Product Description

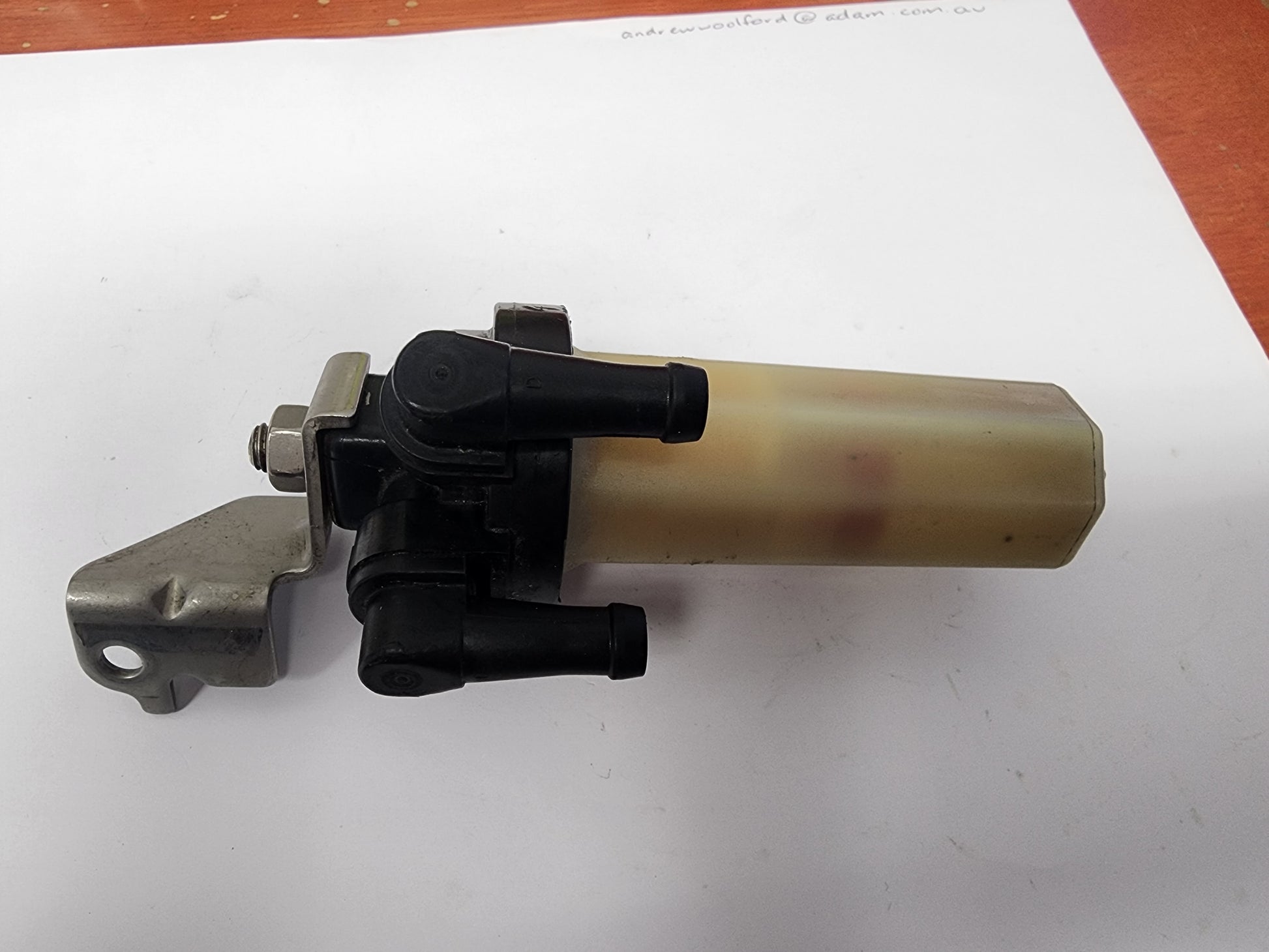

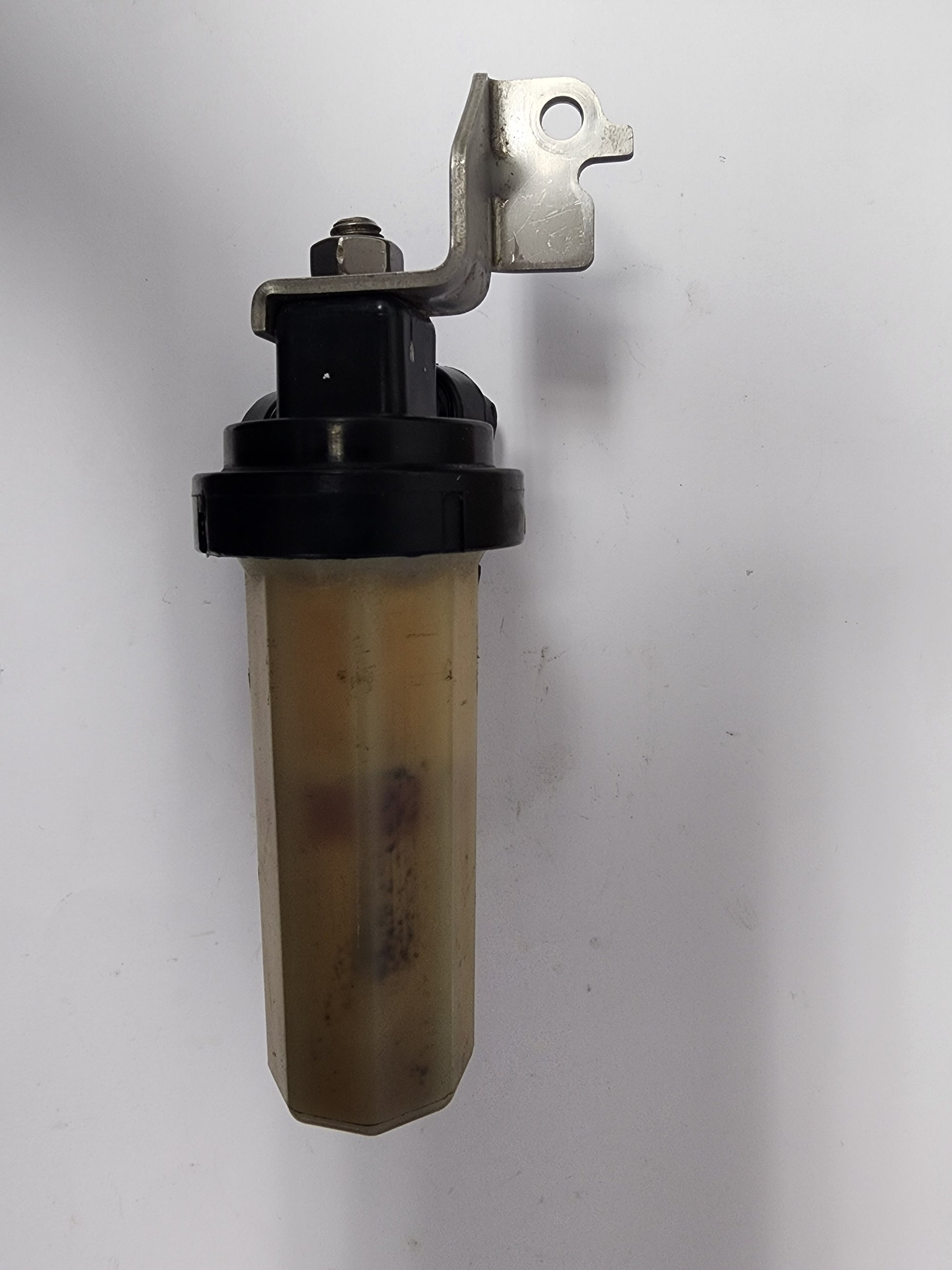

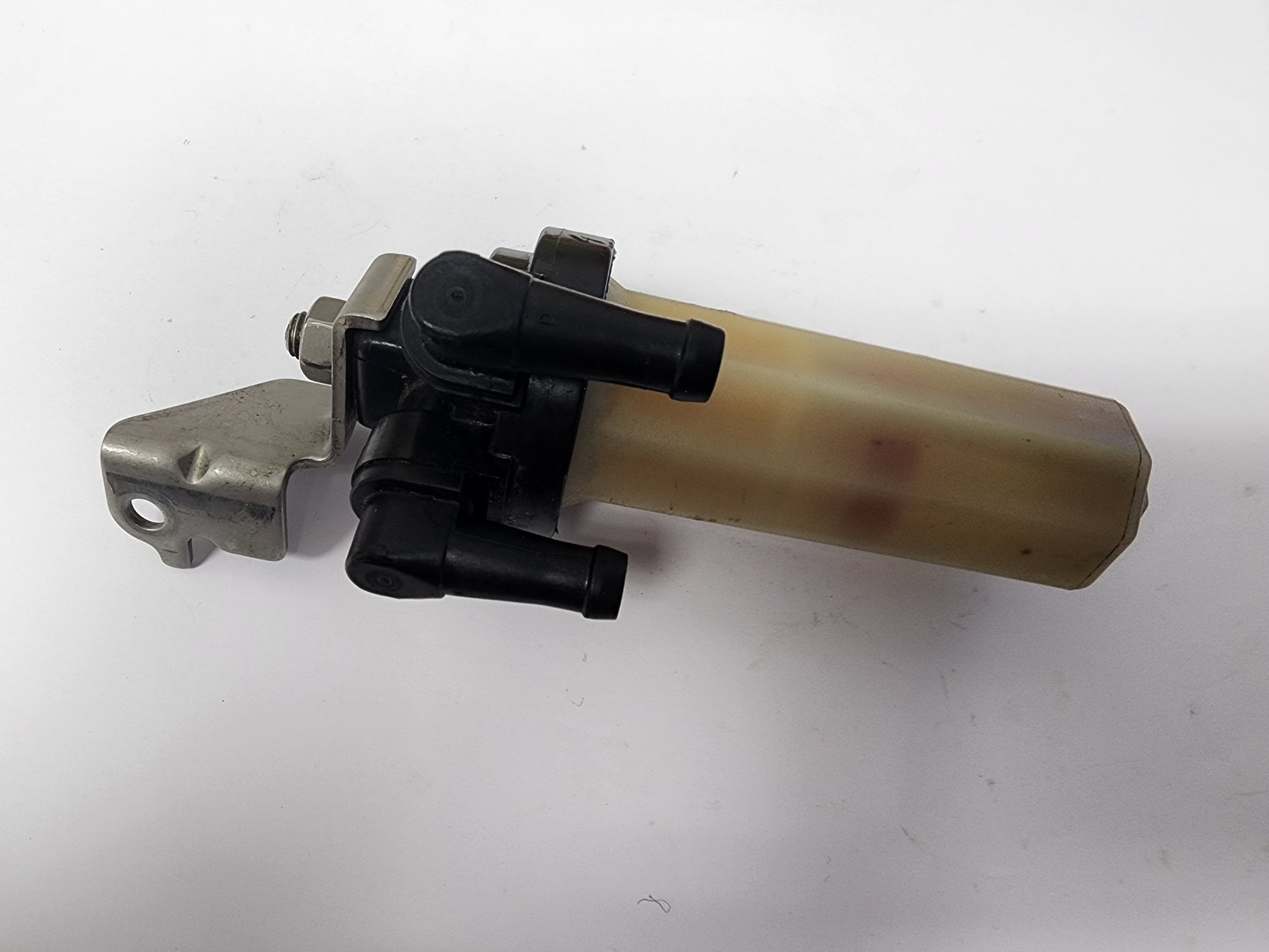

Genuine Mercury / Yamaha-Pattern Inline Fuel Filter Assembly - Part Number: 35-881538T02

A genuine used Mercury Marine inline fuel-filter assembly for Yamaha-manufactured Mercury and Mariner 75HP to 115HP four-stroke outboards.

The 8mm / 5/16-inch filter removes dirt, rust and other contaminants before fuel reaches the low-pressure pump and vapour-separator system. Mercury 881538T02 supersedes 881538T1 and shares its basic filter format with several Yamaha four-stroke applications.

⚙️ Key Features

• Genuine Mercury Marine fuel-filter assembly
• Current part number 35-881538T02
• Supersedes 35-881538T1
• 8mm / 5/16-inch fuel-hose connections
• Used on Yamaha-manufactured Mercury four-stroke engines

🚤 Compatibility

Commonly used on

• Mercury and Mariner Yamaha-manufactured four-stroke fuel systems
• Yamaha F50 through F115 fuel systems using the matching filter
• In-line low-pressure fuel circuits

Typically suits

• Mercury 75 FourStroke:
• Serial 0G960500 through 0T800999
• Serial 0T801000 through 1B226999
• Mercury 75 EFI FourStroke:
• Serial 1B172291 through 1B366822
• Mercury 80 EFI FourStroke:
• Serial 1B227000 through 1B366822
• Mercury 90 FourStroke:
• Serial 0G960500 through 0T800999
• Serial 0T801000 through 1B226999
• Mercury 90 EFI FourStroke:
• Serial 1B172291 through 1B366822
• Mercury 100 EFI FourStroke:
• Serial 1B227000 through 1B366822
• Mercury 115 EFI FourStroke:
• Serial 0T178500 through 0T800999
• Serial 0T801000 through 1B226999
• Serial 1B227000 through 1B366822
• HP Range: 75HP - 115HP
• Engine Type: Inline-four four-stroke outboard
• Year Range: Approximately 2000 - 2011
• Fitment Requirement: Confirm 8mm hose barbs and original filter number

🔌 Function

The filter traps contamination in the low-pressure fuel supply before it reaches the engine fuel pump, injectors or carburettor system.

⚠️ Common Signs of Failure

• Restricted fuel flow at higher RPM
• Engine hesitation or loss of power
• Hard starting
• Visible contamination inside the filter
• Fuel leakage from cracked housing or hose connections

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 35-881538T02 → Supersedes 35-881538T1
• 881538T1 earlier Mercury filter-assembly reference

OEM / Related Numbers

• 35-881538T02
• 881538T02
• 35-881538T1
• 881538T1
• Yamaha: 60C-24560-01
• Yamaha: 68V-24560-00
• Yamaha: 68V-24560-01
• Yamaha: 6D8-24560-08
• Yamaha: 6D8-24560-09

Aftermarket / Verified Equivalents

• Recmar: REC6D8-24560-08
• EMP: Mercury / Yamaha 35-881538T02 / 60C-24560-01 filter assembly
• RCMA: WF-F1006
• SouthMarine / equivalent 8mm fuel-filter assemblies sold under 35-881538T02

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
