881681 Aftermarket Volvo Penta Starter Motor | Sawley's Select Marine Parts

🔧 Product Description

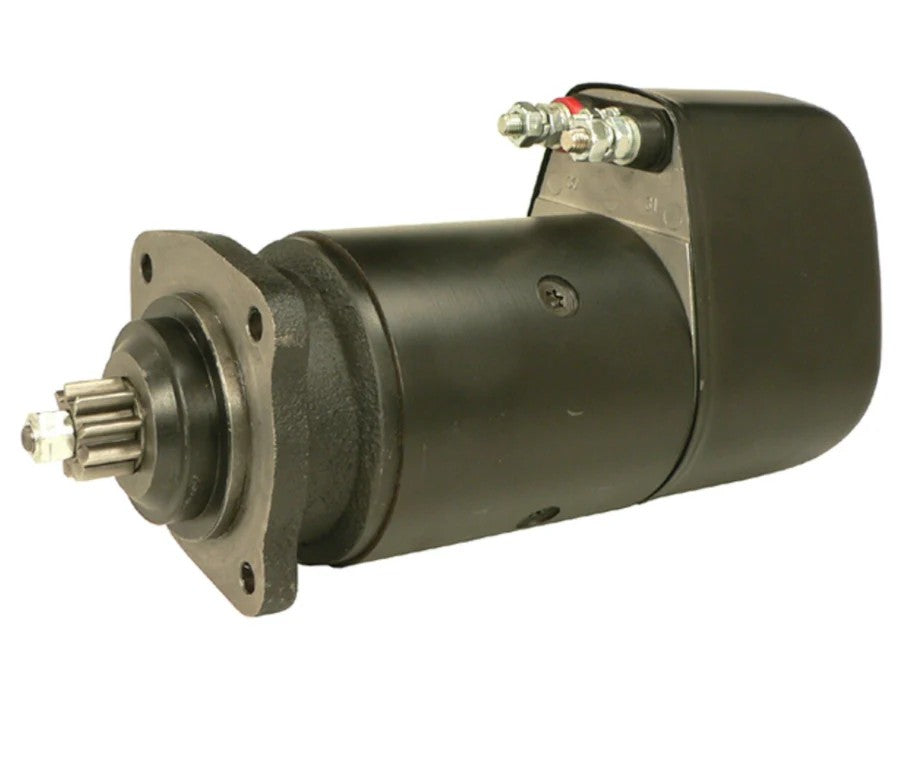

Aftermarket Volvo Penta 60-75-Series Diesel Starter Motor - Part Number: 881681

New aftermarket heavy-duty Bosch-pattern starter for Volvo Penta MD, TMD, TAMD, THAMD and AQD large-diesel engine families. The unit is a 12-volt, approximately 3.5-3.6kW, clockwise starter with a 9-tooth pinion and three-bolt mounting flange.

⚙️ Key Features

• 12-volt heavy-duty marine diesel starter

• Approximately 3.5-3.6kW rated output

• Clockwise rotation viewed from the drive end

• 9-tooth starter pinion

• Three-bolt mounting flange

• Integrated high-capacity starter solenoid

🧰 Assembly Contents

• 1 × Complete starter motor assembly - Part Number: 881681

• 1 × Integrated starter solenoid and shift mechanism

• 1 × Installed 9-tooth pinion and overrunning clutch

• 1 × Installed armature, field-winding, brush-holder and drive-housing assembly

• Mounting bolts and battery cables are not included unless specifically supplied

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 881681 → Volvo Penta complete starter service reference

• 233991, 240501, 837924, 842775, 843511 and 847306-8 → Related earlier Volvo Penta starter references

OEM / Related Numbers:

• 881681

• 233991

• 240501

• 837924

• 842775

• 843511

• 847306-8

• Bosch 0-001-413-004

• Bosch 0-001-418-009

Aftermarket / Verified Equivalents:

• API Marine: 15098-12V

• ARCO Marine: 97306

• Bosch: 0-001-413-004 / 0-001-418-009

• Recmar: REC881681

🚤 Compatibility

Commonly used on:

• Volvo Penta large-displacement six-cylinder marine diesel starting systems

Typically suits:

• MD42 and MD70 engine families

• TMD70 engine families

• TAMD60, TAMD61, TAMD62 and TAMD63

• TAMD70, TAMD71, TAMD72, TAMD73, TAMD74 and TAMD75

• THAMD70

• AQD70D

• HP Range: Engine-rating dependent

• Engine Type: Large inline six-cylinder turbocharged marine diesel

• Year Range: Principally 1970s-early 2000s, depending on engine generation

• Serial / Model Identification: Confirm 12V, 3.5-3.6kW, 9 teeth, clockwise rotation, three-bolt flange and the original Volvo Penta or Bosch starter reference.

🔌 Function

The heavy-duty starter supplies the high cranking torque required by large high-compression Volvo Penta diesels. Its solenoid engages the drive and switches battery current to the motor during starting.

Common signs of failure:

• Slow cranking despite correctly sized batteries and cables

• Solenoid engagement without starter rotation

• High current draw or excessive cable heating

• Pinion grinding, non-engagement or delayed disengagement

• Intermittent operation caused by worn brushes or contact discs

• Water ingress, field-winding damage or excessive shaft/bearing wear

📦 Condition

• Brand-new aftermarket replacement starter motor

• New and unused

• Supplied in suitable manufacturer or equivalent protective packaging
