881810 21402624 Volvo Penta ECU & Bracket | Genuine Used Part

🔧 Product Description

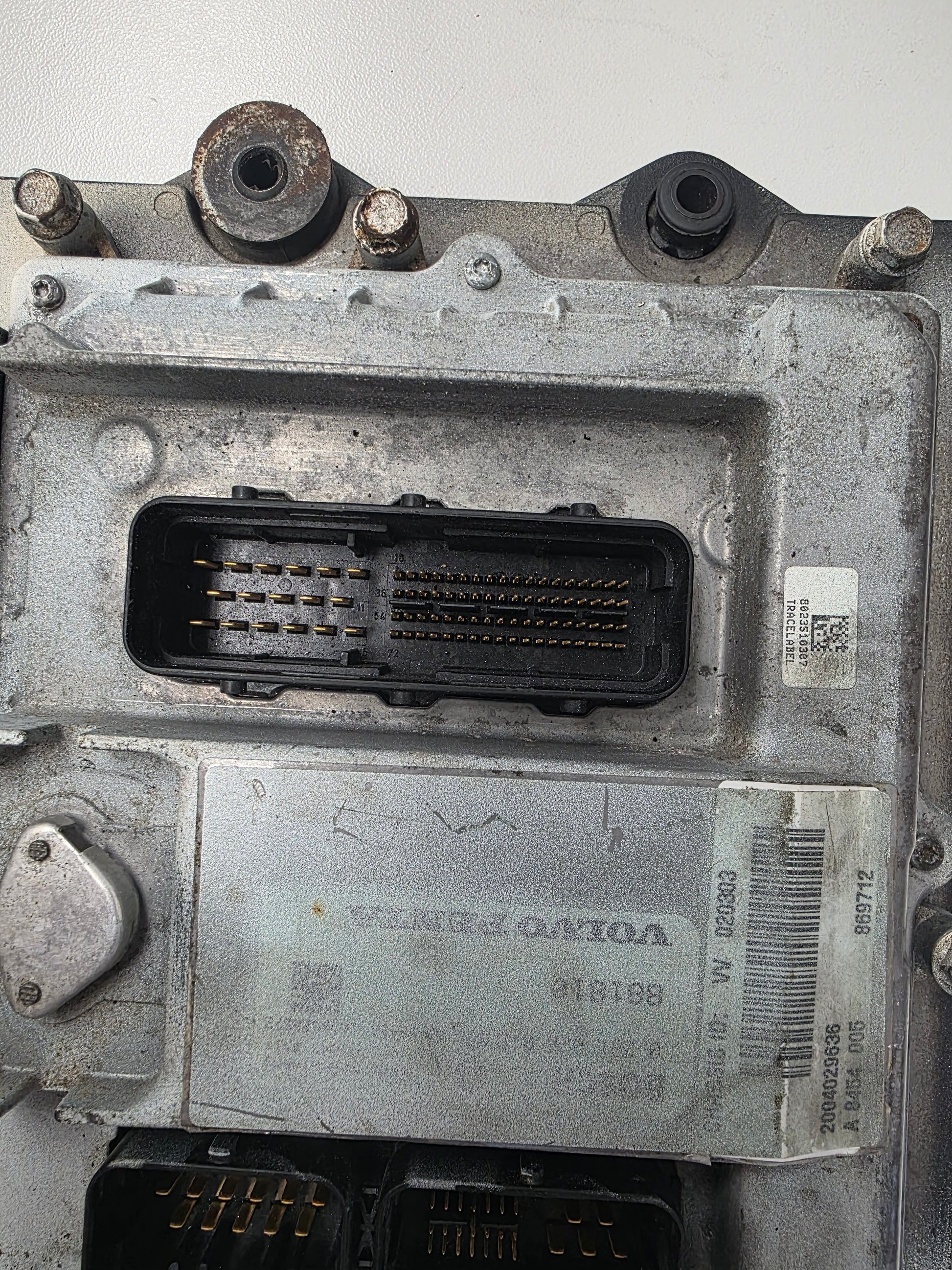

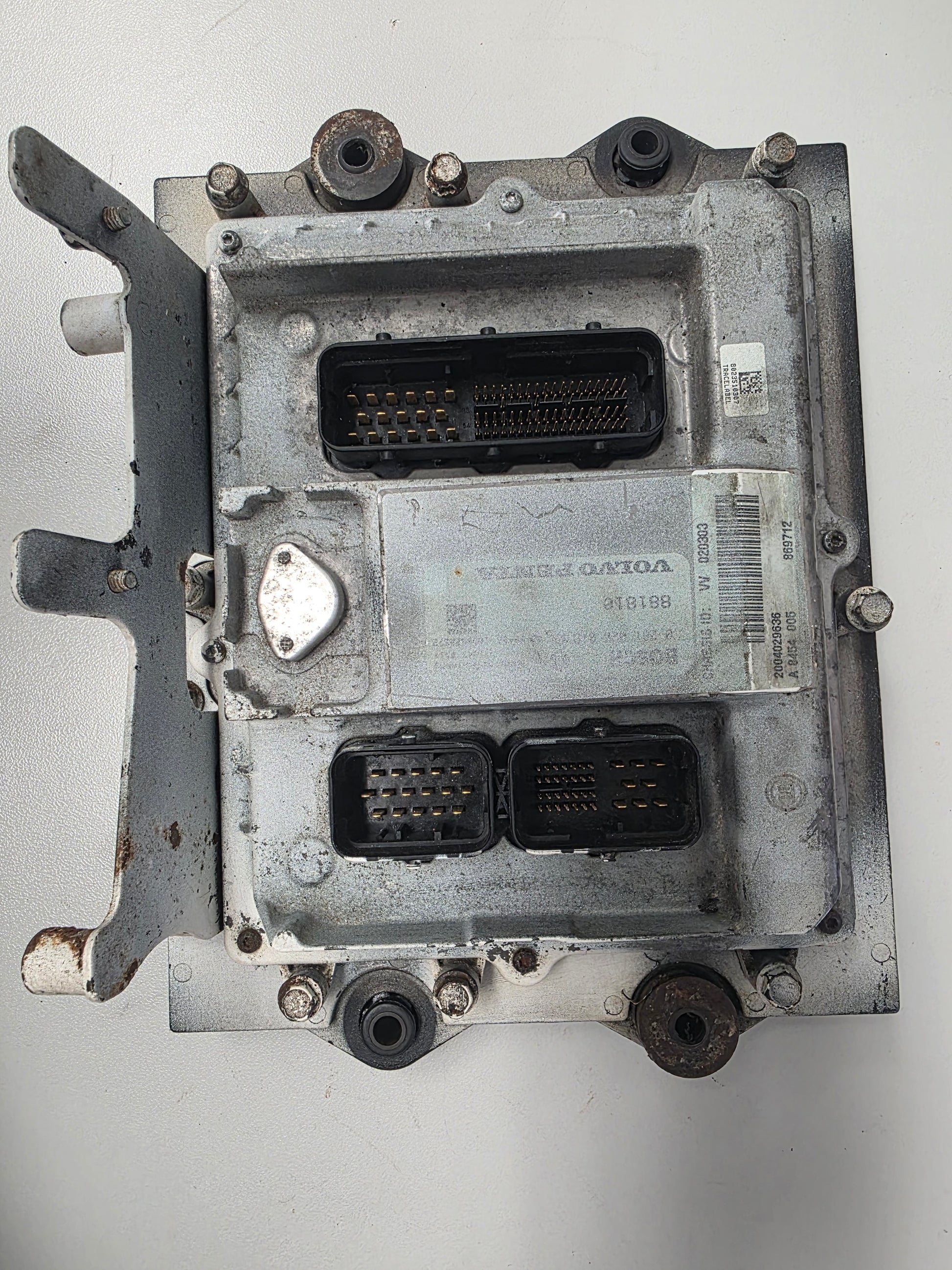

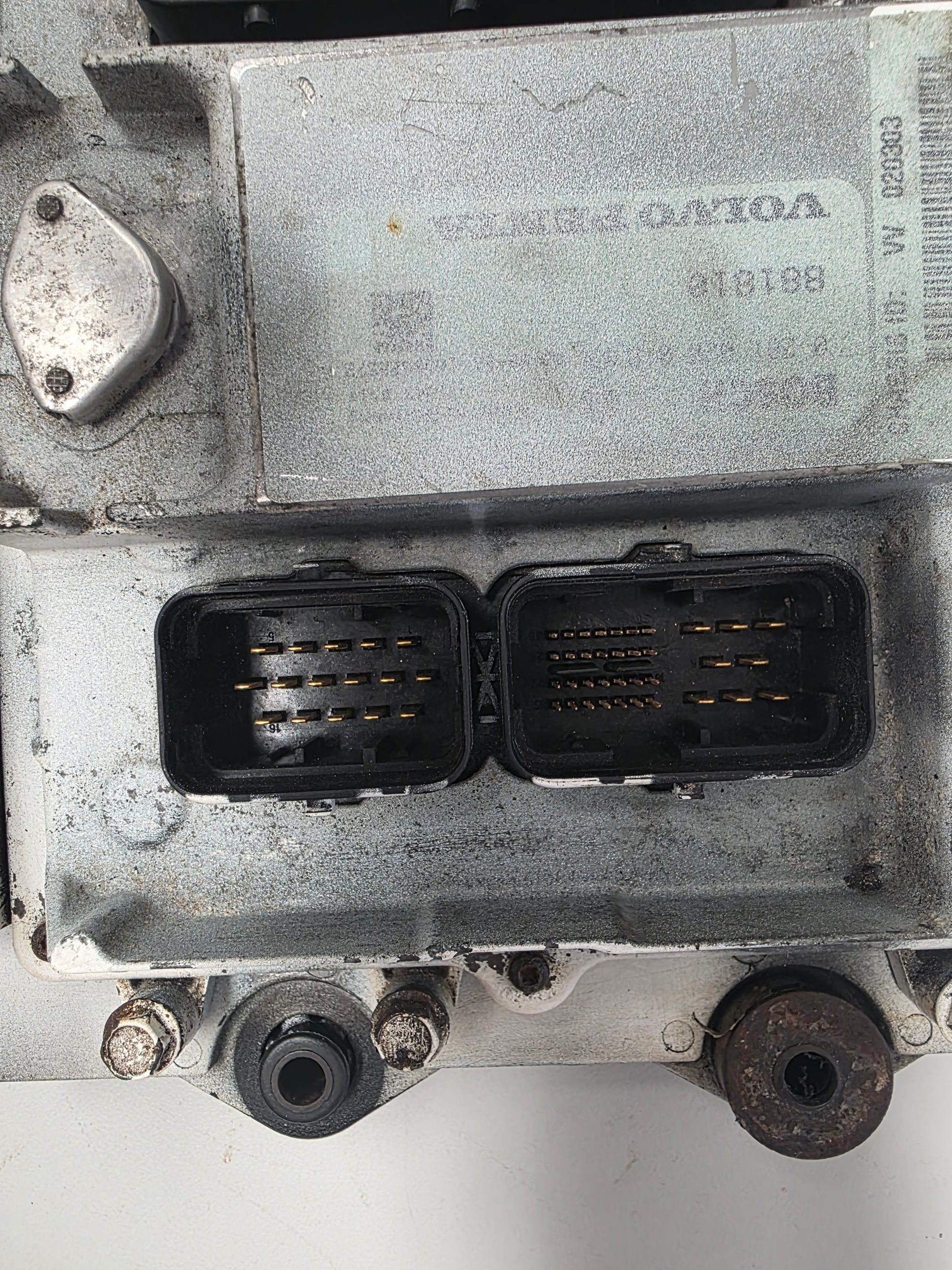

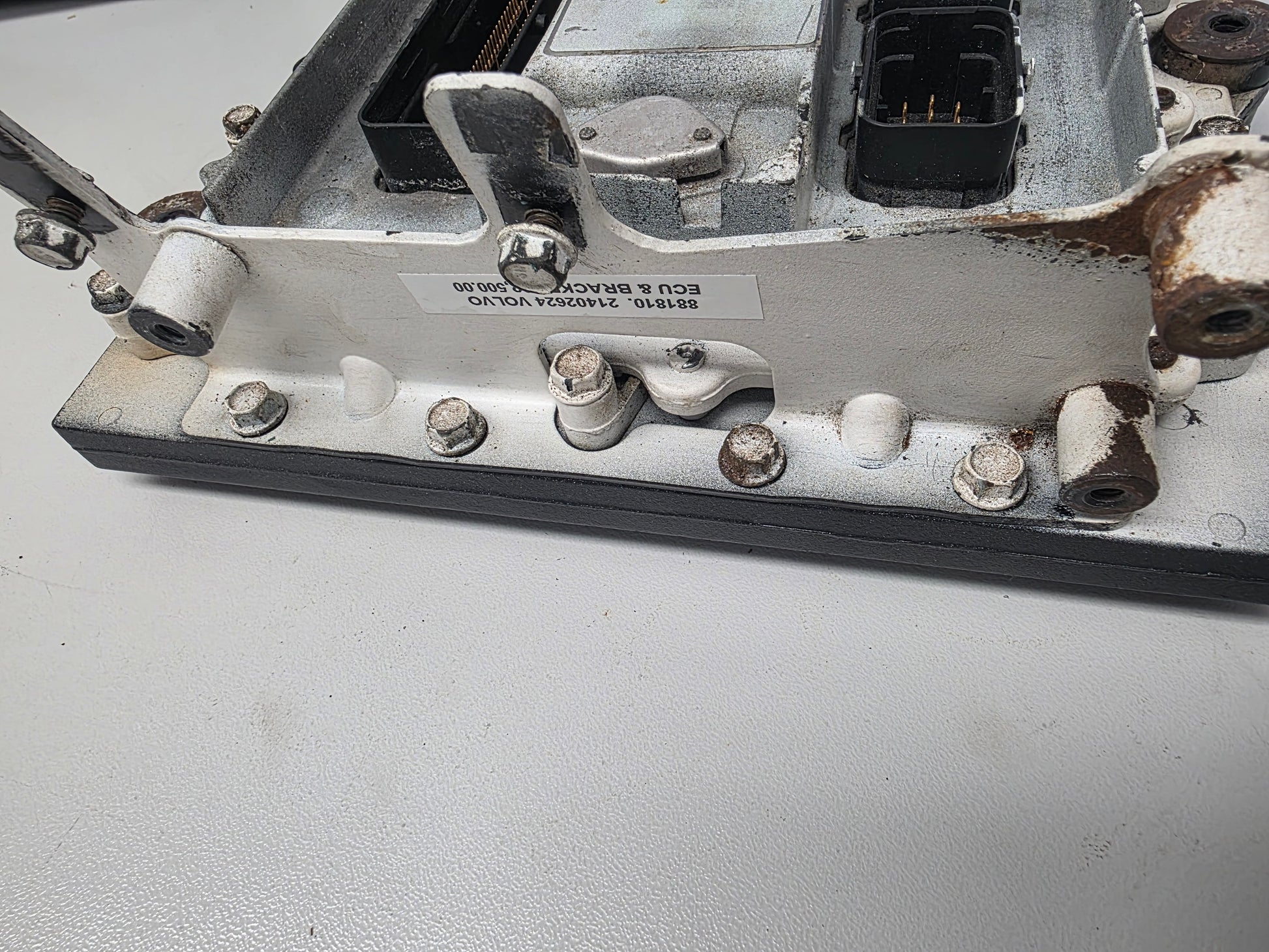

Genuine Volvo Penta D4 / D6 ECU with Support Bracket - Part Numbers: 881810 and 21402624

A genuine Volvo Penta engine control unit and support bracket assembly used on selected Volvo Penta D4 and D6 marine diesel engines. The 881810 ECU is an engine-management control unit supplied as a programmable module, with the 21402624 support / heat-sink bracket used to mount and support the ECU in the engine installation.

⚙️ Key Features

• Genuine Volvo Penta D4 / D6 ECU and bracket assembly

• Includes ECU part number 881810

• Includes support / bracket part number 21402624

• 21402624 replaces earlier support reference 3584080

• ECU must be matched and programmed to the correct engine serial, software and installation configuration

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 21402624 → Supersedes 3584080

• 3584080 earlier ECU support reference

• 881810 current ECU / control unit reference

OEM / Related Numbers:

• 881810

• 21402624

• 3584080

• Bosch / ECU reference: 0281020010

• Software warehouse programming reference: 3586269

• Software VODIA programming reference: 3586268

• Related bracket reference: 3584382

• Related flange screw reference: 946472

• Related damping element reference: 3842049

• Related flange screw reference: 947760

• Related flange screw reference: 948356

• Related bracket reference: 3584146

• Related flange screw reference: 967949

Aftermarket / Verified Equivalents:

• No aftermarket equivalent

🚤 Compatibility

Commonly used on:

• Volvo Penta D4 and D6 EVC diesel engine-management systems

• Volvo Penta D4 / D6 marine diesel ECU installations requiring programmable control unit 881810

Typically suits:

• Engine models:

• Volvo Penta D4-180I-B

• Volvo Penta D4-180I-C

• Volvo Penta D4-180I-D

• Volvo Penta D4-180I-E

• Volvo Penta D4-180I-F

• Volvo Penta D4-210A-A

• Volvo Penta D4-210A-B

• Volvo Penta D4-210I-A

• Volvo Penta D4-210I-B

• Volvo Penta D4-225A-B

• Volvo Penta D4-225A-C

• Volvo Penta D4-225A-D

• Volvo Penta D4-225A-E

• Volvo Penta D4-225A-F

• Volvo Penta D4-225I-B

• Volvo Penta D4-225I-C

• Volvo Penta D4-225I-D

• Volvo Penta D4-225I-E

• Volvo Penta D4-225I-F

• Volvo Penta D4-260A-A

• Volvo Penta D4-260A-B

• Volvo Penta D4-260A-C

• Volvo Penta D4-260A-D

• Volvo Penta D4-260A-E

• Volvo Penta D4-260A-F

• Volvo Penta D4-260D-B

• Volvo Penta D4-260D-C

• Volvo Penta D4-260D-D

• Volvo Penta D4-260D-E

• Volvo Penta D4-260D-F

• Volvo Penta D4-260I-A

• Volvo Penta D4-260I-B

• Volvo Penta D4-260I-C

• Volvo Penta D4-260I-D

• Volvo Penta D4-260I-E

• Volvo Penta D4-260I-F

• Volvo Penta D4-300A-A

• Volvo Penta D4-300A-C

• Volvo Penta D4-300A-D

• Volvo Penta D4-300A-E

• Volvo Penta D4-300A-F

• Volvo Penta D4-300D-A

• Volvo Penta D4-300D-C

• Volvo Penta D4-300D-D

• Volvo Penta D4-300D-E

• Volvo Penta D4-300D-F

• Volvo Penta D4-300I-A

• Volvo Penta D4-300I-C

• Volvo Penta D4-300I-D

• Volvo Penta D4-300I-E

• Volvo Penta D4-300I-F

• Volvo Penta D6-280A-A

• Volvo Penta D6-280A-B

• Volvo Penta D6-280A-C

• Volvo Penta D6-280A-D

• Volvo Penta D6-280A-E

• Volvo Penta D6-280I-A

• Volvo Penta D6-280I-B

• Volvo Penta D6-280I-C

• Volvo Penta D6-280I-D

• Volvo Penta D6-280I-E

• Volvo Penta D6-300A-F

• Volvo Penta D6-300D-F

• Volvo Penta D6-300I-F

• Volvo Penta D6-310A-A

• Volvo Penta D6-310A-B

• Volvo Penta D6-310A-C

• Volvo Penta D6-310A-D

• Volvo Penta D6-310A-E

• Volvo Penta D6-310D-B

• Volvo Penta D6-310D-C

• Volvo Penta D6-310D-D

• Volvo Penta D6-310D-E

• Volvo Penta D6-310I-A

• Volvo Penta D6-310I-B

• Volvo Penta D6-310I-C

• Volvo Penta D6-310I-D

• Volvo Penta D6-310I-E

• Volvo Penta D6-330A-B

• Volvo Penta D6-330A-C

• Volvo Penta D6-330A-D

• Volvo Penta D6-330A-E

• Volvo Penta D6-330A-F

• Volvo Penta D6-330D-B

• Volvo Penta D6-330D-C

• Volvo Penta D6-330D-D

• Volvo Penta D6-330D-E

• Volvo Penta D6-330D-F

• Volvo Penta D6-330I-B

• Volvo Penta D6-330I-C

• Volvo Penta D6-330I-D

• Volvo Penta D6-330I-E

• Volvo Penta D6-330I-F

• Volvo Penta D6-350A-A

• Volvo Penta D6-350A-B

• Volvo Penta D6-370A-B

• Volvo Penta D6-370A-C

• Volvo Penta D6-370A-D

• Volvo Penta D6-370A-E

• Volvo Penta D6-370A-F

• Volvo Penta D6-370D-A

• Volvo Penta D6-370D-B

• Volvo Penta D6-370D-C

• Volvo Penta D6-370D-D

• Volvo Penta D6-370D-E

• Volvo Penta D6-370D-F

• Volvo Penta D6-370I-A

• Volvo Penta D6-370I-B

• Volvo Penta D6-370I-C

• Volvo Penta D6-370I-D

• Volvo Penta D6-370I-E

• Volvo Penta D6-370I-F

• Volvo Penta D6-400A-E

• Volvo Penta D6-400A-F

• Volvo Penta D6-435D-A

• Volvo Penta D6-435D-C

• Volvo Penta D6-435D-D

• Volvo Penta D6-435D-E

• Volvo Penta D6-435D-F

• Volvo Penta D6-435I-A

• Volvo Penta D6-435I-C

• Volvo Penta D6-435I-D

• Volvo Penta D6-435I-E

• Volvo Penta D6-435I-F

• HP Range: commonly 180HP - 435HP depending on D4 / D6 engine version

• Engine Type: Volvo Penta D4 3.7L inline 4-cylinder diesel and D6 5.5L inline 6-cylinder diesel

• Year Range: approximately early EVC D4 / D6 production through later EVC D-generation applications where 881810 is specified

• Serial / Programming Note: ECU must be programmed and matched to the exact engine serial number, driveline configuration and installed EVC system before use.

🔌 Function

The ECU controls diesel engine operation by managing fuel injection strategy, engine protection, boost and load inputs, diagnostics, communication with the EVC system, and engine speed / torque control. The support bracket secures the ECU and helps maintain correct mounting and heat dissipation.

Common signs of failure:

• No communication with VODIA or diagnostic equipment

• Engine cranks but will not start with verified power, grounds and fuel supply

• Injector control or fuel-command faults after wiring checks

• EVC communication errors or engine-data loss

• Limp mode, derate, or unexplained engine protection activation

• Intermittent shutdown or no throttle response

• Internal ECU fault codes that return after sensor and harness testing

📦 Condition

• Genuine used part

• Removed from running engine where applicable

• In good working condition unless otherwise stated
