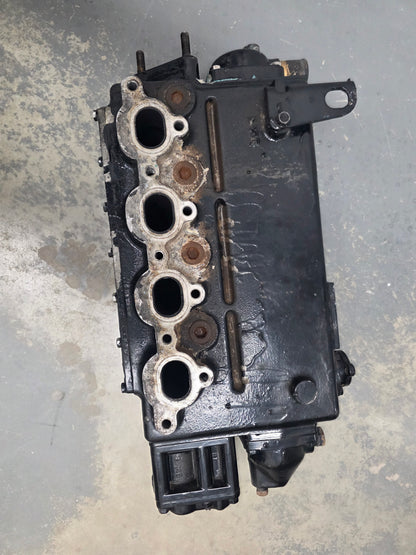

882716 Mercruiser Heat Exchanger | Genuine Used Part

🔧 Product Description

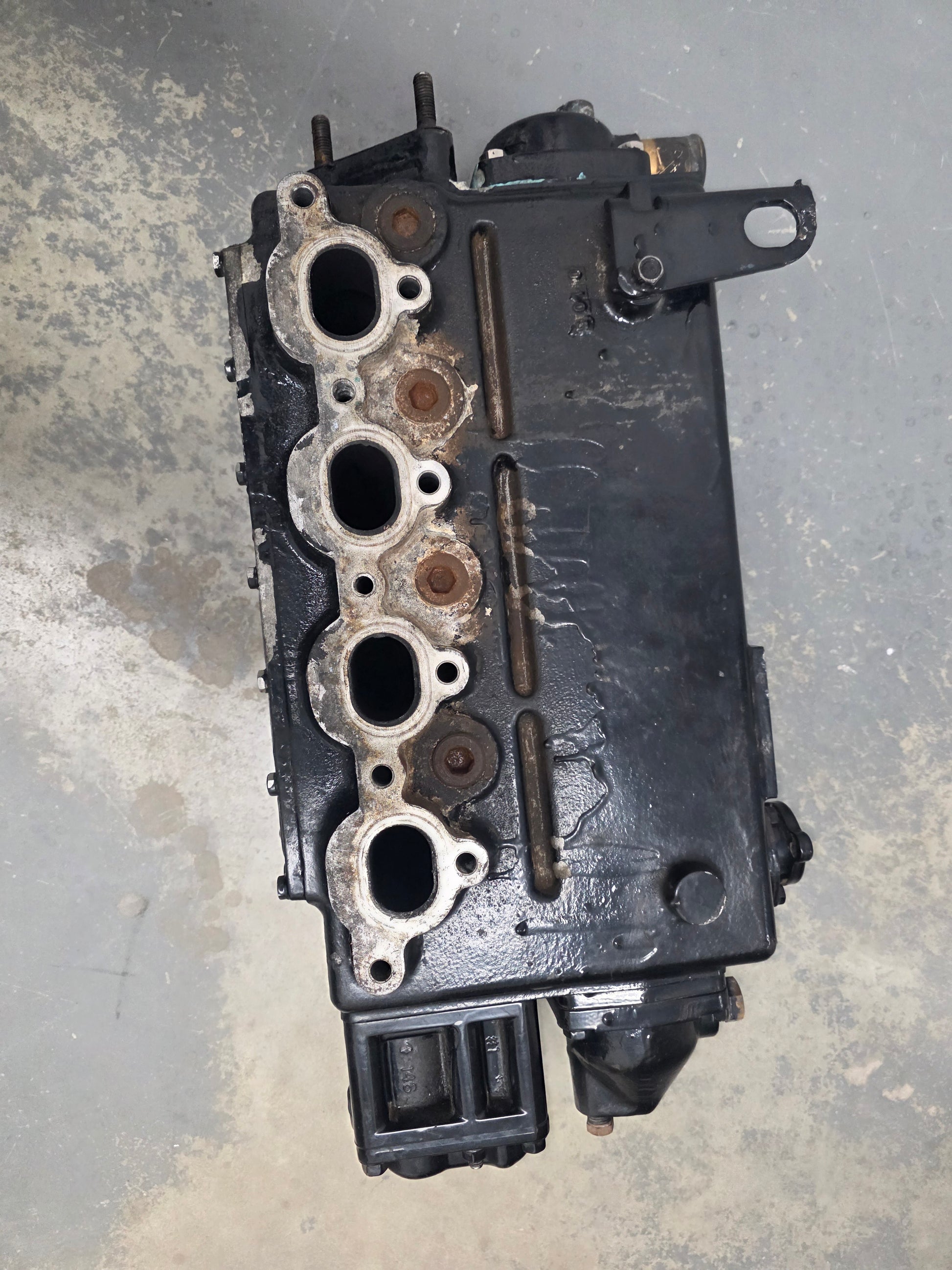

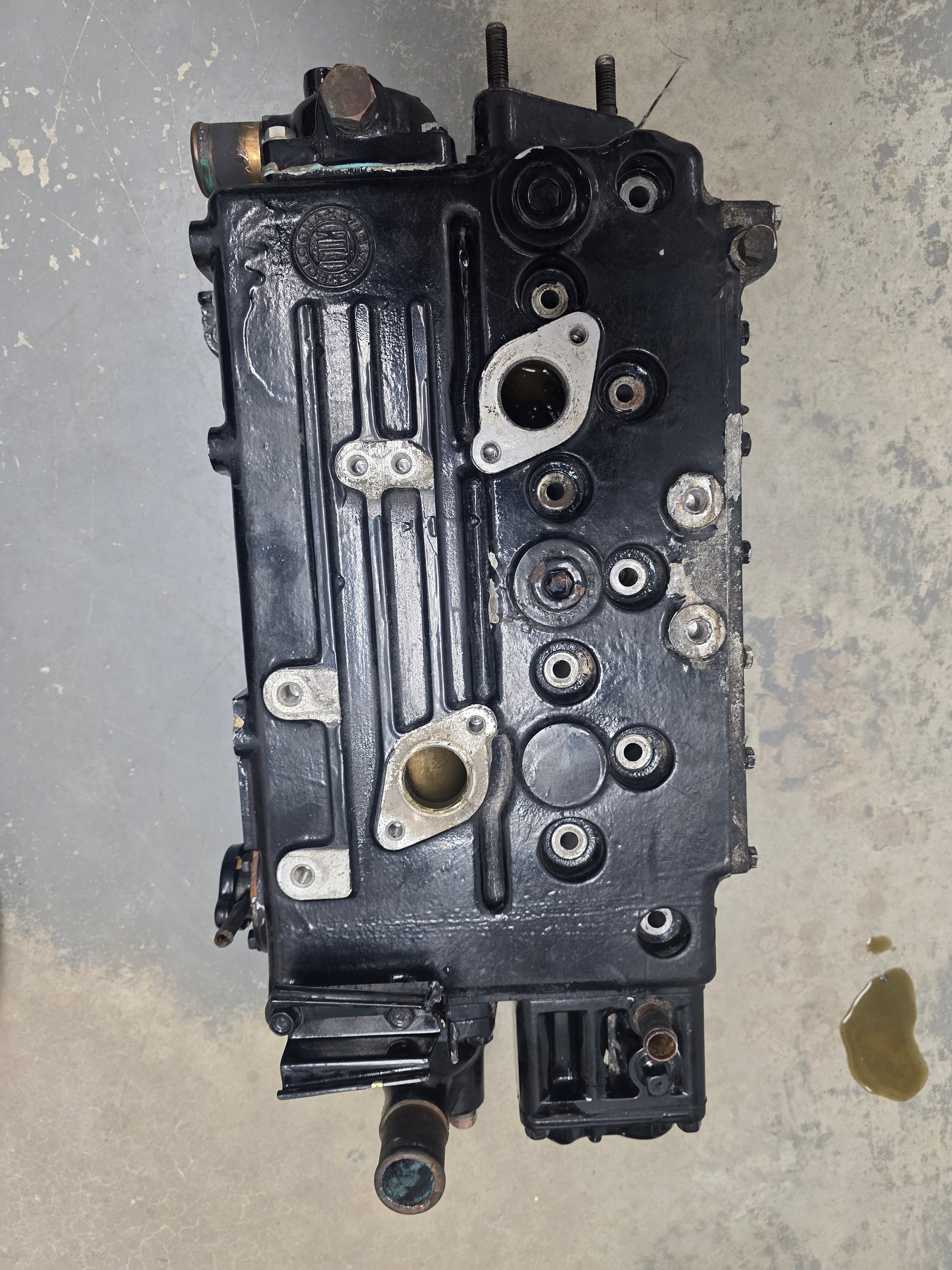

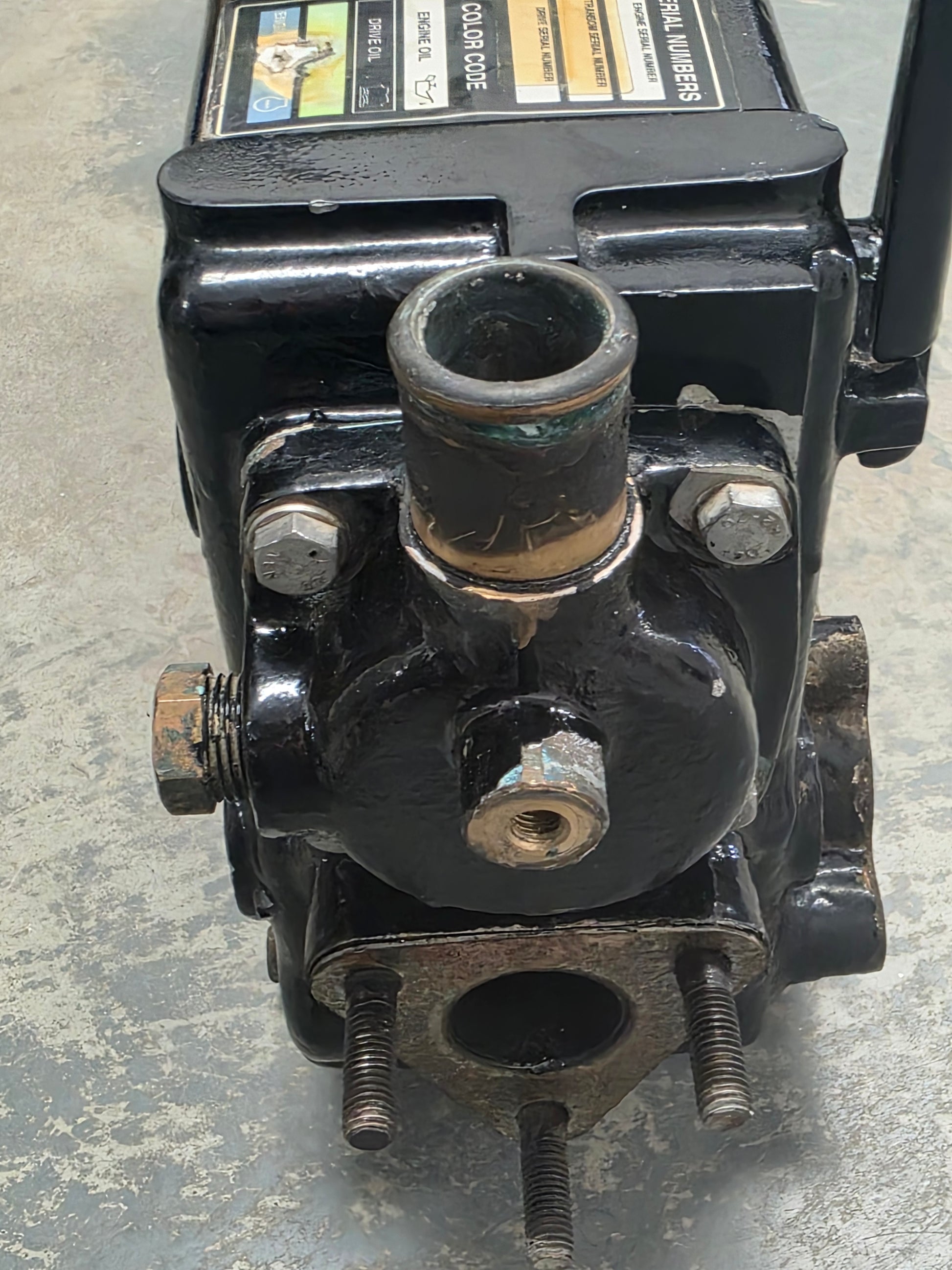

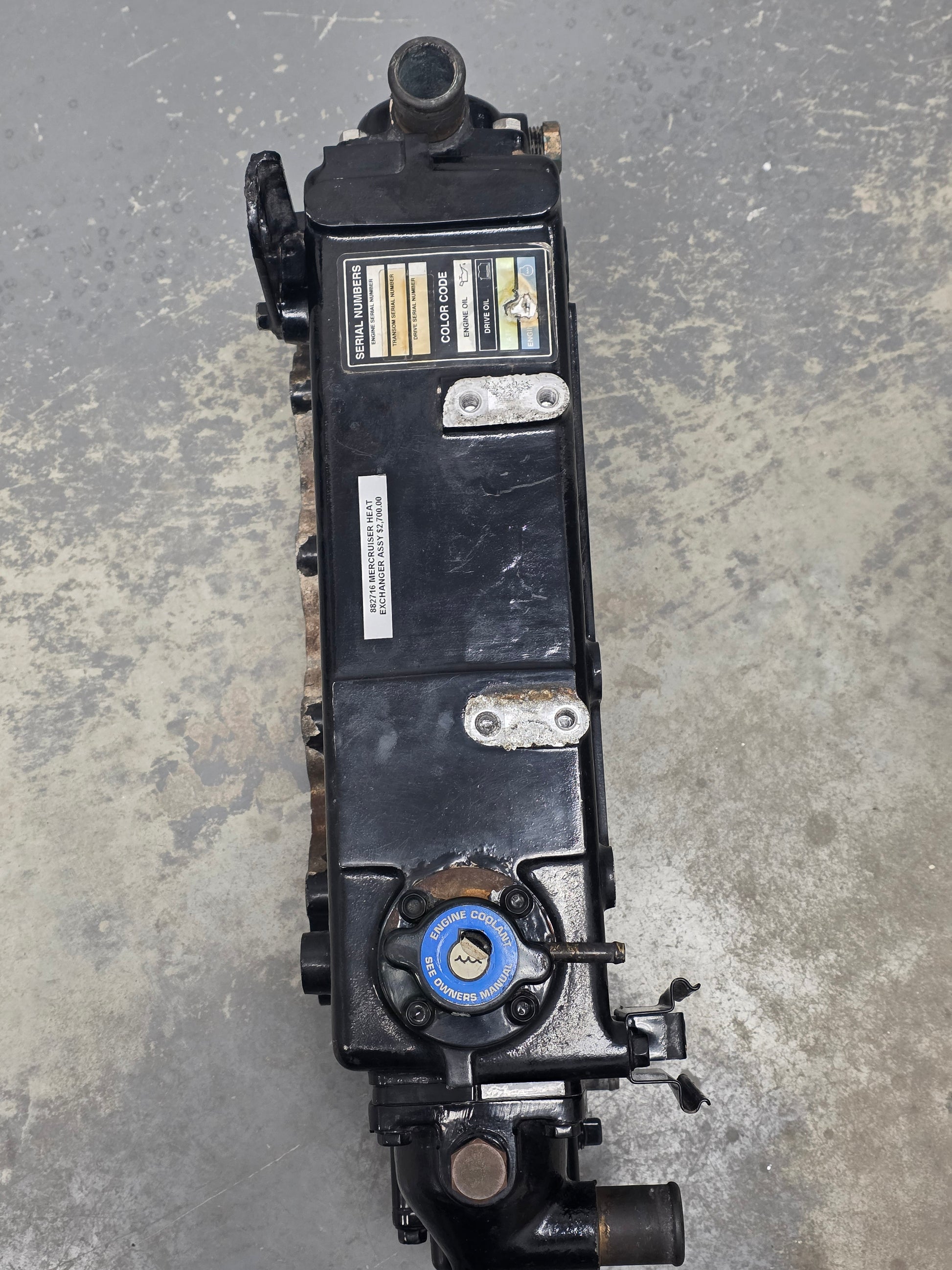

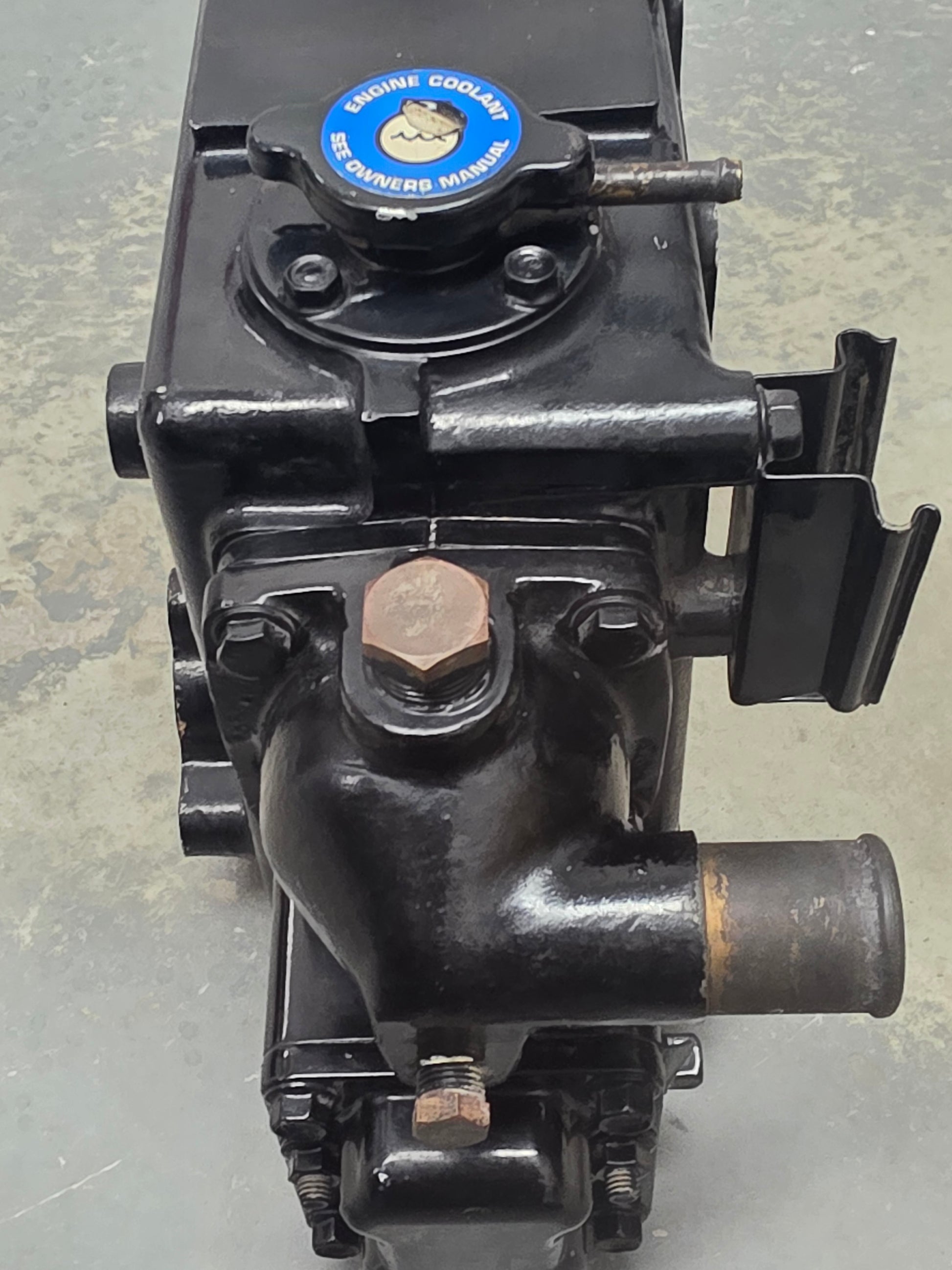

Genuine MerCruiser 1.7L Diesel Heat Exchanger Assembly - Part Number: 882716

A genuine used complete heat exchanger assembly for the Cummins MerCruiser Diesel 1.7L-120 DTI engine package.

The assembly transfers heat from the engine's closed fresh-water coolant into the raw seawater circuit without mixing the two fluids. It incorporates the exchanger core, casing, end covers and associated connections used by the Isuzu-based 1.7L engine.

⚙️ Key Features

• Genuine MerCruiser complete heat exchanger assembly
• Correct part number 882716
• Designed for the D1.7L DTI and CMD 1.7L-120 diesel
• Separates closed engine coolant from raw seawater
• Original complete assembly with replaceable core, covers, gaskets and fittings

🚤 Compatibility

Commonly used on

• Cummins MerCruiser Diesel 1.7L closed-circuit cooling systems
• D1.7L DTI sterndrive engine packages
• CMD 1.7L-120 inboard and shaft-line installations

Typically suits

• Engine models:
• MerCruiser D1.7L DTI 1.7L inline 4-cylinder - serial 0M055000 to 0M999999
• MerCruiser CMD 1.7 MS 120 I/L4 - serial 8810800 and above
• MerCruiser CMD 1.7 MI 120 I/L4 - serial 88109041 and above
• MerCruiser 1998 1.7L DTI sterndrive model families 4V71222ND, 4V71222PD and 4V71222TD
• HP Range: 120HP
• Engine Type: Isuzu-based 1.7L turbocharged and intercooled inline 4-cylinder marine diesel
• Year Range: Approximately 1998 - 2005

🔌 Function

Hot engine coolant flows through one side of the exchanger while seawater flows through the core on the other side. Heat passes through the metal tubes into the seawater, which is then discharged through the exhaust system.

⚠️ Common Signs of Failure

• Engine overheats despite serviceable coolant and seawater pumps
• Coolant or seawater leaks from the casing or end covers
• Internal corrosion or scale restricts exchanger tubes
• Coolant level rises, falls or becomes contaminated through an internal leak
• End-cover gaskets, core seals or pressure cap fail to hold pressure

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 882716 current original MerCruiser heat-exchanger reference

OEM / Related Numbers

• 882716 - Complete heat exchanger assembly
• 882537 - Heat exchanger case
• 882535 - Heat exchanger core
• 882536 - End cover
• 27-882613 - Related gasket
• 882695 - Related cover
• 27-882538 - Related gasket
• 882408 - Surge / radiator tank
• 882435 - Related bracket
• 882283 - Related retaining bar
• 32-882285 - Related hose
• 888749 - Related pressure cap
• 27-882610 - Related gasket
• 882581 - Related cover
• 26-882348 - Related seal

Aftermarket / Verified Equivalents

• No aftermarket equivalent

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
