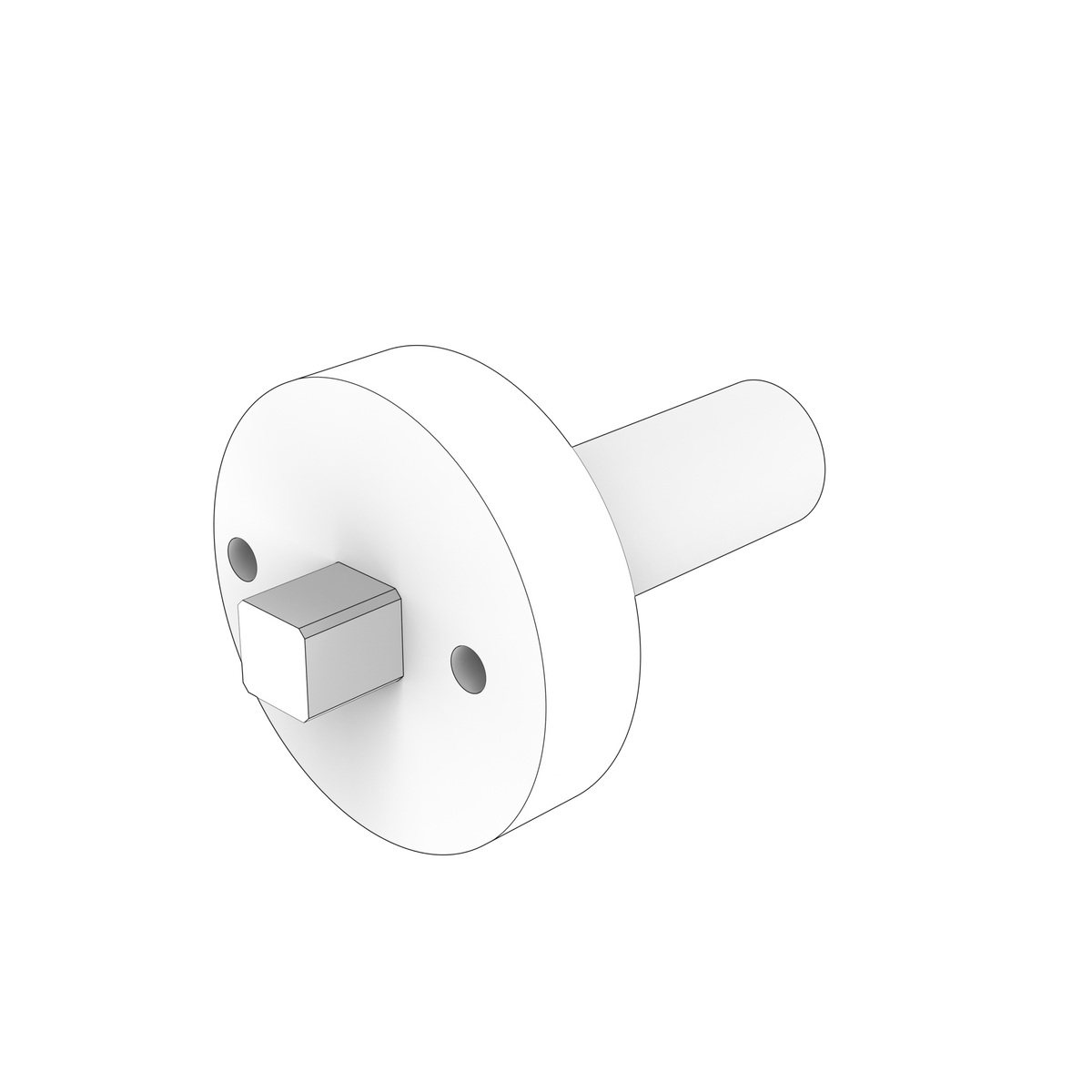

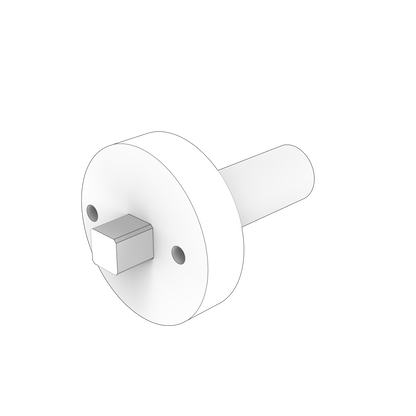

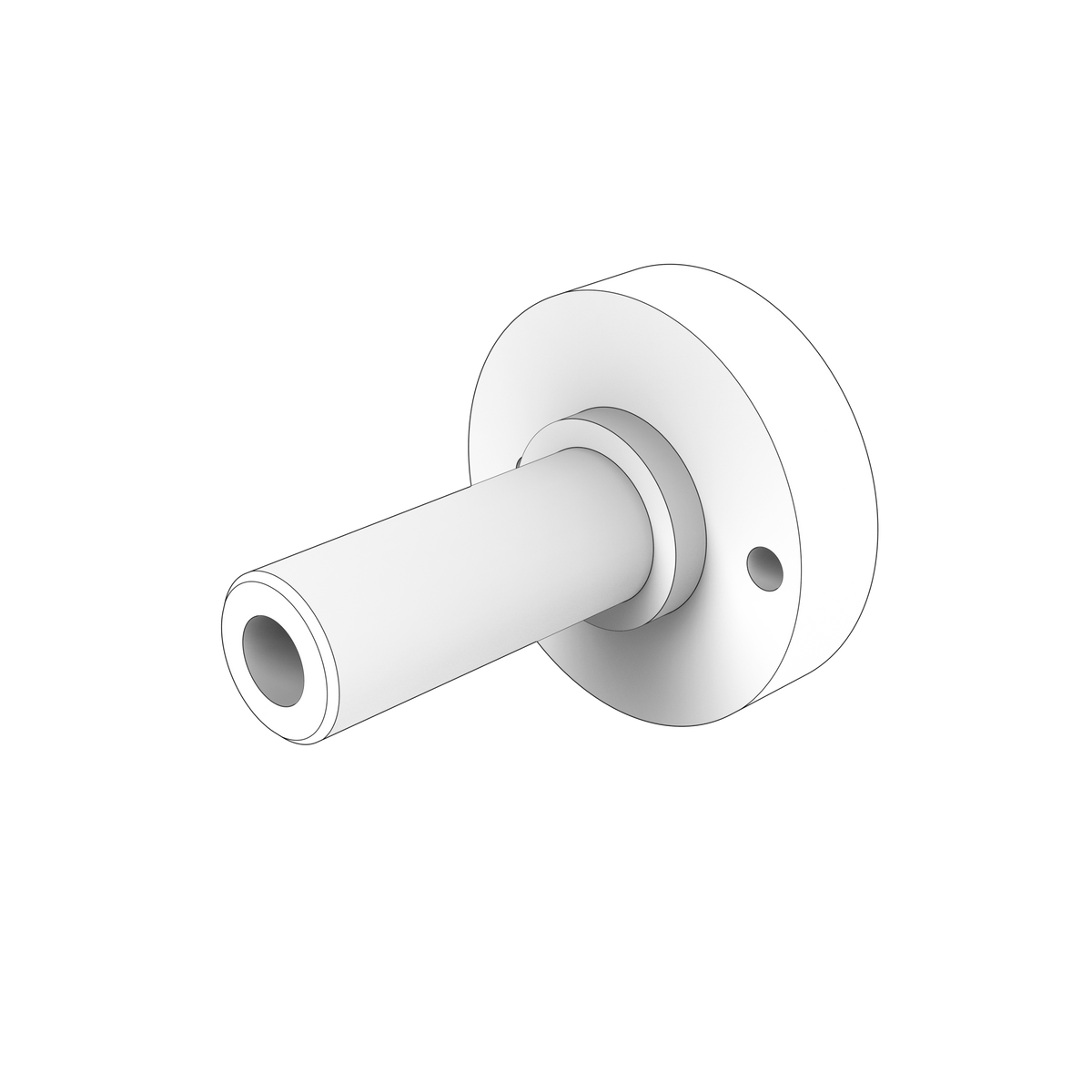

885561 Fixture | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta measurement fixture weighing 0.603 kg, listed for the DPH and DPR drives - DPH-A to DPH-D and DPR-A to DPR-D. It has been catalogued here simply as a fixture. Measurement fixture 885572 at 0.279 kg carries the same eight drives, and fixture 885571 at 0.483 kg is listed for the DPH and DPR drives together with IPS-A to IPS-F, so the three are separate tools.

⚙️ Key Features

• Measurement fixture for the DPH and DPR drives, A to D series
• 0.603 kg
• Measurement fixture 885572 covers the same drives
• Fixture 885571 also covers IPS-A to IPS-F

🔌 Function

Holds the component in a fixed, repeatable position so that a measurement taken off it can be trusted.

⚠️ Common Signs of Failure

• Locating faces worn, so the component no longer sits in a repeatable position
• Distortion after being clamped or loaded beyond its purpose
• Cracks around bolt holes or welded joints
• Fasteners or clamp screws seized or stripped
• Rust bloom on the locating surfaces

🛠️ Service Notes

• Check the locating faces are clean and free of burrs before clamping - a measurement is only as good as the seat the part sits on

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
