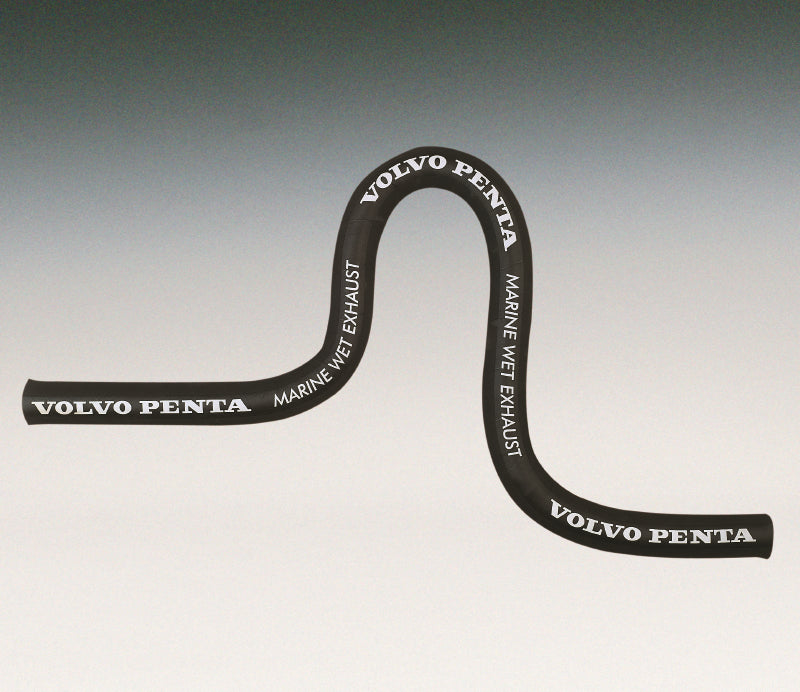

888212 Exhaust Hose | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta rubber exhaust hose for marine wet exhaust systems, 76 mm internal and 88 mm external diameter with a minimum bend radius of 455 mm, from the Inlet and Exhaust System group and weighing 4.082 kg. The hose conforms to ISO 13363 type 2, rated to plus 580 degrees Celsius, and to SAE J2006 type R2, is reinforced with synthetic textile layers and an embedded steel wire helix, and has a plain, smooth inner surface for minimum exhaust back pressure and a smooth outer surface. Volvo Penta lists it sold by the metre, with stainless steel hose clip 22274886, in this same run, as the recommended clip. The bore, outside diameter and bend radius are what decide the order, so measure the hose being replaced rather than ordering by engine.

⚙️ Key Features

• 76 mm internal diameter, 88 mm external diameter
• Minimum bend radius 455 mm
• Conforms to ISO 13363 type 2, rated to plus 580 degrees Celsius, and SAE J2006 type R2
• Synthetic textile layers with an embedded steel wire helix
• Smooth inner bore for minimum exhaust back pressure
• Recommended stainless steel hose clip 22274886
• Sold by the metre
• 4.082 kg
• Reinforced by synthetic textile layers and an embedded steel wire helix
• Plain, smooth inner surface for minimum exhaust back pressure
• Smooth outer surface
• Minimised bend radius for easy and quick installation
• Also listed in the cooling system section as a rubber hose designed to withstand both suction and pressure
• Also listed in the cooling system section as a rubber hose designed to withstand both suction and pressure
• Also listed in the cooling system section as a rubber hose designed to withstand both suction and pressure
• External diameter: 88 mm
• Internal diameter: 76 mm
• Min bend radius: 455 mm
• Supply: per metre
• Fits: Marine wet exhaust systems

🔌 Function

Carries exhaust gas and the cooling water mixed with it away from the engine, flexing to absorb engine movement.

⚠️ Common Signs of Failure

• Exhaust smell or fumes noticed in the engine space
• Sooty or wet staining along the hose or around the clips
• Soft, spongy or collapsing sections
• Cracks in the outer cover, usually at a bend
• Layers separating, or the hose ballooning when the engine is loaded

🛠️ Service Notes

• Never route it tighter than the 455 mm minimum bend radius, as a tighter bend collapses the bore and traps water
• Order by bore - the 63 mm hose is 1140671 and the 89 mm is 1140667, and the published weights do not rank with bore
• Fit the recommended clip 22274886 and renew both clips with the hose
• Recommended stainless steel hose clip for this size is 22274886
• Do not bend it tighter than the 455 mm minimum bend radius

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
