893907A02 Aftermarket Mercury Power Trim Motor | Sawley's Select Marine Parts

🔧 Product Description

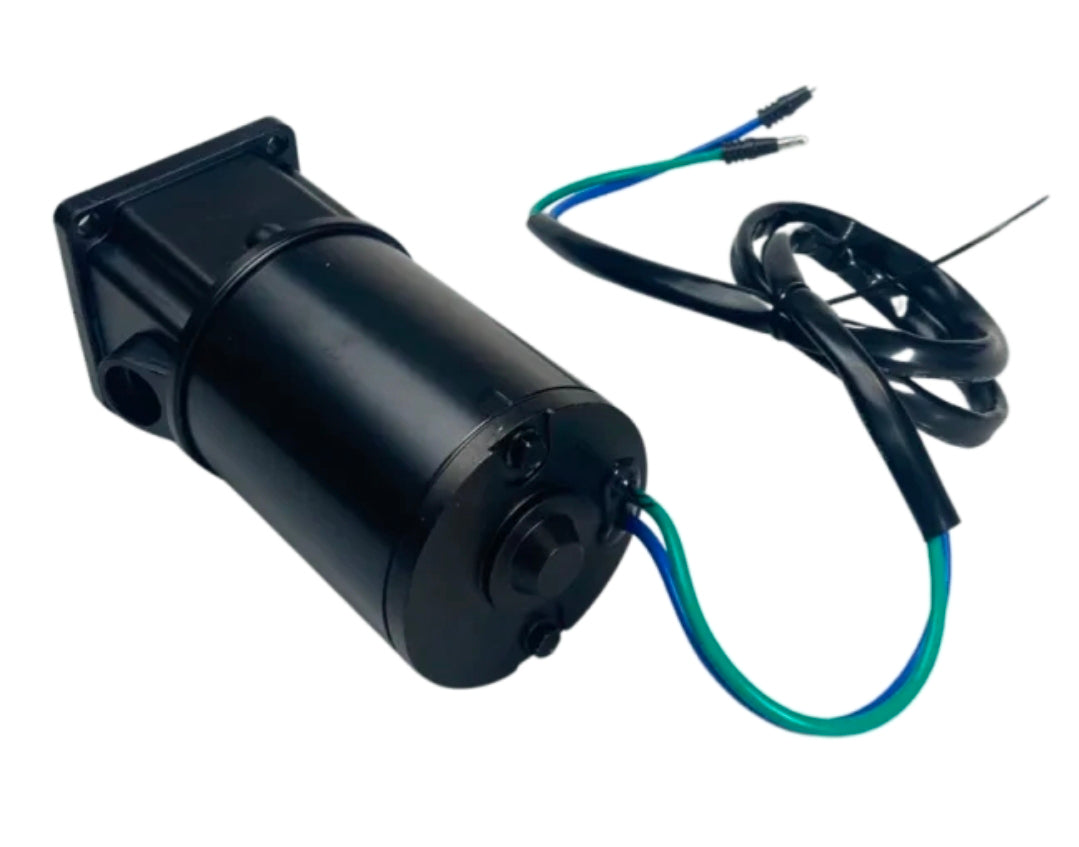

Aftermarket Mercury 30-125 HP Power-Trim Motor Kit - Part Number: 893907A02

Compact reversible electric trim motor for selected Mercury and Mariner mid-range outboards. It services the metal-motor-housing power-trim family used across 30-125 HP carburetted and EFI models.

⚙️ Key Features

• 12 V reversible two-wire motor

• Direct motor kit for compatible three-ram and compact trim units

• Used on selected 30-60 HP EFI and 75-125 HP applications

• Marine-sealed wiring and mounting flange

• Motor-only service kit; hydraulic body and ram are not included

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 893907A02 → Current motor-kit reference for the applicable power-trim assembly

• Earlier motor references are engine-serial dependent

OEM / Related Numbers:

• 893907A02

• REC893907A02

• Mercury type-2/type-4 aftermarket motor family

Aftermarket / Verified Equivalents:

• Recmar: REC893907A02

• Aftermarket Mercury 30-125 HP motor kits

• WSM/API/DB replacement motors matched by flange and shaft

🚤 Compatibility

Commonly used on:

• Mercury and Mariner mid-range outboard hydraulic trim systems

Typically suits:

• Engine / drive models:

• 30, 40, 50 and 60 HP EFI models whose diagram lists 893907A02

• 50, 55 and 60 HP three-cylinder applications from the applicable 0D serial groups

• 75, 80, 90, 100, 115 and selected 125 HP models using this motor family

• Power Trim Components diagrams up to the specified 2B serial break

• HP Range: 30-125 HP

• Engine / Drive Type: Compact two-wire outboard trim/tilt motor

• Year Range: Approximately 1990s-2010s

• Serial / Identification Range: Confirm engine serial, metal motor housing, bolt pattern, shaft and connector. Later 75-115 HP engines from serial 2B080987 use 8M0089940/8M0142591.

🔌 Function

Rotates the hydraulic pump in both directions so the outboard can be trimmed under load and tilted for trailering.

Common signs of failure or replacement requirement:

• No trim in either direction

• Slow or intermittent motor

• High current draw or blown fuse

• Corroded motor housing or wiring

• Motor runs but pump pressure is absent

📦 Condition

• Brand-new aftermarket replacement part

• Supplied as a new replacement component

• Supplied in suitable retail or equivalent packaging
