898369T08 Mercury 60HP EFI ECU | Genuine Used Part

🔧 Product Description

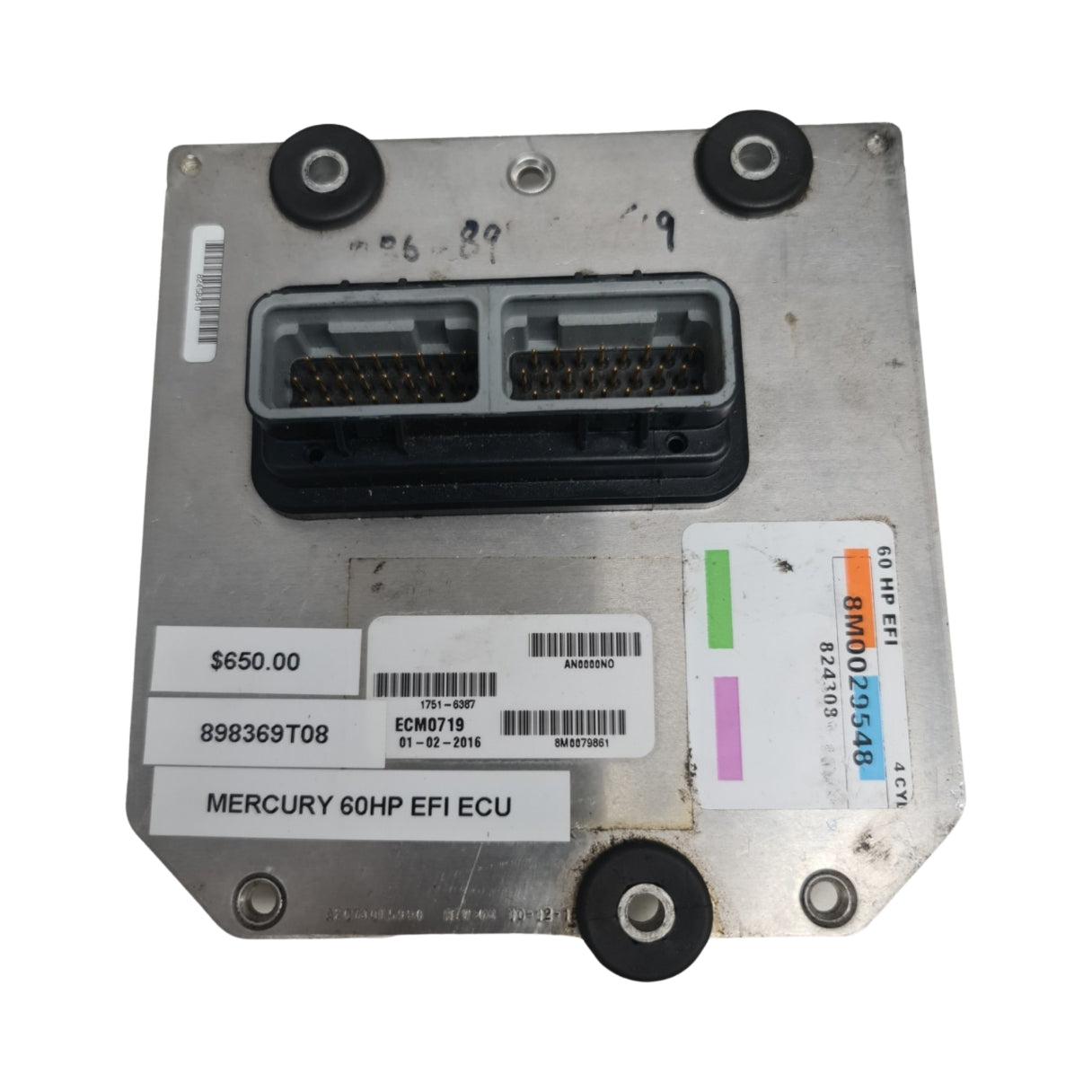

Genuine Mercury 60HP EFI ECM / Engine Control Module - Part Number: 898369T08

A genuine Mercury ECM for 60HP EFI four-stroke outboards. This 60HP calibration module is used in the Mercury / Mariner 40-60 EFI 4-cylinder four-stroke electrical family and manages EFI fuel delivery, ignition timing, idle control, diagnostics and engine protection.

⚙️ Key Features

• Genuine Mercury ECM / engine control module

• Correct Mercury part number 898369T08

• 60HP calibration in the 898369T06 to 898369T12 ECM family

• Used on Mercury 60 EFI 4-cylinder four-stroke outboards

• Requires exact serial number, horsepower calibration and ECU label confirmation

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 898369T08 current 60HP ECM reference

• 898369T09 related 60HP EU ECM reference

• 898369T07 related 50HP ECM reference

• 898369T06 related 40HP ECM reference

OEM / Related Numbers:

• 898369T08

• 77-898369T08

• 745061781788 GTIN / UPC reference

• 898369T09 related 60HP EU ECM

• 898369T07 related 50HP ECM

• 898369T06 related 40HP ECM

• 898369T10 related 40 Jet ECM

• 898369T11 related 50HP EU ECM

• 898369T12 related 40HP EU ECM

• Related harness assembly: 897940T01

• Related electrical plate: 8M0022449

Aftermarket / Verified Equivalents:

• No aftermarket equivalent

🚤 Compatibility

Commonly used on:

• Mercury / Mariner 60 EFI 4-cylinder four-stroke outboard engine-management systems

Typically suits:

• Engine models:

• Mercury 60 EFI 4-cylinder four-stroke applications from serial 0P515897 and up where ECM 898369T08 is specified

• Mercury 60HP EFI 4-cylinder four-stroke 2006-2010 applications using ECM 898369T08

• Mercury 40 / 50 / 60 EFI four-stroke electrical-system family where the exact 60HP ECM position specifies 898369T08

• Mercury 60 EFI 995cc 4-cylinder EFI outboard applications using the 898369T08 60HP calibration

• HP Range: 60HP

• Engine Type: Mercury EFI 4-cylinder four-stroke outboard

• Year Range: approximately 2006 - 2010 for common used-module listings, plus serial 0P515897 and up catalogue applications

• Serial Range: from 0P515897 and up where the parts diagram specifies 898369T08

🔌 Function

The ECM controls fuel injection, ignition timing, idle control, sensor monitoring, diagnostic fault storage and guardian functions for the 60HP EFI four-stroke outboard.

Common signs of failure:

• Engine cranks but will not start after fuel, spark and compression checks

• No injector pulse or missing ignition command

• No diagnostic communication

• Intermittent stalling or protection-mode activation

• Persistent ECM or sensor fault codes after harness testing

• Poor idle, rich running or lean running after mechanical checks

• ECM damage caused by water ingress, corrosion or incorrect voltage

📦 Condition

• Genuine used part

• Removed from running engine where applicable

• In good working condition unless otherwise stated
