8M0062440 Gimble Ring Assembly | Genuine Used Part

8M0062440 Gimble Ring Assembly | Genuine Used Part

$1,700.00 AUD
$1,700.00 AUD
Sale Sold out
Shipping calculated at checkout.

Low stock: 2 left

🔧 Product Description

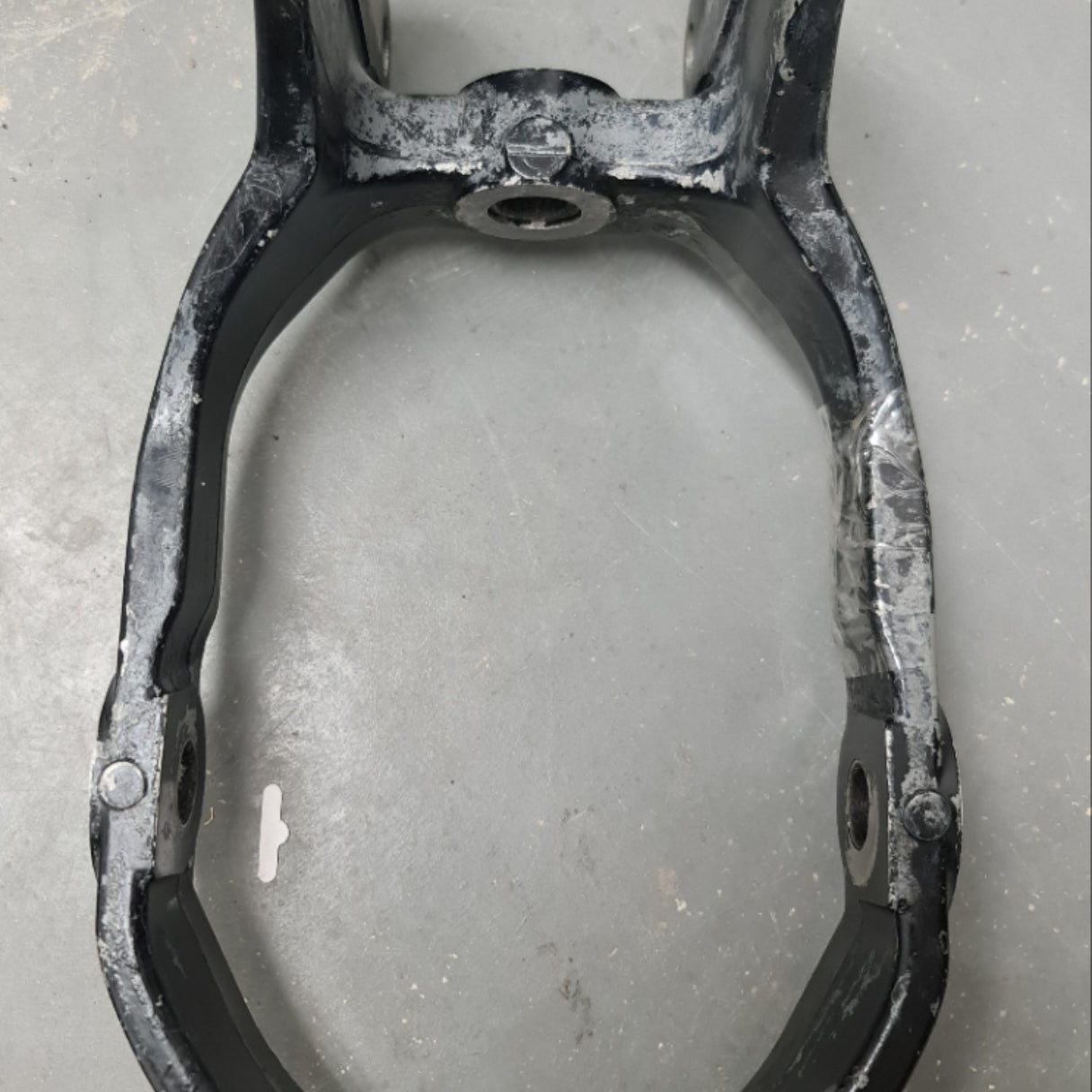

Genuine MerCruiser Bravo Gimbal Ring Assembly - Part Number: 8M0062440

A genuine used MerCruiser gimbal-ring assembly for standard Bravo One, Bravo Two and Bravo Three transom systems.

The ring supports the sterndrive and transfers steering movement while allowing trim and tilt. It replaces several earlier Bravo ring assemblies and is configured for installations using trim-sender components.

⚙️ Key Features

  • Genuine Mercury MerCruiser OEM Bravo gimbal ring
  • Correct current part number 8M0062440
  • Supersedes 822374A14, 822374A4, 44211A3 and 44211A2
  • Used on Bravo One, Bravo Two, Bravo Three and related X drives
  • Verified Recmar and stainless aftermarket replacements available

🚤 Compatibility

Commonly used on

  • MerCruiser standard Bravo transom assemblies
  • Gas-engine Bravo gimbal-ring and steering-lever systems

Typically suits

  • Engine models:
  • MerCruiser Bravo One - including 0W250000 and above
  • MerCruiser Bravo Two - including 0W250000 and above
  • MerCruiser Bravo Three - including 0W250000 and above
  • MerCruiser Bravo X One and Bravo X Three - including 0W250000 and above
  • Earlier Bravo applications using 822374A4 / A14 or 44211A2 / A3
  • HP Range: Not engine-specific; drive / transom controlled
  • Engine Type: MerCruiser Bravo One, Bravo Two and Bravo Three sterndrive transom system
  • Year Range: Approximately 1988 onward

🔌 Function

The gimbal ring supports the drive between its steering pivots and hinge pins. It transfers steering torque and permits the sterndrive to trim and tilt.

⚠️ Common Signs of Failure

  • Upper steering-shaft bore is worn
  • Hinge-pin bores develop excess play
  • Ring is cracked or corroded
  • Drive wanders because the ring does not follow the steering lever
  • Trim movement binds

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 8M0062440 → Supersedes 822374A14
  • 822374A14 / 822374A4 → Replace earlier 44211A3 / 44211A2 family

OEM / Related Numbers

  • 8M0062440
  • 822374A14
  • 822374A4
  • 44211A3
  • 44211A2
  • Bravo standard gimbal-ring assembly

Aftermarket / Verified Equivalents

  • Recmar: RM8M0062440
  • Hill Marine: HM-BD-SSGR stainless-steel Bravo gimbal ring
  • Signature Marine: Stainless Bravo replacement gimbal ring

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
