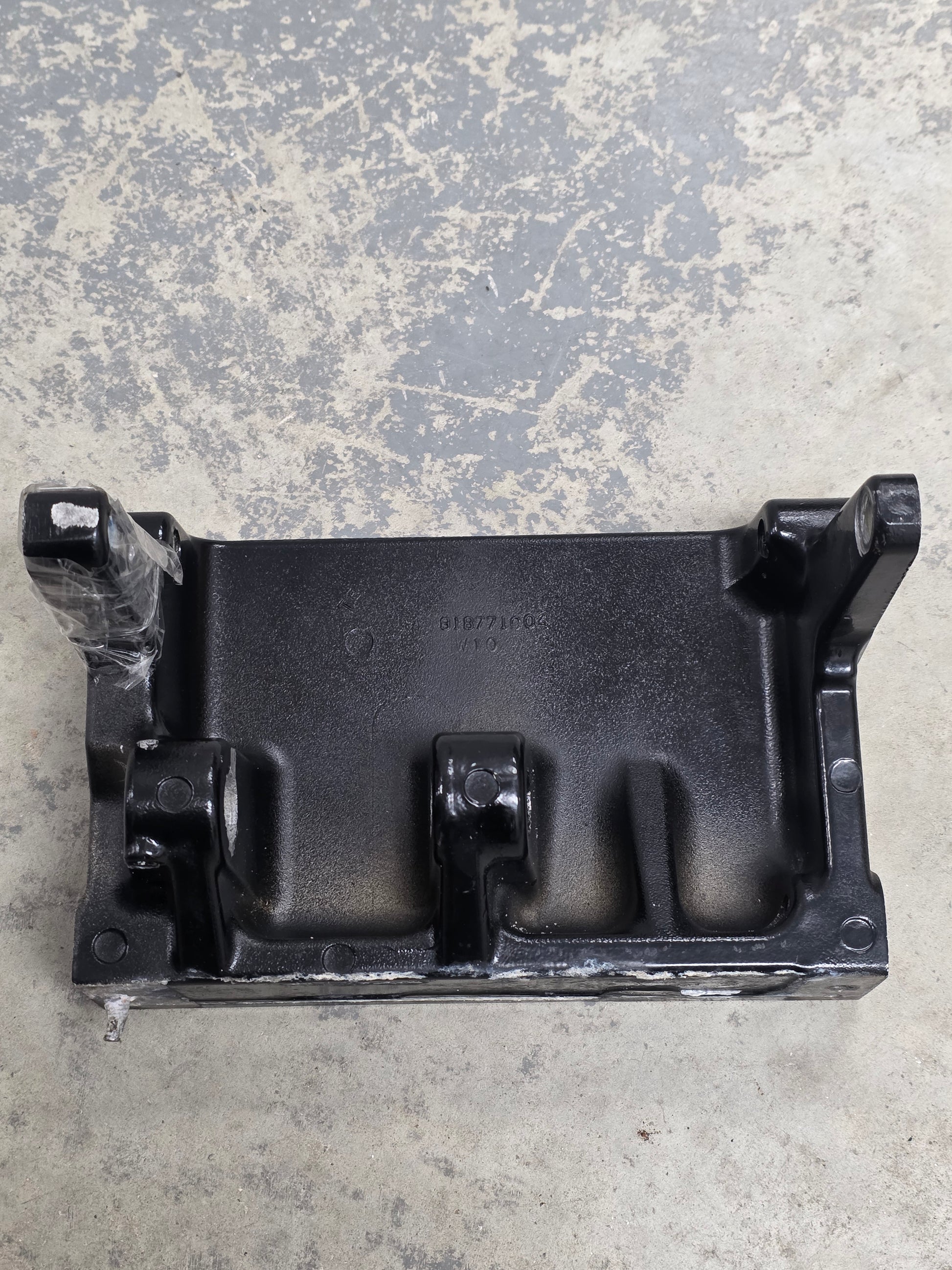

• 8M0086406 81877T1 Mercury Bracket Anchor | Genuine Used Part

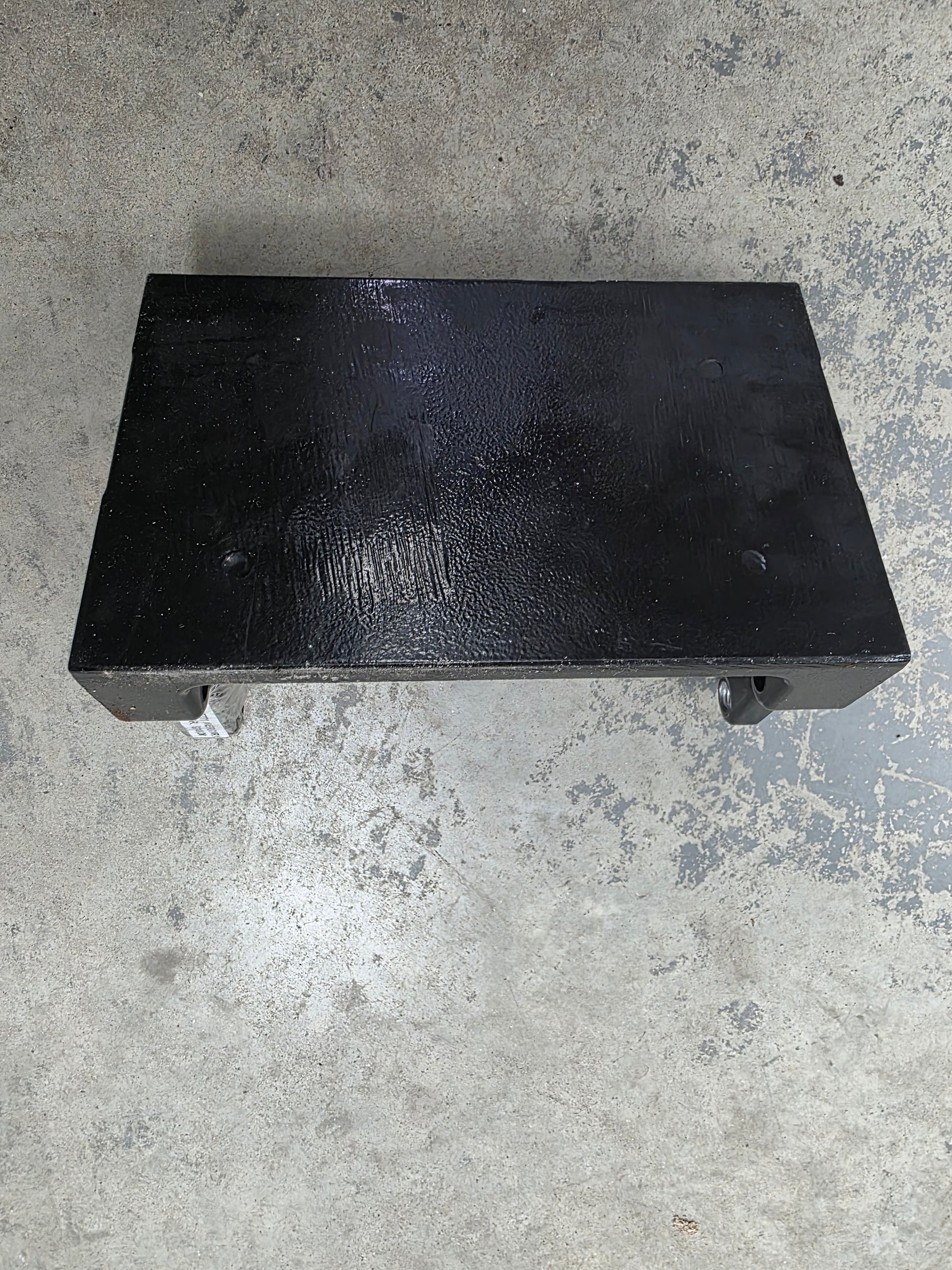

  • 8M0086406 81877T1 Mercury Bracket Anchor | Genuine Used Part - photo 2 of 3

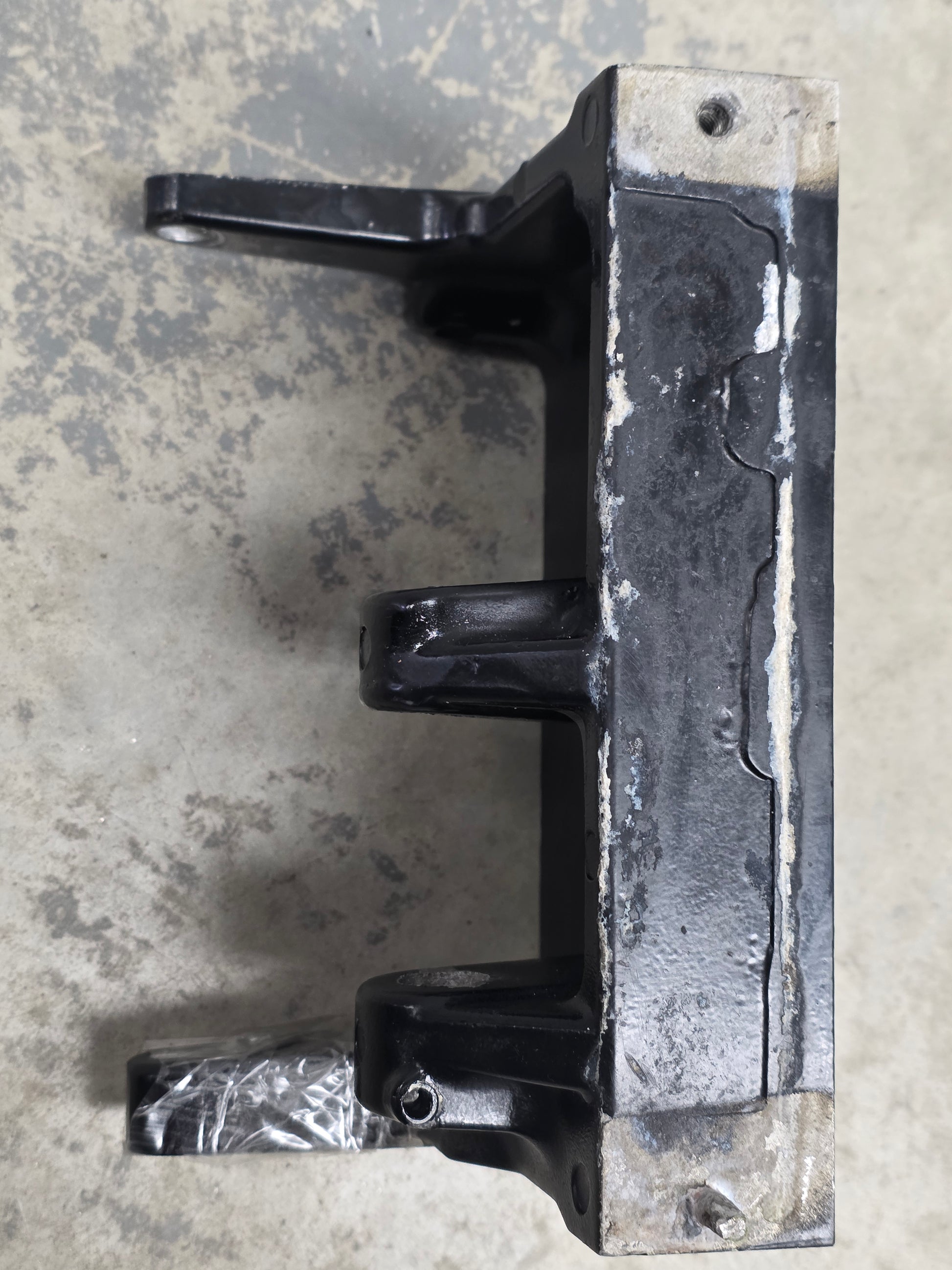

  • 8M0086406 81877T1 Mercury Bracket Anchor | Genuine Used Part - photo 3 of 3
1 3

8M0086406 81877T1 Mercury Bracket Anchor | Genuine Used Part

8M0086406 81877T1 Mercury Bracket Anchor | Genuine Used Part

🔥 50% off all Used Parts - Limited Time 🔥

$120.00 AUD
$240.00 AUD $120.00 AUD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

✓ Authorised Volvo Penta Dealer · Genuine used marine parts · Ships Australia-wide

🔧 Product Description

Genuine Mercury Transom-Bracket Anchor Bracket - Part Numbers: 8M0086406 & 818771T1

A genuine used Mercury Marine anchor bracket fitted within selected outboard transom-bracket assemblies.

The submitted reference 81877T1 is missing a digit; the verified earlier OEM number is 818771T1. The current 8M0086406 bracket supersedes this and earlier Force-number versions.

⚙️ Key Features

  • Genuine used Mercury transom-bracket component
  • Current OEM part number 8M0086406
  • Corrected earlier number 818771T1
  • Factory description: Bracket, Anchor
  • Used across multiple three-cylinder and four-cylinder outboard families

🚤 Compatibility

Current-production applications include

  • 65 Jet four-stroke: 2B095049 and above
  • 75 EFI four-stroke: 2B095049 and above
  • 80 EFI and 80 Jet four-stroke: 2B095049 and above
  • 90 EFI four-stroke: 2B095049 and above
  • 100 EFI four-stroke: 2B095049 and above
  • 115 EFI four-stroke: 2B095049 and above

Legacy Mercury / Mariner applications include

  • 65 Jet: 0D283222-0G760299, 9793577-0P016999, 0G760300-0T979999, 0P017000-0P325499 and later groups
  • 75 three-cylinder: 0C222000-0D283221, 9589039-9793576, 0D283222-0G760299, 9793577-0P016999 and later groups
  • 80 Jet and 90 three-cylinder engines using the same transom-bracket family
  • 100, 115 and 125 four-cylinder two-strokes across 0A / 0B / 0C / 0D / 0G and 0P serial families
  • Later 1.5L three-cylinder 75, 80 Jet, 90, 115, 115 Pro XS and 125 model groups
  • Fitment Note: Confirm the transom-bracket casting and serial number because the part spans several engine generations

🔌 Function

The anchor bracket supports and locates the associated transom-bracket hardware used in the steering, tilt and mounting assembly.

⚠️ Common Signs of Failure

  • Bracket is cracked or distorted
  • Anchor or pivot hardware becomes loose
  • Steering or tilt movement develops excessive play
  • Mounting holes are elongated
  • Corrosion weakens the bracket
  • Transom-bracket alignment is incorrect
  • Retaining hardware no longer seats securely

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 8M0086406 → Supersedes 818771T1
  • 818771T1 → Related to earlier 818771T and Force 818771F1
  • Submitted 81877T1 corrected to 818771T1

OEM / Related Numbers

  • 8M0086406
  • 818771T1
  • 818771T
  • 818771F1
  • Related transom bracket, tilt tube, swivel bracket and steering hardware
  • Related anchor pin, washers and retaining fasteners

Aftermarket / Verified Equivalents

  • No aftermarket equivalent

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
