8M0095310 Aftermarket Mercruiser Digital Trim Sender for Alpha & Bravo Drives | Sawley's Select Marine Parts

🔧 Product Description

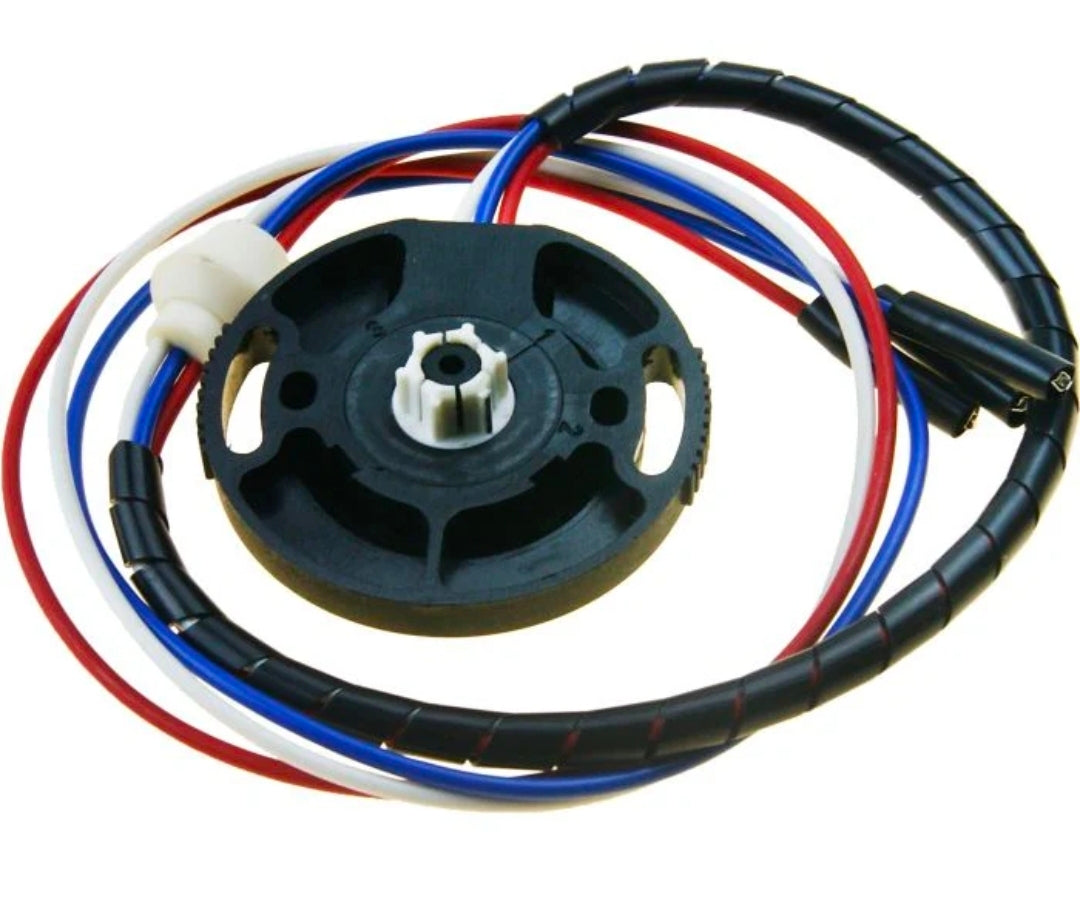

Aftermarket MerCruiser Three-Wire Digital Trim Sender - Part Number: 8M0095310

Three-wire digital trim-sender assembly for SmartCraft/DTS MerCruiser Alpha and Bravo transom systems. It replaces the earlier half-circle-grommet sender 863187A1 with revised wire colours and grommet design.

⚙️ Key Features

• Three-wire digital trim sender

• Circular-grommet service design

• Supports SmartCraft, DTS and Axius-compatible systems

• Used on Alpha and Bravo drives from the specified transom serial break

• Revised wire colours must be matched by function, not colour alone

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 8M0095310 → Supersedes 863187A1

• 863187A1 → Supersedes/relates to 863187

OEM / Related Numbers:

• 8M0095310

• 863187A1

• 863187

• 8M0107462 related service reference

• REC8M0095310

Aftermarket / Verified Equivalents:

• Recmar: REC8M0095310

• Aftermarket SmartCraft/DTS three-wire sender assemblies

🚤 Compatibility

Commonly used on:

• MerCruiser digital sterndrive trim systems

Typically suits:

• Engine / drive models:

• Alpha drives with compatible digital transom system

• Bravo One, Bravo Two and Bravo Three

• DTS and Axius installations

• 4.5 L V6 Alpha/Bravo, 8.2 L and Mercury Diesel packages where specified

• Bravo transom serial 2A417474 and later on documented applications

• HP Range: Drive/engine package dependent

• Engine / Drive Type: Three-wire digital sterndrive trim-position sender

• Year Range: Approximately 2010s onward

• Serial / Identification Range: Confirm digital three-wire system and transom serial. When replacing 863187A1: old green/purple/black functions correspond to new red/white/blue as specified by the service instructions.

🔌 Function

Reports sterndrive angle to SmartCraft/DTS controls and displays, supporting trim indication and configured trim limits.

Common signs of failure or replacement requirement:

• Digital trim value is frozen or erratic

• SmartCraft trim fault

• Incorrect trailer/trim limit behaviour

• Damaged transom lead or grommet

• Water intrusion at the sender or connector

📦 Condition

• Brand-new aftermarket replacement part

• Supplied as a new replacement component

• Supplied in suitable retail or equivalent packaging
