8M0095310 Mercury MerCruiser Trim Sensor Assembly Genuine Mercury | Genuine Quicksilver OEM Part

🔧 Product Description

Genuine Quicksilver Digital SmartCraft Trim Sensor Assembly - Part Number: 8M0095310

A genuine Quicksilver digital trim-position sender for selected Mercury MerCruiser SmartCraft, DTS, Axius, Racing and diesel sterndrive systems.

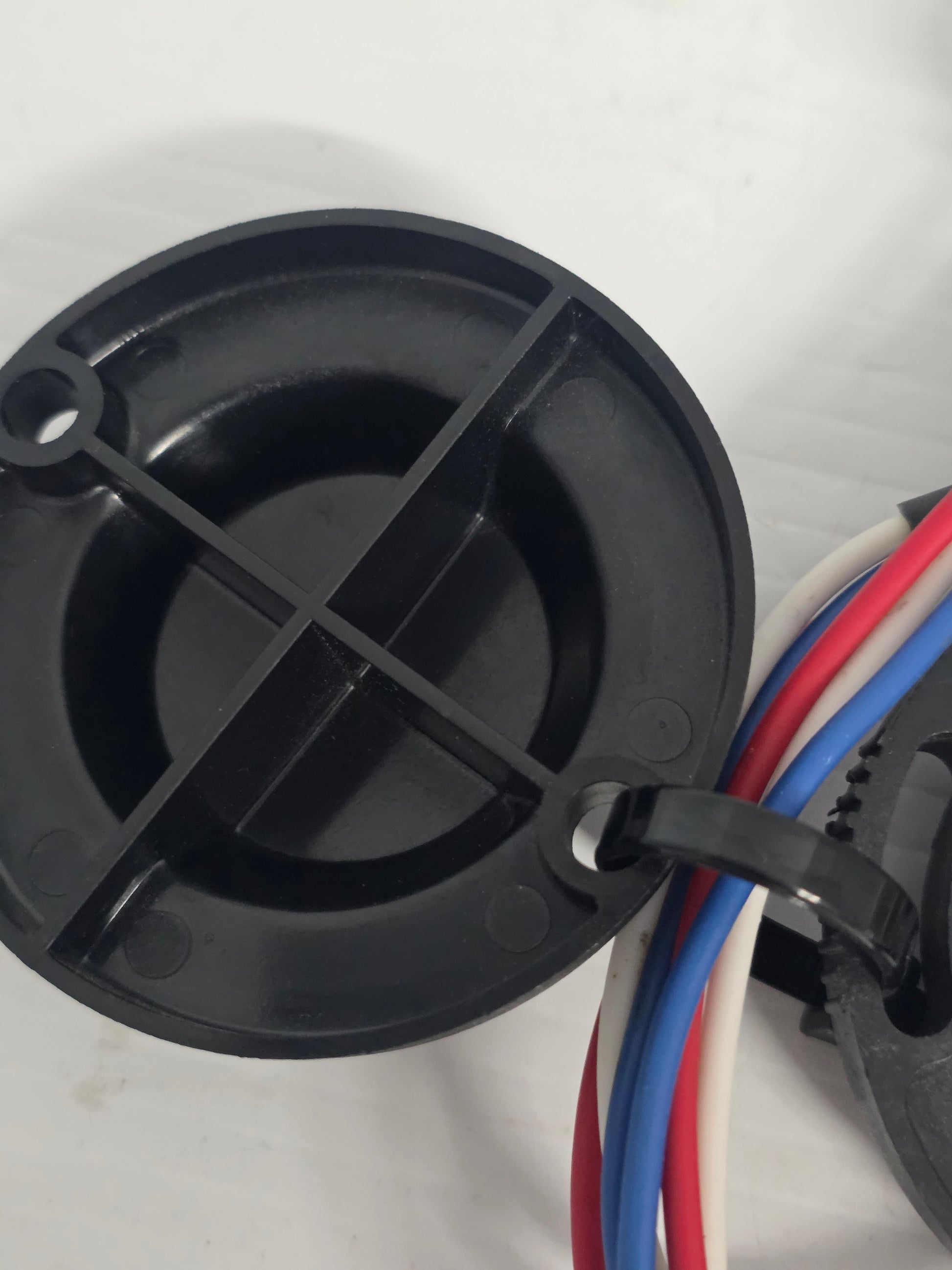

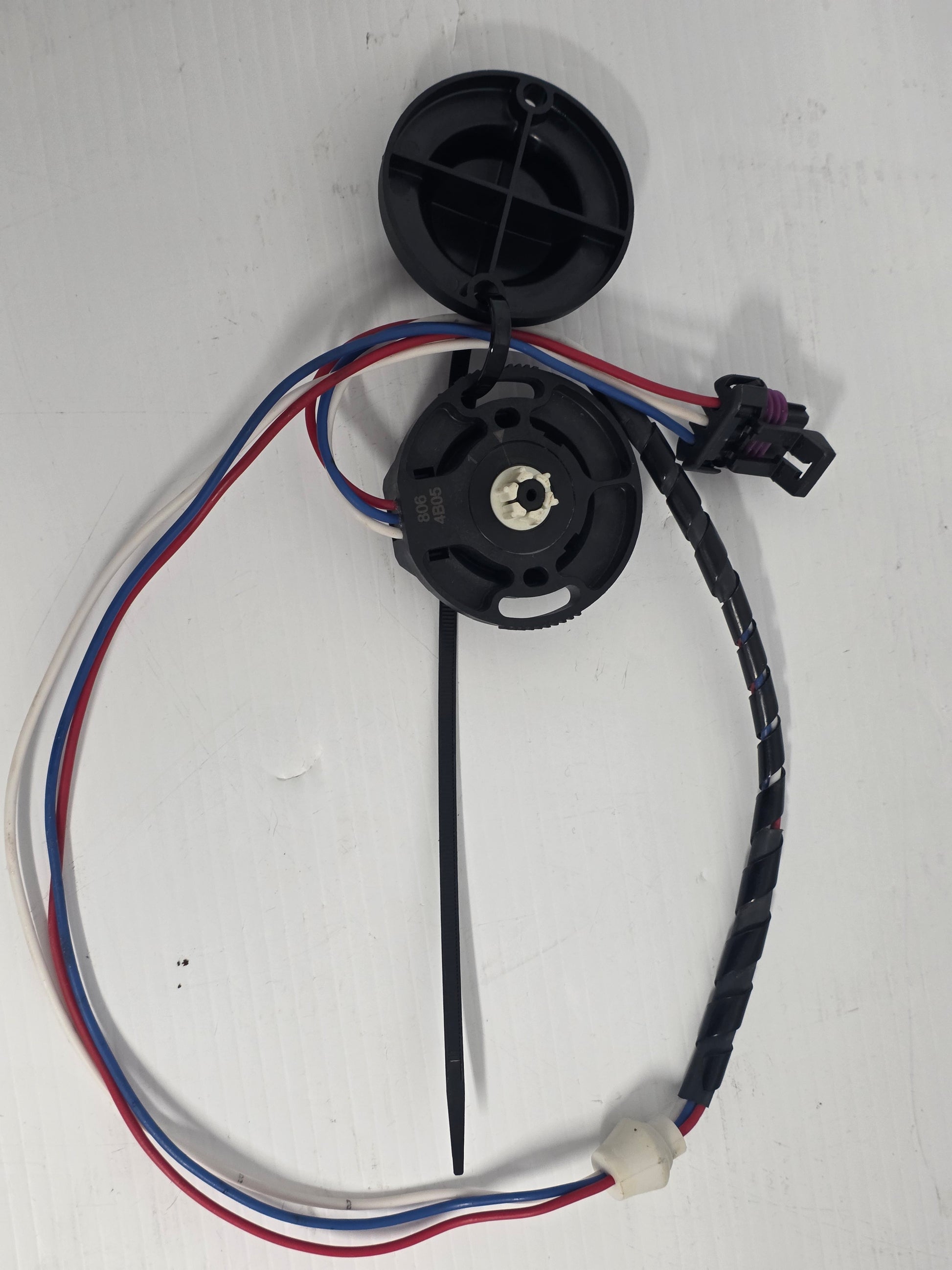

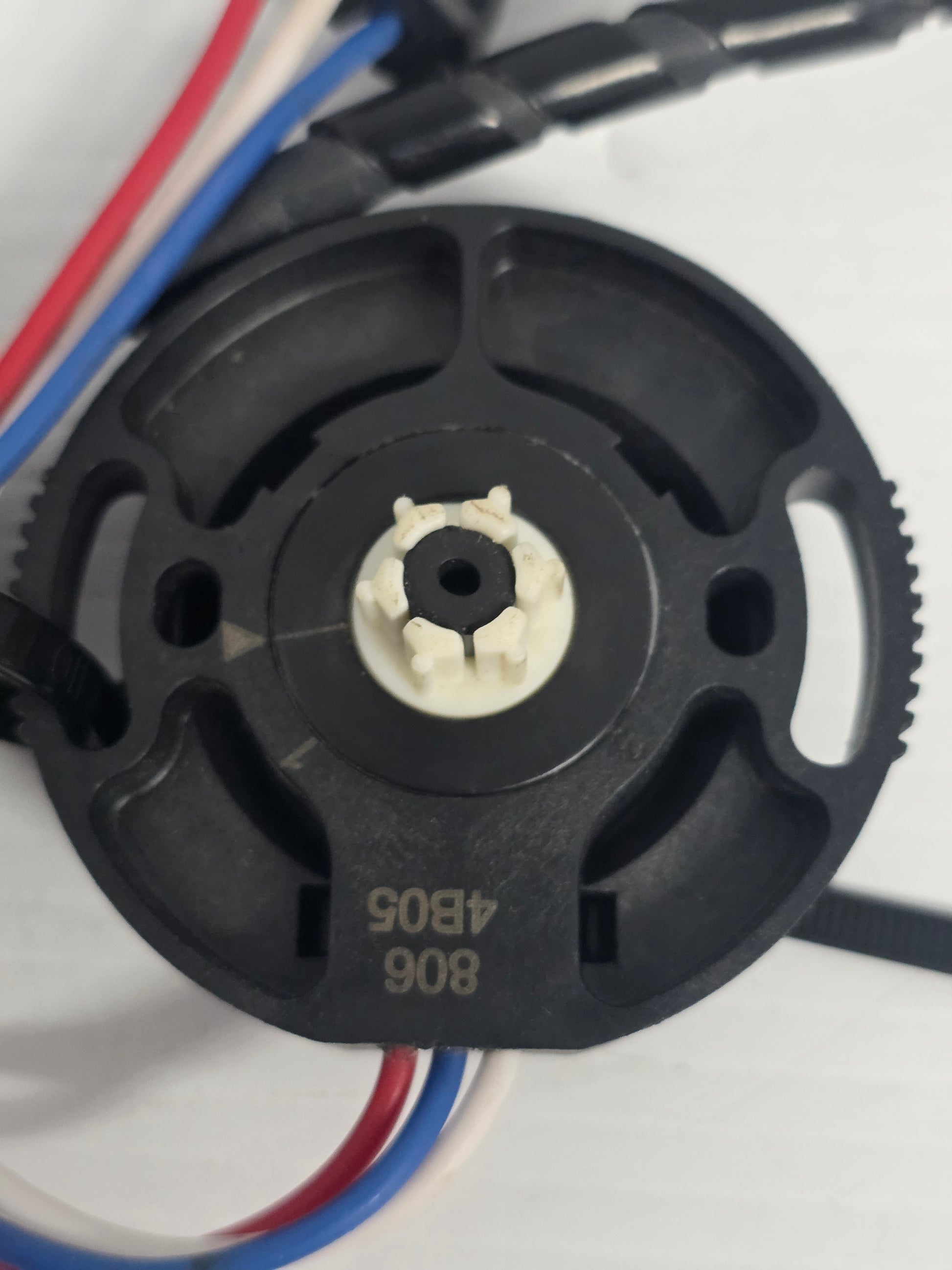

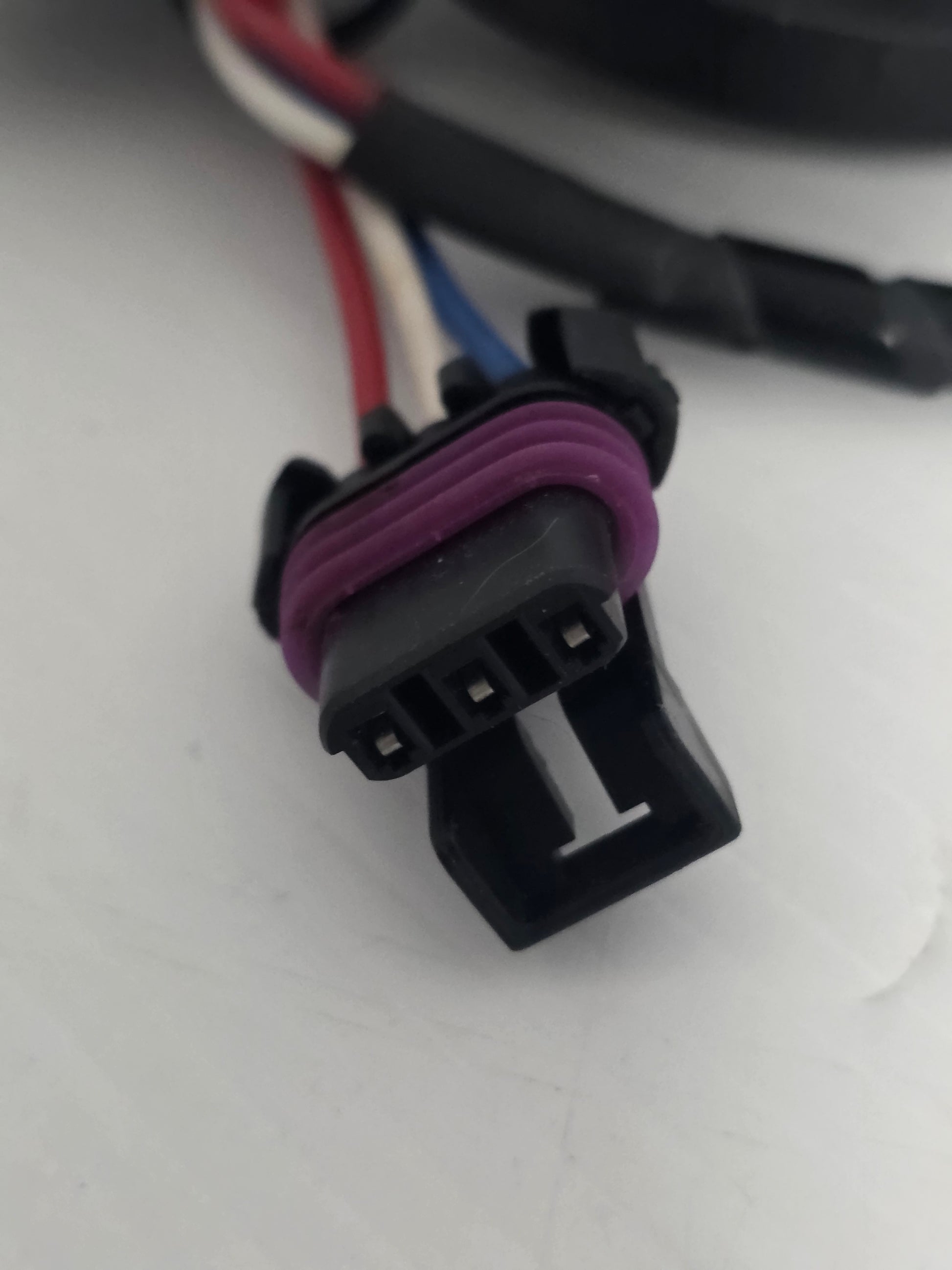

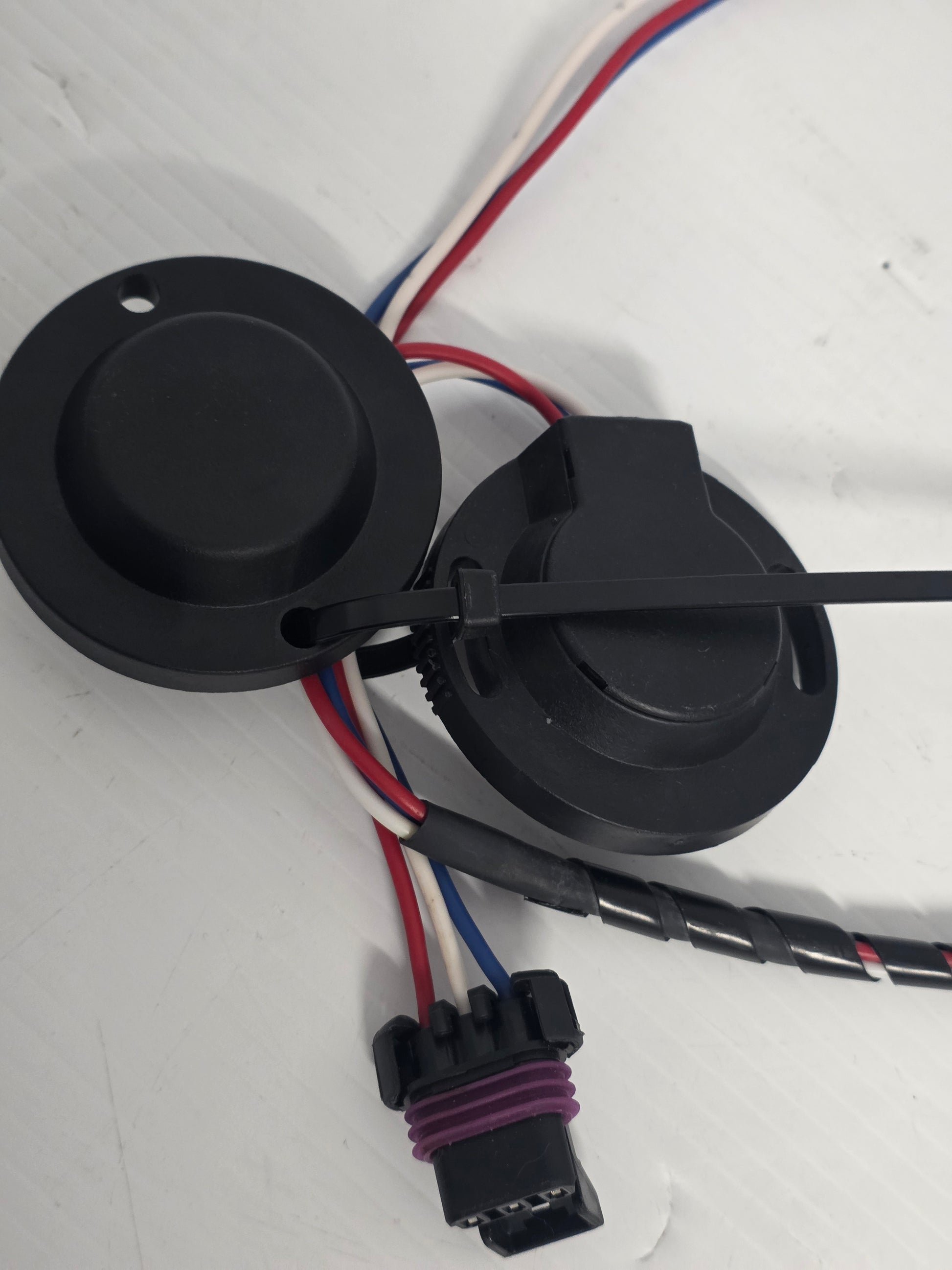

The waterproof sender monitors sterndrive trim position and transmits the information to the engine-control and SmartCraft instrumentation systems. The assembly includes the trim sensor, connector, wiring, retaining clamp and protective cover.

⚙️ Key Features

• Genuine Quicksilver OEM digital trim sender

• Correct Mercury part number 8M0095310

• Epoxy-encapsulated and sealed against water entry

• Compatible with SmartCraft and digital trim-gauge systems

• Complete sensor, wiring, connector, clamp and cover assembly

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 8M0095310 current OEM digital trim-sender reference

OEM / Related Numbers:

• 8M0095310

• 84-8M0095310

• Digital SmartCraft trim sender

• Three-wire digital trim-position sender

Aftermarket / Verified Equivalents:

• Recmar: REC8M0095310

• Marine Petrol Parts: REC8M0095310

🚤 Compatibility

Commonly used on:

• MerCruiser SmartCraft, DTS and Axius sterndrive systems

• Digital trim-gauge installations that do not require an analog sender

Typically suits:

• Drive / engine models:

• MerCruiser DTS petrol sterndrive engines

• MerCruiser 496 MAG and 496 MAG HO

• MerCruiser 8.2L MPI and 8.2L MAG engines not using analog trim gauges

• MerCruiser PCM 112 4.5L V6 engines

• MerCruiser PCM 112 6.2L V8 engines

• MerCruiser Axius-equipped sterndrive packages

• Mercury Racing sterndrive engines - 2003 and later

• MerCruiser diesel SmartCraft engines using software version 2.2 or 2.5

• Alpha One Gen II digital-sender applications - approximately 1998 and later

• Bravo One, Bravo Two and Bravo Three applications from applicable later digital-system serial groups

• Drive Type: MerCruiser Alpha One Gen II, Bravo One, Bravo Two, Bravo Three and Racing

• System Type: Digital SmartCraft trim-position sensing

• Year Range: Approximately 1998 onward, dependent on engine-management and gauge configuration

🔌 Function

The sender converts sterndrive trim movement into an electrical position signal used by SmartCraft gauges, engine-control modules and compatible vessel-control systems.

Common signs of failure:

• Trim position is missing from the SmartCraft display

• Displayed trim position does not match the drive angle

• Trim reading jumps or changes intermittently

• Trim-related fault message or diagnostic code

• Water-damaged wiring or broken sender housing

📦 Condition

• Genuine Quicksilver part

• Brand new

• Supplied in original or equivalent packaging
