8M0123821 Mercury Coil 2&3 | Genuine Used Part

8M0123821 Mercury Coil 2&3 | Genuine Used Part

$225.00 AUD
$225.00 AUD
Sale Sold out
Shipping calculated at checkout.

Out of stock

✓ Authorised Volvo Penta Dealer · Genuine used marine parts · Ships Australia-wide

🔧 Product Description

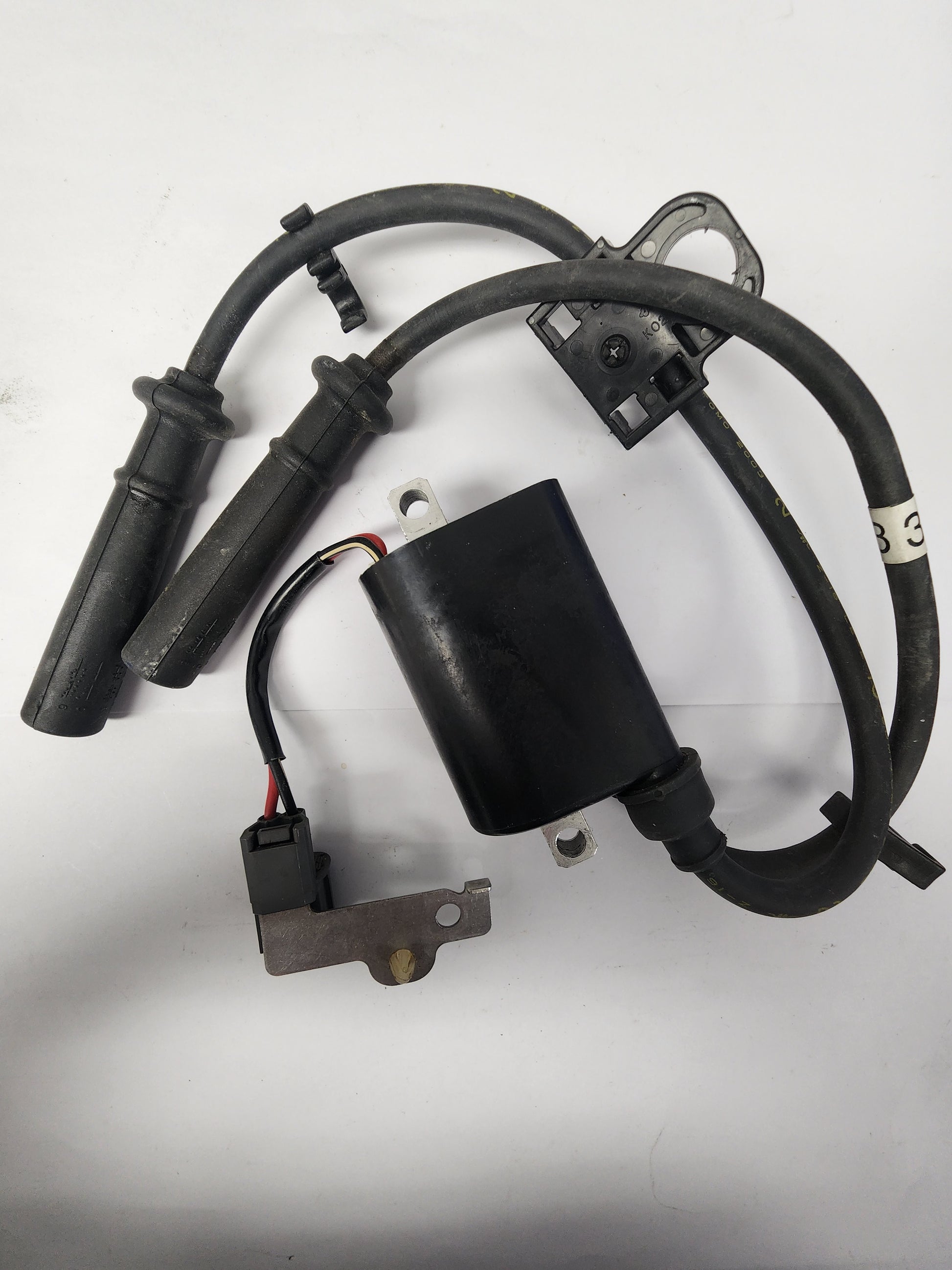

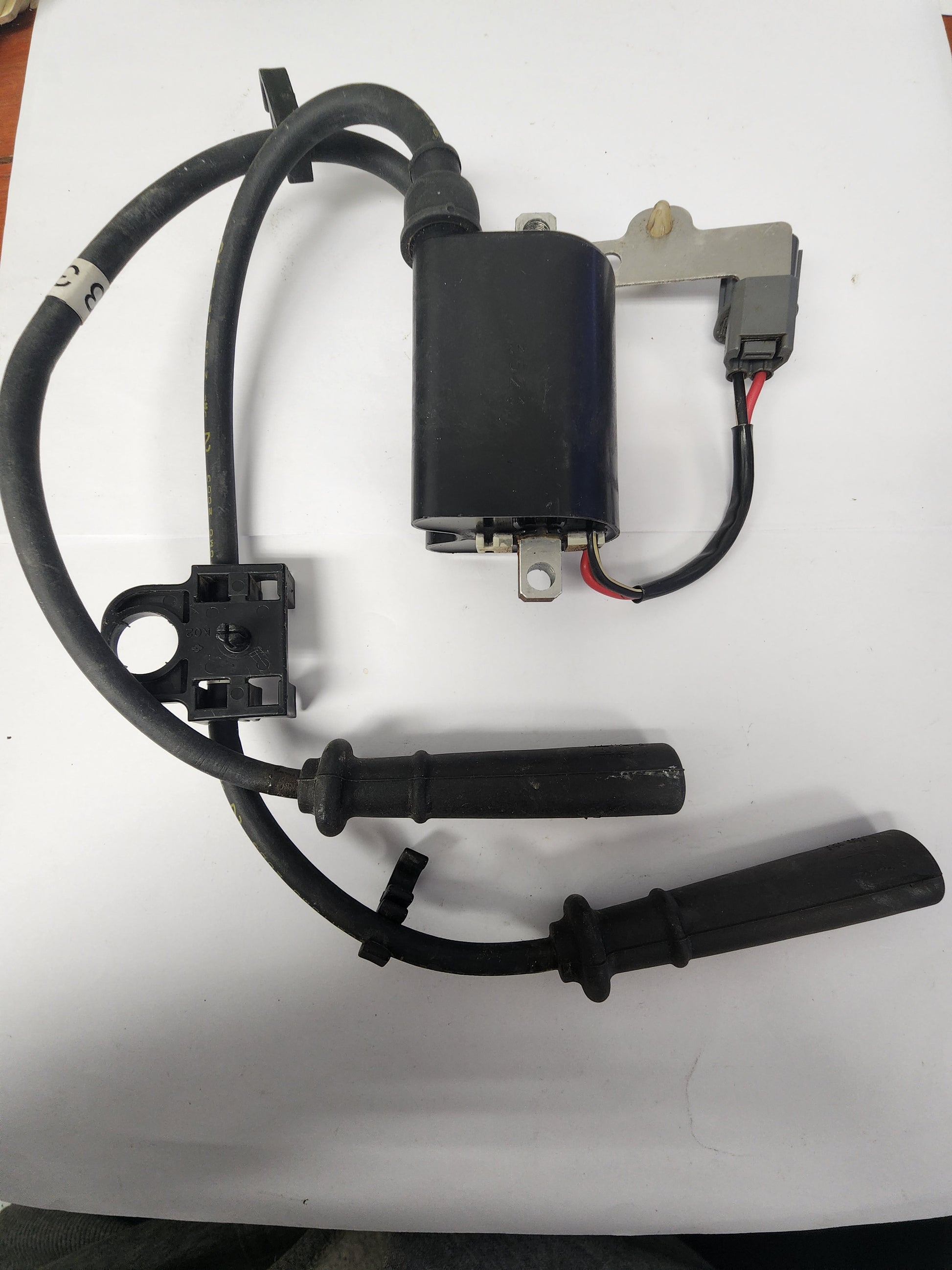

Genuine Mercury Ignition Coil - Part Number: 8M0123821

A genuine Mercury ignition coil used on selected Yamaha-based Mercury / Mariner four-stroke outboards. This coil is commonly identified as the coil for cylinders 2 and 3 in compatible 115HP four-stroke ignition systems and is part of the 880893T10 / 8M0123821 supersession family.

⚙️ Key Features

  • Genuine Mercury ignition coil
  • Correct Mercury part number 8M0123821
  • Replaces earlier 880893T10 ignition coil reference
  • Commonly used for cylinder 2 and cylinder 3 positions
  • Cross-references with Yamaha 68V / 69J ignition coil family

🚤 Compatibility

Commonly used on

  • Mercury / Mariner Yamaha-based four-stroke ignition systems

Typically suits

  • Engine models:
  • Mercury 115 EFI FourStroke - 2001
  • Mercury 115 EFI FourStroke - 2002
  • Mercury 115 EFI FourStroke - 2003
  • Mercury 115 EFI FourStroke - 2004
  • Mercury 115 EFI FourStroke - 2005
  • Mercury 115 EFI FourStroke - 2006
  • Mercury 225HP 4-stroke EFI applications using shared Yamaha-based coil family
  • Yamaha F115 / LF115 ignition systems using 68V coil family
  • Yamaha F200 / F225 4-stroke ignition systems using related 68V / 69J coil family
  • HP Range: commonly 115HP - 225HP shared Mercury / Yamaha four-stroke coil family
  • Engine Type: Mercury / Yamaha-based EFI four-stroke outboard
  • Year Range: approximately 2001 - 2006 for core Mercury 115 EFI FourStroke applications, with broader Yamaha-family use through 2015 where specified
  • Serial Note: Match by cylinder position, coil number, engine serial number and connector style.

🔌 Function

The ignition coil converts ECU-triggered low-voltage input into high-voltage spark output for the assigned cylinders.

⚠️ Common Signs of Failure

  • Misfire on cylinder 2 or 3
  • Weak or no spark
  • Engine runs rough under load
  • Coil fault follows when swapped between cylinders
  • Hard starting after plug replacement
  • ECU ignition fault code
  • Cracked, swollen or corroded coil body

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 8M0123821 → Supersedes 880893T10
  • 880893T10 earlier Mercury ignition coil reference

OEM / Related Numbers

  • 8M0123821
  • 339-8M0123821
  • 880893T10
  • 339-880893T10
  • 888309 related coil reference
  • Yamaha: 68V-82310-00-00
  • Yamaha: 68V-82310-01-00
  • Yamaha: 69J-82310-00-00

Aftermarket / Verified Equivalents

  • WSM: 380-5122
  • Aftermarket Mercury / Yamaha coil replacements for 880893T10
  • Aftermarket Yamaha / Mercury F115 / F200 / F225 coil replacements

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
